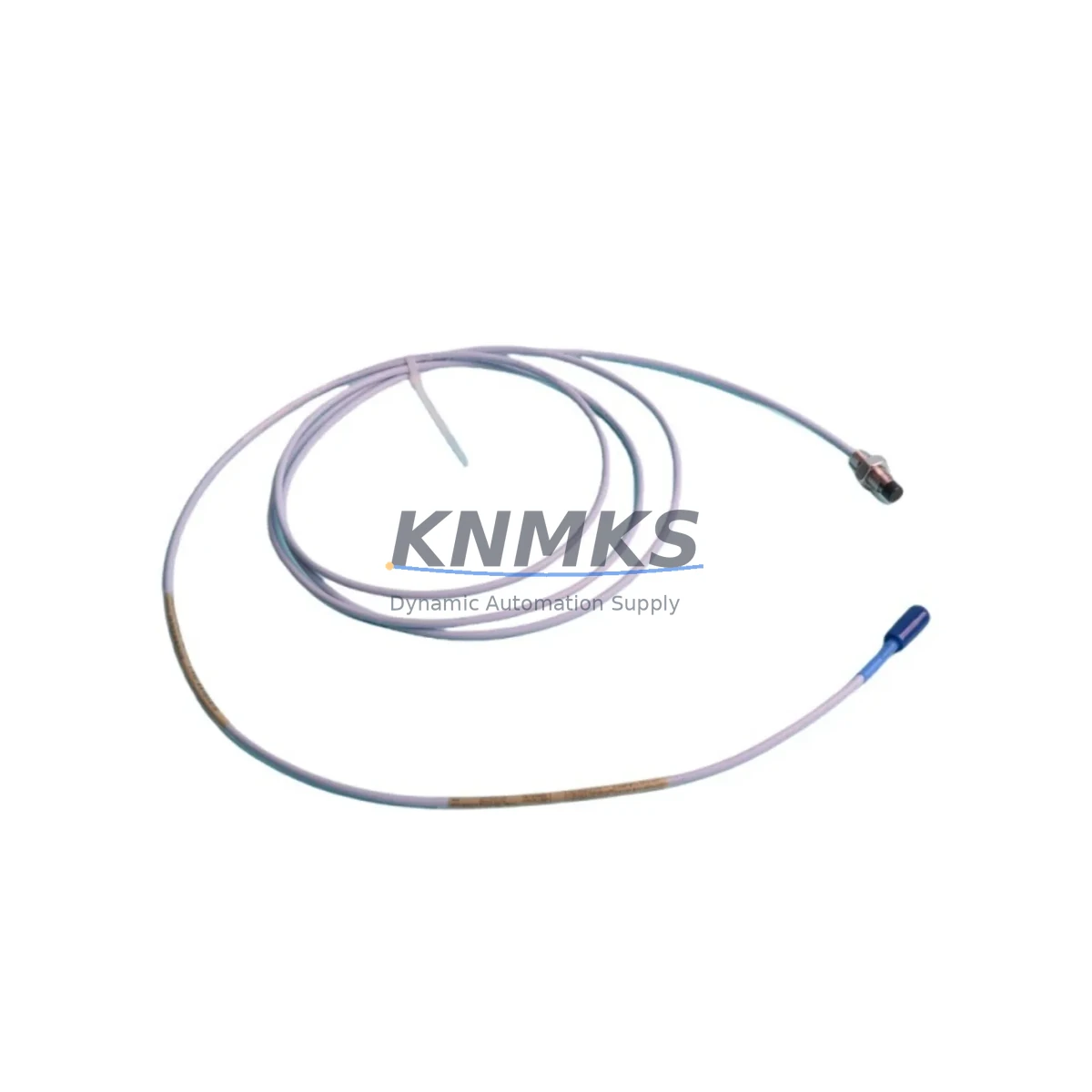

Bently Nevada 330101-08-20-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-08-20-10-02-00 is an 8mm eddy-current proximity probe designed for the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada systems approach end-of-life and OEM support windows close, this probe remains one of the most critical components in rotor dynamics measurement, shaft displacement monitoring, and machinery protection systems across oil & gas, power generation, and heavy industrial applications. KNMKS maintains verified stock of this SKU to support planned retrofits, emergency replacements, and long-term spare parts programs.

When replacing the 330101-08-20-10-02-00 in an existing installation, engineers must confirm several parameters before proceeding. The probe cable length is 8mm with a 5-metre extension cable, and the overall system gap voltage must be re-verified at the proximitor/driver unit — typically the 3300/16-05-01-00 proximitor — to ensure the output signal falls within the –10 VDC to –18 VDC linear range. Terminal wiring at the junction box should be inspected for shield continuity, and the barrier or Zener barrier (if installed in a hazardous area loop) must be rated for the probe’s input impedance. Any deviation in cable routing or conduit length from the original installation will affect the system gap calibration and must be corrected during commissioning.

For facilities migrating from older 3300 Series hardware to the current 3500 Series machinery protection platform, the 330101-08-20-10-02-00 probe is mechanically and electrically compatible with 3500/42M and 3500/44M proximity I/O modules when used with the appropriate 3500 series proximitor. This makes it a practical bridge component during phased migrations where the probe and extension cable are retained while the rack, I/O cards, and communication modules are upgraded. The 3500 Series rack accepts standard Bently Nevada probe inputs, and no re-cabling of the probe tip or armored extension is required if the original installation geometry is preserved.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-08-20-10-02-00 begins with a full audit of the existing measurement chain. The probe tip, armored extension cable, and proximitor driver form a matched system — replacing only the probe without verifying the extension cable condition and proximitor output is a common source of post-installation signal errors. In most 3300 XL installations, the proximitor is mounted in a field junction box or directly on the machinery skid, and its power supply input (typically 24 VDC from a dedicated instrument power rail) must be confirmed stable before the new probe is energized.

For control cabinets integrating the 3300 XL system with a DCS or safety PLC, the 4–20 mA output from the proximitor feeds directly into analog input cards. If the migration plan includes upgrading the control rack to a 3500 Series platform, the 3500/20 rack power supply module and 3500/01 rack interface module must be installed and configured before the I/O cards are addressed. The 3500/42M proximity monitor card accepts the same probe input and provides enhanced diagnostics, including OK relay outputs and Keyphasor reference inputs, which are valuable for machinery protection upgrades.

Where the existing installation includes a Bently Nevada 3300/55 temperature monitor or 3300/46M position monitor in the same rack, these modules can typically be retained during a partial migration, reducing the scope of the upgrade and minimizing the number of field terminations that must be disturbed. Signal isolators or galvanic isolators installed between the proximitor output and the DCS analog input card should be tested for loop integrity after the probe replacement, as any change in probe impedance can shift the 4–20 mA zero and span calibration. Programming changes in the DCS or safety controller are generally not required for a like-for-like probe replacement, but alarm setpoints and trip thresholds should be re-confirmed against the machinery OEM’s vibration limits.

For facilities using a Bently Nevada System 1 condition monitoring software platform, the probe replacement does not require changes to the System 1 database configuration, provided the measurement point tag, transducer type, and sensitivity factor remain unchanged. If the installation involves a Keyphasor probe — such as the 330180-51-05 — in the same measurement loop, the Keyphasor signal should be verified independently after the proximity probe replacement to confirm that the once-per-revolution reference pulse is clean and correctly phased.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all components before the maintenance window opens. The replacement 330101-08-20-10-02-00 probe should be bench-tested against a known-good proximitor driver to confirm the gap voltage output is within specification before the unit is taken to the field. This pre-shipment functional test is part of KNMKS’s standard outgoing quality check and is documented with each unit.

During the replacement, the original probe tip should be removed carefully to avoid disturbing the armored extension cable termination at the junction box. If the extension cable shows signs of insulation damage, moisture ingress, or connector corrosion, it should be replaced simultaneously — a 330130-045-00-00 or equivalent armored extension cable is the appropriate companion component. The proximitor driver should remain powered during the probe swap if the process safety plan permits, allowing the OK relay status to be monitored continuously and confirming signal restoration immediately after the new probe is installed and gapped.

Once the probe is installed and gapped to the manufacturer’s recommended air gap (typically 1.0 mm for an 8mm probe on a steel target), the gap voltage should be measured at the proximitor output terminals and confirmed within the –10 VDC to –18 VDC linear range. The DCS or safety PLC analog input reading should then be compared against the proximitor output to verify loop integrity. If the system includes a Bently Nevada 3500 rack with a 3500/42M card, the card’s front-panel LED indicators and the System 1 software alarm status should both be checked before the machine is returned to service. Total field time for a planned replacement on an accessible probe location is typically 2–4 hours, including gap verification and loop check.

Retrofit Support FAQ

Q: Is the 330101-08-20-10-02-00 a direct replacement for the original Bently Nevada part?
A: Yes. KNMKS supplies this SKU as a verified replacement for the original Bently Nevada 330101-08-20-10-02-00 proximity probe. The probe meets the original dimensional, electrical, and sensitivity specifications and is compatible with all 3300 XL series proximitor drivers and extension cables.

Q: What commissioning steps are required after installation?
A: After mechanical installation, the air gap must be set to the target specification (typically 1.0 mm for an 8mm probe on a steel shaft). Gap voltage must be measured at the proximitor output and confirmed within the linear range. Shield continuity and loop integrity should be verified at the DCS or safety PLC analog input. If a Zener barrier or galvanic isolator is in the loop, its output should also be checked.

Q: Can this probe be used in a 3500 Series rack migration?
A: Yes. The 330101-08-20-10-02-00 probe is compatible with 3500 Series I/O modules (3500/42M, 3500/44M) when used with the appropriate 3500 Series proximitor driver. This allows the probe and extension cable to be retained during a rack upgrade, reducing field wiring changes and migration risk.

Q: What are the stock availability and support terms terms?
A: KNMKS maintains ready stock of the 330101-08-20-10-02-00 for immediate shipment. Each unit undergoes pre-shipment functional testing and is covered by a support terms confirmed by quotation from the date of shipment. For volume orders or long-term spare parts programs, contact our sales team for availability confirmation and lead time.
