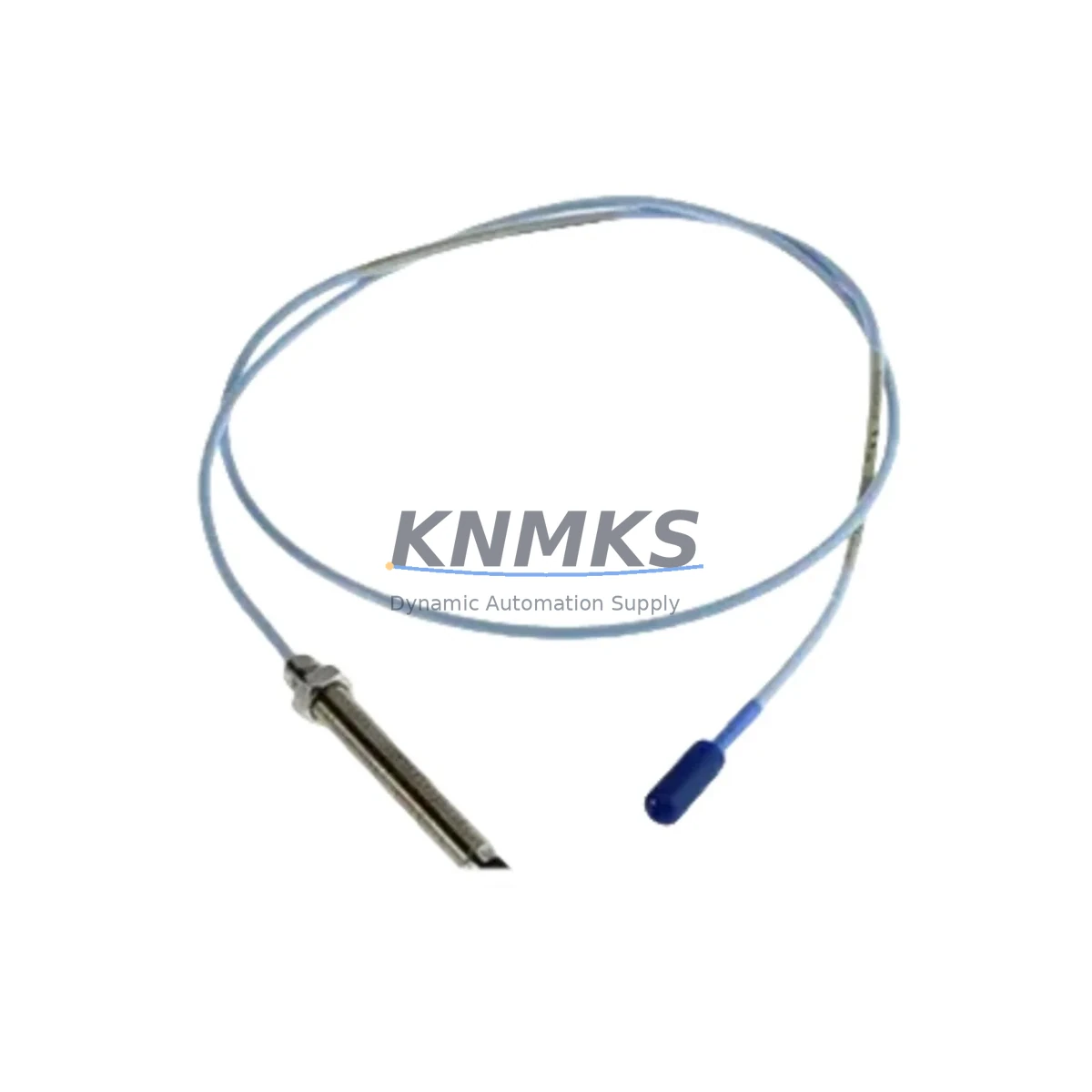

Bently Nevada 330101-02-32-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-02-32-10-02-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-02-32-10-02-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to operate reliably within safety instrumented systems (SIS), critical interlock loops, and high-availability rotating machinery protection circuits, this probe delivers the measurement precision and environmental resilience required to prevent unplanned shutdowns, protect capital assets, and maintain personnel safety across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In high-stakes industrial operations — where a single sensor failure can cascade into a full-unit trip, a missed interlock, or a catastrophic mechanical event — the 330101-02-32-10-02-05 provides the signal integrity and structural durability that maintenance engineers and reliability teams depend on. Its eddy-current sensing principle is inherently immune to contamination from oil mist, process dust, and condensation, making it the preferred choice for turbine bearing housings, compressor shaft monitoring, pump seal gap measurement, and gearbox radial displacement detection in environments where optical or contact-based sensors would rapidly degrade.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330101-02-32-10-02-05 as part of a complete 3300 XL monitoring chain requires careful attention to the full signal path and cabinet-level protection architecture. The probe itself is only one element of a coordinated safety system. In a properly configured rotating machinery protection cabinet, the probe connects via a matched Bently Nevada 330130 Series Extension Cable — selected to match the probe’s integral cable length and maintain system calibration — to a Bently Nevada 330180 Series Proximitor Sensor, which conditions the raw eddy-current signal into a usable DC voltage output for the monitoring system.

Within the control cabinet, the Proximitor output feeds into a Bently Nevada 3500 Series Rack or equivalent machinery protection system, where dedicated I/O modules process vibration, position, and speed signals against configurable alarm and trip setpoints. To protect the entire signal chain from power-side disturbances — including voltage spikes, brownouts, and high-frequency conducted noise common in heavy industrial environments — a Bently Nevada 3500/15 Power Supply Module or an equivalent isolated DC/DC converter should be installed within the rack. In facilities with high electromagnetic interference from variable frequency drives (VFDs), large motor starters, or arc furnace operations, supplementary EMI filtering modules and proper cable segregation between signal and power runs are essential to prevent signal drift and false trips.

For applications requiring redundant monitoring — such as API 670-compliant turbine protection systems — dual-probe configurations using a second 330101 Series probe on the opposing measurement axis, combined with a Bently Nevada 3500/42M Position Monitor, provide the voting logic and cross-channel validation needed to eliminate nuisance trips while maintaining true fail-safe response to genuine shaft excursions. In high-dust or high-humidity environments such as cement plants, coastal power stations, or underground mining operations, all cabinet penetrations should be sealed and the probe cable routing should include stainless steel conduit or armored cable trays to prevent insulation degradation and ground loop formation that could corrupt the low-level DC output signal.

Critical Industrial Safety Applications

The 330101-02-32-10-02-05 is deployed across a broad spectrum of critical industrial applications where continuous, uninterrupted machinery monitoring is a non-negotiable operational requirement.

In petrochemical and refinery operations, this probe monitors radial shaft vibration on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors — machinery whose unplanned failure can trigger process upsets, flare events, or safety system activations. The probe’s resistance to hydrocarbon vapors, process heat, and high-humidity atmospheres makes it suitable for installation in Zone 1 and Zone 2 classified areas when paired with appropriate intrinsically safe barriers or Zener barriers in the signal circuit.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 330101-02-32-10-02-05 provides the bearing proximity measurement that feeds turbine protection systems with the real-time shaft position data needed to execute automatic rundown sequences before catastrophic bearing failure occurs. Steam turbine operators rely on this class of probe to detect rotor bow during startup, monitor differential expansion during load transients, and confirm safe shaft centerline position before synchronization.

In mining and mineral processing environments, where ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps operate under extreme mechanical loading and high ambient dust concentrations, the IP67-rated construction and armored cable of the 330101-02-32-10-02-05 provide the physical robustness needed to survive years of continuous service without signal degradation. Early detection of bearing wear through proximity trend monitoring allows maintenance teams to schedule planned replacements during scheduled shutdowns rather than responding to emergency failures.

In water and wastewater treatment facilities, metallurgical plants, port crane and ship-loader drives, and marine propulsion systems, the same fail-safe monitoring principles apply: continuous shaft position and vibration data from a reliable, tested proximity probe is the foundation of any effective predictive maintenance and machinery protection program.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-02-32-10-02-05?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional deviations from published specifications under normal operating conditions. If the probe fails to meet its specified output linearity or develops an open-circuit or short-circuit fault within the confirmed support period, we will provide a replacement unit at no charge. The confirmed support period begins from the date of shipment from our warehouse.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-02-32-10-02-05 unit undergoes full functional verification prior to dispatch, including output voltage linearity testing across the specified sensing range, cable continuity and insulation resistance checks, and connector integrity inspection. Units that do not meet Bently Nevada’s published performance specifications are quarantined and not shipped. A test record is available upon request for quality-critical applications.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL system installations?
Yes. The 330101-02-32-10-02-05 is fully compatible with the Bently Nevada 3300 XL system architecture, including 330130 Series extension cables and 330180 Series Proximitor Sensors. It maintains the same physical dimensions, connector type, and output characteristics as the original factory specification, making it a direct, back-to-back replacement for installed units without requiring system recalibration — provided the target material and gap setting remain unchanged.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated regional stock of the 330101-02-32-10-02-05 and related 3300 XL Series components to support blanket-order and scheduled-release spare parts programs for facilities with critical machinery protection requirements. For operations requiring guaranteed availability windows of 12–36 months, we recommend establishing a standing stock agreement to eliminate lead-time risk from market allocation constraints or manufacturer discontinuation events. Contact our sales team to discuss program terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-02-32-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-02-32-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
