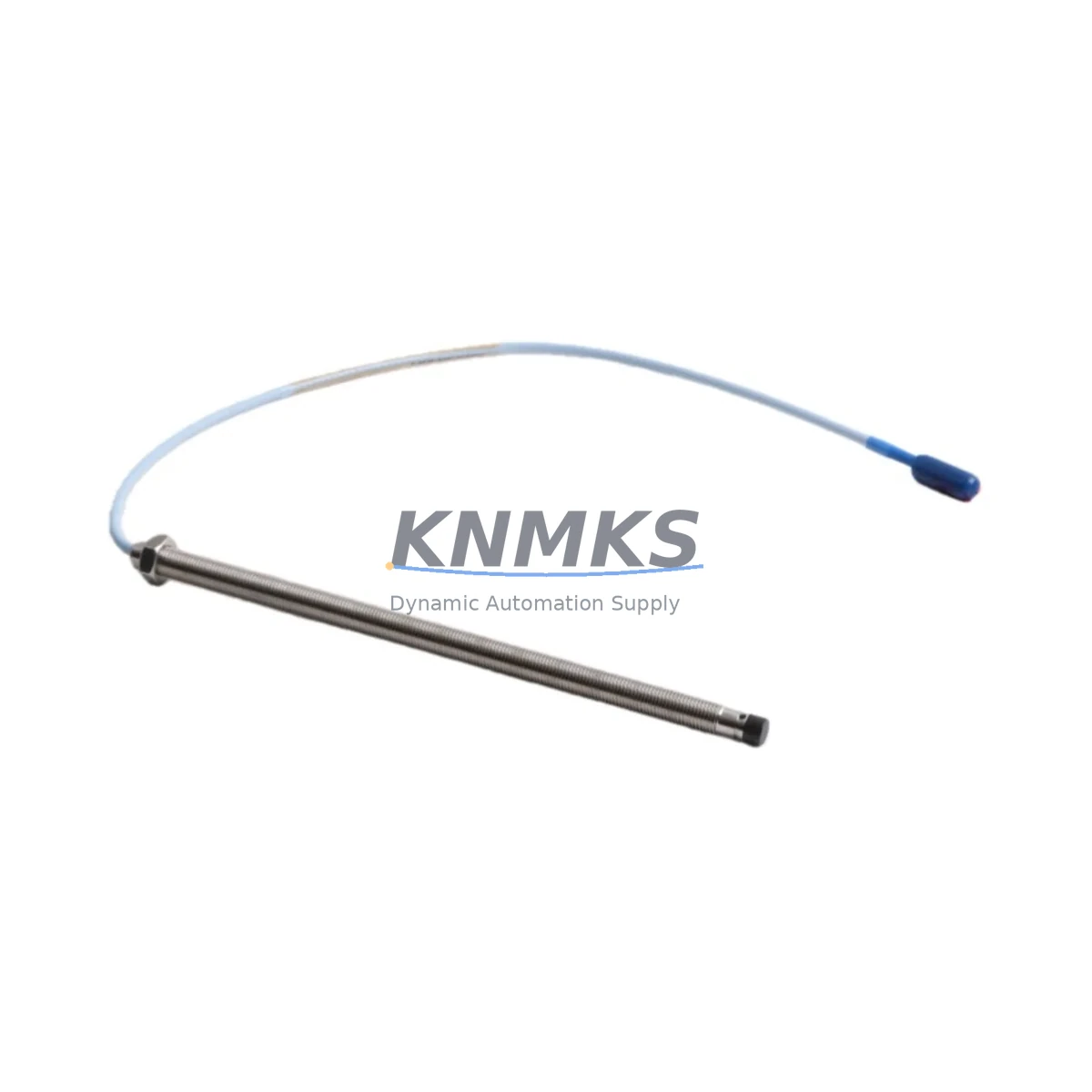

Bently Nevada 330101-02-12-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-02-12-10-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330101-02-12-10-02-00 is an 8mm eddy-current proximity probe from the renowned 3300 XL Series, engineered specifically for fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to deliver continuous, high-accuracy shaft displacement measurements, this probe is a cornerstone component in critical machinery protection systems where unplanned downtime, signal drift, or measurement failure is simply not acceptable.

In continuous production facilities — including petrochemical refineries, power generation plants, steel mills, and offshore platforms — the integrity of rotating machinery monitoring directly determines operational safety. The 330101-02-12-10-02-00 probe operates on the proven eddy-current (non-contact) sensing principle, eliminating mechanical wear and ensuring long-term measurement stability even under severe shaft runout, high-speed rotation, and thermally induced dimensional changes. Its robust stainless steel housing and oil-resistant cable construction provide reliable performance in environments subject to lubricant contamination, high humidity, and aggressive chemical exposure.

Signal integrity is maintained across the full operating range through the probe’s tightly controlled sensitivity specification of 7.87 V/mm (200 mV/mil), ensuring that the paired Bently Nevada 3300 XL 8mm Extension Cable and 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 series) receive a clean, drift-free signal. This is critical in high electromagnetic interference (EMI) environments — such as those near large motor drives, arc furnaces, or high-voltage switchgear — where signal noise can trigger spurious alarms or, worse, mask genuine fault conditions.

Within a well-engineered control cabinet, the 330101-02-12-10-02-00 integrates seamlessly with Bently Nevada 3500 Series Machinery Protection System rack modules, including the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface. These rack-mounted monitors provide the relay output logic for automatic machine trip and alarm functions, forming a complete safety interlock loop. Surge protection at the cabinet entry point — using dedicated transient voltage suppressors compatible with the 3300 XL signal range — further safeguards the measurement chain from lightning-induced or switching transients that could corrupt vibration data or damage front-end electronics.

For installations in dusty, wet, or high-vibration environments such as mining conveyors, cement mills, or marine propulsion systems, the probe’s IP67-rated connector and armored cable options ensure ingress protection and mechanical resilience. The non-contact measurement principle also eliminates the risk of probe-to-shaft contact damage during rotor excursions, a common failure mode with contact-type sensors in high-vibration machinery.

Thermal stability is another key reliability factor. The 330101-02-12-10-02-00 maintains calibrated performance across an operating temperature range of -35°C to +121°C (-31°F to +250°F), making it suitable for hot gas compressor trains, steam turbine bearing housings, and other high-temperature rotating equipment where conventional sensors would drift or fail prematurely. When used alongside a Bently Nevada 3300 XL Proximitor Sensor and properly routed extension cable, the complete measurement chain delivers the ANSI/API 670 compliance required for machinery protection in safety-instrumented systems (SIS).

Replacement and spare parts management is straightforward: the 330101-02-12-10-02-00 is a direct drop-in replacement for existing 3300 XL 8mm probe installations, requiring no recalibration of the Proximitor Sensor when the correct cable length and gap setting are maintained. KNMKS maintains verified stock of this probe with full pre-shipment functional testing, ensuring that every unit shipped meets the original Bently Nevada factory specification — a critical requirement for safety-critical spare parts programs in regulated industries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection loop built around the 330101-02-12-10-02-00 proximity probe depends on the integrity of every component in the signal chain. At the field end, the probe connects via a matched Bently Nevada 3300 XL Extension Cable (typically the 330130-040-00-00 or 330130-080-00-00 depending on installation distance) to a 3300 XL Proximitor Sensor mounted in a junction box or directly on the machinery skid. The Proximitor converts the probe’s impedance change into a calibrated DC voltage signal, which is then routed — via shielded, twisted-pair instrumentation cable — back to the control room or MCC cabinet.

Inside the cabinet, the signal terminates at a Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which provides dual-channel vibration and position monitoring with configurable alarm and trip relay outputs. Power to the Proximitor Sensor is supplied at -24 VDC, typically sourced from a dedicated Bently Nevada 3500/15 Power Supply module within the 3500 rack, ensuring clean, regulated power isolated from the main PLC or DCS power bus. This isolation is essential in environments where power quality events — voltage sags, switching transients, or ground loops — could otherwise introduce measurement errors or false trips.

For installations in hazardous areas (Zone 1 or Zone 2 classified), a Bently Nevada Zener Barrier or Galvanic Isolator is inserted in the signal path at the safe-area boundary, maintaining intrinsic safety compliance while preserving signal fidelity. Cabinet thermal management — through forced-air cooling or heat exchanger units — protects all electronics from the cumulative heat generated by multiple rack modules, ensuring that the entire protection system operates within its rated temperature envelope even in high-ambient industrial buildings.

Critical Industrial Safety Applications

The Bently Nevada 330101-02-12-10-02-00 proximity probe is deployed across a wide spectrum of critical industrial applications where machinery failure carries significant safety, environmental, and financial consequences.

In petrochemical and refinery environments, it monitors shaft vibration and radial position on centrifugal compressors, process pumps, and expander-compressor trains, providing the early warning data needed to prevent catastrophic seal failures or bearing collapses that could release hazardous process fluids. In power generation — both thermal and combined-cycle — it is a standard component on steam turbine and gas turbine bearing housings, where API 670-compliant vibration monitoring is a regulatory requirement for continuous operation.

In mining and mineral processing, the probe’s rugged construction and IP67 rating make it suitable for ball mill pinion bearings, crusher drive shafts, and slurry pump monitoring in high-dust, high-moisture environments where less robust sensors fail within months. Water and wastewater treatment facilities rely on it for large vertical pump and blower shaft monitoring, where bearing wear detection prevents unplanned outages in critical public infrastructure.

In metallurgical and steel production plants, the probe operates reliably near induction furnaces and rolling mill drives — environments with extreme EMI levels — thanks to its shielded coaxial construction. Port and marine applications include propulsion shaft monitoring on large vessels and crane hoist motor bearing surveillance, where the non-contact measurement principle eliminates maintenance access requirements in confined machinery spaces.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-02-12-10-02-00?
Every unit supplied by KNMKS carries a 12-month full functional support terms from the date of shipment. If the probe fails to meet its specified sensitivity, linearity, or operating range under normal installation conditions within this period, we will provide a replacement unit at no additional cost. Support requests are processed within 5 business days of fault confirmation.

Q2: How is each probe tested before shipment?
All 330101-02-12-10-02-00 probes undergo 100% pre-shipment functional verification, including sensitivity calibration check against the 3300 XL Proximitor Sensor, insulation resistance testing, and connector integrity inspection. A test report is available upon request for quality-critical procurement programs.

Q3: Is this probe a direct replacement for existing 3300 XL 8mm installations?
Yes. The 330101-02-12-10-02-00 is a direct, drop-in replacement for all Bently Nevada 3300 XL 8mm proximity probe installations. No recalibration of the Proximitor Sensor is required provided the same cable length and probe gap setting are maintained. It is fully compatible with the 3500 Series Machinery Protection System rack.

Q4: Can KNMKS support long-term supply commitments for this part?
Yes. KNMKS maintains ongoing inventory of the 330101-02-12-10-02-00 and can support scheduled blanket orders and long-term supply agreements for maintenance programs, turnaround planning, and critical spare parts inventories. Contact our sales team to discuss volume pricing, lead time guarantees, and consignment stock arrangements.

—
