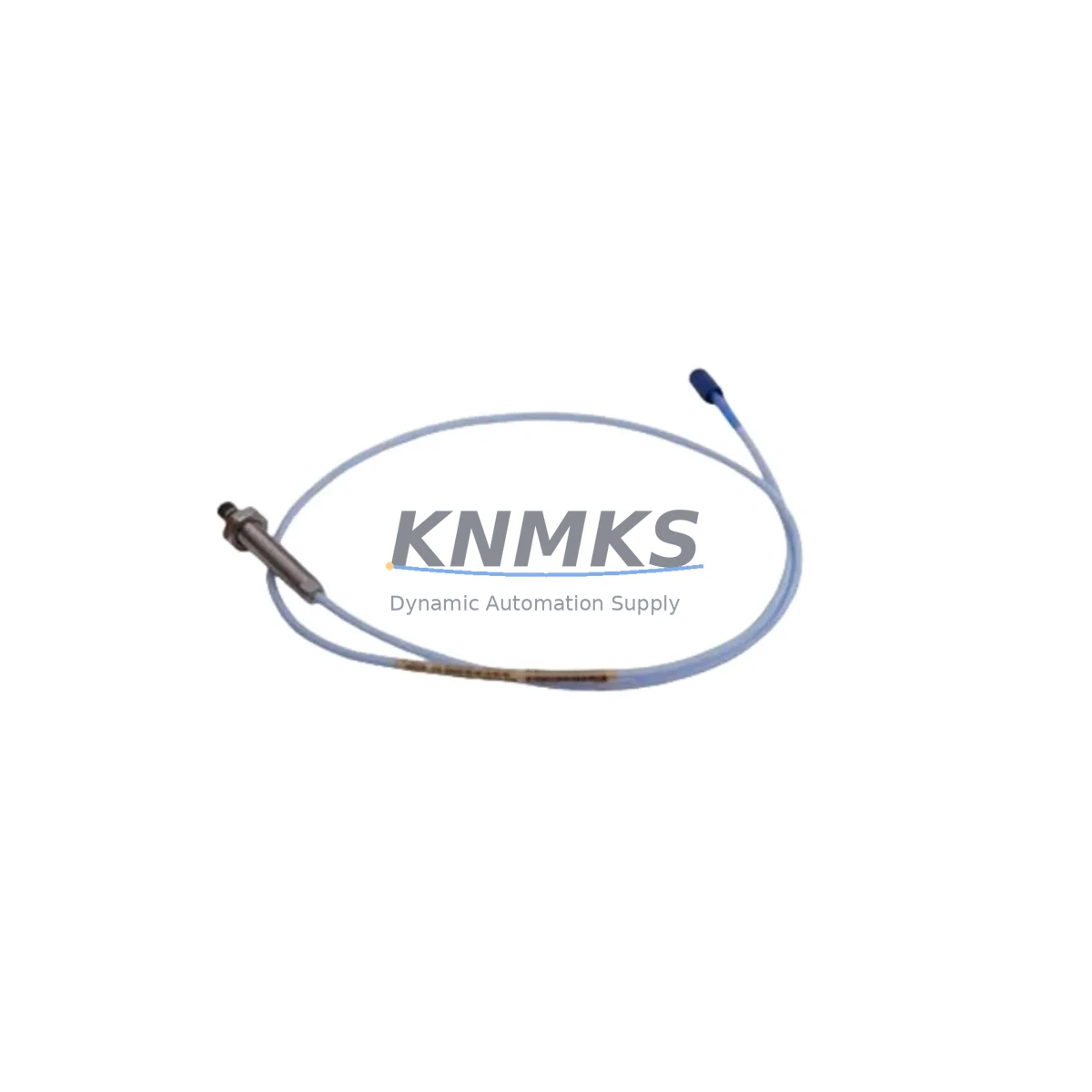

The Bently Nevada 330101-01-39-10-01-05 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the Bently Nevada 3300 XL Series condition monitoring system, this probe delivers the high-resolution, non-contact displacement measurement that maintenance engineers rely on to detect shaft imbalance, misalignment, oil whirl, and rub events before they escalate into unplanned shutdowns. Stocking this probe as a verified spare is a fundamental requirement for any facility operating turbines, compressors, pumps, gearboxes, or motors instrumented with the 3300 XL platform.

Each unit supplied by KNMKS is sourced as an original Bently Nevada component, subjected to pre-shipment electrical and sensitivity verification, and dispatched with a support terms confirmed by quotation. Our multi-region inventory ensures rapid availability for emergency replacement orders, planned turnaround outages, and annual maintenance kits — eliminating the lead-time risk that often extends machinery downtime when a probe fails unexpectedly in the field.

For maintenance planners and reliability engineers managing legacy 3300 XL installations, the 330101-01-39-10-01-05 represents a proven, drop-in replacement that preserves system calibration integrity and avoids the reconfiguration overhead associated with cross-series substitutions. Its 5-metre integral cable, -200 mV/mil (−7.87 V/mm) nominal scale factor, and standard TNC connector make it directly interchangeable with worn or damaged probes without requiring signal conditioner re-ranging or Keyphasor® reference adjustments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe failure rarely occurs in isolation. When replacing the 330101-01-39-10-01-05 during a corrective or preventive maintenance event, experienced reliability engineers treat the intervention as an opportunity to audit the entire vibration monitoring loop. The 330130 series extension cable connecting the probe to its driver is subject to the same mechanical stress, thermal cycling, and connector corrosion as the probe itself — a degraded extension cable will introduce noise and offset errors even with a new probe installed, so both components should be inspected or replaced together.

The 3300 XL 8mm driver module (330180 series) provides the oscillator/demodulator function that converts probe gap voltage into a calibrated DC output. If the replacement probe does not restore expected gap voltage within the linear range, the driver should be bench-tested or swapped before assuming a probe defect. Maintaining a spare driver in the control cabinet kit eliminates a second round-trip to the supplier if the driver is found to be the root cause.

At the rack level, verify the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) for alarm setpoint integrity and OK relay status after probe replacement. A probe swap that restores signal but leaves a latched OK relay in a faulted state can mask genuine machinery deterioration. Similarly, the Keyphasor® module (3300/25 or equivalent) should be confirmed operational if phase-referenced measurements such as 1X amplitude and phase are part of the machinery protection scheme.

For facilities running System 1 or System 1 Evolution software, the replacement event should be logged in the asset history and the probe serial number updated in the channel configuration. Where the control cabinet also houses 3500 series rack components for higher-criticality machinery, ensure that the 3300 XL and 3500 wiring segregation is maintained during the probe cable routing to avoid cross-talk or ground loop issues. Finally, inspect the terminal block and junction box connections at the machinery pedestal for corrosion, moisture ingress, and torque compliance before returning the loop to service.

Site Replacement Workflow

Replacing the 330101-01-39-10-01-05 in a live plant environment follows a structured sequence to minimise downtime and avoid inadvertent machinery protection bypass. Begin by notifying the control room and placing the affected channel in bypass mode through the 3300 XL monitor to prevent a spurious trip during probe removal. Document the existing gap voltage reading — typically between −10 VDC and −18 VDC for a correctly gapped 8mm probe — as a baseline for the new installation.

Remove the extension cable at the junction box rather than at the probe body to preserve the probe-to-extension cable factory connection if the extension cable is being reused. Install the new 330101-01-39-10-01-05, route the integral cable to the junction box, and reconnect the extension cable. With the driver powered, measure the gap voltage at the monitor input and adjust the probe axial position until the reading falls within the calibrated linear range midpoint (approximately −12 VDC for a 50 mil gap on AISI 4140 steel). Confirm the OK relay energises and the channel clears bypass before returning the machinery to normal monitored operation.

This workflow is compatible with both hot-standby and single-channel 3300 XL configurations and does not require system recalibration when replacing a like-for-like 330101-01-39-10-01-05 probe. For facilities migrating from older 3300 series (non-XL) probes, verify that the driver module is also the XL variant, as the scale factor and OK threshold differ between generations.

Spare Parts Support FAQ

Q1: Is the 330101-01-39-10-01-05 a direct replacement for older 3300 series (non-XL) proximity probes?
The 330101-01-39-10-01-05 is designed for the 3300 XL system. While the physical probe body and TNC connector are similar to earlier 3300 series probes, the XL system uses a revised scale factor and driver OK threshold. Always confirm that the installed driver module is a 3300 XL variant (330180 series) before substituting. If the existing driver is a legacy 3300 (non-XL) unit, a driver upgrade should accompany the probe replacement to maintain calibration accuracy.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-01-39-10-01-05 supplied by KNMKS undergoes electrical continuity verification, insulation resistance check, and functional gap-voltage output confirmation against a reference target before dispatch. Units that do not meet Bently Nevada specification are quarantined and not shipped. A test record is available upon request for quality-assurance documentation purposes.

Q3: How should this probe be stored as a long-term spare?
Store the probe in its original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid coiling the integral cable tighter than a 50mm bend radius. Inspect the TNC connector for oxidation annually and apply a light coat of contact protector if the spare is held for more than 12 months. KNMKS recommends rotating spare stock on a first-in, first-out basis and refreshing inventory every 24–36 months for critical machinery applications.

Q4: Can KNMKS support long-term supply for multi-site maintenance programmes?
Yes. KNMKS maintains standing inventory of the 330101-01-39-10-01-05 and related 3300 XL components across multiple stocking locations to support both emergency single-unit orders and scheduled bulk procurement for annual maintenance kits. Framework pricing and reserved-stock arrangements are available for facilities with recurring demand. Contact our technical sales team to discuss supply continuity agreements that align with your planned outage schedule and spare parts budget cycle.
