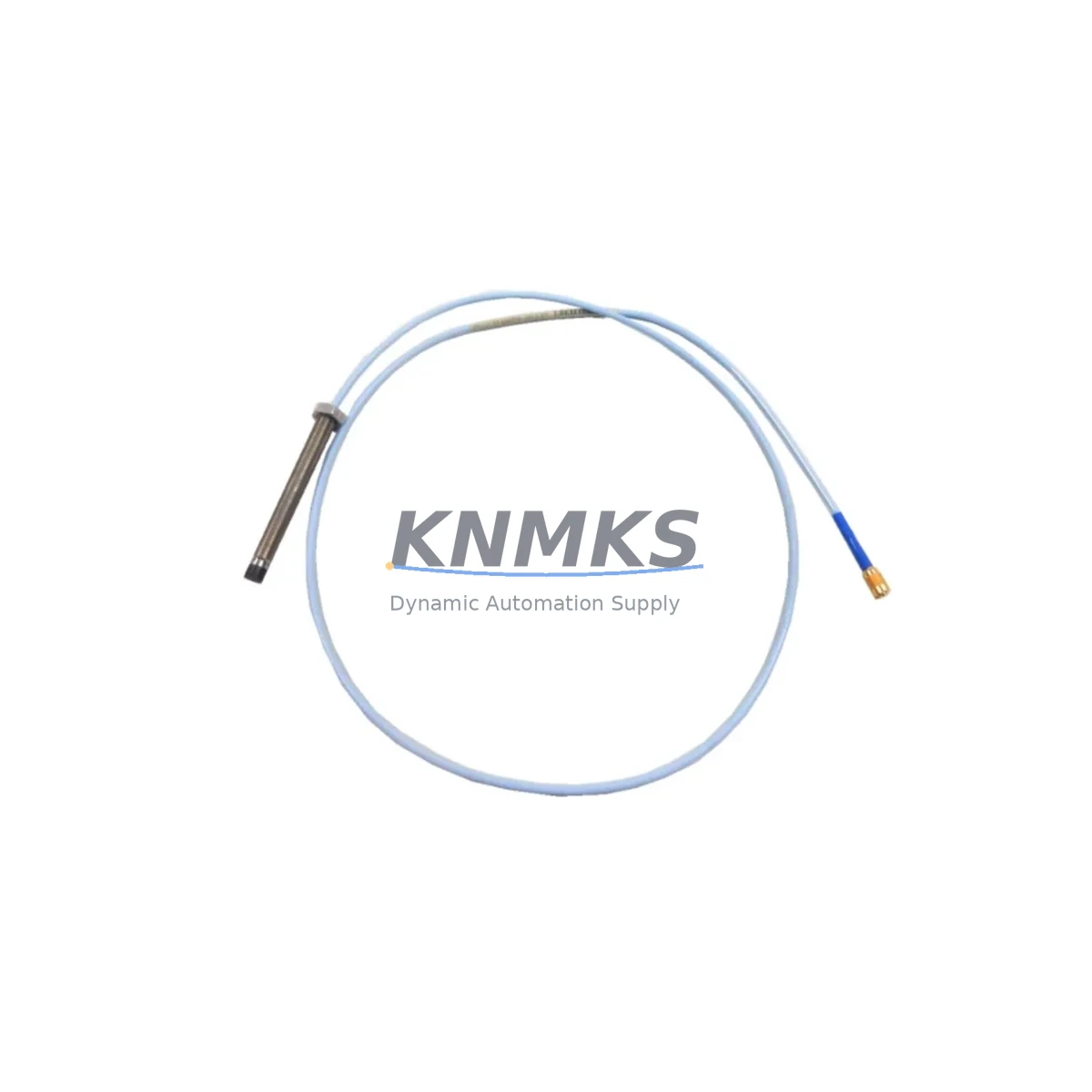

Bently Nevada 330101-01-29-10-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-01-29-10-01-05 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330101-01-29-10-01-05 is a high-precision eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably within critical machinery protection systems, this probe delivers stable, drift-free output signals that form the backbone of rotating equipment safety loops in petrochemical plants, power generation facilities, mining operations, and heavy manufacturing sites worldwide.

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the 330101-01-29-10-01-05 provides the measurement integrity required to sustain safe, uninterrupted operation. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent performance across extended service intervals without signal degradation. The probe integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-91-00) and the 3500 Series Machinery Protection System rack, forming a complete, certified vibration monitoring chain that meets API 670 machinery protection standards.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection in critical control cabinets demands a coordinated system of sensing, signal conditioning, and monitoring components. The 330101-01-29-10-01-05 proximity probe operates as the primary sensing element within a protection chain that typically includes the Bently Nevada 330180-91-00 Proximitor Sensor for signal conditioning, converting the raw eddy current impedance change into a calibrated DC voltage output suitable for the monitoring rack. This conditioned signal feeds directly into the Bently Nevada 3500/42M Proximitor Monitor module, which provides real-time radial vibration, axial position, and eccentricity measurements with configurable alarm and danger setpoints.

In high electromagnetic interference environments — common in variable frequency drive (VFD) cabinets, large motor control centers, and arc furnace control rooms — the probe’s shielded coaxial cable and differential signal architecture provide robust noise rejection, preventing false trips and nuisance alarms that could interrupt production. For installations requiring redundant protection, the probe pairs with the Bently Nevada 3500/20 Rack Interface Module to support dual-channel voting logic, ensuring that a single sensor fault does not cause an unwarranted machine shutdown.

Power supply stability within the control cabinet is equally critical. The 3300 XL system requires a clean, regulated DC supply, and pairing the monitoring rack with a dedicated Bently Nevada 3500/15 Power Supply Module ensures that voltage transients, surges, and brownouts do not compromise measurement accuracy or trigger spurious protective actions. In dusty, humid, or high-temperature enclosures, proper cable routing and the use of Bently Nevada armored extension cables (compatible -05 connector suffix) protect signal integrity from the probe tip to the rack input, maintaining the measurement chain’s fail-safe performance across the full service life of the installation.

Critical Industrial Safety Applications

The Bently Nevada 330101-01-29-10-01-05 is deployed across the most safety-critical rotating machinery applications in heavy industry. In petrochemical and refinery operations, it monitors shaft radial vibration and axial position on centrifugal compressors, steam turbines, and boiler feed pumps — machinery whose uncontrolled failure can result in catastrophic process upsets, fire, or toxic release. The probe’s ability to detect sub-millimeter shaft displacement changes enables early warning of bearing wear, rotor imbalance, and oil whirl instability, allowing maintenance teams to intervene before a minor anomaly escalates into a forced outage.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330101-01-29-10-01-05 provides continuous shaft monitoring on turbine-generator sets operating at speeds up to 3600 RPM. Its high-temperature probe tip rating (up to 177°C) makes it suitable for hot-section installations near turbine casings where conventional sensors would fail prematurely. Mining and mineral processing operations rely on this probe for crusher drive shaft monitoring and large slurry pump protection, where high vibration, shock loads, and abrasive dust create an exceptionally hostile sensing environment.

In water and wastewater treatment plants, the probe monitors large vertical turbine pumps and blower shafts in high-humidity, chemically aggressive atmospheres. Metallurgical and steel mill applications include continuous caster roll drive monitoring and rolling mill main drive shaft protection, where thermal cycling and electromagnetic interference from induction furnaces demand the highest levels of sensor robustness. Port and marine installations use the 3300 XL probe system on propulsion shaft lines and cargo pump turbines, where saltwater ingress resistance and vibration immunity are non-negotiable for safe vessel operation.

Safety and Quality FAQ

Q1: What support terms is provided with the Bently Nevada 330101-01-29-10-01-05?
Every unit is supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance. Support terms support includes replacement or repair, with documentation provided upon request for maintenance records and audit compliance.

Q2: What pre-shipment testing is performed on this proximity probe?
Each 330101-01-29-10-01-05 undergoes a full functional test prior to dispatch, including output linearity verification across the specified measurement range, insulation resistance check, and connector integrity inspection. Test records are available upon request to support your site acceptance procedures.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330101-01-29-10-01-05 is a direct-fit replacement for all standard 3300 XL 8 mm probe installations. It is fully compatible with the 330180-91-00 Proximitor Sensor and the 3500 Series monitoring rack without requiring recalibration when replacing a like-for-like unit on AISI 4140 steel targets.

Q4: Can long-term supply be guaranteed for critical spare parts planning?
We maintain multi-region stock of the 330101-01-29-10-01-05 to support emergency replacement and planned maintenance schedules. Orders can be fulfilled for both single-unit emergency needs and bulk spare parts programs. Contact our team at [email protected] or +86 18359268345 to confirm current availability and lead times for your facility’s maintenance plan.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-01-29-10-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-01-29-10-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
