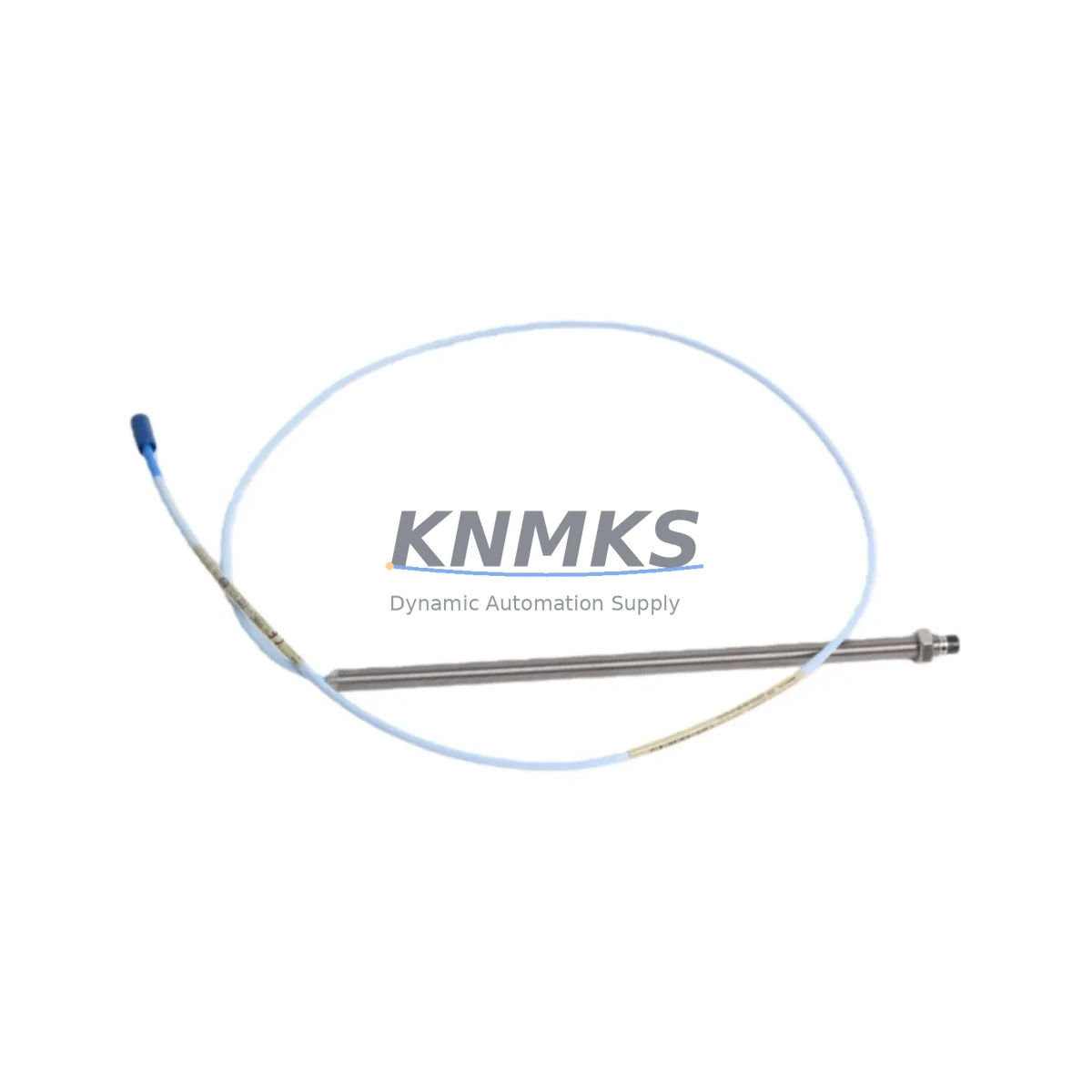

Bently Nevada 330101-00-96-20-02-CN 3300 XL Retrofit Probe

Overview

Bently Nevada 330101-00-96-20-02-CN 3300 XL Retrofit Probe: Migration-Ready Replacement for Legacy Vibration Monitoring Systems

The Bently Nevada 330101-00-96-20-02-CN is an 8mm CNEX-rated proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. As legacy Bently Nevada 3300 Series installations approach end-of-support milestones, plant engineers and reliability teams across energy, petrochemical, and rotating machinery sectors are actively planning controlled migrations to maintain system integrity without full DCS overhauls. This probe is a verified, migration-ready replacement that preserves signal chain continuity while meeting current ATEX/IECEx hazardous area requirements.

Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned retrofit across a turbine train or compressor skid, the 330101-00-96-20-02-CN integrates directly into existing 3300 XL monitor racks without requiring driver card substitution or signal conditioning recalibration — provided the extension cable and proximitor remain within the original system gap voltage specification of -18 VDC nominal.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-96-20-02-CN into a running plant requires a structured pre-installation review. Before scheduling a maintenance window, engineers should pull the existing loop drawing and confirm the proximitor model currently installed — typically a Bently Nevada 330180-X1-05 or 330180-X1-00 Proximitor — to validate that the new probe’s sensitivity curve (200 mV/mil) matches the monitor’s configured scale factor. Mismatched sensitivity between probe and proximitor is the most common source of false vibration alarms during retrofit commissioning.

Terminal block wiring at the junction box and monitor rack should be photographed and documented before any disconnection. The 3300 XL system uses a dedicated terminal strip on the monitor I/O module; re-termination errors at this point can introduce ground loops that corrupt vibration readings across the entire channel group. If the installation involves a Bently Nevada 3500 Series rack running in parallel for redundancy, confirm that the 3500/22M Transient Data Interface module is not sharing the same proximitor output — a common configuration in older turbine protection panels that requires careful signal isolation before probe swap.

For plants running Modbus RTU or PROFIBUS DP communication from the 3300 XL monitor to a Siemens S7-300 or Allen-Bradley ControlLogix PLC, no protocol migration is required at the probe level. The analog signal path from probe through proximitor to monitor remains unchanged. However, if the retrofit is part of a broader migration from the 3300 XL platform to a 3500 Series rack, the communication module — such as the Bently Nevada 3500/92 Communication Gateway — will require reconfiguration to reflect the new channel mapping and alarm setpoints imported from the legacy system archive.

Space constraints inside the control cabinet or field junction box should be assessed before ordering. The 330101-00-96-20-02-CN probe body is 8mm diameter with a standard hex body mount; the 96-inch integral cable requires adequate conduit routing space back to the junction box. In tight installations where the original probe was routed through a sealed gland, confirm the gland inner diameter accommodates the replacement cable jacket OD before committing to the installation schedule.

If the plant’s HMI — whether a Wonderware InTouch panel or a Siemens WinCC station — displays real-time vibration trend data sourced from the 3300 XL monitor, no HMI screen modifications are required for a like-for-like probe replacement. The monitor’s analog output to the DCS remains on the same terminal, and the engineering unit scaling (mils pk-pk or µm pk-pk) is preserved. Only if the monitor card itself is being replaced as part of the retrofit will HMI tag re-mapping be necessary.

Downtime Control During System Migration

Minimizing unplanned downtime during probe replacement on a live rotating machine requires a pre-staged swap kit and a clearly defined isolation procedure. Before the maintenance window opens, verify that the replacement 330101-00-96-20-02-CN has been bench-tested against a calibrated target disk to confirm the output voltage at the nominal 1.0mm gap falls within the -10.0 to -10.4 VDC acceptance band. This pre-shipment verification — which KNMKS performs on all outgoing units — eliminates the risk of installing a probe that fails its first gap check on the machine.

During the swap, the machine should be at rest with the shaft locked out. The existing probe should be removed carefully to avoid damaging the thread in the probe holder; if the holder shows corrosion or thread wear, replace it concurrently rather than risk a loose probe during restart. After installing the 330101-00-96-20-02-CN and routing the cable, perform a static gap voltage check at the proximitor output terminals before reconnecting to the monitor rack. This confirms the probe-cable-proximitor system is functioning correctly before the monitor channel is re-enabled and the machine is released for restart.

For critical machinery where continuous monitoring cannot be interrupted — such as a main steam turbine or a high-pressure compressor — a temporary bypass relay or a portable vibration analyzer connected in parallel can maintain protection coverage during the brief period when the monitor channel is offline. Document the bypass activation and deactivation times in the maintenance log to satisfy audit requirements under ISO 13373 or API 670 compliance frameworks.

Once the machine is back online, allow a 15–30 minute warm-up period before accepting the vibration baseline as the new reference. Thermal expansion of the shaft and bearing housing will shift the static gap slightly; the final gap voltage should be re-verified at operating temperature and adjusted if it falls outside the -18 VDC ±1 VDC system specification. Record the final gap voltage, probe serial number, and installation date in the equipment history file to support future predictive maintenance scheduling.

Retrofit Support FAQ

Q1: Is the 330101-00-96-20-02-CN a direct drop-in replacement for the original Bently Nevada 330101-00-96-20-02?
A: Yes, with one important distinction: the -CN suffix denotes CNEX hazardous area certification for use in China under GB/T 3836 standards, replacing the standard ATEX or FM-certified variant. Mechanically and electrically, the probe is identical — same 8mm diameter, same 96-inch cable, same 200 mV/mil sensitivity, and same 2-pin MIL-spec connector. No changes to the proximitor, extension cable, or monitor rack are required.

Q2: What commissioning checks are required after installation?
A: After mechanical installation, perform a static gap voltage check at the proximitor output (target: -10.0 to -10.4 VDC at 1.0mm gap). Reconnect to the 3300 XL monitor and verify the channel reads within the expected vibration range at machine rest (typically <1 mil pk-pk). Confirm no alarm or danger setpoints have been inadvertently reset during the channel disable/enable cycle. Log the final gap voltage and probe serial number.

Q3: Does KNMKS provide pre-shipment testing, and what does the support terms confirmed by quotation cover?
A: Yes. Every 330101-00-96-20-02-CN unit shipped by KNMKS is bench-tested against a calibrated target to verify gap voltage output and sensitivity before dispatch. The support terms confirmed by quotation cover manufacturing defects, signal output failures, and cable integrity under normal installation conditions. It does not cover damage resulting from incorrect gap setting, mechanical impact, or installation in environments outside the probe’s rated temperature and pressure specifications.

Q4: What is the typical lead time and stock availability?
A: KNMKS maintains in-stock inventory of the 330101-00-96-20-02-CN to support emergency replacement and planned retrofit schedules. Standard orders ship within 1–3 business days. For bulk retrofit projects requiring 5 or more units, contact [email protected] to confirm allocation and arrange consolidated shipment with full traceability documentation.
