Bently Nevada 330101-00-96-10-02-05 Migration-Ready Proximity Probe

Overview

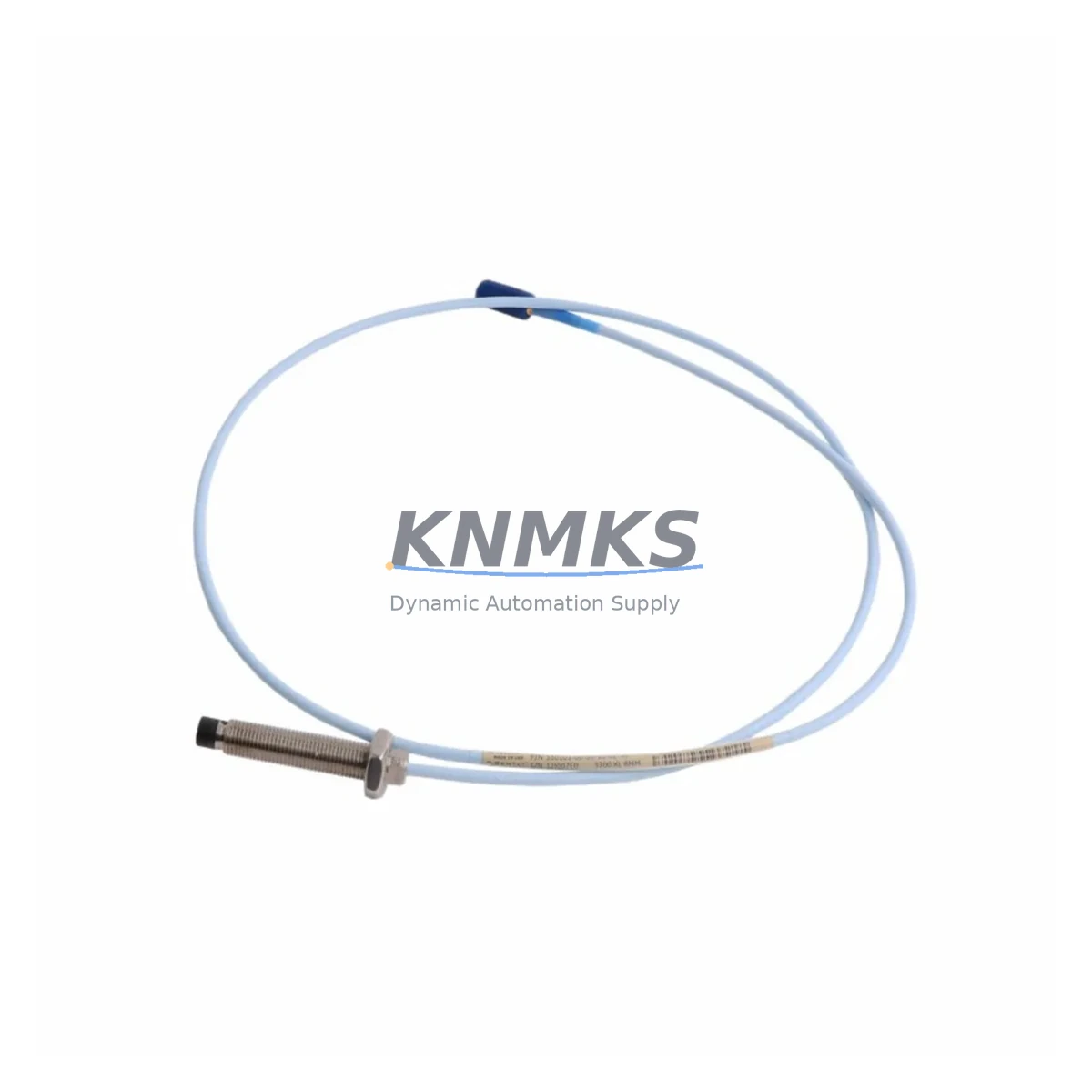

Bently Nevada 330101-00-96-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-96-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-support, engineering teams managing turbines, compressors, pumps, and gearboxes increasingly require verified drop-in replacements that preserve existing wiring, conduit routing, and monitor channel configurations without triggering a full system redesign. The 330101-00-96-10-02-05 is stocked specifically to meet this demand — pre-tested, serialized, and shipped with a support terms confirmed by quotation from KNMKS global inventory.

This probe is a direct mechanical and electrical replacement for worn, damaged, or obsolete 330101-series probes installed in 3300 XL monitor racks. It maintains the standard 5-meter (extension cable dependent) system length, -24 VDC bias voltage output, and 200 mV/mil (7.87 V/mm) sensitivity required by the 3300 XL Proximitor® sensor ecosystem. Engineers replacing probes in the field can retain the existing Bently Nevada 330130 or 330180 extension cables and the 330180 Proximitor® sensor without recalibrating the full channel — a critical advantage when minimizing planned outage windows on critical rotating assets.

During retrofit planning, teams should verify the probe tip-to-target gap (typically 50 mil / 1.27 mm for steel targets), confirm the existing conduit thread size (M10 x 1 standard), and check that the installed Proximitor® sensor firmware is compatible with the probe body length specified in this SKU variant (96 mm). Where the original installation used a 330101-00-96-10-02-05 with a 5-meter extension cable, the replacement assembly should be bench-tested against the 3300 XL monitor’s OK/Not OK relay thresholds before installation to confirm signal chain integrity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant requires more than a part swap. The 330101-00-96-10-02-05 is typically installed in machinery protection panels alongside the 3300 XL Proximitor® sensor (330180 or 330185), the 3300/16 or 3300/20 monitor module, and the associated 3300 XL power supply module. Before scheduling the outage, engineers should pull the existing loop drawing to confirm the extension cable part number — a 330130-090-00-00 (9-meter) or 330130-050-00-00 (5-meter) — and verify that the total system cable length matches the probe body length specified in the SKU. Mismatched system lengths are the most common cause of calibration drift after a probe replacement.

In control cabinets where the 3300 XL rack is mounted adjacent to a DCS I/O termination panel, teams should also confirm that the OK/Not OK relay output wiring to the DCS — often a Honeywell Experion PKS or Emerson DeltaV safety interlock input — has not been modified since the original commissioning. If the relay logic has been updated in the DCS configuration, the new probe’s gap voltage must be re-verified against the current OK threshold programmed in the 3300 XL monitor before the machine is returned to service.

For plants running older Bently Nevada 7200 Series or 3500 Series monitors in parallel with 3300 XL racks, the 330101-00-96-10-02-05 is not cross-compatible — those platforms use different Proximitor® sensor families and cable assemblies. In mixed-platform machinery protection rooms, clearly label the replacement probe and its associated extension cable to prevent installation errors during future maintenance cycles. A 3300 XL rack identification label on the conduit junction box is a low-cost safeguard that prevents costly cross-installation mistakes.

Where the retrofit scope includes upgrading the monitor module itself — for example, replacing a legacy 3300/16 with a 3300/20 or 3300/25 — the probe and extension cable assembly can typically be reused without modification, provided the system length and probe body length remain consistent. The 3300/20 and 3300/25 monitors support the same Proximitor® sensor family and accept the same analog signal chain as the 3300/16, making the 330101-00-96-10-02-05 a stable anchor point in a phased monitor upgrade strategy.

Downtime Control During System Migration

Planned outage windows for proximity probe replacement on critical rotating machinery are typically constrained to 4–8 hours, including isolation, replacement, gap setting, signal verification, and return-to-service. To protect this window, KNMKS pre-tests every 330101-00-96-10-02-05 unit against a reference Proximitor® sensor before shipment, confirming OK relay activation at the standard 50 mil gap and signal linearity across the full measurement range. This eliminates the most common source of outage extension: a probe that passes visual inspection but fails electrical verification on the bench.

Before the outage begins, engineering teams should prepare a gap-setting fixture matched to the target shaft material (steel or non-ferrous), have a calibrated voltmeter available for bias voltage confirmation, and ensure the replacement probe’s thread engagement depth matches the existing mounting bracket. If the original probe was installed with thread-locking compound, allow time for removal without damaging the mounting boss. Document the as-found gap voltage before disconnecting the original probe — this provides a baseline for verifying the replacement is installed correctly.

During the replacement, maintain continuity of the extension cable shield grounding at the Proximitor® sensor end. A broken or intermittent shield ground is a frequent source of noise on the vibration signal that can trigger nuisance trips after return to service. After the new probe is installed and gapped, power up the Proximitor® sensor and confirm the OK relay closes before reconnecting the monitor output to the DCS interlock. This staged power-up sequence protects the control system from a false trip during the commissioning step and keeps the outage window predictable.

Retrofit Support FAQ

Q: Is the 330101-00-96-10-02-05 a direct replacement for all 330101-series probes?
A: The 330101-00-96-10-02-05 is a direct replacement for probes with the same body length (96 mm) and connector type (02-05 suffix). Probes with different body lengths (e.g., 330101-00-50-10-02-05 or 330101-00-130-10-02-05) require a matching system length extension cable — confirm the full part number before ordering.

Q: Does KNMKS pre-test this probe before shipment?
A: Yes. Every unit is bench-tested against a reference Proximitor® sensor to verify OK relay activation, bias voltage output, and signal linearity. A test record is available on request. All units ship with a support terms confirmed by quotation covering manufacturing defects and signal performance.

Q: Can I reuse the existing extension cable and Proximitor® sensor?
A: In most cases, yes — provided the extension cable part number matches the probe body length and the Proximitor® sensor is from the 330180 or 330185 family. Inspect the extension cable connector and coax for damage before reuse. A damaged cable is a common source of signal noise that is often misattributed to the probe.

Q: What is the lead time and stock availability?
A: The 330101-00-96-10-02-05 is maintained in multi-region stock for immediate dispatch. Standard lead time is 3–7 business days for most destinations. Emergency same-day dispatch is available for critical outage situations — contact [email protected] or call +86 18359268345 to confirm availability and arrange expedited shipping.
