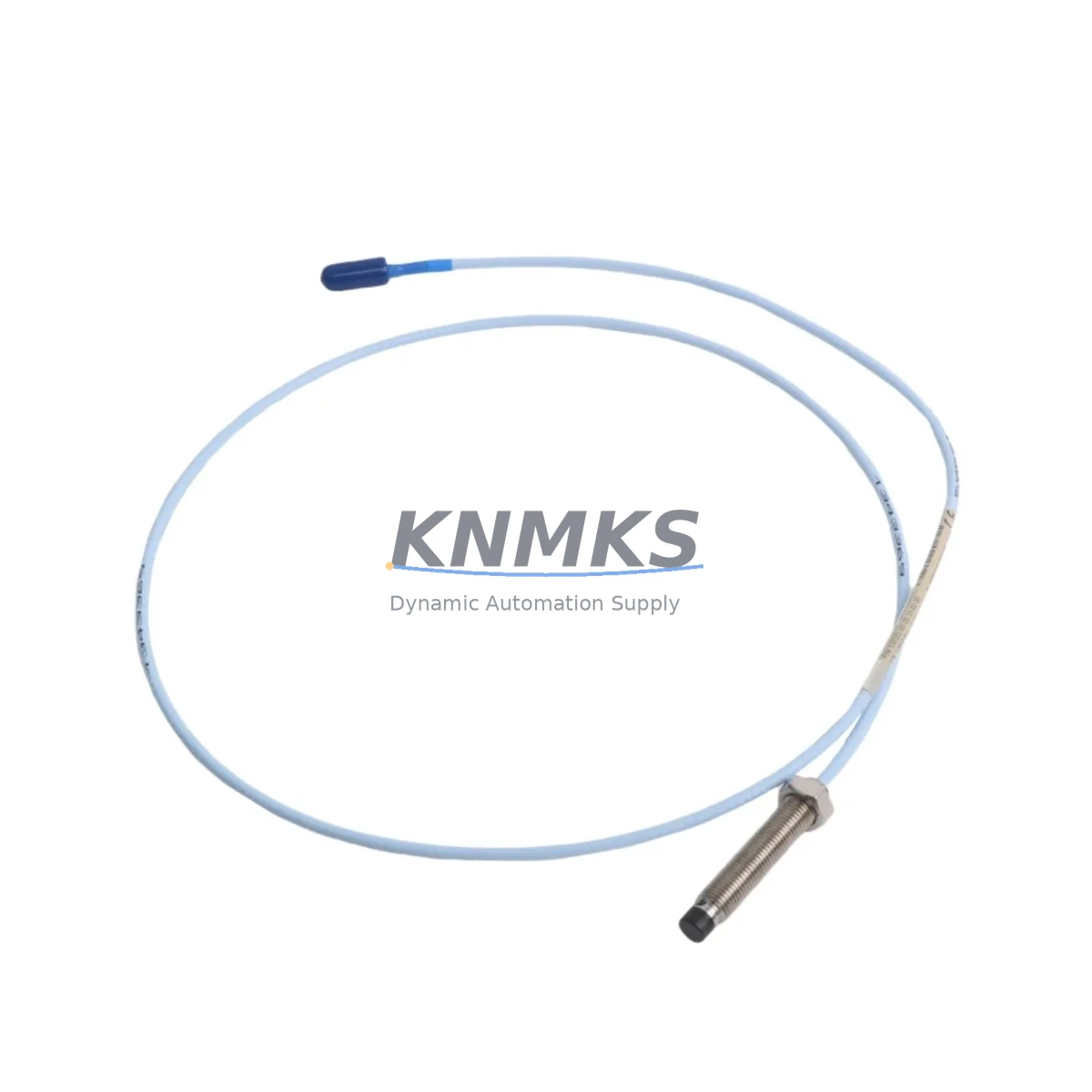

Bently Nevada 330101-00-85-05-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-85-05-01-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-85-05-01-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to operate reliably in high electromagnetic interference, heavy vibration, extreme temperature cycling, and moisture-laden atmospheres, this probe delivers the measurement accuracy and signal integrity that critical rotating machinery protection systems demand.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical mills, mining operations, and water treatment infrastructure — unplanned downtime caused by vibration monitoring failures can result in catastrophic equipment damage, safety incidents, and multi-million dollar production losses. The 330101-00-85-05-01-05 is purpose-built to eliminate these risks by providing stable, drift-free proximity measurement even under sustained mechanical stress and electrical noise conditions that would compromise lesser sensors.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-85-05-01-05 proximity probe does not operate in isolation — it is a precision front-end sensor within a tightly integrated vibration monitoring chain. In a properly configured 3300 XL protection system, the probe pairs with a Bently Nevada 330130 series extension cable to bridge the gap between the probe tip and the proximitor driver, maintaining signal fidelity across long cable runs in high-noise control cabinets. The Bently Nevada 330180 8mm Proximitor Sensor converts the probe’s raw eddy-current signal into a calibrated DC voltage output, which feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor for real-time vibration analysis and trip logic execution.

Within the control cabinet, power supply stability is equally critical. Fluctuating or noisy 24 VDC rail voltage can introduce measurement offsets and false trip conditions. Pairing the monitoring system with a Bently Nevada 3500/15 Power Supply module ensures clean, regulated power delivery to the entire 3500 rack, eliminating power-induced signal drift. For installations in hazardous areas or where surge protection is mandatory, adding a Bently Nevada 3500/22M Transient Data Interface provides additional diagnostic capture capability, enabling maintenance teams to review pre-trip waveform data and distinguish genuine machinery faults from transient electrical disturbances.

In high-vibration environments such as compressor trains or turbine pedestals, cable routing and connector integrity are frequent failure points. Specifying the correct 3300 XL armored extension cable variant alongside the 330101-00-85-05-01-05 probe ensures the entire measurement chain maintains mechanical and electrical integrity under continuous dynamic loading — a requirement that cannot be compromised in safety-critical interlock loops.

Critical Industrial Safety Applications

The 330101-00-85-05-01-05 is deployed across a broad spectrum of critical industrial safety applications where continuous, accurate shaft vibration and position data is non-negotiable:

Petrochemical and Refinery Operations: In centrifugal compressor trains and process pumps handling flammable or toxic media, this probe provides the real-time radial vibration data that API 670-compliant protection systems require to execute automatic shutdown before bearing failure escalates to a seal breach or fire event.

Power Generation: Steam turbine and gas turbine installations rely on 3300 XL series probes for shaft eccentricity, differential expansion, and radial vibration monitoring. The 330101-00-85-05-01-05 supports continuous operation across the full turbine load range, providing stable output even during rapid thermal transients at startup and shutdown.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high ambient vibration, and frequent electrical transients from variable-frequency drives. The shielded coaxial construction of this probe resists EMI-induced signal corruption, maintaining reliable interlock performance in these harsh conditions.

Water and Wastewater Treatment: Large vertical turbine pumps and blower trains in water infrastructure require continuous vibration monitoring to prevent undetected bearing degradation. The 330101-00-85-05-01-05 supports predictive maintenance programs by providing the high-resolution proximity data needed to trend bearing wear before it reaches a critical threshold.

Metallurgy and Steel Production: Rolling mill drives and continuous casting equipment subject monitoring systems to intense electromagnetic interference from high-current bus bars and induction furnaces. The 3300 XL probe’s robust EMI rejection ensures measurement integrity is maintained even in direct proximity to these interference sources.

Port and Marine Applications: Shipboard propulsion systems and port crane drives require vibration monitoring components rated for high humidity, salt-laden atmospheres, and continuous mechanical vibration. The 330101-00-85-05-01-05 meets these environmental demands while delivering the measurement accuracy required for condition-based maintenance programs.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330101-00-85-05-01-05?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides direct support for support requests and replacement coordination to minimize field downtime.

Q2: How is each unit tested before shipment?
Every 330101-00-85-05-01-05 probe undergoes functional verification testing prior to dispatch, including output linearity checks and cable continuity confirmation. Units are packaged to prevent transit damage and shipped with documentation confirming test completion.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330101-00-85-05-01-05 is fully compatible with the Bently Nevada 3300 XL system architecture, including 330130 series extension cables and 330180 series Proximitor Sensors. No recalibration of the Proximitor driver is required when replacing a like-for-like probe within the same installation geometry.

Q4: Can long-term supply be arranged for maintenance programs requiring multiple units?
Yes. We maintain regional warehouse stock of the 330101-00-85-05-01-05 and can support blanket purchase orders and scheduled release programs for facilities with ongoing spare parts requirements. Contact our sales team to discuss volume pricing and supply continuity arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-85-05-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-85-05-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
