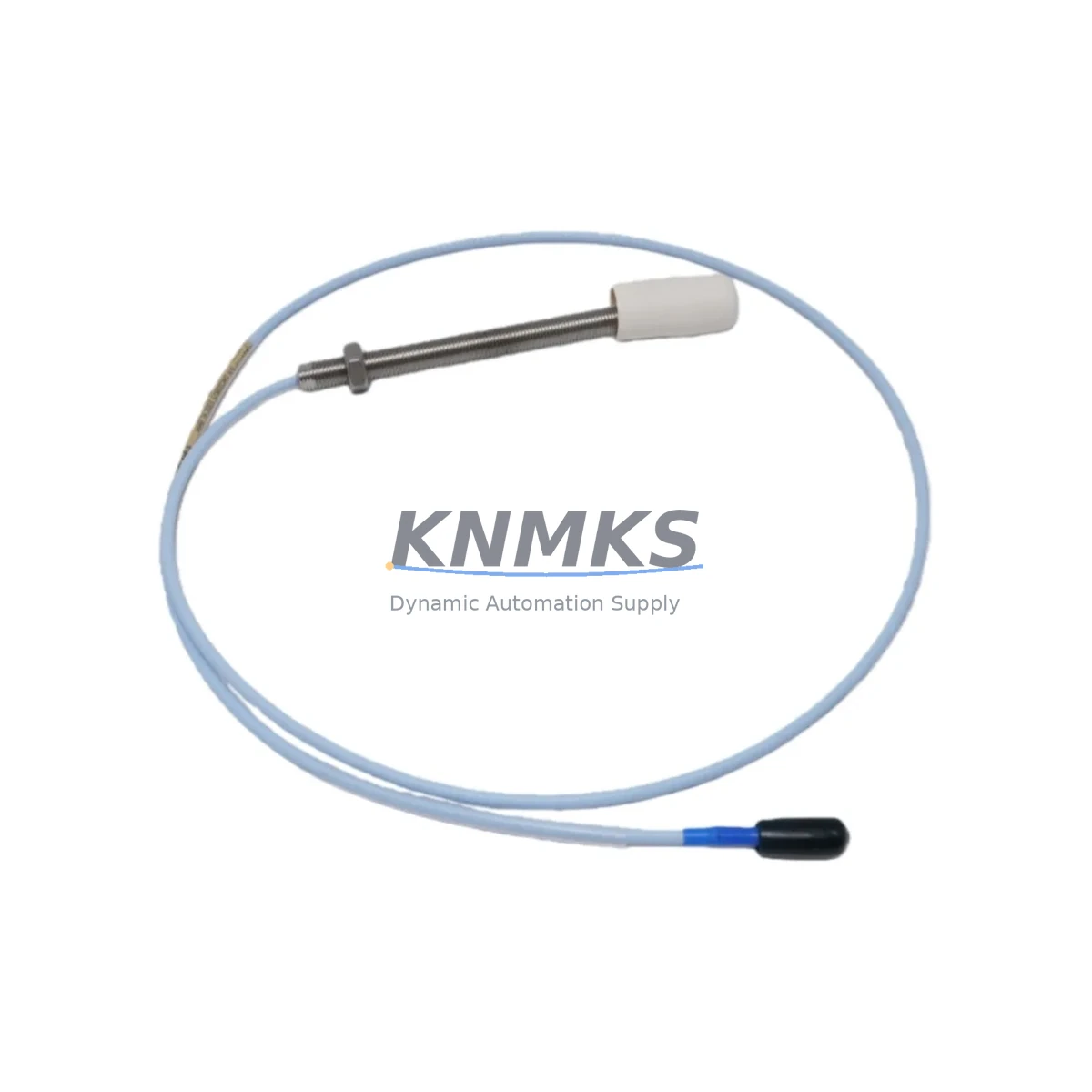

Bently Nevada 330101-00-84-20-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-84-20-02-CN Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330101-00-84-20-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity under high electromagnetic interference, mechanical vibration, extreme temperature cycling, and corrosive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In critical rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — undetected shaft displacement or abnormal vibration can escalate within seconds from a minor anomaly to a catastrophic failure event. The 330101-00-84-20-02-CN eliminates this risk by providing a stable, low-noise, high-resolution analog output that feeds directly into the Bently Nevada 3300 XL Proximitor® sensor system, enabling real-time machinery health assessment and automatic trip logic without signal drift or false alarms.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330101-00-84-20-02-CN proximity probe does not operate in isolation — it is one element of a tightly integrated safety chain. The probe connects via a matched Bently Nevada 330130-045-00-00 extension cable to the 330180-X1-05 Proximitor® sensor, which conditions the raw eddy-current signal into a clean DC voltage proportional to shaft gap. This conditioned signal feeds into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module, where trip and alarm setpoints are enforced in hardware — independent of the DCS or PLC logic layer.

To protect the integrity of the signal path against conducted interference and power transients, the control cabinet should incorporate a Phoenix Contact TRABTECH surge protection device on the 24 VDC supply rail feeding the Proximitor® system. In high-EMI environments such as variable frequency drive (VFD) rooms or switchgear bays, additional shielding of the coaxial cable run and proper grounding of the cable armor at a single point are essential to prevent ground loops that can introduce noise into the 0–24 VDC analog output range.

For facilities running Bently Nevada System 1® Evolution software, the probe’s output data integrates seamlessly into the predictive maintenance dashboard, enabling trend analysis, alarm rationalization, and automated work order generation. In SIL-rated safety loops, the probe assembly — including the 330101-00-84-20-02-CN, its extension cable, and the Proximitor® — should be treated as a single safety instrumented element (SIE) and validated as a complete subsystem per IEC 61511. Pairing this probe with a Bently Nevada 3500/22M Transient Data Interface further enhances diagnostic capability during startup and coast-down events, capturing waveform data that is critical for identifying rotor instability, rub events, and bearing defects before they escalate to a trip condition.

Critical Industrial Safety Applications

Petrochemical & Refinery: In ethylene crackers, crude distillation units, and compressor trains, the 330101-00-84-20-02-CN monitors shaft radial position on critical centrifugal compressors and expanders. Any deviation beyond the alarm setpoint triggers an automatic shutdown sequence via the Safety Instrumented System (SIS), preventing seal failures, bearing wipeouts, and uncontrolled hydrocarbon releases. The probe’s IP67 rating and high-temperature tolerance make it suitable for hot-section installations near process heaters and fired equipment.

Power Generation: Steam turbine-generators in coal, gas, and nuclear power plants rely on API 670-compliant proximity probe systems to enforce radial vibration and eccentricity limits. The 330101-00-84-20-02-CN, installed in X-Y probe pairs at each bearing journal, provides the redundant position data required by turbine OEM protection logic. A single probe failure in a non-redundant installation can mask a developing bearing failure — making in-stock availability of verified replacement units a critical operational requirement.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate extreme vibration and dust loading. The armored coaxial cable and IP67 housing of the 330101-00-84-20-02-CN resist abrasive dust ingress and mechanical shock, maintaining reliable shaft monitoring even in the harshest concentrator environments. Unplanned downtime on a primary mill can cost tens of thousands of dollars per hour — making a verified, immediately available replacement probe a key element of any maintenance strategy.

Water & Wastewater Treatment: High-speed centrifugal blowers and vertical turbine pumps in water treatment plants operate continuously, often without redundant standby units. The 330101-00-84-20-02-CN provides the early-warning vibration data needed to schedule bearing replacements during planned maintenance windows, avoiding emergency shutdowns that can disrupt water supply to municipalities.

Metallurgy & Steel: Rolling mill drive trains, converter vessel tilting drives, and continuous caster pinch rolls operate under extreme load cycling and thermal stress. Proximity probes in these applications must maintain calibration accuracy across wide temperature swings — a requirement the 3300 XL series meets through its thermally compensated design and stable sensitivity specification.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-84-20-02-CN?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Support requests are processed with priority turnaround to minimize site downtime.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-84-20-02-CN unit undergoes a full functional verification prior to dispatch, including output sensitivity check (7.87 V/mm ± tolerance), cable continuity and insulation resistance test, connector integrity inspection, and visual examination for mechanical damage. A test record is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor® systems and extension cables?
Yes. The 330101-00-84-20-02-CN is fully compatible with the Bently Nevada 3300 XL Proximitor® sensor family (330180 series) and standard 3300 XL extension cables (330130 series). The CN connector configuration is designed for the China market and matches the corresponding Proximitor® input connector. No system reconfiguration or recalibration of the monitor rack is required for a direct replacement.

Q4: Can KNMKS support long-term or blanket supply agreements for this part?
Yes. KNMKS maintains standing inventory of the 330101-00-84-20-02-CN and can support scheduled release orders, consignment stock arrangements, and emergency same-day dispatch for critical plant shutdowns. Contact our technical sales team to discuss volume pricing, lead time commitments, and multi-site supply agreements tailored to your maintenance program.
