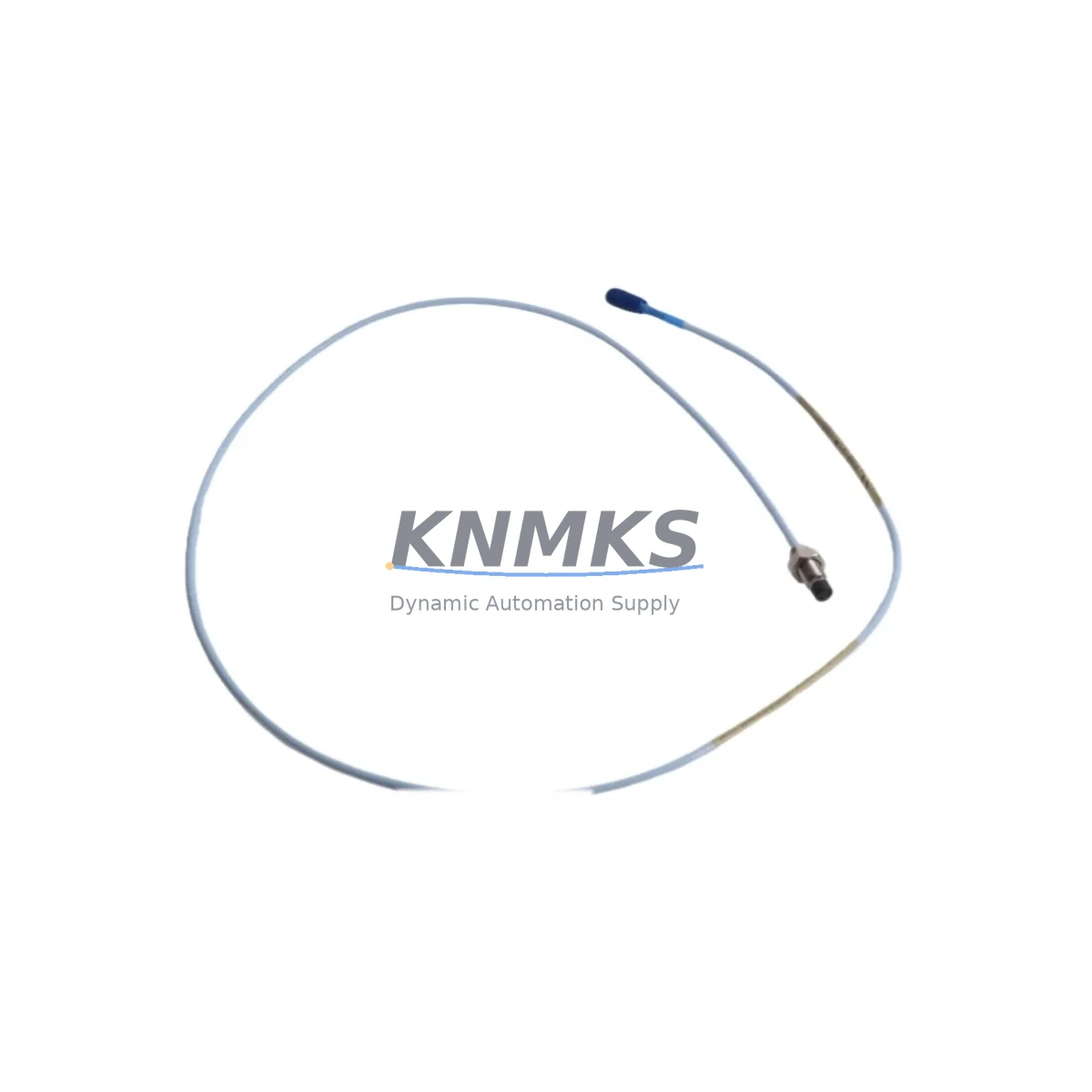

Bently Nevada 330101-00-80-10-02-00 Maintenance-Proven Spare Part

Overview

Bently Nevada 330101-00-80-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330101-00-80-10-02-00 is an 8mm eddy current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-proven original spare, this probe is a critical component in turbine protection systems, compressor trains, pump monitoring panels, and generator bearing housings where unplanned downtime carries severe operational and financial consequences. Sourced as an original Bently Nevada component, each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to stock and deploy with minimal risk.

For facilities running GE Bently Nevada 3300 XL monitoring systems, the 330101-00-80-10-02-00 is a direct replacement probe that maintains full system compatibility without requiring recalibration of the monitor rack. Its 8mm tip diameter, standard 5-metre integral cable, and -24 VDC driver voltage make it interchangeable within established 3300 XL probe-driver-monitor chains. Procurement engineers managing long-cycle MRO contracts or blanket orders will find this SKU straightforward to specify, with consistent lead times and long-term supply availability supported through our global inventory network.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-80-10-02-00 proximity probe during a scheduled outage or emergency callout, a disciplined maintenance engineer will treat the probe swap as an opportunity to inspect the entire vibration monitoring chain. The probe alone does not operate in isolation — it works in conjunction with the 330180-51-05 extension cable, which connects the probe to the 330130-040-01-00 Proximitor® sensor (driver/oscillator). Both components should be inspected for connector corrosion, cable jacket damage, and continuity before the new probe is commissioned. A faulty extension cable or a drifting Proximitor can produce false readings even with a brand-new probe installed, leading to nuisance trips or, worse, missed fault detection.

Within the 3300 XL monitor rack, the associated 3300/16 dual-channel vibration monitor or 3300/20 four-channel monitor card should be verified for correct gap voltage (typically -10.0 VDC ±0.5 VDC at the nominal air gap) after probe installation. If the rack includes a 3300/55 keyphasor module, confirm that the reference signal is still clean and phase-locked, as keyphasor integrity directly affects vibration vector calculations used in balancing and diagnostics. For facilities with older racks, the 3300/46 power supply module should be load-tested to confirm it can sustain the -24 VDC rail under full channel load — a sagging power rail is a common root cause of intermittent probe faults that are misdiagnosed as probe failures.

In control cabinets housing multiple monitoring loops, it is also prudent to inspect the terminal blocks and field wiring at the junction box between the Proximitor and the monitor rack. Loose terminations, moisture ingress, and ground loops are frequent contributors to signal noise in eddy current probe circuits. Where signal isolation is required between the field device and the DCS or safety system, verify that any signal isolator or barrier in the loop is rated for the probe’s output impedance and voltage range. Stocking a spare Proximitor sensor alongside the 330101-00-80-10-02-00 probe is strongly recommended for facilities with critical machinery where a second failure during recovery would be unacceptable.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the monitor rack channel associated with the probe being replaced. Record the existing gap voltage and vibration baseline from the DCS historian before disconnection.

Step 2 — Probe removal: Disconnect the extension cable at the Proximitor junction box. Unthread the probe from the bearing housing bracket, noting the installed gap (number of turns from contact). Inspect the probe tip for wear, contamination, or mechanical damage that may indicate a bearing or shaft condition issue beyond normal wear.

Step 3 — New probe installation: Thread the 330101-00-80-10-02-00 into the bracket to the same gap position. Connect the extension cable. Energize the channel and measure gap voltage at the Proximitor output. Adjust probe position to achieve the target gap voltage per the system calibration record (typically -10.0 VDC for 3300 XL systems).

Step 4 — Functional verification: Confirm the monitor rack displays a valid vibration reading within expected baseline range. Check for alarm inhibit status and re-enable protection after verification. Update the maintenance management system (CMMS) with the replacement date, new probe serial number, and gap voltage as-found/as-left values.

Step 5 — Spare stock replenishment: Immediately initiate a purchase order to replenish the consumed spare. For critical machinery, a minimum of two probes per monitored shaft should be held in the site spare parts store. Consider a blanket order arrangement for 330101-00-80-10-02-00 to lock in pricing and ensure availability for the next planned outage cycle.

Spare Parts Support FAQ

Q1: Is the 330101-00-80-10-02-00 compatible with older Bently Nevada 3300 series monitors (non-XL)?
The 330101-00-80-10-02-00 is designed for the 3300 XL system architecture. While the physical probe connector and sensitivity specification are similar to earlier 3300 series probes, compatibility with non-XL monitor cards should be verified against the specific monitor card datasheet and the site calibration record. Contact our technical team with your monitor card part number for a compatibility confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-00-80-10-02-00 unit undergoes output linearity verification and tip impedance measurement prior to shipment. Units that do not meet Bently Nevada specification tolerances are quarantined and not dispatched. A test report is available upon request for critical applications requiring documented traceability.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and performance deviations from the published specification under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the rated temperature and voltage range. To initiate a support terms claim, contact [email protected] with the order number, installation date, and a description of the observed fault. Replacement units are dispatched upon claim approval, typically within 3–5 business days.

Q4: Can KNMKS support long-term or blanket order supply for this SKU?
Yes. KNMKS maintains multi-region inventory for the 330101-00-80-10-02-00 and can support blanket purchase orders, scheduled release agreements, and annual MRO contracts. Long-term supply arrangements are available for facilities managing fleet-wide vibration monitoring programs or multi-unit power generation assets. Contact our procurement team to discuss volume pricing, lead time commitments, and consignment stock options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-80-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-80-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
