Bently Nevada 330101-00-79-10-02-05 Migration-Ready Proximity Probe

Overview

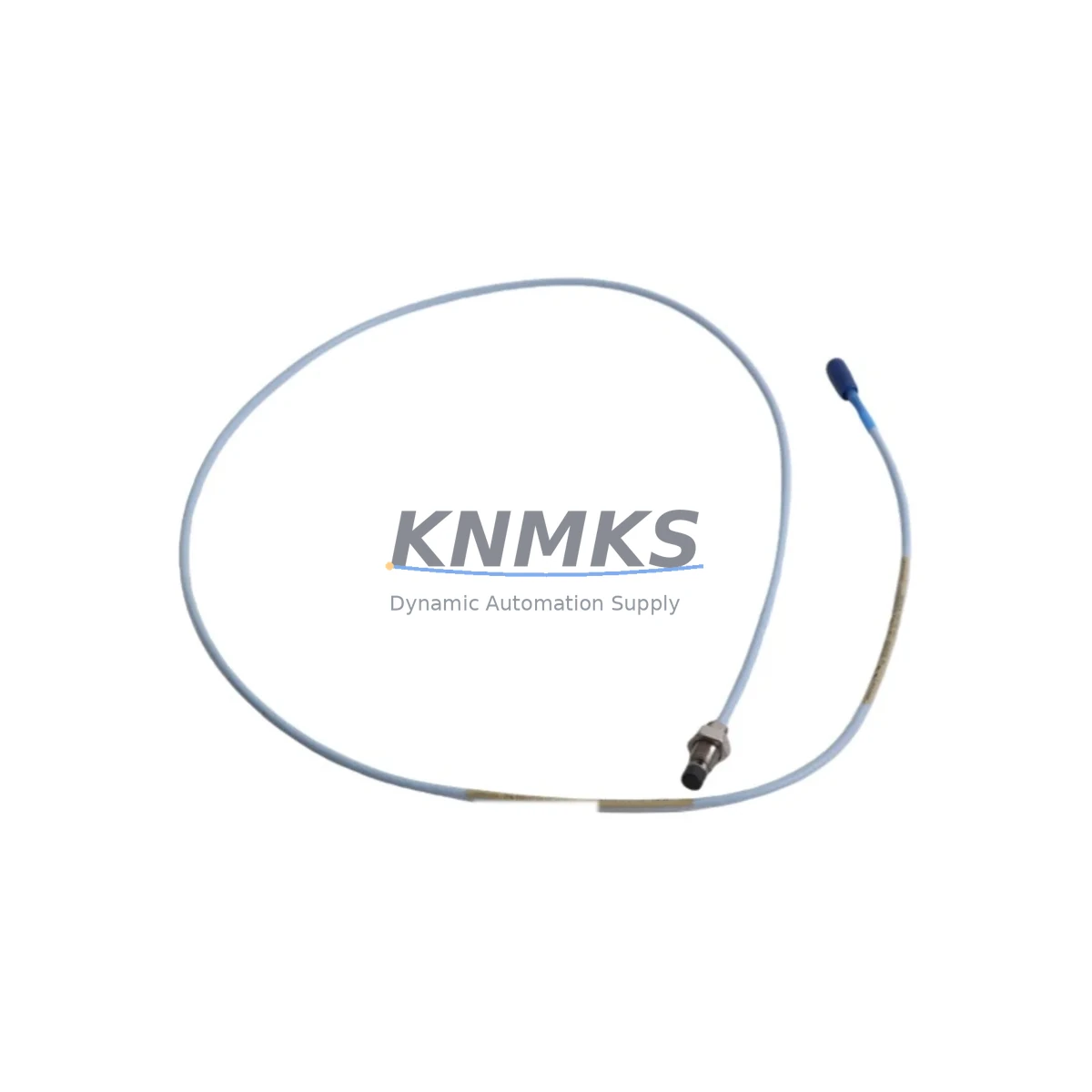

Bently Nevada 330101-00-79-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-79-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada 3300 Series installations approach end-of-support milestones, plant engineers and reliability teams are actively sourcing verified replacement units to sustain continuous machinery protection without triggering full system overhauls. This probe is a direct retrofit candidate for aging 3300 Series installations, offering dimensional compatibility, signal chain continuity, and validated interoperability with the 3300 XL proximitor/driver ecosystem.

When planning a probe replacement or control cabinet upgrade, engineers must confirm several critical parameters before committing to a swap. The 330101-00-79-10-02-05 operates on a standard -24 VDC supply and delivers a linear output range of approximately -2 VDC to -18 VDC, consistent with the 3300 XL system’s expected input window. Terminal wiring follows the standard coaxial cable assembly convention — center conductor to signal, shield to common — and must be verified against the existing junction box or field wiring diagram before installation. Probe gap voltage should be set to the manufacturer-specified nominal (typically -10.0 VDC ±0.5 VDC at mid-gap) using a calibrated gap tool or digital multimeter during commissioning.

Backplane interface and rack slot compatibility are equally important. The 3300 XL monitor modules — including the 3300/16 and 3300/20 dual-channel vibration monitors — accept probe inputs through dedicated BNC or terminal block connectors depending on the monitor card revision. Before pulling the legacy probe, technicians should document the existing channel configuration, alert and danger setpoints, and any custom scale factors stored in the monitor’s non-volatile memory. These parameters must be re-entered or verified after the replacement probe is installed and gapped, as some firmware revisions do not retain configuration across hardware swaps.

For sites running Bently Nevada System 1 software or the older Data Manager 2000 platform, the probe replacement workflow should include a signal validation step at the software layer. Confirm that the new probe’s output appears within the expected dynamic range in the trending display before returning the machine to service. If the installation includes a 3500 Series rack alongside legacy 3300 XL hardware — a common mixed-generation scenario in turbine control rooms — ensure that the proximitor extension cable (such as the 330130 series) and the field wiring lengths are within the qualified range for the selected probe tip-to-target gap.

Control cabinet upgrades involving this probe often coincide with broader I/O rationalization projects. In these scenarios, the 330101-00-79-10-02-05 is frequently installed alongside updated signal conditioners, replacement keyphasor probes (such as the 330180 series), and new DIN-rail mounted terminal blocks to consolidate field wiring. Where communication protocol migration is underway — for example, transitioning from hardwired 4–20 mA loops to Modbus RTU or PROFIBUS DP — the probe itself remains protocol-agnostic, but the downstream monitor card and DCS interface module must be validated for the new communication architecture.

Firmware compatibility is a recurring concern during 3300 XL retrofits. Some early-revision monitor cards require a firmware update before they can correctly process signals from replacement probes with updated sensitivity specifications. Always cross-reference the probe’s sensitivity (standard: 200 mV/mil or 7.87 V/mm) against the monitor card’s configured scale factor. A mismatch here will produce erroneous vibration readings and may trigger nuisance trips during startup — a costly outcome in any planned maintenance window.

Installation space confirmation is straightforward for most 3300 XL rack configurations: the 8mm probe body fits standard proximity probe mounting brackets without modification, and the integral cable assembly length (available in multiple standard lengths) should be selected to reach the junction box without excessive coiling. Coiled cable near rotating machinery introduces signal noise and should be avoided. All units supplied by KNMKS are pre-tested for output linearity and insulation resistance prior to shipment, reducing the risk of DOA units and unplanned downtime extensions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL probe retrofit begins well before the maintenance window opens. The bill of materials for a typical single-channel replacement includes the 330101-00-79-10-02-05 probe, a compatible 330130 series extension cable cut to the correct field length, and a replacement proximitor/driver if the existing unit shows signs of drift or calibration failure. In multi-channel installations, it is common practice to replace all probes in a measurement plane simultaneously to eliminate inter-channel sensitivity mismatches that can complicate vibration analysis.

Where the retrofit scope extends to the control cabinet, engineers frequently address the 3300 XL rack power supply at the same time. The 3300 XL system draws power from a dedicated -24 VDC supply module; if the existing supply is undersized for an expanded I/O count or shows ripple on the output rail, replacement with a higher-capacity unit is advisable before adding new probe channels. Terminal block replacement — particularly migration from legacy screw-clamp types to spring-cage DIN-rail blocks — is another common concurrent task that improves long-term wiring reliability in high-vibration environments.

For plants integrating the 3300 XL data into a modern DCS or safety instrumented system, the signal path from the monitor card output to the marshalling cabinet should be reviewed. Analog output cards on the monitor (4–20 mA or 0–10 VDC) must be range-checked against the DCS input card’s configured engineering units. If the site is migrating to a Bently Nevada 3500 Series rack as part of a phased upgrade, the 330101-00-79-10-02-05 probe is also compatible with 3500 Series proximitor inputs, providing a forward migration path without requiring a probe changeout at the next upgrade phase.

HMI screen updates are often overlooked during probe replacements. If the existing HMI displays vibration trends using tag names or channel addresses tied to the old probe’s calibration curve, those display elements should be updated to reflect the replacement probe’s sensitivity and gap voltage. Failure to update HMI scaling can result in operators misreading vibration severity during the post-retrofit commissioning period.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the existing probe’s gap voltage, vibration amplitude, and phase reference readings should be recorded as a baseline. These values serve as the acceptance criteria for the replacement probe during post-installation commissioning — if the new probe’s readings fall within the expected range of the baseline, the swap can be signed off without extended machine hold time.

Program logic protection is critical in installations where the 3300 XL monitor feeds a trip relay or safety shutdown circuit. Before disconnecting the probe, the monitor channel should be placed in bypass mode (if the system supports it) or the trip relay should be inhibited through the DCS to prevent a spurious shutdown during the wiring changeover. The bypass state must be logged and cleared immediately after the new probe is gapped and validated — leaving a channel in bypass is a common post-maintenance finding that increases machinery risk.

Field wiring continuity should be verified with a loop test before the machine is restarted. Apply a known gap voltage to the new probe using a calibration target or gap simulator, confirm the monitor card displays the expected output, and check that the System 1 or Data Manager trend is updating correctly. This end-to-end validation step catches wiring errors, connector faults, and firmware mismatches before the machine returns to service, keeping the total maintenance window to a minimum and protecting the original control program logic from unintended modification.

For sites with strict change management requirements, all probe replacement activities should be documented in the plant’s maintenance management system with before-and-after gap voltage readings, cable serial numbers, and the name of the technician who performed the final commissioning check. KNMKS provides a pre-shipment test report with each unit to support this documentation requirement.

Retrofit Support FAQ

Q: Is the 330101-00-79-10-02-05 a direct replacement for earlier 330101 series probes?
A: Yes. The 330101-00-79-10-02-05 is dimensionally and electrically compatible with earlier 330101 series variants used in 3300 XL installations. The suffix digits specify cable length and connector configuration — confirm your existing cable assembly length before ordering to ensure a direct swap without field splicing.

Q: What commissioning steps are required after installation?
A: After mounting and wiring the replacement probe, set the air gap to achieve the nominal -10.0 VDC output using a calibrated gap tool. Verify the monitor card displays the correct gap voltage, confirm alert and danger setpoints are intact, and perform a signal path check through to the DCS or System 1 display. Document all readings before releasing the machine to service.

Q: How do I confirm wiring compatibility with my existing junction box?
A: The 330101-00-79-10-02-05 uses a standard coaxial cable assembly with center conductor (signal) and shield (common). Cross-reference the probe’s wiring diagram against your existing junction box termination drawing. If the junction box uses a Bently Nevada standard terminal strip, no rewiring is required — connect center conductor to the signal terminal and shield to common.

Q: What does the support terms confirmed by quotation cover, and how quickly can units be shipped?
A: The support terms confirmed by quotation cover manufacturing defects and signal performance deviations from the published specification. Each unit is pre-tested for output linearity and insulation resistance before dispatch. KNMKS maintains stock of the 330101-00-79-10-02-05 for prompt global shipment — contact [email protected] or call +86 18359268345 to confirm current inventory and lead time.
