Bently Nevada 330101-00-77-20-02-CN Spare Part for Factory Uptime

Overview

Bently Nevada 330101-00-77-20-02-CN Spare Part for Factory Uptime

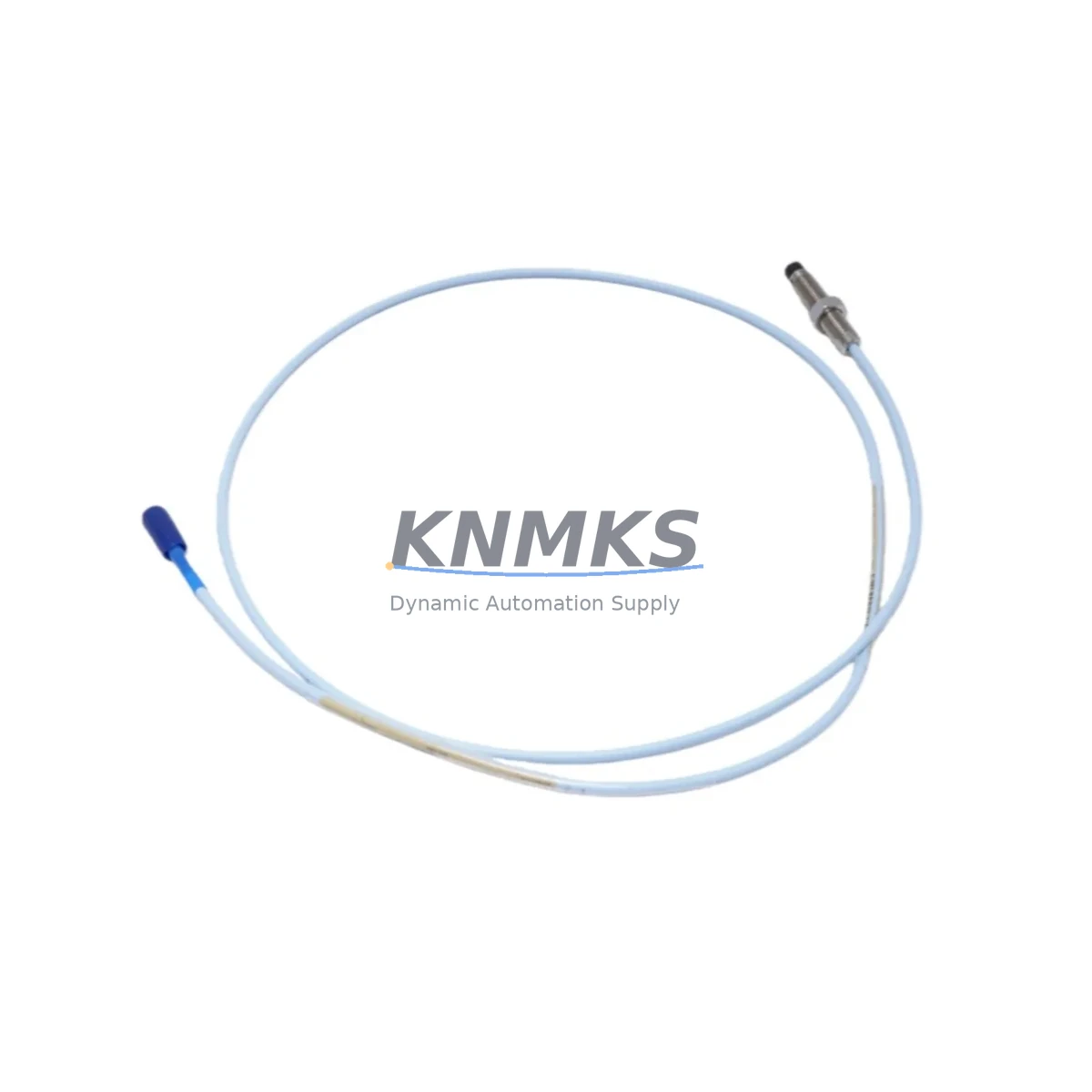

The Bently Nevada 330101-00-77-20-02-CN is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for critical rotating machinery — including steam turbines, compressors, pumps, and gearboxes — this probe delivers precise non-contact displacement measurement essential for predictive maintenance programs and unplanned downtime prevention. As an original-specification spare part, it is fully compatible with the Bently Nevada 3300 XL proximitor/seismic monitor system and integrates directly into existing DCS and PLC-based condition monitoring architectures without signal recalibration.

For maintenance engineers managing rotating equipment health, having a verified replacement probe on the shelf is a non-negotiable element of any spare parts strategy. The 330101-00-77-20-02-CN is a high-demand item in petrochemical, power generation, and heavy manufacturing facilities where continuous shaft vibration data is required for API 670 compliance and machinery protection system integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-77-20-02-CN proximity probe during a scheduled outage or emergency shutdown, maintenance engineers should treat the replacement as a system-level inspection opportunity rather than a single-component swap. The 3300 XL monitoring loop is an integrated measurement chain, and probe degradation is rarely isolated.

Begin by inspecting the Bently Nevada 330130-080-00-00 proximitor (extension cable driver), which conditions the eddy current signal from the probe tip to the monitor rack. A worn or contaminated proximitor will produce erratic gap voltage readings even with a new probe installed. Verify the proximitor output voltage at the recommended gap (typically –10 VDC ±0.2 V) before closing the machinery casing.

Next, check the 3300 XL monitor module (such as the 3300/16 or 3300/20 series) for alarm setpoint integrity and channel calibration. Confirm that the OK relay output and danger relay are functioning correctly after probe replacement. If the monitor has been in service for more than five years, consider scheduling a module swap during the same outage window to avoid a second unplanned shutdown.

Inspect the extension cable assembly (typically 330130 series, matched to probe length) for jacket cracking, connector corrosion, or shield continuity loss — especially in high-temperature or high-vibration environments. A compromised cable will introduce noise into the vibration signal and trigger nuisance alarms. Replace the cable and probe as a matched set whenever possible to maintain system calibration.

At the control cabinet level, verify the terminal block connections and signal wiring from the proximitor to the monitor rack. Loose or oxidized terminals are a common source of intermittent OK faults. Check the 24 VDC power supply rail feeding the 3300 XL rack — voltage sag below 18 VDC will cause monitor dropout and false danger trips. If the rack shares a power bus with other instrumentation, consider installing a dedicated DIN-rail power supply module (24 VDC, ≥5A) for the vibration monitoring system.

For facilities running hybrid DCS/PLC architectures, confirm that the 4–20 mA or Modbus output from the 3300 XL monitor is correctly mapped in the control system after probe replacement. A channel reassignment or I/O card swap during the outage can silently break the vibration data feed to the historian or safety system. Cross-reference the loop drawing and DCS tag list before returning the machine to service.

Finally, review the machinery protection relay logic — including any hardwired danger/alert relays connected to the turbine trip system or compressor anti-surge controller. Confirm relay contact continuity and setpoint values match the original machinery protection specification before restart.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement probe SKU (330101-00-77-20-02-CN) matches the installed probe’s part number, cable length, and connector type. Cross-reference the machinery datasheet and the existing Bently Nevada system drawing. Do not substitute a different cable length or probe diameter without recalibrating the proximitor gap voltage.

Step 2 — Safe Isolation: De-energize the 3300 XL monitor channel or place the channel in bypass mode per site safety procedures. For API 670-compliant systems, a 2-out-of-3 voting logic may allow single-channel bypass without a full machinery trip. Confirm with the control room before proceeding.

Step 3 — Probe Removal and Gap Measurement: Record the existing probe gap voltage before removal (typically –10 VDC at the recommended mechanical gap). Remove the probe using the correct spanner, taking care not to damage the probe tip or the target surface. Inspect the target area for scoring, pitting, or runout that could affect the new probe’s accuracy.

Step 4 — New Probe Installation and Gap Setting: Install the 330101-00-77-20-02-CN probe and adjust the mechanical gap to achieve the specified output voltage (–10 VDC ±0.2 V). Use a calibrated digital voltmeter at the proximitor output terminals. Lock the probe in position with the locknut and verify gap voltage stability over 5 minutes.

Step 5 — System Verification and Return to Service: Remove the channel bypass, confirm OK relay status, and verify that vibration readings are within expected baseline values for the machine at rest. Document the replacement in the maintenance management system (CMMS) with the new probe serial number, gap voltage, and installation date. Update the spare parts inventory to trigger a replenishment order for the next replacement unit.

Spare Parts Support FAQ

Q1: Is the 330101-00-77-20-02-CN compatible with older Bently Nevada 3300 series monitors (non-XL)?
The 330101-00-77-20-02-CN is optimized for the 3300 XL proximitor system. While the physical connector and probe geometry are similar to earlier 3300 series probes, the sensitivity calibration (7.87 V/mm) is matched to the XL proximitor. Using this probe with a non-XL proximitor may result in out-of-specification gap voltage and inaccurate vibration readings. Always verify the proximitor model before ordering.

Q2: What is your quality verification process before shipment?
Each 330101-00-77-20-02-CN unit undergoes visual inspection, connector integrity check, and cable continuity test prior to shipment. New-in-box units are shipped in original OEM packaging. Surplus-new units are tested for electrical continuity and output impedance. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the shipment date.

Q3: Can you support long-term supply agreements for this probe?
Yes. KNMKS maintains standing inventory of high-demand Bently Nevada 3300 XL spare parts and can support annual blanket orders, consignment stock arrangements, and emergency same-day quotation for critical shutdown situations. Contact our team to discuss a long-term supply agreement tailored to your maintenance schedule and annual consumption rate.

Q4: What is the recommended spare parts holding strategy for the 330101-00-77-20-02-CN?
For facilities with two or more machines monitored by the 3300 XL system, we recommend holding a minimum of two probes per machine type in on-site inventory, plus one spare proximitor and one spare extension cable set. For critical machinery (turbines, high-speed compressors), consider a cold-standby spare kit that includes the probe, extension cable, and proximitor as a matched, pre-gapped assembly — ready for installation within 30 minutes of a fault event.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
