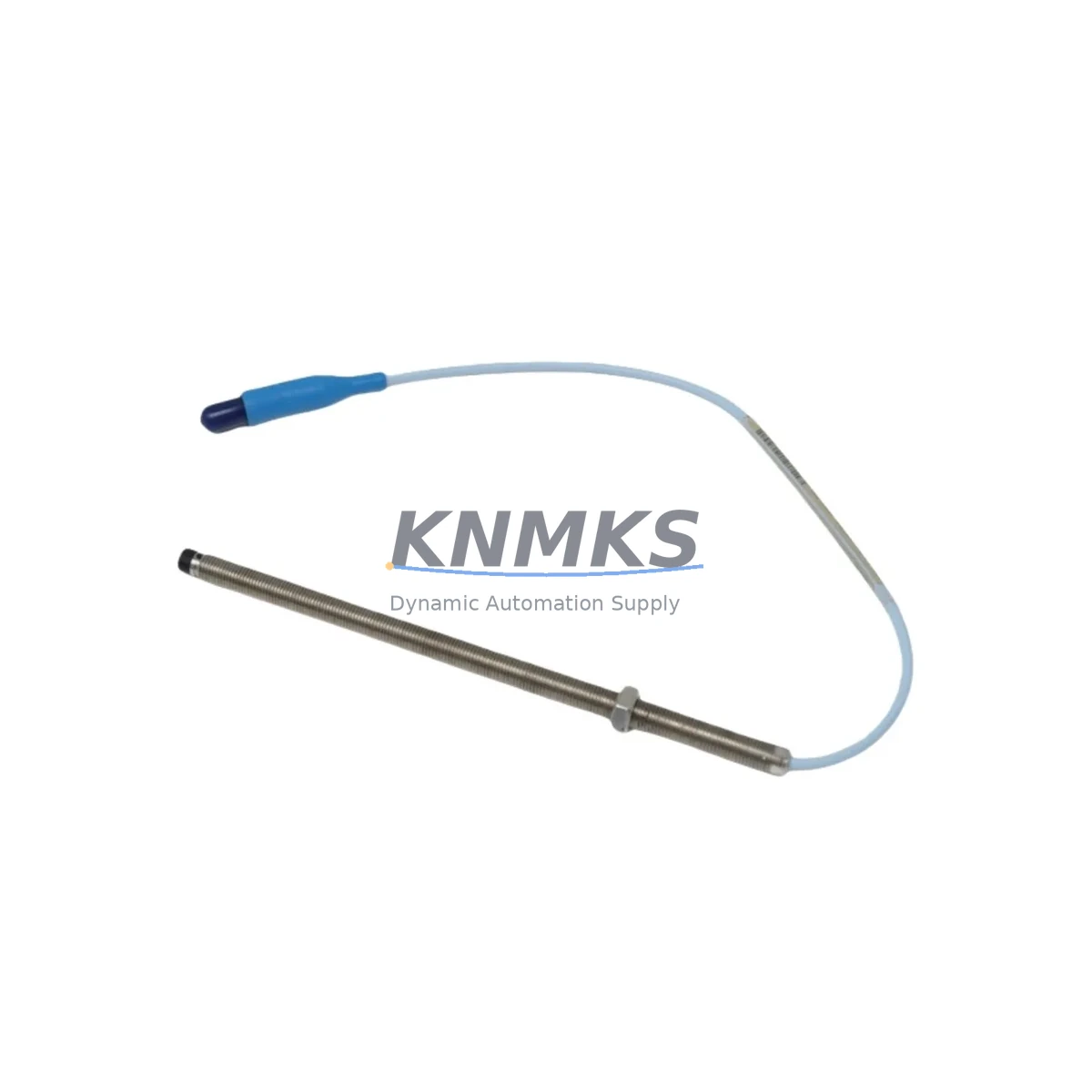

Bently Nevada 330101-00-77-15-02-CN Retrofit Proximity Probe

Overview

Bently Nevada 330101-00-77-15-02-CN Retrofit Proximity Probe: Migration-Ready Upgrade for Legacy Control Systems

The Bently Nevada 330101-00-77-15-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. As original equipment manufacturers phase out legacy 3300 Series components, this probe serves as the verified drop-in replacement for discontinued models including the 330101-00-77-15-02 (non-CN variant) and earlier 7200 Series probes used in rotating machinery protection systems across energy, petrochemical, and heavy manufacturing facilities.

For maintenance engineers managing aging turbine protection panels, compressor monitoring racks, or pump vibration systems, the 330101-00-77-15-02-CN provides a direct migration path without requiring full system redesign. Its 5-metre integral cable, standard 8mm tip diameter, and -24 VDC operating range are fully compatible with the 3300 XL Proximitor® Sensor (typically the 330180 or 330130 series), allowing field replacement without recalibrating the entire measurement chain.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-77-15-02-CN into an existing machinery protection system requires a structured pre-replacement audit. Before removing the legacy probe, engineers should document the current gap voltage reading at the 3300 XL Proximitor® output — typically between -10 VDC and -18 VDC for a properly gapped 8mm probe — and record the sensitivity scale factor programmed into the associated 3500/42M Proximitor Monitor or 3500/40M Proximitor Monitor rack card. These values serve as the baseline for post-installation verification.

Terminal wiring on the 3300 XL system follows a three-conductor arrangement: the probe signal wire (typically white or blue), the shield/drain wire, and the -24 VDC supply return. When replacing the probe, technicians should inspect the junction box or field wiring terminal block for corrosion, confirm that the armoured cable conduit seal is intact, and verify that the replacement probe’s integral cable is routed away from high-voltage conductors to prevent signal interference. If the installation involves a 3300 XL Extension Cable (such as the 330130-080-00-00), the combined cable length must remain within the system’s calibrated range — typically 5 m probe + 5 m extension for standard configurations.

For facilities running a 3500 Series rack-based monitoring system, the 330101-00-77-15-02-CN interfaces directly with the 3500/42M Proximitor Monitor module. Engineers should confirm that the module’s channel configuration — including the OK limit thresholds, danger setpoints, and alert multipliers — remains unchanged after the probe swap. If the control system also monitors axial position via a 330500 Series thrust probe or radial vibration via a paired 330101 channel, those channels should be verified independently to ensure the replacement did not introduce ground loop interference.

In control cabinets where space is constrained, the 330101-00-77-15-02-CN’s compact 8mm body and 5-metre integral cable simplify routing within existing conduit pathways. For systems that also incorporate a 3300 XL 8mm Proximitor Sensor (model 330180-51-05) mounted on the DIN rail inside the cabinet, the probe-to-Proximitor cable routing should be inspected for minimum bend radius compliance. Where the legacy installation used a 330130 Series Proximitor with a separate extension cable, the new probe can be connected to the existing extension without modification, provided the total cable length does not exceed the calibrated system specification.

Facilities upgrading from older 7200 Series eddy-current systems to the 3300 XL platform should note that the 7200 Series used a different sensitivity scale factor (200 mV/mil vs. 7.87 V/mm for 3300 XL). Any HMI display scaling, DCS analogue input range, or historian tag engineering unit conversion that referenced the 7200 Series sensitivity must be updated in the control system configuration before the new probe is commissioned. This is particularly important in Emerson DeltaV or Honeywell Experion systems where the analogue input card’s range and the HMI faceplate scaling are configured independently.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires preparation that begins well before the maintenance window. The 330101-00-77-15-02-CN ships pre-tested and gap-verified, reducing on-site commissioning time to the gap-setting procedure and a functional check of the Proximitor output voltage. For critical rotating machinery — turbines, compressors, or large pumps — the replacement should be scheduled during a planned outage window, with the 3500 Series rack placed in bypass mode on the affected channel to prevent spurious trips during the probe swap.

To protect the original control logic, engineers should export and archive the current 3500 Series rack configuration using the System 1 Evolution software or the Rack Configuration Software (RCS) before beginning work. This configuration file captures all setpoint values, OK limits, and channel assignments, and serves as the rollback reference if the replacement probe produces unexpected output characteristics. If the facility uses a Bently Nevada System 1 condition monitoring platform, the historian data for the affected measurement point should be tagged with a maintenance annotation to prevent false trend alarms during the commissioning period.

Field commissioning of the 330101-00-77-15-02-CN follows a straightforward sequence: install the probe to the correct gap distance (typically 1.0 mm ± 0.1 mm for the linear midpoint), verify the Proximitor output voltage against the calibration chart, confirm the OK relay status on the 3500/42M module, and restore the channel from bypass. Total commissioning time for an experienced technician is typically 30–60 minutes per channel, making it feasible to complete a dual-channel radial vibration replacement within a single 4-hour maintenance window without impacting production schedules.

Retrofit Support FAQ

Q1: Is the 330101-00-77-15-02-CN a direct replacement for the 330101-00-77-15-02 (non-CN variant)?
Yes. The CN suffix denotes the country of manufacture (China) for customs and export documentation purposes. The electrical specifications, mechanical dimensions, cable length, and calibration characteristics are identical to the original Bently Nevada 330101-00-77-15-02. The probe is fully compatible with all 3300 XL Proximitor Sensors and 3500 Series monitor rack cards without any configuration changes.

Q2: What commissioning checks are required after installation?
After installing the probe at the correct gap distance, verify the Proximitor output voltage using a calibrated digital multimeter at the field terminal block. The output should fall within the linear range specified on the 3300 XL calibration chart (typically -10 VDC to -18 VDC for a 1.0 mm gap on an 8mm probe). Confirm the OK relay on the 3500/42M module is energised, check that no alert or danger alarms are active, and restore the channel from bypass mode. Document the as-found and as-left gap voltage readings in the maintenance record.

Q3: Can this probe be used with a 330130 Series extension cable from an existing installation?
Yes, provided the total combined cable length (probe integral cable + extension cable) remains within the calibrated system specification. The 330101-00-77-15-02-CN uses the standard 3300 XL connector interface, which is mechanically and electrically compatible with all 330130 Series extension cables. Verify that the Proximitor sensor model (330180 or 330130 series) is calibrated for the combined cable length in use.

Q4: What are the inventory availability and support terms terms?
The 330101-00-77-15-02-CN is held availability confirmed by RFQ and available for immediate shipment. Each unit undergoes pre-shipment functional testing and gap verification before dispatch. A support terms confirmed by quotation cover manufacturing defects under normal operating conditions. For volume orders or long-term supply agreements supporting planned maintenance programmes, contact our sales team to discuss stocking arrangements and lead-time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-77-15-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-77-15-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
