Bently Nevada 330101-00-76-10-02-05 Maintenance-Proven Spare Part for Factory Uptime

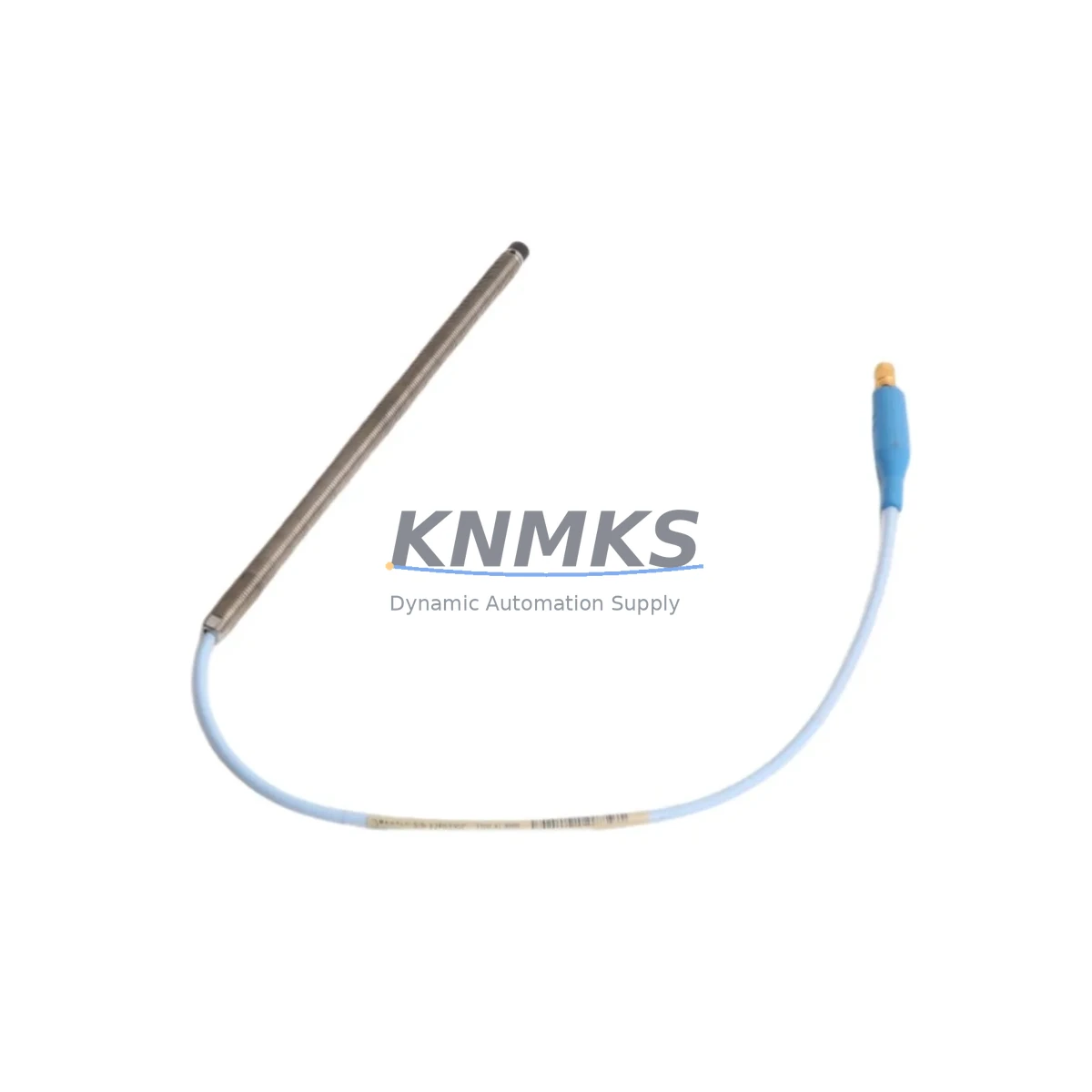

The Bently Nevada 330101-00-76-10-02-05 is an original proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and motors in continuous-process industries, this transducer is a critical front-line sensor that directly determines whether a machine trip event is detected in time to prevent catastrophic failure.

Sourced as an original spare part and tested prior to shipment, the 330101-00-76-10-02-05 is stocked to support emergency replacement, planned annual overhaul, and long-term spare parts inventory programs. Whether you are responding to an unplanned shutdown or building a resilience buffer for your control room, this part ships with a support terms confirmed by quotation and full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-76-10-02-05 transducer is flagged during a routine control cabinet inspection or a predictive maintenance round, experienced maintenance engineers know that replacing the transducer alone is rarely sufficient to restore full system confidence. The 3300 XL proximity system operates as a matched set: the transducer, the extension cable (such as the 330130-080-00-00 or equivalent 8-meter extension), and the driver/oscillator module (typically the 330180-91-00 proximitor) must all be within calibrated tolerance for the system to produce a reliable output signal.

During the same maintenance window, it is best practice to inspect the 3300 XL monitor module (e.g., 3300/16-02-01-01-00-00-00) for any alarm relay chatter, blown fuses on the I/O terminal block, or degraded barrier isolators on the signal input side. If the plant uses a 3500 Series rack for integration, verify that the 3500/42M proximitor I/O module is correctly configured for the transducer’s sensitivity and gap range before re-commissioning.

For facilities running older DCS or PLC-based control architectures, the transducer signal often feeds into a signal conditioner or isolator before reaching the analog input card. Inspect these isolators — particularly any MTL or P+F brand galvanic isolators — for drift or insulation breakdown, as a degraded isolator can mask a genuine transducer fault or generate nuisance trips. Similarly, check the 24 VDC power supply rail feeding the proximitor; a sagging supply voltage is a common root cause of intermittent vibration readings that are incorrectly attributed to transducer failure.

Procurement engineers building annual spare parts lists should consider stocking the 330101-00-76-10-02-05 alongside its matched extension cable and at least one spare proximitor driver per critical machine train. For plants with more than four monitored machines, a minimum buffer of two transducer assemblies per shaft measurement plane is a widely accepted industry standard for reducing mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow your site LOTO procedure. Confirm the machine is at rest and the monitor channel is bypassed or inhibited to prevent a spurious trip during replacement.

Step 2 — Gap Measurement: Before removing the old transducer, record the existing gap voltage using a calibrated voltmeter at the proximitor output. This baseline helps verify correct reinstallation of the new unit.

Step 3 — Transducer Removal: Unscrew the 330101-00-76-10-02-05 from the bracket. Inspect the mounting bracket for corrosion, thread damage, or mechanical deformation. Replace the bracket if any defects are found — a misaligned bracket is a leading cause of premature transducer failure.

Step 4 — Cable Inspection: Examine the full length of the coaxial cable for kinks, abrasion, or connector corrosion. A damaged cable will degrade signal quality even with a new transducer installed. Replace the extension cable if continuity or insulation resistance is out of specification.

Step 5 — Installation and Gap Setting: Install the new transducer and adjust the gap to achieve the target output voltage (typically -10.0 VDC ± 0.5 VDC at the nominal gap). Confirm the reading is stable before re-enabling the monitor channel.

Step 6 — Functional Verification: Restore power, clear any latched alarms, and verify that the vibration reading is within the expected baseline range for the machine at rest and at operating speed. Log the as-found and as-left gap voltages in your CMMS for future reference.

This workflow applies equally to legacy 3300 Series installations being upgraded to 3300 XL hardware, where the improved transducer sensitivity and temperature range of the XL series can extend sensor service life by 30–50% compared to earlier-generation probes.

Spare Parts Support FAQ

Q1: Is the 330101-00-76-10-02-05 compatible with both the 3300 and 3500 Series monitors?
The 330101-00-76-10-02-05 is natively designed for the 3300 XL Series. It can be used with 3500 Series monitors when paired with the appropriate 3500/42M or 3500/45 I/O module configured for the correct sensitivity (7.87 V/mm). Always verify monitor configuration before installation to avoid calibration errors.

Q2: How do you verify the part is genuine before shipment?
Each unit undergoes a pre-shipment functional test including gap voltage verification, cable continuity check, and visual inspection for connector and housing integrity. Test records are available upon request. All parts are shipped with original manufacturer labeling and traceability documentation.

Q3: What is the recommended inventory strategy for this transducer?
For critical rotating machinery (turbines, compressors, large pumps), maintain a minimum of one spare transducer assembly per monitored shaft plane. For facilities with four or more monitored machines, a pooled buffer of two to four assemblies is recommended. Pair with at least one spare proximitor driver and one extension cable per machine train to ensure a complete replacement kit is available for emergency response.

Q4: What is the support terms coverage and long-term supply commitment?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Long-term supply is supported through established sourcing channels for Bently Nevada 3300 XL Series components. Contact our team for blanket order arrangements or multi-year supply agreements to lock in availability and pricing for your maintenance program.
