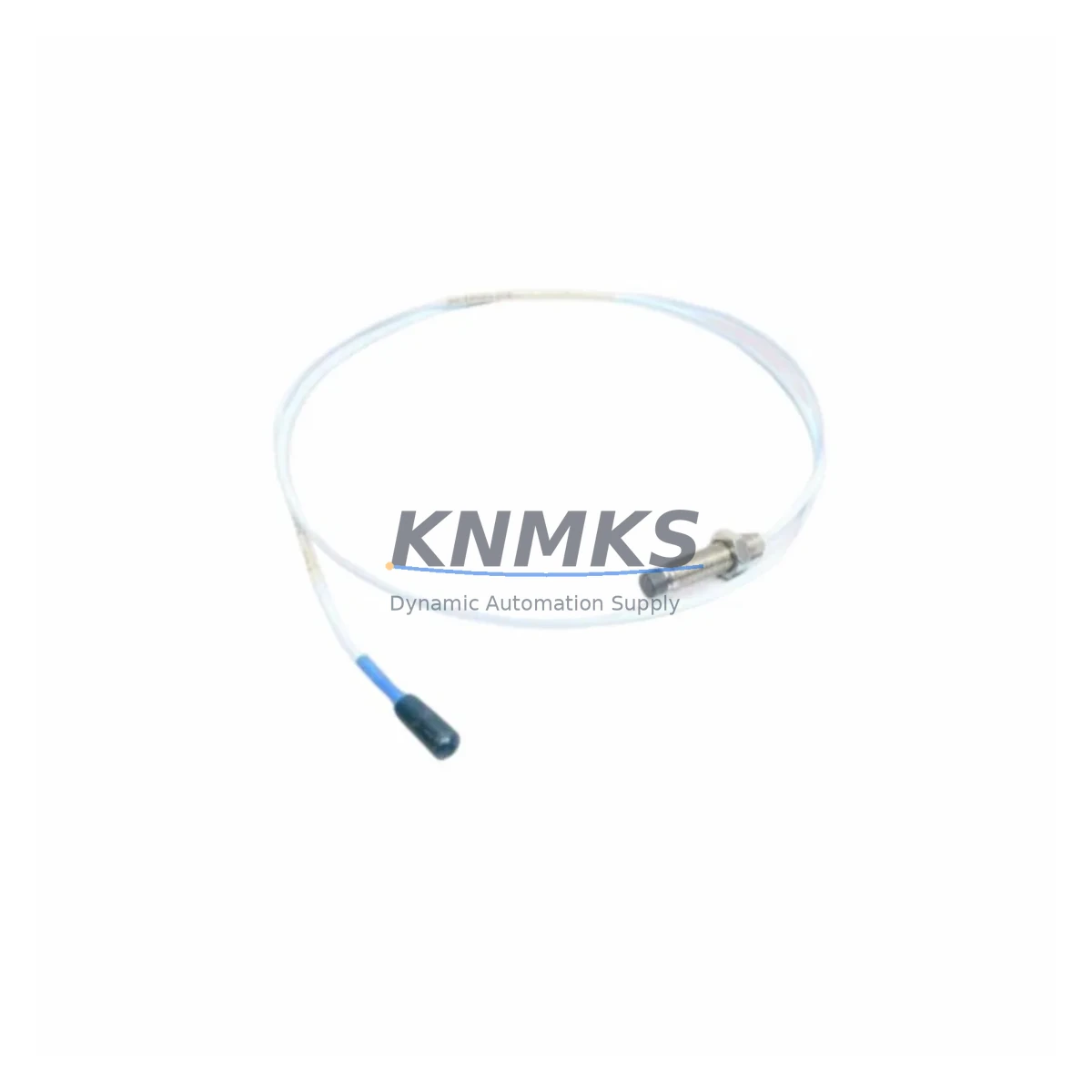

Bently Nevada 330101-00-76-05-01-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-76-05-01-00 Fail-Safe Proximity Transducer for Industrial Control Reliability

The Bently Nevada 330101-00-76-05-01-00 is an 8mm eddy current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, elevated temperature, and corrosive atmospheres. It is a critical component in safety instrumented systems (SIS) and machinery protection loops where unplanned downtime is not an option.

In petrochemical plants, power generation facilities, offshore platforms, and heavy metallurgical operations, the 330101-00-76-05-01-00 serves as the primary sensing element for shaft radial vibration, axial position, and differential expansion measurement. Its non-contact eddy current sensing principle eliminates mechanical wear, ensuring long-term measurement integrity without recalibration drift. The transducer operates reliably across a wide temperature range and is immune to oil mist, steam ingress, and particulate contamination — conditions that routinely compromise lesser sensing technologies.

When integrated with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 signal conditioner) and connected to a 3500 Series Machinery Protection System rack, the 330101-00-76-05-01-00 forms a complete, certified vibration monitoring chain. This architecture supports API 670-compliant machinery protection for compressors, turbines, pumps, and motors. The transducer’s output is fully compatible with the 3500/42M Proximitor/Seismic Monitor and 3500/40M Proximitor Monitor modules, enabling seamless integration into existing protection racks without hardware modification.

For control cabinet installations in high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large motor starters, or high-current bus bars — the 330101-00-76-05-01-00 maintains signal integrity through its armored coaxial cable assembly and shielded connector interface. When paired with Bently Nevada 330130-045-00-00 extension cables and properly grounded junction boxes, the system achieves full IEC 61000-4 immunity compliance, preventing spurious trips and missed fault detections that could compromise safety interlock integrity.

In critical safety loops, this transducer is frequently deployed alongside Bently Nevada 330850-50-00 Velomitor CT sensors for complementary seismic velocity measurement, providing redundant vibration data streams to the safety PLC or DCS. This dual-sensor strategy is standard practice in SIL 2 and SIL 3 machinery protection architectures, where single-point measurement failure must be detected and annunciated before it can propagate to a dangerous undetected fault state. The combination of eddy current proximity and seismic velocity sensing covers both low-frequency shaft motion and high-frequency structural vibration — a complete picture of machine health.

Surge protection and power conditioning are equally important in field installations. The 330101-00-76-05-01-00 is typically powered through the Proximitor sensor, which in turn receives conditioned 24 VDC from the protection rack’s internal power supply or an external Bently Nevada 3500/15 Power Supply module. Proper surge suppression at the cabinet entry point — using DIN-rail mounted transient voltage suppressors rated for the 24 VDC instrument bus — prevents voltage spikes from lightning strikes or switching transients from reaching the transducer circuit and causing false readings or permanent damage.

All units supplied by KNMKS undergo pre-shipment functional verification, including gap voltage linearity checks across the full measurement range, insulation resistance testing of the cable assembly, and connector integrity inspection. Each 330101-00-76-05-01-00 is dispatched with a support terms confirmed by quotation covering manufacturing defects and performance deviations from Bently Nevada factory specifications. Multi-region stock is maintained to support both emergency replacement orders and scheduled outage procurement, with global dispatch capability to minimize machinery downtime.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330101-00-76-05-01-00 within a machinery protection cabinet demands a disciplined approach to signal routing, grounding, and power conditioning. The transducer’s coaxial cable must be routed in dedicated instrument cable trays, physically separated from power cables carrying 480 VAC or higher, to prevent capacitive coupling that degrades the high-impedance proximity signal. In cabinets housing multiple protection channels — for example, a six-channel radial vibration system on a large centrifugal compressor — each transducer channel should be individually shielded and terminated at a single-point ground bus within the Bently Nevada 3500 rack.

The 3500/15 Power Supply module provides regulated, isolated 24 VDC to the Proximitor sensors, decoupling the instrument bus from plant power fluctuations. For installations in areas with frequent voltage sags or harmonic distortion from large VFDs, an additional Bently Nevada 3500/05 System Monitor provides rack-level health diagnostics, alerting operators to power supply anomalies before they affect measurement accuracy. Transient protection at the cabinet entry — using coordinated SPD (surge protective device) assemblies — is essential in outdoor substations and coastal facilities where lightning exposure is elevated.

Cable management is equally critical: Bently Nevada 330130-045-00-00 extension cables extend the transducer signal from the machine bearing housing to the cabinet-mounted Proximitor, maintaining the calibrated system scale factor. Improper cable substitution is a leading cause of measurement error in field installations; using factory-matched extension cables ensures the 330101-00-76-05-01-00 system performs to its rated ±0.5% linearity specification. Junction boxes at the machine skid should be rated IP66 or higher and equipped with desiccant breathers to prevent condensation on connector interfaces in humid tropical or coastal environments.

Critical Industrial Safety Applications

The 330101-00-76-05-01-00 is deployed across a broad spectrum of critical industrial applications where machinery failure carries severe safety and financial consequences. In petrochemical and refinery operations, it monitors shaft radial vibration on process gas compressors and reactor feed pumps, providing the primary trip signal to the Emergency Shutdown System (ESD) when vibration exceeds API 670 alarm and danger setpoints. A missed high-vibration trip on a hydrogen compressor can result in catastrophic seal failure and process gas release — making the reliability of this transducer a direct safety-of-life concern.

In power generation — including coal-fired, gas turbine, and nuclear auxiliary systems — the 330101-00-76-05-01-00 monitors turbine shaft eccentricity and differential expansion, parameters that must be tracked continuously during startup and shutdown transients. Incorrect readings during these critical phases can lead to blade-to-casing contact and turbine destruction. The transducer’s wide operating temperature range and resistance to steam ingress make it suitable for installation in the hot, humid environment of the turbine bearing pedestal.

Mining and mineral processing operations rely on this transducer for protection of large SAG mill pinion bearings, crusher drive shafts, and slurry pump impellers. The high-dust, high-vibration environment of a concentrator plant demands a sensing technology that does not require physical contact with the rotating element — a requirement the eddy current principle satisfies inherently. In water and wastewater treatment, the 330101-00-76-05-01-00 protects large vertical turbine pumps and blower trains that must operate continuously to maintain regulatory compliance.

Metallurgical and steel mill applications include monitoring of rolling mill drive spindles and continuous caster withdrawal rolls, where high radial loads and thermal cycling create demanding conditions for proximity sensing. Port and marine installations use this transducer on crane hoist motors and ship propulsion shaft bearings, where saltwater corrosion resistance and vibration immunity are paramount. In all these applications, the 330101-00-76-05-01-00 provides the fail-safe, continuous measurement that underpins both machinery protection and process safety integrity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-76-05-01-00?
The support terms confirmed by quotation cover all manufacturing defects, performance deviations from Bently Nevada factory specifications, and cable assembly integrity failures. Units that fail to meet gap voltage linearity or insulation resistance specifications during the confirmed support period are replaced at no charge. Support requests are processed with priority dispatch to minimize machinery downtime.

Q2: What pre-shipment tests are performed on each unit?
Every 330101-00-76-05-01-00 undergoes gap voltage linearity verification across the full 0.25–2.26 mm measurement range, insulation resistance testing of the integral cable assembly at 500 VDC, and physical inspection of the coaxial connector and probe tip for mechanical damage. Test records are available upon request for quality-critical procurement.

Q3: Is the 330101-00-76-05-01-00 compatible with existing 3300 and 3500 Series systems?
Yes. The 330101-00-76-05-01-00 is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitor modules, including the 3500/40M and 3500/42M. It maintains the standard 200 mV/mil (7.87 V/mm) scale factor required by these systems. No firmware changes or hardware modifications are required for direct replacement of existing 3300 XL transducers.

Q4: Can long-term supply agreements be arranged for scheduled maintenance programs?
Yes. KNMKS supports long-term supply agreements for customers with recurring replacement requirements, including annual outage kits and multi-site blanket orders. Multi-region stock is maintained to ensure consistent availability for both emergency replacements and planned maintenance schedules. Contact [email protected] to discuss volume pricing and supply commitment terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-76-05-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-76-05-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
