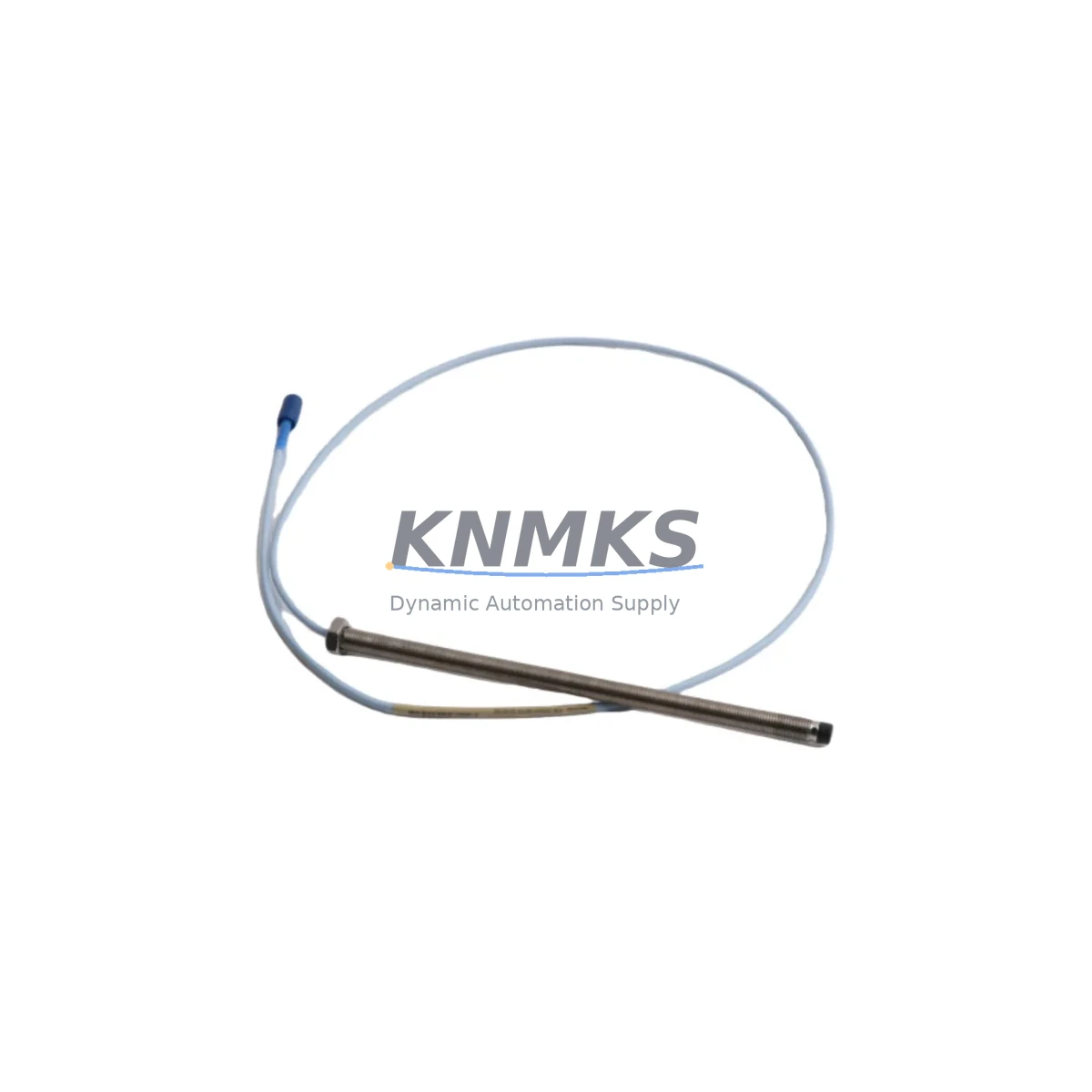

Bently Nevada 330101-00-75-05-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-75-05-01-05 Fail-Safe Proximity Probe: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-75-05-01-05 is a 75mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to operate reliably in high electromagnetic interference, heavy vibration, elevated temperature, and moisture-laden atmospheres, this probe is a cornerstone component for rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In critical industrial sites where unplanned downtime carries severe operational and safety consequences, the 330101-00-75-05-01-05 delivers the measurement precision and signal stability required to protect turbines, compressors, pumps, and motors. Its non-contact eddy current sensing principle eliminates mechanical wear, ensuring long-term measurement integrity without drift or degradation — even in environments where conventional contact sensors would fail within months.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-75-05-01-05 proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection chain. In a properly engineered control cabinet or machinery protection panel, this probe interfaces with the Bently Nevada 3300 XL Extension Cable (typically 5-metre or 9-metre armored versions) to route the signal from the machine casing to the monitoring rack. The signal is then conditioned by a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series), which converts the raw probe impedance into a calibrated DC voltage representing shaft gap and vibration amplitude.

Within the monitoring rack, the conditioned signal feeds into a Bently Nevada 3500 Series Rack — a modular, safety-rated machinery protection system widely deployed in turbomachinery and compressor trains. The 3500 rack’s I/O modules process vibration, position, and speed signals simultaneously, triggering protective relays or DCS interlock outputs when measured values exceed configured danger thresholds. This architecture ensures that a single probe failure or signal anomaly does not result in an undetected dangerous condition — the system is designed to fail safe.

For installations requiring additional signal integrity in high-EMI environments — such as those near large variable frequency drives, high-voltage switchgear, or arc furnace control rooms — pairing the 330101-00-75-05-01-05 with properly grounded Bently Nevada armored extension cables and ferrite-core signal conditioners significantly reduces susceptibility to induced noise. In cabinets where thermal management is critical, ensuring adequate spacing between the Proximitor module and heat-generating components such as power supplies or relay banks prevents measurement drift caused by ambient temperature rise inside the enclosure.

Where the machinery protection system must interface with a broader DCS or Safety Instrumented System (SIS) — such as those built on Emerson DeltaV SIS, Honeywell Safety Manager, or YOKOGAWA ProSafe-RS platforms — the 3500 rack’s relay outputs or 4–20 mA analog outputs provide clean, isolated signals that integrate directly into the SIS logic solver without additional signal conversion hardware. This seamless integration is essential for achieving the required Safety Integrity Level (SIL) in rotating equipment protection loops.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-75-05-01-05 proximity probe is deployed across a broad spectrum of critical industrial applications where rotating machinery reliability is non-negotiable:

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, centrifugal compressors, steam turbines, and boiler feed pumps operate continuously under high load. Shaft vibration monitoring using the 3300 XL probe system provides early warning of rotor imbalance, bearing wear, and misalignment — enabling condition-based maintenance before a catastrophic failure can trigger a process shutdown, fire, or explosion hazard.

Power Generation: Gas turbines and steam turbines in power plants require continuous shaft position and vibration monitoring to protect against rotor rubs, oil whirl instability, and thrust bearing failures. The 330101-00-75-05-01-05, integrated into the 3500 protection rack, provides the real-time data needed to trip the machine safely before damage propagates to the generator or gearbox.

Mining and Mineral Processing: Large ball mills, SAG mills, and slurry pumps in mining operations are subject to extreme vibration, dust ingress, and moisture. The non-contact eddy current sensing principle of the 3300 XL probe is inherently immune to these contaminants, providing reliable shaft monitoring even in the harshest underground or open-pit environments.

Metallurgical and Steel Plants: Rolling mills, continuous casters, and induction furnace drives generate intense electromagnetic interference. The shielded coaxial construction of the 330101-00-75-05-01-05 and its associated extension cables maintains signal integrity in these high-EMI environments, preventing false trips or missed alarms that could result in product quality defects or equipment damage.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require reliable vibration monitoring to prevent bearing failures that could interrupt water supply or wastewater processing. The 3300 XL system’s robust construction and wide operating temperature range make it suitable for both indoor pump stations and outdoor installations.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives benefit from the compact, vibration-resistant design of the 3300 XL proximity probe system, which maintains accurate shaft monitoring even under the dynamic loading conditions typical of marine and port machinery.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-75-05-01-05?
All units supplied by KNMKS carry a 12-month functional support terms from the date of shipment. This covers any failure attributable to manufacturing defects or component degradation under normal operating conditions. Support requests are supported with direct technical assistance and replacement unit dispatch to minimize site downtime.

Q2: How is each unit tested before shipment?
Every 330101-00-75-05-01-05 probe undergoes pre-shipment functional verification, including impedance measurement, sensitivity calibration check against a reference target, and visual inspection for cable jacket integrity and connector condition. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. Test records are available upon request for critical installations.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series racks?
Yes. The 330101-00-75-05-01-05 is a standard 3300 XL series probe and is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors (330180 series and equivalents) and the complete 3500 Series machinery protection rack platform. It is also backward-compatible with legacy 3300 series installations where the Proximitor has been verified for 3300 XL probe use. Always confirm the extension cable length matches the probe-to-Proximitor calibration set.

Q4: Can KNMKS support long-term or blanket supply for maintenance programs?
Yes. KNMKS maintains regional warehouse stock of the 330101-00-75-05-01-05 and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. Blanket purchase orders and consignment stock arrangements are available for facilities with recurring demand. Contact our technical sales team to discuss supply agreements tailored to your maintenance schedule and criticality requirements.
