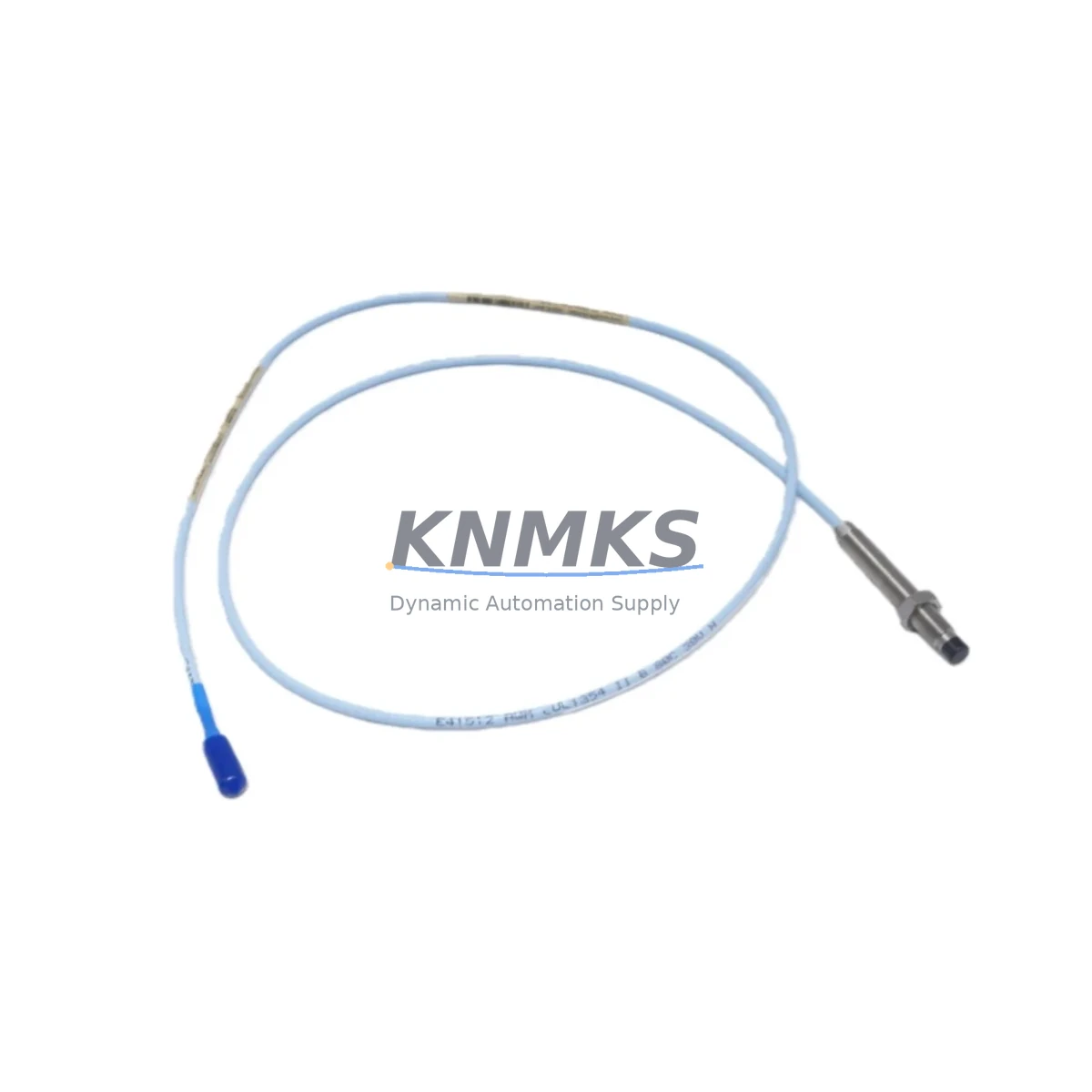

Bently Nevada 330101-00-72-20-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-72-20-02-CN Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-72-20-02-CN is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within the Bently Nevada 3300 XL proximity transducer system — which includes the matched extension cable and the 3300 XL proximitor sensor — this probe delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature cycling, mechanical vibration, and moisture ingress conditions that routinely compromise lesser sensing solutions.

In critical rotating machinery protection — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — undetected shaft displacement or bearing wear can escalate within seconds from a minor anomaly to a catastrophic failure event. The 330101-00-72-20-02-CN addresses this risk directly: its non-contact eddy-current sensing principle eliminates mechanical wear, its -CN cable configuration provides robust shielding against high-frequency electrical noise common in variable-frequency drive environments, and its precision-wound coil assembly maintains calibrated sensitivity across the full operating temperature range. The result is a transducer that plant engineers and reliability teams can depend on to deliver accurate, uninterrupted radial vibration data to the control system — without false trips, signal dropout, or calibration drift between scheduled maintenance intervals.

Within a properly configured machinery protection cabinet, the 330101-00-72-20-02-CN works in close coordination with the 3300 XL Proximitor Sensor (the signal conditioning module), the Bently Nevada 3500 Series rack-mounted monitoring system, and dedicated barrier modules for intrinsically safe installations in hazardous-area classifications. For plants operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, this probe’s verified compatibility with the 3500/42M four-channel monitor and the 3500/22M transient data interface module ensures that the entire measurement chain — from probe tip to relay output — meets the integrity requirements of a Safety Instrumented System. Complementary components such as the 330130-045-00-00 extension cable and the 330180-X1-05 proximitor sensor are typically specified alongside this probe to complete a fully matched, factory-calibrated transducer set.

Beyond standard rotating equipment, the 330101-00-72-20-02-CN is routinely deployed in reciprocating compressor rod-drop monitoring, where the probe must maintain sub-micron measurement resolution under severe mechanical shock and pulsating pressure loads. In petrochemical and refinery applications, where continuous operation is non-negotiable and unplanned shutdowns carry both safety and financial consequences measured in tens of thousands of dollars per hour, this probe’s robust construction and proven mean-time-between-failure record make it the preferred choice for both OEM installations and field replacement programs. Its compatibility with existing 3300 XL wiring infrastructure means that replacement can be completed rapidly during a planned outage window — minimizing exposure time and restoring full machinery protection coverage without requiring recalibration of the monitoring rack.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection architecture depends on the integrity of every component in the measurement chain. When specifying or replacing the 330101-00-72-20-02-CN, plant engineers should evaluate the complete transducer set: the 330130-045-00-00 extension cable provides the signal path between probe and proximitor, while the 330180-X1-05 proximitor sensor conditions the raw eddy-current signal into a calibrated voltage output suitable for the monitoring rack input. Within the 3500 Series rack, the 3500/42M four-channel vibration monitor processes radial and axial displacement data and drives relay outputs for alarm and trip functions — forming the core of the API 670-compliant protection loop.

For installations in classified hazardous areas — common in upstream oil and gas, chemical processing, and offshore platforms — the measurement loop must be completed with an approved Zener barrier or galvanic isolator to maintain intrinsic safety integrity. Power supply stability within the control cabinet is equally critical: voltage fluctuations or transient surges on the 24 VDC proximitor supply rail can introduce measurement offsets or trigger nuisance trips. A dedicated, regulated DC power supply module with surge suppression, installed on the same rail as the proximitor, significantly reduces this risk. For plants running Bently Nevada System 1 condition monitoring software, the 3500/22M transient data interface module enables high-resolution waveform capture during startup and coast-down events — providing the data needed to distinguish genuine mechanical faults from electrical noise artifacts before a trip decision is made.

Critical Industrial Safety Applications

The 330101-00-72-20-02-CN is specified across a broad range of critical industrial sectors where continuous rotating equipment operation is directly linked to process safety and production continuity.

In petrochemical and refinery facilities, this probe monitors shaft vibration on charge pumps, reactor feed compressors, and cooling water pumps — equipment whose failure can trigger emergency shutdowns, flare events, or loss-of-containment scenarios. In power generation plants, it is installed on steam turbine journal bearings and generator shaft extensions, where early detection of oil whirl, misalignment, or bearing wear prevents forced outages and protects multi-million-dollar rotating assets. Mining and mineral processing operations rely on this probe for SAG mill pinion bearing monitoring and slurry pump shaft displacement measurement, where high dust loading and vibration levels demand a sensor with proven robustness.

In water and wastewater treatment infrastructure, large vertical turbine pumps and blower trains equipped with 3300 XL proximity systems benefit from the probe’s resistance to humidity and condensation. Metallurgical and steel plants deploy it on rolling mill drive trains and continuous caster pinch roll assemblies, where thermal cycling and electromagnetic interference from induction heating systems are constant challenges. Port and marine applications include propulsion shaft monitoring on large vessels and crane hoist motor protection, where the -CN cable configuration’s superior shielding performance is particularly valued in the electrically noisy shipboard environment.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-72-20-02-CN?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the probe fails to meet its specified sensitivity, linearity, or output characteristics within the confirmed support period, KNMKS will arrange replacement or repair at no additional cost. Support requests are supported by our technical team at [email protected].

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-00-72-20-02-CN unit undergoes full functional verification prior to shipment, including output sensitivity check against the 200 mV/mil nominal specification, cable continuity and insulation resistance testing, and visual inspection for connector and tip condition. A test report is available upon request for quality-critical procurement programs.

Q3: Is this probe directly interchangeable with existing 3300 XL installations?
Yes. The 330101-00-72-20-02-CN is a direct replacement for existing 3300 XL 8mm probe installations using the standard 72-inch cable configuration. It is fully compatible with the 330130-045-00-00 extension cable and 330180-X1-05 proximitor sensor without requiring recalibration of the 3500 Series monitoring rack, provided the existing system was originally configured for this probe specification.

Q4: Can long-term supply and stocking commitments be arranged for maintenance programs?
Yes. KNMKS supports planned maintenance and turnaround programs with reserved stock arrangements and scheduled delivery agreements. For facilities requiring guaranteed availability of the 330101-00-72-20-02-CN across multiple planned outage cycles, please contact our supply team to discuss framework agreements and lead-time commitments tailored to your maintenance schedule.
