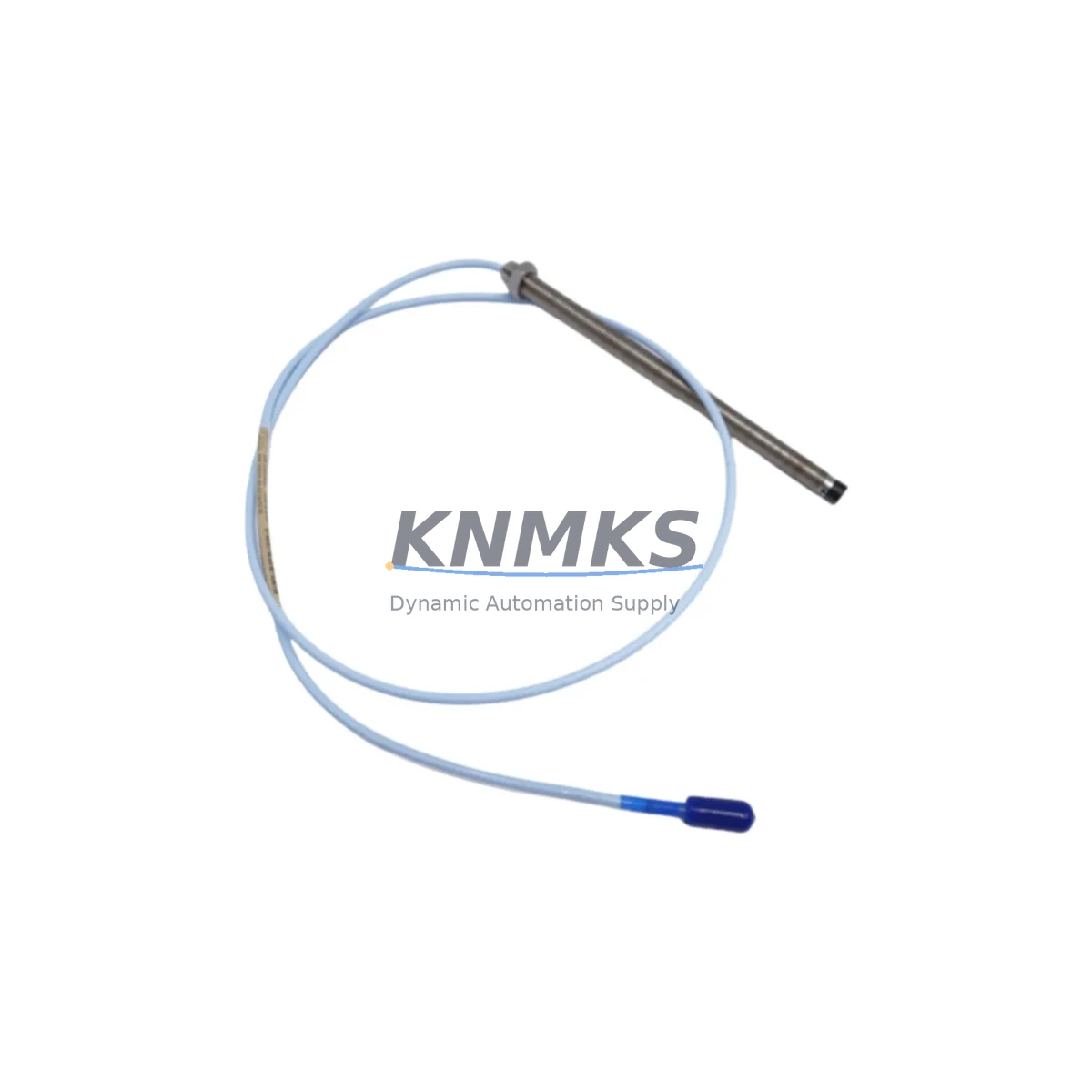

Bently Nevada 330101-00-72-10-12-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-72-10-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-72-10-12-05 is an 8mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As a migration-ready replacement for legacy 3300 XL installations, this probe maintains full dimensional, electrical, and signal compatibility with existing Bently Nevada 3300 XL monitoring systems — enabling direct substitution without rewiring, recalibration of the monitor, or modification of existing conduit runs.

Industrial facilities operating gas turbines, steam turbines, compressors, pumps, and gearboxes that were originally commissioned with 3300 XL proximity systems frequently encounter obsolescence challenges as original probes reach end-of-service life. The 330101-00-72-10-12-05 addresses this directly: it preserves the 200 mV/mil (7.87 V/mm) output sensitivity standard, maintains the -18 VDC to -24 VDC supply voltage range, and retains the standard 5-metre integral cable configuration that connects to the 3300 XL proximitor/extension cable assembly without adapter hardware.

Before completing a probe replacement, maintenance engineers should verify the following parameters against the existing installation: power supply rail capacity at the junction box (minimum 18 VDC negative bias), terminal block wiring polarity (shield, positive, negative), conduit entry thread specification (M14×1 or 3/8-24 UNF depending on mounting adapter), gap voltage at the target surface (typically -10 VDC ±0.5 VDC at nominal gap), and the probe tip-to-target material pairing (carbon steel, stainless, or non-ferrous). These checks prevent signal offset errors that can trigger false alarms in the 3300 XL monitor’s danger/alert setpoints.

In retrofit projects where the 3300 XL monitor chassis is also being replaced or upgraded, the 330101-00-72-10-12-05 probe remains compatible with the Bently Nevada 3500/42M Proximitor Monitor and the 3500/40M Proximitor I/O module, allowing a phased migration strategy where probes are replaced first and the monitor rack is upgraded in a subsequent planned outage. This approach is widely used in power generation and petrochemical facilities to spread capital expenditure across multiple maintenance windows while maintaining continuous machinery protection.

For installations where the existing Bently Nevada 330130 extension cable is still serviceable, the 330101-00-72-10-12-05 probe connects directly using the standard TNC-to-TNC coaxial interface. If the extension cable requires replacement, the 330130-080-00-00 (8-metre) or 330130-040-00-00 (4-metre) extension cables are the appropriate companion components. The proximitor driver electronics — typically the 330180 or 330185 series — should also be inspected for output linearity and temperature drift before returning the loop to service, as degraded proximitor performance can mask probe replacement benefits.

Installations involving Emerson Ovation DCS or Honeywell Experion PKS historian integration should confirm that the 4–20 mA or voltage output from the 3300 XL monitor rack is correctly mapped to the DCS I/O card channel after probe replacement. In some legacy SCADA configurations, the vibration channel tag address is hard-coded to a specific rack slot; any rack reconfiguration during the retrofit must be reflected in the DCS tag database and HMI faceplate to avoid alarm suppression or incorrect trend display.

All units are pre-tested prior to shipment, with gap voltage linearity verified across the full measurement range. Stock is maintained in regional warehouses to support urgent replacement requirements with short lead times. Each unit is covered by a support terms confirmed by quotation against manufacturing defects under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL proximity probe retrofit requires coordinated review of multiple system components beyond the probe itself. The 330130 extension cable connecting the probe to the proximitor should be tested for coaxial continuity and shield integrity; a degraded cable will introduce noise into the vibration signal even with a new probe installed. The 330180 proximitor (or 330185 for high-temperature applications) converts the probe’s eddy-current signal to a usable voltage output and should be bench-tested or replaced as part of a comprehensive loop overhaul.

At the monitor rack level, the Bently Nevada 3300 XL monitor card occupies a dedicated rack slot and communicates vibration, gap, and OK status to the control system via hardwired relay outputs or a Modbus RTU serial link. If the retrofit scope includes upgrading to a 3500 series rack, the 3500/20 rack power supply and 3500/01 rack interface module must be sized and installed before the 3500/42M Proximitor Monitor card can be commissioned. The 3500 rack’s System 1 software interface also requires a firmware version check to ensure compatibility with the site’s existing condition monitoring workstation.

For facilities integrating vibration data into a Yokogawa CENTUM VP or ABB 800xA DCS, the analog output from the monitor rack (typically 4–20 mA representing 0–25 mils peak-to-peak) must be wired to the correct DCS I/O module channel and the engineering unit scaling confirmed in the DCS configuration tool. Signal isolators — such as a DIN-rail mounted galvanic isolator — are recommended at the DCS I/O boundary to prevent ground loop interference, particularly in older control cabinets where multiple instrument commons are bonded together.

Where the retrofit involves expanding the number of monitored measurement points, additional 3300 XL or 3500/42M monitor channels can be added to the existing rack without replacing the entire system, provided rack slot availability and power supply headroom are confirmed. This incremental approach minimises installation time and preserves the existing wiring infrastructure.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation sequence. Before the maintenance window opens, the replacement 330101-00-72-10-12-05 probe should be bench-verified for gap voltage linearity using a calibrated target simulator, and the extension cable and proximitor should be pre-assembled and loop-tested as a complete system. This eliminates field troubleshooting time and allows the installation team to focus on mechanical fit and gap setting.

During the outage, the existing probe should be removed without disturbing the extension cable connector at the proximitor end — disconnecting only at the probe-to-extension cable junction preserves the proximitor’s calibrated output and reduces re-commissioning scope. After installing the new probe, the gap should be set using a digital voltmeter at the proximitor output, targeting -10 VDC ±0.5 VDC before the machine is returned to service. The monitor’s OK relay status should be confirmed as energised before the outage is closed.

For critical machinery where continuous protection is required, a temporary portable vibration monitor can be connected in parallel during the probe swap to maintain alarm coverage. Once the new probe loop is verified and the permanent monitor is back online, the portable unit is removed. This approach is particularly valuable in single-train compressor or turbine applications where the machinery cannot be taken offline without a formal permit-to-work and management of change process.

Original PLC ladder logic or DCS control narrative referencing the vibration channel’s OK status should be reviewed before the outage to confirm that a momentary loss of the OK relay during probe replacement will not trigger an automatic machine trip or inhibit restart permissives. If necessary, the vibration channel can be placed in bypass mode in the safety system for the duration of the swap, with the bypass logged and removed immediately after loop verification is complete.

Retrofit Support FAQ

Q: Is the 330101-00-72-10-12-05 a direct drop-in replacement for the original Bently Nevada 3300 XL probe?
A: Yes. The 330101-00-72-10-12-05 maintains the same 8mm probe diameter, 200 mV/mil output sensitivity, TNC coaxial cable termination, and -18 to -24 VDC supply voltage as the original 3300 XL probe specification. No monitor rescaling or wiring modification is required for a like-for-like replacement.

Q: What commissioning steps are required after installing the replacement probe?
A: After mechanical installation, set the probe gap to achieve -10 VDC ±0.5 VDC at the proximitor output using a calibrated digital voltmeter. Confirm the monitor’s OK relay is energised, verify that alert and danger setpoints are unchanged, and check that the DCS or SCADA historian is receiving a valid vibration trend before closing the work order.

Q: Can this probe be used with a Bently Nevada 3500 series monitor rack as part of a phased upgrade?
A: Yes. The 330101-00-72-10-12-05 is compatible with the 3500/42M Proximitor Monitor and 3500/40M I/O module, making it suitable for installations where the probe infrastructure is replaced first and the monitor rack is upgraded in a subsequent outage window.

Q: What is the support terms coverage and what does stock availability look like?
A: Each unit carries a support terms confirmed by quotation against manufacturing defects under normal operating conditions, effective from the date of shipment. Units are pre-tested for gap voltage linearity before dispatch. Regional warehouse stock is maintained to support urgent replacement requirements; contact our sales team for current lead time and availability confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-72-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-72-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
