Bently Nevada 330101-00-71-10-02-05 Maintenance-Proven Spare

Overview

Bently Nevada 330101-00-71-10-02-05 Maintenance-Proven Spare for Factory Uptime

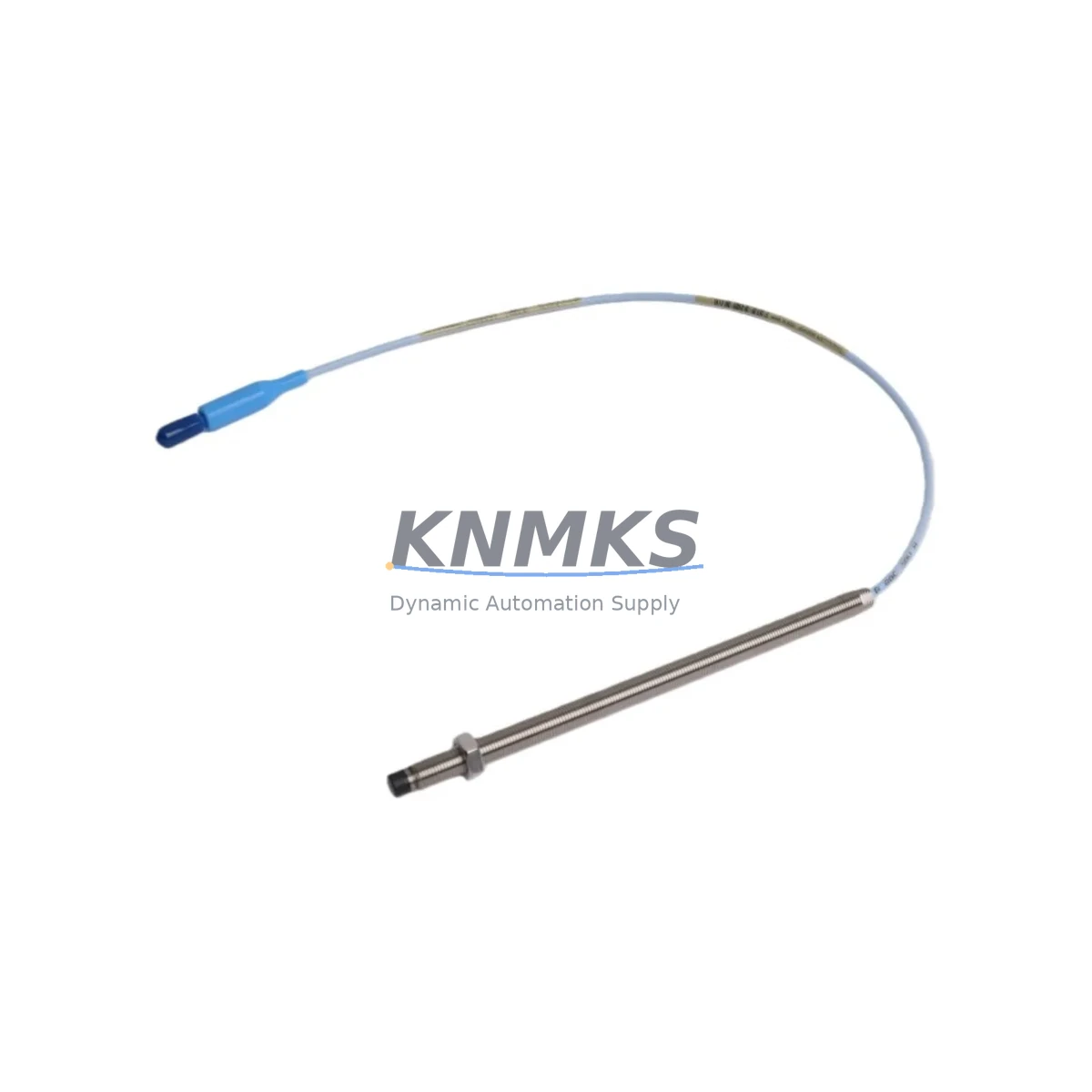

The Bently Nevada 330101-00-71-10-02-05 is an 8mm proximity probe from the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As a direct OEM-equivalent spare, this unit is sourced, inspected, and dispatched to support rapid field replacement in turbines, compressors, pumps, and generators across energy, petrochemical, and heavy manufacturing environments. Every unit ships with a support terms confirmed by quotation and full pre-shipment functional verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

In any rotating machinery protection scheme, the 330101-00-71-10-02-05 probe operates as part of a tightly coupled measurement chain. Maintenance engineers planning a probe replacement or annual calibration outage should treat the entire signal path as a single maintenance unit. The probe pairs directly with a Bently Nevada 330180-51-05 Proximitor Sensor or the equivalent 330130 series driver, and the output feeds into a 3500/40M Proximitor Monitor rack card. Any degradation in the probe’s gap voltage linearity will propagate as false alarms or missed trips at the monitor level, so both components should be verified during the same maintenance window.

Beyond the probe-driver pair, field engineers should inspect the 3500/20 Power Supply module that energizes the Proximitor rack, as voltage sag or ripple directly affects probe sensitivity calibration. Coaxial extension cables — typically the 330130-080-00-00 or equivalent armored extension — should be checked for connector corrosion, jacket damage, and continuity before reinstalling a new probe. In high-vibration environments, cable clamp integrity is a common root cause of intermittent probe faults that are misdiagnosed as probe failure.

For facilities running 3500 Series rack systems, the I/O terminal board and field wiring connections at the rack rear should be inspected for fretting corrosion, particularly in outdoor or coastal installations. Where the vibration signal feeds into a DCS or safety system via a 4–20 mA output module or a Bently Nevada 3500/92 Communication Gateway, the signal integrity at the gateway should be confirmed post-replacement. Procurement teams maintaining critical rotating assets should hold a minimum of two probe assemblies per machine train in bonded inventory, given typical lead times for OEM-equivalent parts and the criticality of continuous vibration monitoring to API 670 compliance.

Site Replacement Workflow

Replacing the 330101-00-71-10-02-05 in the field follows a structured sequence to minimize downtime and avoid introducing new faults. Begin by documenting the existing gap voltage reading at the Proximitor output — typically between -10 VDC and -18 VDC for a correctly gapped 8mm probe — and photograph the cable routing and clamp positions before removal. Isolate the Proximitor power supply at the 3500 rack before disconnecting the probe coaxial connector to prevent transient signals from triggering spurious trips in the monitoring system.

Install the replacement 330101-00-71-10-02-05 using the same thread engagement depth as the removed unit, and re-gap to the machine manufacturer’s specified gap (commonly 50 mil / 1.27 mm for most turbine applications). Reconnect the coaxial cable, restore Proximitor power, and verify the output gap voltage is within the linear range before returning the channel to service. If the replacement probe is being used to retire an older 330100 Series (non-XL) probe, confirm that the Proximitor driver is also upgraded to a 3300 XL-compatible unit, as the two series are not interchangeable without driver replacement. Document the as-left gap voltage in the maintenance management system and update the spare parts register accordingly.

Spare Parts Support FAQ

Q1: Is the 330101-00-71-10-02-05 compatible with both the 3300 XL and 3500 monitoring systems?
Yes. The 330101-00-71-10-02-05 is designed for use with 3300 XL Proximitor Sensors and is fully compatible with Bently Nevada 3500 Series rack-based monitoring systems when paired with the correct XL-series driver. Always confirm the Proximitor part number before installation to ensure series compatibility.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-71-10-02-05 dispatched from our inventory undergoes functional verification including gap voltage linearity check, connector integrity inspection, and cable continuity test. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can you support long-term supply agreements for this probe model?
Yes. We maintain bonded inventory for the 330101-00-71-10-02-05 and related 3300 XL series components to support annual maintenance contracts, turnaround outages, and multi-site procurement programs. Contact our team to discuss blanket order arrangements and guaranteed lead times.

Q4: What should I do if the replacement probe shows an out-of-range gap voltage after installation?
First verify the physical gap between the probe tip and the target shaft using a feeler gauge or the Proximitor output voltage reference chart. If the gap is correct but the voltage remains out of range, inspect the coaxial extension cable and connector for damage, and verify the Proximitor supply voltage at the 3500 rack power module. If the issue persists, contact our technical support team — support terms replacement is available within the 12-month coverage period.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-71-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-71-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
