Bently Nevada 330101-00-71-05-01-05 Maintenance-Proven Spare Part for Factory Uptime

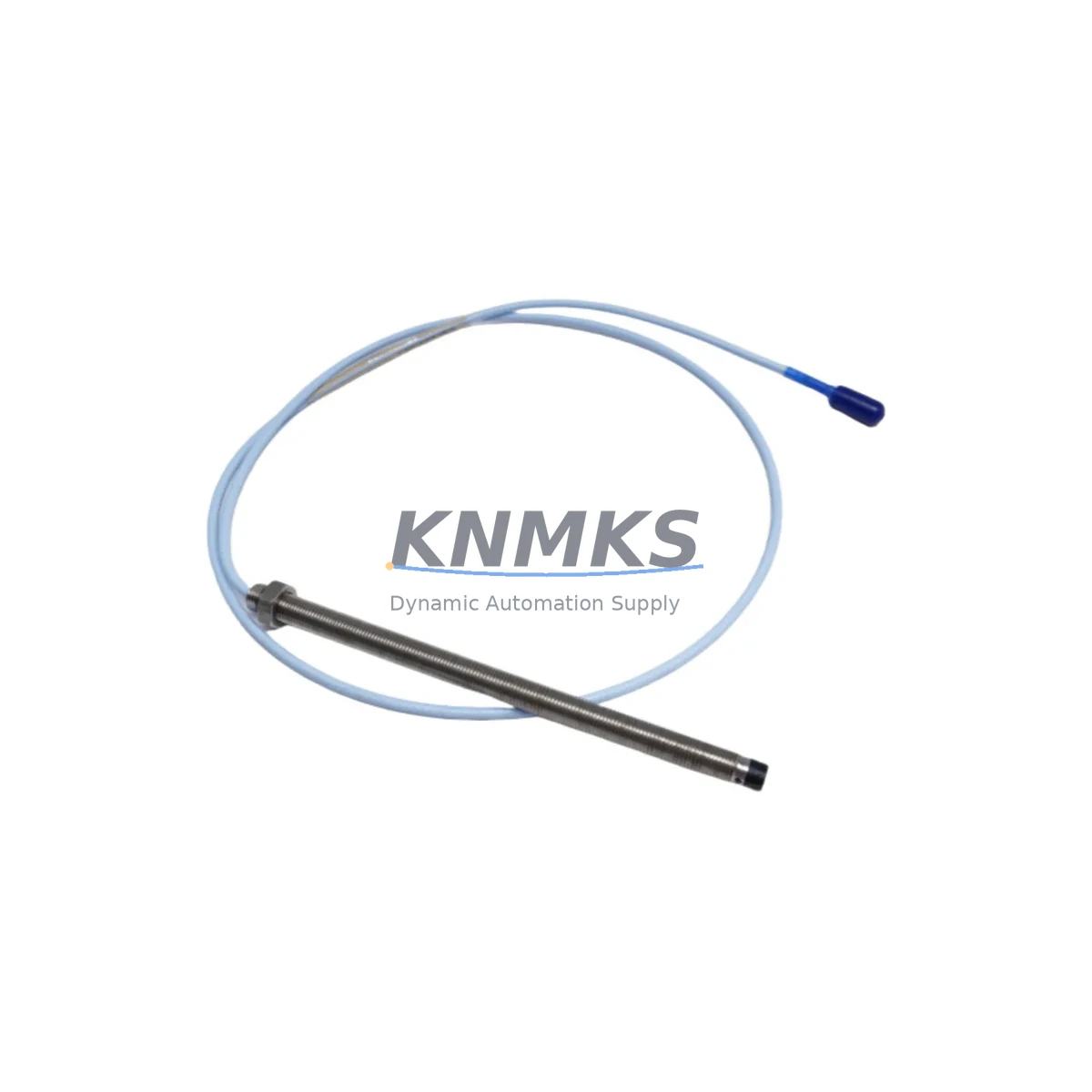

The Bently Nevada 330101-00-71-05-01-05 is an original proximity transducer engineered for the 3300 XL continuous vibration monitoring system. Designed for critical rotating machinery applications — including turbines, compressors, pumps, and motors — this transducer delivers reliable shaft displacement and vibration measurements that form the backbone of predictive maintenance programs in power generation, petrochemical, and heavy industrial facilities. Maintaining a verified spare of the 330101-00-71-05-01-05 in your parts inventory is a proven strategy to eliminate unplanned downtime and protect high-value rotating assets.

Each unit supplied by KNMKS is sourced from authorized channels, functionally tested prior to dispatch, and backed by a support terms confirmed by quotation. Our global logistics network supports urgent replacement orders with fast lead times, ensuring your maintenance team can restore system integrity without extended outage windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330101-00-71-05-01-05 proximity transducer during a planned outage or emergency shutdown, maintenance engineers should treat the event as an opportunity for a comprehensive inspection of the entire vibration monitoring loop. The transducer does not operate in isolation — its accuracy and reliability depend on the condition of several interconnected components.

Begin by inspecting the Bently Nevada 330180-91-00 Proximitor/Driver, which conditions the transducer signal before it reaches the monitor. A degraded or contaminated proximitor will produce erroneous gap voltage readings even with a new probe installed. Simultaneously, verify the condition of the 3300 XL extension cable (typically a 5 m or 9 m armored coaxial cable); cable damage, connector corrosion, or impedance mismatch are among the most common causes of false vibration alarms in field installations.

At the monitor rack level, confirm that the Bently Nevada 3300/16 or 3500 series vibration monitor card is seated correctly and that its channel configuration matches the replacement transducer’s sensitivity specification (typically 7.87 V/mm or 200 mV/mil). If the facility operates a Bently Nevada 3500/42M position monitor for axial thrust measurement, cross-check its calibration against the new transducer gap voltage to ensure alarm setpoints remain valid.

For installations where the 330101-00-71-05-01-05 is mounted in a high-temperature zone near bearing housings, inspect the armored conduit and junction box for heat-induced insulation degradation. Signal integrity issues in high-EMI environments may also require review of signal isolators or barriers installed between the proximitor output and the DCS analog input card. Facilities running Bently Nevada systems integrated with a System 1 Evolution condition monitoring platform should verify that the channel tag mapping and transducer sensitivity constants are updated in the software database following any hardware replacement.

Procurement engineers should note that the 330101-00-71-05-01-05 is a long-lead item in many regions. Establishing a blanket stock agreement with KNMKS — covering 2–4 units per critical machine train — is a cost-effective strategy to eliminate emergency sourcing delays. Our warehouse maintains regional stock to support same-week dispatch for qualified accounts.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (330101-00-71-05-01-05) matches the installed transducer label and the system’s bill of materials. Verify the probe tip diameter (8 mm) and cable length are consistent with the existing installation bracket and conduit routing.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. Bypass the vibration channel at the 3300/16 or 3500 monitor to prevent spurious trip signals during installation. Document the existing gap voltage (typically -10.0 VDC ± 0.5 VDC at the nominal air gap) before disconnecting the old transducer.

Step 3 — Physical Replacement: Remove the old transducer from the mounting bracket. Clean the probe tip area and inspect the shaft surface for scoring or runout anomalies. Install the new 330101-00-71-05-01-05, setting the air gap per the OEM specification (typically 1.0–1.5 mm for 8 mm probes). Reconnect the extension cable and proximitor, ensuring all coaxial connectors are clean and fully seated.

Step 4 — Functional Verification: Power up the proximitor and measure the DC gap voltage at the monitor input. Confirm the reading falls within the specified linear range. Perform a slow-roll check to verify vibration signal quality before returning the machine to service. Update the maintenance management system (CMMS) with the replacement date, new serial number, and gap voltage as-found/as-left values.

Step 5 — System Compatibility Confirmation: If the host system is a legacy Bently Nevada 3300 (non-XL) rack, verify backward compatibility of the 3300 XL transducer with the installed proximitor model before commissioning. KNMKS technical support can assist with compatibility confirmation prior to shipment.

Spare Parts Support FAQ

Q1: Is the 330101-00-71-05-01-05 compatible with both the 3300 and 3500 series Bently Nevada monitors?
The 330101-00-71-05-01-05 is a 3300 XL series proximity transducer. It is fully compatible with 3300 XL Proximitor/Drivers and 3300/16 monitors. Compatibility with 3500 series monitors depends on the specific 3500 I/O module and channel configuration. KNMKS recommends providing your monitor model number for pre-shipment compatibility confirmation.

Q2: What is included in the support terms confirmed by quotation and what does the pre-shipment test cover?
Every 330101-00-71-05-01-05 unit dispatched by KNMKS undergoes functional testing that includes gap voltage linearity verification, insulation resistance check, and connector integrity inspection. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover physical damage caused by improper installation or shaft contact.

Q3: How should we manage long-term inventory for this transducer given its discontinuation risk?
Bently Nevada 3300 XL series components are subject to periodic lifecycle updates. KNMKS recommends maintaining a minimum of 2 units per critical machine train as a rotating spare. For facilities with 10 or more monitored machines, a blanket purchase order with scheduled quarterly releases is the most effective strategy to lock in pricing and ensure availability. Contact [email protected] to discuss a tailored stocking program.

Q4: Can KNMKS supply the complete 3300 XL transducer system including extension cable and proximitor?
Yes. KNMKS maintains stock of the full 3300 XL proximity system assembly, including the 330101-00-71-05-01-05 probe, compatible extension cables (5 m and 9 m), and 330180 series Proximitor/Drivers. Complete system kits can be configured and dispatched as a single order to simplify site installation and reduce procurement lead time.
