Bently Nevada 330101-00-68-10-12-05 Maintenance Spare for Uptime

Overview

Bently Nevada 330101-00-68-10-12-05 Maintenance Spare for Uptime

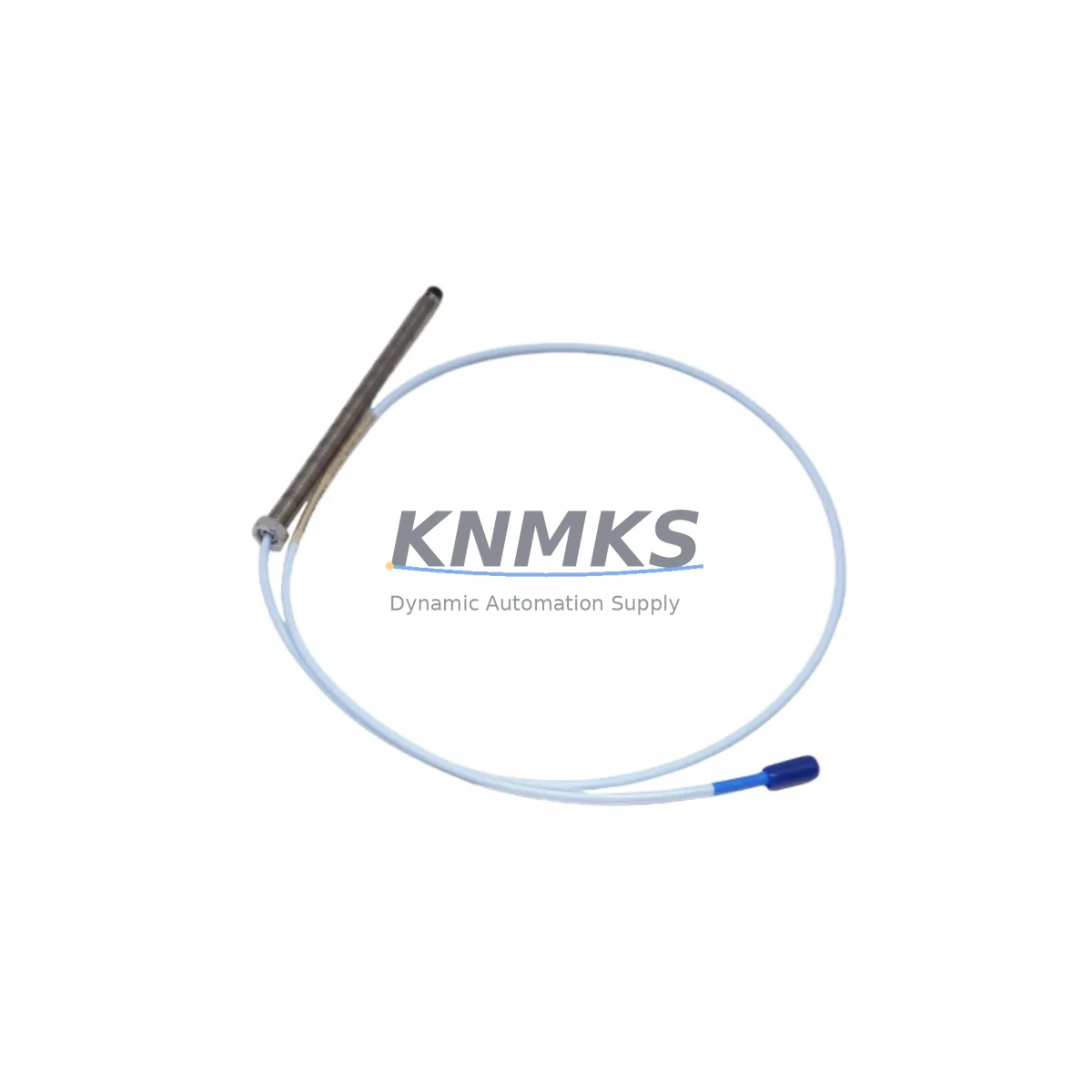

The Bently Nevada 330101-00-68-10-12-05 is an 8mm proximity transducer from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery. Widely deployed across turbines, compressors, pumps, and motors in energy, petrochemical, and heavy manufacturing facilities, this transducer is a cornerstone of predictive maintenance programs and machinery protection systems.

For maintenance engineers managing critical rotating assets, having a verified, tested spare of the 330101-00-68-10-12-05 on the shelf is not optional — it is a fundamental risk mitigation strategy. Unplanned downtime caused by a failed proximity transducer can cascade into hours of lost production, emergency procurement delays, and costly expedited freight. Stocking this original Bently Nevada spare eliminates that risk and ensures your team can execute a rapid swap during planned or unplanned outages.

This unit ships fully tested, with original specifications verified prior to dispatch. Each spare is backed by a support terms confirmed by quotation, giving procurement and reliability engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-68-10-12-05 proximity transducer in the field, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3300 XL Proximitor Sensor (typically the 330180 series), which converts the transducer’s eddy current signal into a usable voltage output. A degraded or mismatched Proximitor will produce erroneous readings even with a new probe installed.

The extension cable connecting the probe to the Proximitor — commonly the 330130 series — should be inspected for insulation damage, connector corrosion, and continuity. Cable faults are a frequent root cause of intermittent vibration alarms and are often overlooked during rapid replacements. Simultaneously, check the -24 VDC power supply feeding the Proximitor; voltage sag or ripple will directly affect transducer linearity and system accuracy.

Within the Bently Nevada 3500 Monitoring System rack, inspect the relevant I/O module and verify that channel configuration matches the new transducer’s sensitivity and gap voltage. The 3500/42M Proximitor I/O module is commonly paired with 3300 XL probes and should be confirmed functional before commissioning the replacement. Review the 3500/20 Power Supply module for any fault indicators, and check terminal block connections for tightness and oxidation.

For facilities running older 3300 Series (non-XL) monitoring racks, confirm backward compatibility before installation. In some configurations, a signal conditioner or isolator may be present in the loop — these should be tested for correct output range. Finally, review the machinery protection relay setpoints and alarm thresholds in the monitoring system to ensure they remain valid after the transducer swap.

Procurement engineers should consider maintaining a minimum of two spare 330101-00-68-10-12-05 units per critical machine train, alongside matched extension cables and at least one spare Proximitor sensor, to support both planned annual turnarounds and emergency response scenarios.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Notify the control room to suppress alarms on the affected channel in the 3500 monitoring system before disconnecting the transducer.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage (typically -10 VDC ± 1 VDC for a healthy 8mm probe at nominal gap). This baseline confirms whether the probe or the Proximitor was the failure source.

Step 3 — Probe Removal: Unthread the 330101-00-68-10-12-05 from its mounting bracket. Inspect the probe tip for physical damage, contamination, or target surface irregularities that may have caused premature failure.

Step 4 — Installation: Thread the new probe to the correct gap distance per the 3300 XL installation manual (typically 1.0 mm / 40 mil for radial vibration applications). Secure the locknut and reconnect the extension cable, ensuring the connector is fully seated and the cable is routed away from heat sources and mechanical contact points.

Step 5 — Verification: Power up the Proximitor and measure the gap voltage at the monitor input. Confirm the reading falls within the linear range. Check for alarm-free operation at the 3500 rack before restoring normal monitoring.

Step 6 — Documentation: Log the replacement in the CMMS with the new part serial number, installation date, and gap voltage reading. Update the spare parts inventory to trigger reorder of the consumed unit.

This workflow supports a target replacement time of under 60 minutes for trained maintenance personnel, minimizing production impact and ensuring full system compatibility is maintained.

Spare Parts Support FAQ

Q1: Is the 330101-00-68-10-12-05 compatible with both the 3300 and 3300 XL monitoring systems?
The 330101-00-68-10-12-05 is designed for the 3300 XL Series. While the physical form factor is similar to earlier 3300 probes, the XL series features enhanced EMI resistance and tighter sensitivity tolerances. Compatibility with non-XL 3300 racks should be verified against the Bently Nevada system documentation before installation. When in doubt, contact our technical team for confirmation prior to ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-68-10-12-05 unit is bench-tested for gap voltage linearity, sensitivity output, and cable continuity before dispatch. Units that do not meet original Bently Nevada specifications are rejected. A test report is available upon request for critical applications.

Q3: Can you support long-term supply commitments for annual maintenance programs?
Yes. We support blanket purchase orders and scheduled delivery programs for facilities requiring predictable spare parts availability across multiple turnaround cycles. Long-term supply agreements help procurement teams lock in pricing and ensure stock availability for planned outages without carrying excess on-site inventory.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions consistent with Bently Nevada’s published specifications. Support requests are processed with priority support, including advance replacement options for critical applications to minimize downtime exposure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-68-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-68-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
