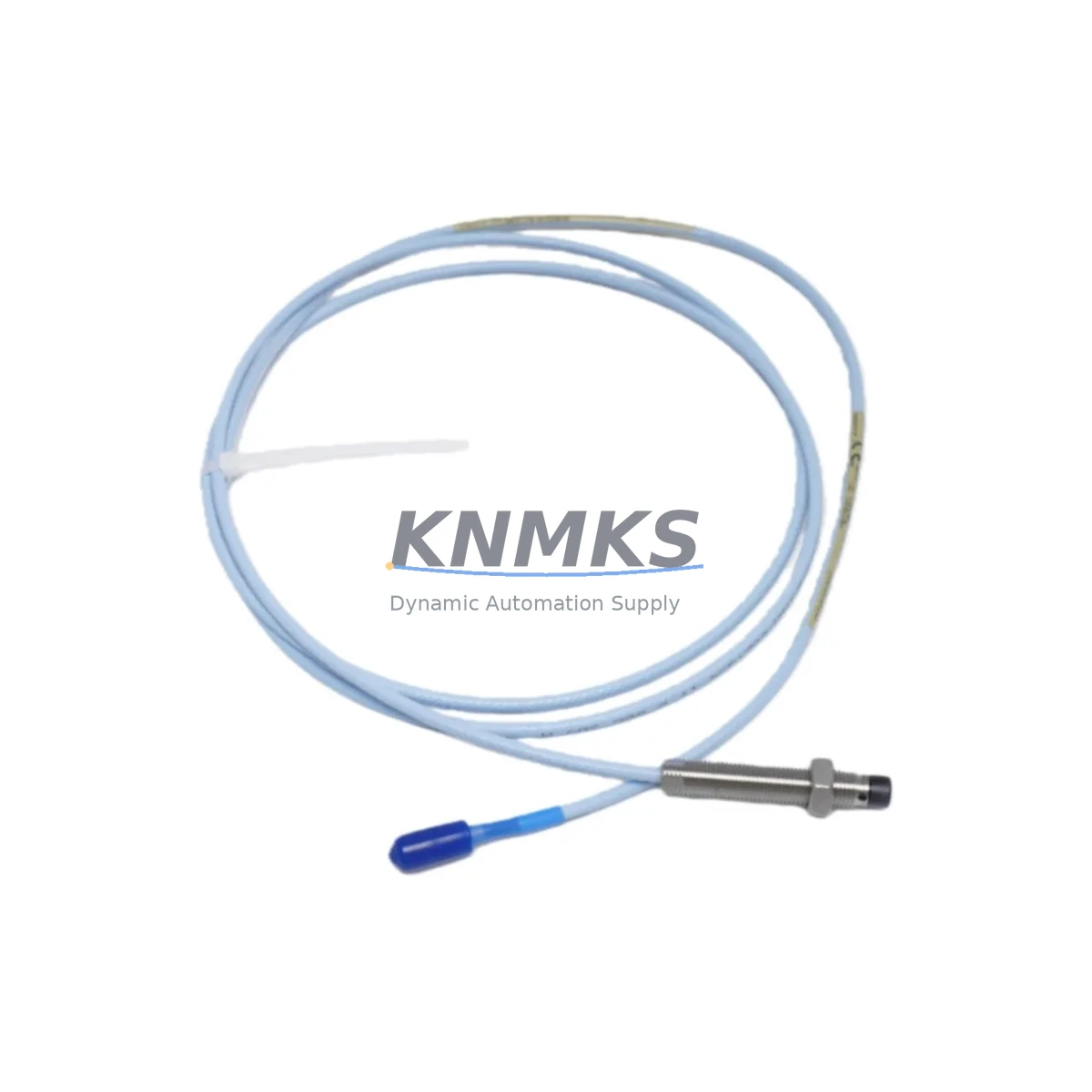

Bently Nevada 330101-00-67-20-02-CN Proximity Probe

Overview

Bently Nevada 330101-00-67-20-02-CN Proximity Probe: Legacy System Migration & Compatible Upgrade

The Bently Nevada 330101-00-67-20-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Monitoring System platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued spare parts availability, this probe serves as a verified drop-in replacement for aging 3300 Series installations across petrochemical, power generation, compressor, and turbine control applications. KNMKS maintains ready stock of the 330101-00-67-20-02-CN to support planned shutdowns, emergency replacements, and phased system modernization programs.

When migrating from earlier Bently Nevada 3300 Series probes or transitioning from third-party eddy-current sensors, engineers must confirm cable length compatibility (this variant: 2.0m extension cable), connector type (MIL-C-5015 standard), gap voltage calibration range (−10 VDC nominal at 1.0 mm gap), and driver/proximitor pairing. The 330101-00-67-20-02-CN is designed to interface directly with the Bently Nevada 3300 XL 8mm Proximitor Sensor (series 330180), ensuring signal chain integrity without recalibration of the monitoring rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-67-20-02-CN into an operating plant requires a structured pre-outage review. Begin by auditing the existing Bently Nevada 3300 XL Proximitor Sensor (330180) mounted in the field junction box — confirm its output range and supply voltage match the replacement probe’s specification. If the proximitor is also aged or showing drift, plan a simultaneous replacement to avoid a second outage.

Next, inspect the 3300 XL Monitor module installed in the control rack. Older rack cards may require a firmware update to correctly interpret the signal from a new probe assembly; coordinate with your DCS or safety system integrator to schedule this update during the same maintenance window. Where the plant uses a Bently Nevada 3500 Series rack, verify that the installed 3500/42M Proximitor I/O Module is configured for 8mm probe input — incorrect module configuration is a common source of false alerts after probe replacement.

For plants running Modbus RTU or FOUNDATION Fieldbus communication from the 3300/3500 rack to the DCS, no protocol migration is required for this probe swap; the analog signal chain remains unchanged. However, if the broader modernization plan includes migrating from a 3300 rack to a newer System 1 Evolution software platform, the probe and proximitor data mapping must be re-verified in the historian configuration.

Cable routing is frequently overlooked during probe replacement. The Bently Nevada 330130 Series extension cable (armored, field-installable) is the recommended interconnect between the probe and proximitor when conduit runs exceed the probe’s integral cable length. Confirm total cable length does not exceed the proximitor’s specified range, as excess cable capacitance degrades the eddy-current measurement linearity.

Finally, if the control cabinet also houses a Bently Nevada 3300 XL Power Supply, inspect its output voltage under load before commissioning the new probe. An under-voltage supply is a leading cause of gap voltage errors that are incorrectly attributed to a faulty probe. Document the pre- and post-installation gap voltage readings as part of the outage record.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement requires pre-staging all components before the maintenance window opens. KNMKS ships the 330101-00-67-20-02-CN with a functional test certificate, allowing your team to verify probe output on the bench before the unit is installed in the machine. This eliminates the risk of discovering a logistics or specification error only after the bearing housing has been opened.

Preserve the original program logic in the DCS or safety PLC by exporting a full configuration backup before any rack card is disturbed. If the 3300 or 3500 rack is connected to a Bently Nevada System 1 condition monitoring server, ensure the historian is set to record the last known good baseline values — this protects the vibration trend database and allows immediate comparison after the new probe is commissioned.

For continuous-process plants where a full shutdown is not feasible, consider a hot-standby approach: install the new probe in a spare probe boss (if available) and verify its gap voltage and signal quality while the machine remains online. Switch the monitoring rack input to the new probe only after confirming stable readings, then remove the old probe. This technique is applicable on machines with dual-probe bearing housings and reduces the live-machine exposure time to under 15 minutes.

After installation, perform a slow-roll check at low shaft speed to confirm the probe gap voltage is within the −10 VDC ± 1 VDC acceptance band before bringing the machine to operating speed. Log the as-left gap voltage, probe serial number, and installation date in the plant maintenance management system (CMMS) to support future lifecycle planning.

Retrofit Support FAQ

Q1: Is the 330101-00-67-20-02-CN a direct replacement for earlier 330101 variants?
A: The 330101-00-67-20-02-CN shares the same 8mm probe body and M10×1.0 thread as other 330101 series variants. The suffix codes define cable length and connector configuration. Confirm your existing cable length and connector type before ordering to ensure a direct swap. KNMKS can cross-reference your existing part number on request.

Q2: What pre-shipment testing does KNMKS perform?
A: Each unit is functionally tested for output voltage linearity, insulation resistance, and connector integrity before shipment. A test certificate is included with every order. Units are shipped in anti-static, moisture-resistant packaging suitable for long-term storage in spare parts inventory.

Q3: Can this probe be used with a Bently Nevada 3500 rack instead of a 3300 XL rack?
A: Yes, provided the 3500 rack is fitted with a compatible 8mm proximitor module (such as the 3500/42M) configured for the correct probe series. Verify the proximitor model and rack slot configuration with your system documentation before installation. KNMKS technical support can assist with compatibility verification.

Q4: What is the support terms coverage and what does it include?
A: KNMKS provides a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects and functional failure under normal operating conditions. The support terms does not cover damage resulting from incorrect installation, over-voltage, or mechanical impact. Support requests are processed with return of the defective unit and the original test certificate.
