Bently Nevada 330101-00-66-20-02-CN Fail-Safe Proximity Probe

Overview

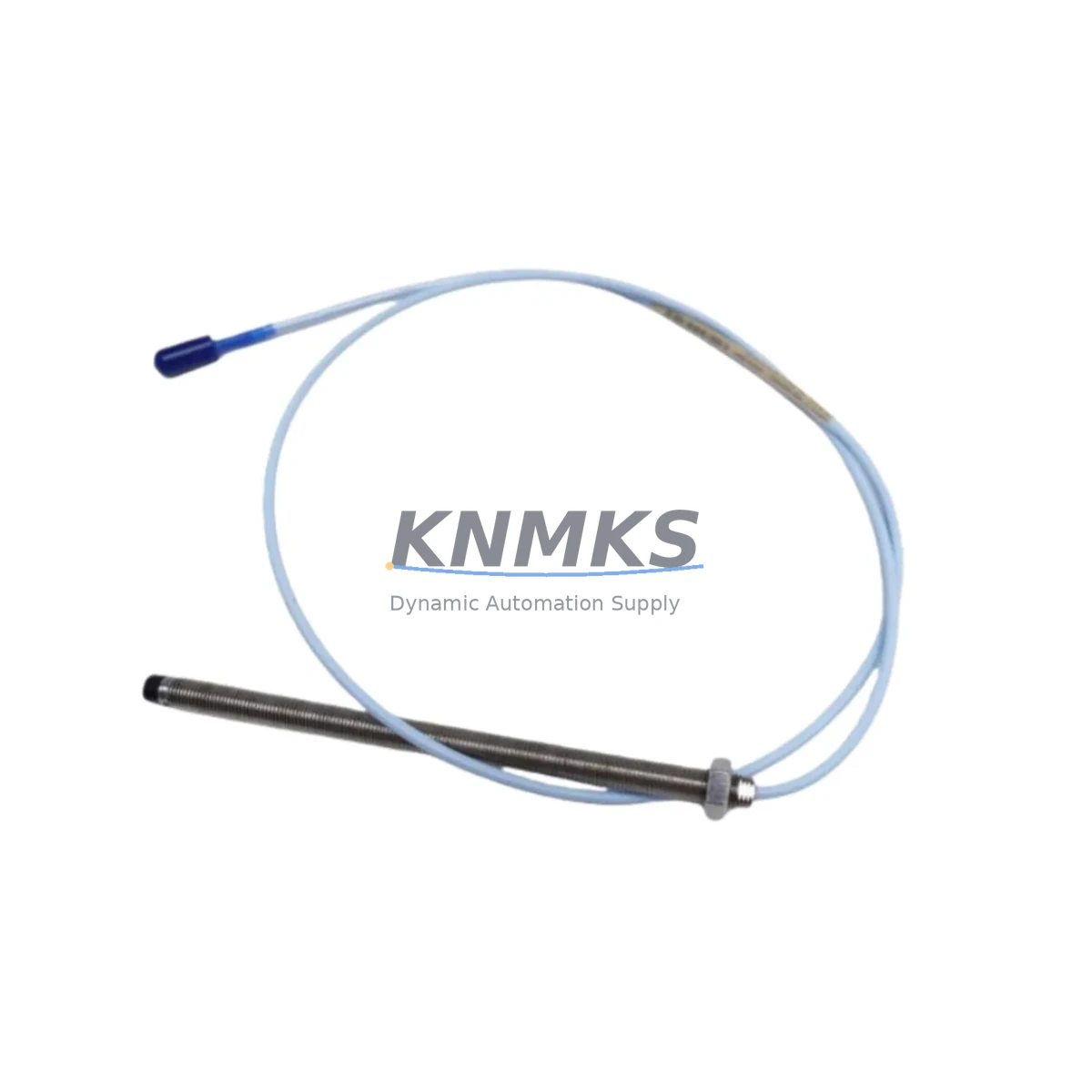

Bently Nevada 330101-00-66-20-02-CN Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330101-00-66-20-02-CN is a 3300 XL Series eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in critical rotating machinery applications. Designed to operate reliably in the harshest industrial environments — including high electromagnetic interference, elevated temperatures, mechanical vibration, dust ingress, and moisture exposure — this probe delivers the signal integrity and measurement stability that safety-critical control loops demand.

In continuous production facilities such as petrochemical plants, power generation stations, and metallurgical operations, unplanned machinery downtime carries severe operational and safety consequences. The 330101-00-66-20-02-CN addresses this risk directly: its eddy-current sensing principle is inherently non-contact, eliminating mechanical wear and ensuring consistent gap measurement over extended service intervals. The probe’s 25 mm sensing range and 5-metre integral cable configuration are optimized for direct integration with Bently Nevada 3300 XL series proximitor/signal conditioners, maintaining calibrated output linearity even under sustained shaft runout, thermal expansion, and high-speed rotor dynamics.

Signal drift and measurement anomalies are primary contributors to spurious trips and missed fault detection in rotating machinery protection systems. The 330101-00-66-20-02-CN’s precision-wound coil assembly and thermally stable housing minimize sensitivity variation across the full operating temperature range, ensuring that the 3300 XL system’s overspeed, high vibration, and thrust position trip setpoints remain accurate and dependable. This is particularly critical in safety instrumented systems (SIS) where false negatives or false positives in vibration channels can trigger either undetected equipment failure or unnecessary production shutdowns.

Within a typical critical machinery protection cabinet, the 330101-00-66-20-02-CN operates as part of a coordinated protection architecture. It interfaces directly with the Bently Nevada 3300 XL 8mm Proximitor signal conditioner, which converts the probe’s raw impedance signal into a calibrated -24 VDC output suitable for the machinery protection monitor. The monitor — such as the Bently Nevada 3500/42M Proximitor/Seismic Monitor — processes radial vibration, axial position, and differential expansion channels simultaneously, feeding trip and alarm signals to the plant DCS or safety PLC. Power supply stability for the entire 3300 XL loop is maintained by dedicated Bently Nevada 3500/15 Power Supply modules, which provide regulated, isolated DC power with internal redundancy to prevent measurement interruption during grid transients or cabinet power events. For installations requiring communication with the plant historian or condition monitoring platform, the Bently Nevada 3500/92 Communication Gateway provides Modbus TCP and OPC-DA connectivity without introducing ground loops or common-mode noise into the measurement chain. In high-EMI environments adjacent to large variable frequency drives or high-current bus bars, proper cable routing and the use of Bently Nevada armored extension cables compatible with the 330101 series further protect signal integrity from inductive and capacitive coupling.

The probe’s stainless steel housing and epoxy-sealed tip construction provide robust resistance to lubricating oils, hydraulic fluids, process condensate, and cleaning agents commonly encountered in bearing housings and seal cavities. Its IP67-rated connector interface prevents moisture ingress at the cable junction point, a frequent failure mode in probes installed in wet or washdown-exposed locations such as water treatment pump stations, marine propulsion systems, and offshore platform compressor trains.

KNMKS maintains verified inventory of the 330101-00-66-20-02-CN with full pre-shipment functional testing performed on each unit prior to dispatch. Every probe is verified for tip impedance, cable continuity, connector integrity, and dimensional compliance against Bently Nevada factory specifications. This ensures that field installation proceeds without the commissioning delays and re-calibration cycles that can arise from untested or improperly stored spare parts.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330101-00-66-20-02-CN integrates multiple layers of measurement, conditioning, and power protection to eliminate single points of failure. The probe feeds the Bently Nevada 3300 XL 8mm Proximitor, which provides the calibrated voltage output required by the Bently Nevada 3500/42M Proximitor/Seismic Monitor for radial vibration and axial position processing. Trip relay outputs from the 3500/42M connect to the plant safety PLC or emergency shutdown system, ensuring that high-vibration or high-thrust events trigger controlled machinery shutdown before mechanical damage propagates.

Cabinet power integrity is maintained by the Bently Nevada 3500/15 Power Supply, which delivers clean, regulated DC power to all monitor rack modules, preventing measurement errors caused by power rail noise or voltage sag during plant-wide load switching events. For facilities requiring remote condition monitoring, the Bently Nevada 3500/92 Communication Gateway bridges the protection system to the plant network using Modbus TCP, enabling real-time vibration trend data to reach the control room historian without compromising the electrical isolation of the measurement loop. In installations where surge protection is required at the cabinet entry point — particularly in outdoor substations or lightning-prone regions — Bently Nevada surge protection accessories for the 3300 XL cable circuit provide transient voltage clamping that protects both the probe and the proximitor from damage during electrical storm events or switching surges on adjacent power circuits.

Critical Industrial Safety Applications

The 330101-00-66-20-02-CN is deployed across a broad range of critical industrial sectors where rotating machinery reliability directly determines process safety and production continuity:

Petrochemical and Refining: Installed on centrifugal compressors, reactor charge pumps, and crude distillation column overhead compressors, where continuous vibration monitoring is mandated by API 670 machinery protection standards. Undetected bearing wear or rotor imbalance in these services can result in catastrophic seal failure, hydrocarbon release, and fire or explosion hazard.

Power Generation: Applied to steam turbine shaft monitoring systems at thermal and combined-cycle power plants, where axial thrust position and radial vibration channels provide the primary protection against blade rub, bearing failure, and rotor bow events that can cause turbine destruction and extended forced outages.

Mining and Mineral Processing: Used on large ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump drive trains, where high dust loading, water spray, and continuous heavy-load operation demand a probe with robust environmental sealing and long-term measurement stability without recalibration.

Water and Wastewater Treatment: Fitted to high-speed centrifugal blowers and vertical turbine pumps in aeration and raw water intake stations, where unplanned pump failure disrupts treatment capacity and creates regulatory compliance risk. The probe’s IP67 connector rating is particularly valuable in the wet, corrosive atmospheres of these installations.

Metallurgy and Steel: Deployed on rolling mill drive motors, continuous caster pinch roll drives, and blast furnace blower trains, where high ambient temperatures, heavy vibration from rolling loads, and intense electromagnetic interference from large DC drive systems challenge conventional measurement technologies.

Port and Marine: Installed on ship propulsion shaft lines, bow thruster motors, and cargo pump turbines, where saltwater atmosphere, vessel motion, and the consequences of propulsion loss at sea make fail-safe vibration monitoring a critical operational requirement.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330101-00-66-20-02-CN?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. If a unit exhibits any functional defect within the confirmed support period under normal operating conditions, KNMKS will provide a replacement or full technical support for resolution. Support requests are processed directly through our sales team at [email protected].

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-66-20-02-CN unit undergoes a full functional test prior to dispatch: tip coil impedance measurement, cable continuity verification, connector seating and locking integrity check, and dimensional inspection of the probe tip and mounting thread. This process ensures that the unit will perform within Bently Nevada factory calibration specifications immediately upon installation, without requiring field re-calibration or adjustment.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330101-00-66-20-02-CN is designed and calibrated specifically for use with the Bently Nevada 3300 XL Proximitor series and is fully compatible with 3500 Series monitor racks including the 3500/42M, 3500/40M, and 3500/45 modules. No additional calibration factors or hardware modifications are required when replacing an existing 330101-series probe in a commissioned system.

Q4: Can KNMKS support long-term supply commitments for maintenance programs?
Yes. KNMKS maintains ongoing inventory of the 330101-00-66-20-02-CN and can support scheduled maintenance programs, annual turnaround spare parts packages, and emergency replacement orders with short lead times. For facilities operating multiple machines with 3300 XL protection systems, we recommend establishing a standing spare parts agreement to ensure probe availability ahead of planned outages and to avoid procurement delays during unplanned shutdowns. Contact [email protected] or +86 18359268345 to discuss supply arrangements.
