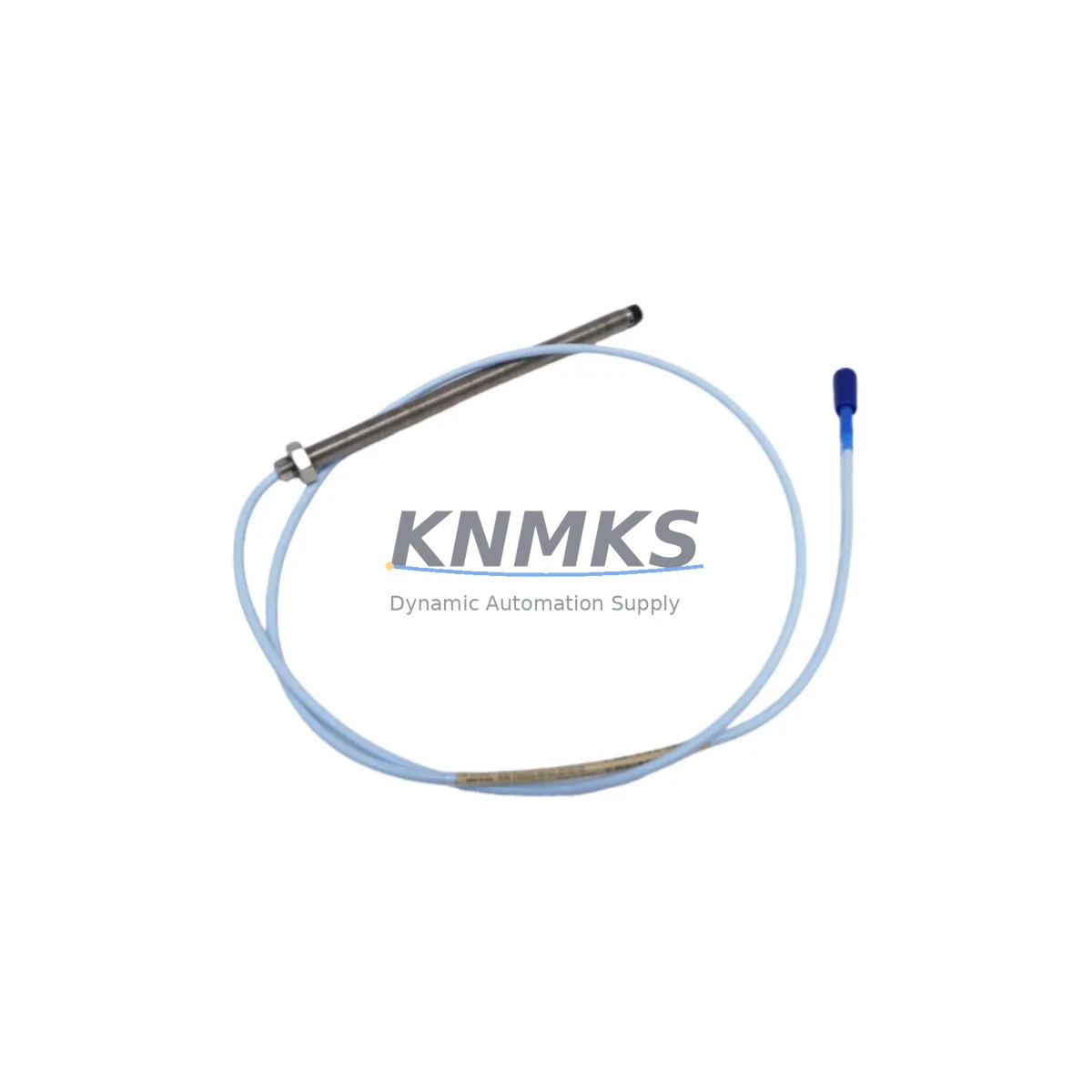

Bently Nevada 330101-00-64-10-12-05 Migration-Ready Proximity Sensor

Overview

Bently Nevada 330101-00-64-10-12-05 Migration-Ready Proximity Sensor for Legacy Control Systems

The Bently Nevada 330101-00-64-10-12-05 is a 5 mm eddy current proximity sensor engineered for the 3300 XL Proximitor System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As original equipment reaches end-of-life and OEM support windows close, maintenance teams across power generation, petrochemical, and heavy industry are actively sourcing tested, migration-ready replacements to sustain continuous monitoring without triggering a full system overhaul. This unit ships from verified stock, has passed pre-shipment functional testing, and is backed by a support terms confirmed by quotation covering both hardware integrity and signal output performance.

When planning a like-for-like replacement of the 330101-00-64-10-12-05, engineers must confirm several critical parameters before installation. The sensor operates on a standard –24 VDC supply rail shared with the 3300 XL Proximitor monitor — verify that the existing power distribution module in the control cabinet can sustain the combined draw if multiple channels are being replaced simultaneously. Terminal wiring follows the standard three-wire coaxial extension cable scheme: confirm that the existing Bently Nevada 330130 extension cable length matches the gap calibration range for the target probe-to-driver combination. Any mismatch in cable length will shift the linear operating range and invalidate the calibrated gap voltage.

Backplane and rack compatibility is a frequent concern during 3300 XL migrations. The 330101-00-64-10-12-05 mounts into the standard 3300 XL rack alongside monitor modules such as the 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor. If the host rack is being consolidated or relocated, confirm that the rack’s I/O termination block assignments and channel addressing have not shifted — a remapped channel address will require corresponding updates in the System 1 or Rack Configuration Software before the monitor will accept the new sensor signal. Where the existing rack is a legacy 3300 series (non-XL), a direct swap is not supported without a rack adapter or a full rack upgrade to the 3300 XL platform.

Program and HMI compatibility must be validated before cutover. If the plant historian or DCS — such as a Honeywell Experion PKS or Emerson DeltaV node — is receiving vibration data via a 4–20 mA output or Modbus RTU link from the 3300 XL monitor, confirm that the engineering units, alarm setpoints, and tag mappings remain intact after the sensor swap. HMI faceplate displays tied to the vibration channel should be verified in simulation mode before the machine is returned to service. Where the 3300 XL communicates over a serial link to a SCADA gateway, the communication module — typically a Bently Nevada 3500/92 or equivalent serial interface card — should be checked for firmware compatibility with the replacement sensor’s output characteristics.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL proximity sensor retrofit begins well before the maintenance window opens. Start by auditing the full sensor loop: the 330101-00-64-10-12-05 probe, the paired Bently Nevada 330180 Proximitor driver, the 330130 extension cable, and the termination at the 3300 XL monitor’s I/O termination block. Each element in the loop must be confirmed as serviceable or replaced as a matched set — substituting only the probe while leaving a degraded driver in place is a common source of post-retrofit calibration failures.

For plants running parallel vibration monitoring on multiple machine trains, it is advisable to stage replacement kits that include not only the 330101-00-64-10-12-05 sensor but also spare Bently Nevada 3300/16 monitor cards and a replacement 3300 XL power supply module. Power supply degradation is a leading cause of false trips during sensor swaps, and having a tested spare on the shelf eliminates a common variable during troubleshooting. Where the control cabinet also houses a Bently Nevada 3500 series rack for more critical machinery, ensure that the two rack platforms are on separate power feeds to prevent a supply event on the 3300 XL side from affecting the 3500 system.

Communication and I/O planning is equally important. If the plant is migrating from a legacy serial SCADA link to an Ethernet-based historian, the 3300 XL’s serial output may need to be bridged through a protocol converter before the new sensor data can be ingested. In parallel, any signal isolators on the 4–20 mA vibration output channels should be inspected — aged isolators can introduce offset errors that appear as sensor faults after a probe replacement. Where I/O expansion is planned as part of the broader upgrade, confirm that the new I/O modules are addressed sequentially and that the Rack Configuration Software reflects the updated channel map before the machine is restarted.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL proximity sensor replacement requires a structured pre-outage checklist. Before the maintenance window, export the current Rack Configuration Software project file and store it in a version-controlled backup location — this preserves all channel assignments, alarm setpoints, and communication parameters and allows a full restore if the replacement introduces unexpected behavior. Where possible, perform a bench calibration of the 330101-00-64-10-12-05 against the paired Proximitor driver before installation, confirming the gap voltage curve matches the original calibration sheet.

During the swap, maintain the original wiring labels and terminal assignments. The 3300 XL termination block uses a fixed pin-out, but field wiring errors — particularly reversed polarity on the coaxial shield — are a frequent cause of extended troubleshooting after sensor replacement. After installation, perform a static gap check with the machine at rest before energizing the monitor, then verify the dynamic output at low speed before returning the machine to full load. If the DCS or SCADA system is configured to generate a maintenance bypass alarm during the sensor swap, confirm that the bypass is cleared and the channel is returned to normal monitoring mode before the machine reaches operating speed. This sequence protects the original program logic, maintains field control continuity, and reduces the risk of a spurious trip during the post-retrofit run-up.

Retrofit Support FAQ

Q: Is the 330101-00-64-10-12-05 a direct drop-in replacement for other Bently Nevada 5 mm proximity probes?
A: It is a direct replacement for other 330101 series 5 mm probes with matching cable length and driver pairing. Cross-series substitution (e.g., replacing a 330104 series probe) requires verification of the gap calibration range and Proximitor driver compatibility before installation.

Q: What pre-shipment testing is performed on each unit?
A: Each 330101-00-64-10-12-05 unit undergoes functional output verification prior to dispatch, confirming signal integrity across the linear operating range. A test report is available on request. Units are shipped in anti-static packaging with physical inspection documentation.

Q: How should I handle wiring during the replacement to avoid introducing errors?
A: Photograph and label all existing terminal connections before disconnecting. The 3300 XL termination block pin-out is fixed, but field wiring variations — particularly extension cable shield grounding — can differ between installations. Restore wiring to the original configuration and perform a continuity check before powering the monitor.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers hardware defects and signal output performance failures from the date of shipment. It does not cover damage resulting from incorrect installation, reversed polarity, or operation outside the specified supply voltage range. Support requests are processed directly through our sales team with return authorization.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-64-10-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-64-10-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
