Bently Nevada 330101-00-63-20-12-05 Maintenance Spare Part: Proximity Probe for Factory Uptime

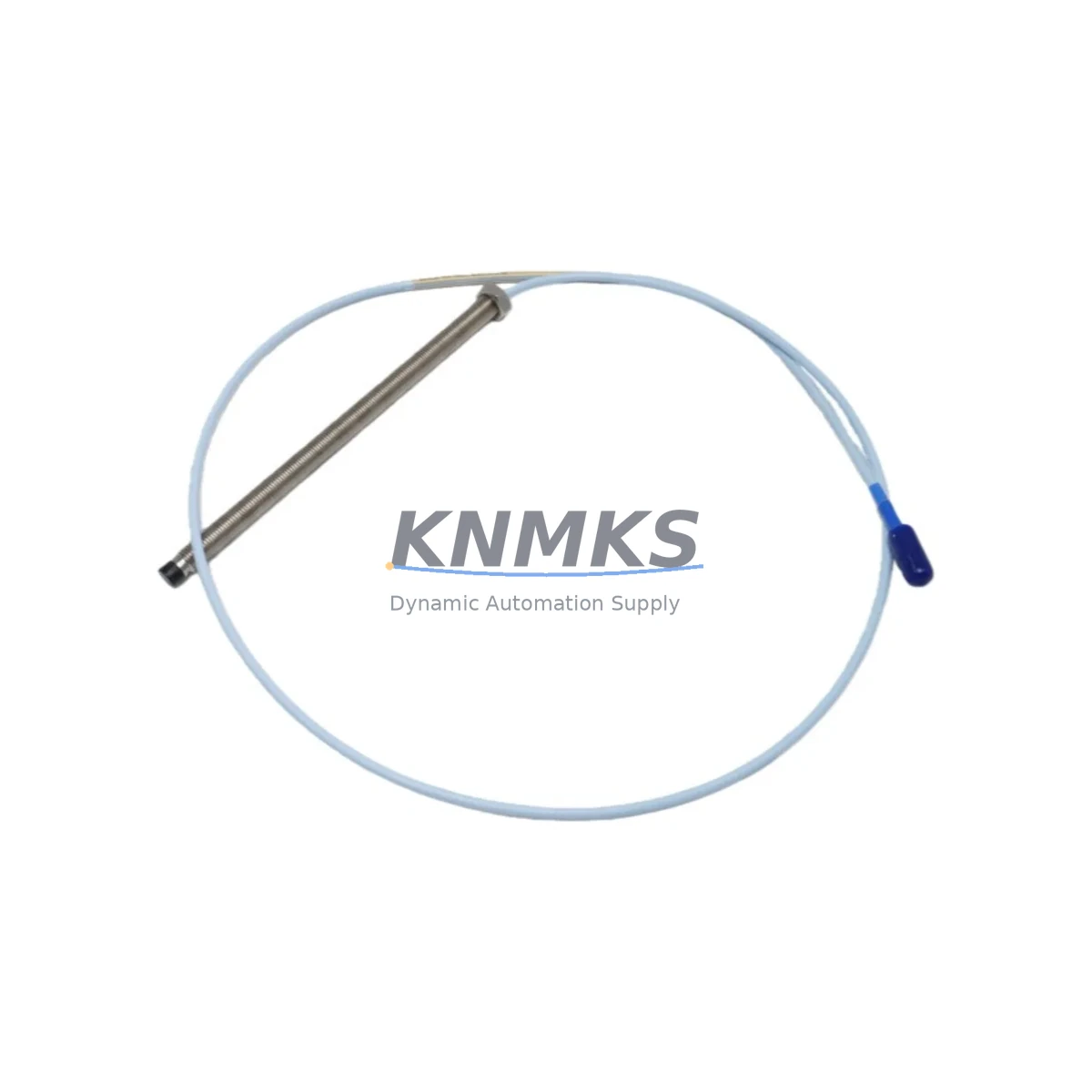

The Bently Nevada 330101-00-63-20-12-05 is an original proximity probe engineered for continuous vibration monitoring in rotating machinery applications. Designed for the 3300 XL Series monitoring system, this probe delivers reliable shaft displacement and radial vibration measurements in turbines, compressors, pumps, and other critical rotating assets. For maintenance engineers managing high-availability production lines, having a verified spare of the 330101-00-63-20-12-05 on the shelf is a fundamental element of any predictive maintenance or emergency response strategy.

Industrial facilities operating Bently Nevada 3300 XL systems depend on proximity probes to provide continuous, real-time feedback on shaft position and vibration amplitude. A failed or degraded probe can trigger false alarms, mask genuine fault conditions, or cause unplanned shutdowns — all of which translate directly into lost production time and costly emergency maintenance. Stocking the 330101-00-63-20-12-05 as a certified replacement ensures your team can execute a rapid swap without waiting on extended lead times from the OEM supply chain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-63-20-12-05 proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to avoid repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the 330130-045-00-00 extension cable — the coaxial cable connecting the probe to the driver. Cable insulation degradation, connector corrosion, or mechanical damage at the conduit entry point are common causes of erratic vibration readings that are often misattributed to the probe itself.

Next, inspect the 330180-X1-05 proximitor/driver module mounted in the control cabinet. The driver provides the oscillator signal and converts the probe gap voltage into a usable output for the monitoring system. A worn or thermally stressed driver can produce offset bias voltages that shift the probe’s linear operating range, leading to false high-vibration trips. Confirm the driver output voltage is within the -18 VDC to -24 VDC specification before declaring the probe as the root cause of any fault.

The 3300/16 dual-channel vibration monitor card in the 3300 XL rack should also be checked during any probe replacement event. Verify that the channel configuration — including full-scale range, alert setpoints, and danger setpoints — matches the probe sensitivity of 200 mV/mil. Mismatched channel scaling is a frequent commissioning error that resurfaces after hardware replacements.

For facilities running multiple measurement points, it is good practice to simultaneously inspect the 3300/55 keyphasor module if the machine train uses phase-referenced vibration analysis. The keyphasor signal is critical for 1X and 2X vector analysis, and a degraded keyphasor probe of the same 330101 family can compromise the diagnostic value of the entire vibration dataset.

Additionally, review the terminal block wiring and signal isolator modules in the marshalling cabinet. Ground loops introduced through improperly shielded probe cables are a known source of noise in eddy current measurement systems. If the facility uses a DCS or safety instrumented system (SIS) that receives vibration signals from the 3300 XL rack, confirm that the 4–20 mA output isolators and associated fuse protection are intact and within calibration. Replacing the probe without addressing upstream signal conditioning issues will not resolve persistent alarm conditions.

Site Replacement Workflow

The 330101-00-63-20-12-05 is a direct replacement for earlier 330101 series probes used in legacy Bently Nevada 7200 and 3300 systems, provided the extension cable and driver are matched to the 3300 XL specification. Before installation, confirm the probe gap setting using a calibrated gap tool — the nominal air gap for this probe is 1.0 mm (40 mil), corresponding to a bias voltage of approximately -10.4 VDC at the driver output.

During installation, torque the probe to the manufacturer’s specification (typically 20–25 Nm for M12 thread) and secure the cable routing to prevent vibration-induced connector fatigue. After installation, perform a static gap check with the machine at rest, then verify the dynamic signal during coastdown or startup using the 3300 XL system’s built-in buffered output or a portable data collector. Document the as-found and as-left gap voltages in the maintenance management system to establish a baseline for future condition trending.

For facilities managing aging machinery where OEM probe availability is uncertain, maintaining a minimum stock of two 330101-00-63-20-12-05 probes per critical machine train is recommended. This buffer supports both planned annual overhaul activities and unplanned emergency replacements without exposing the operation to supply chain delays. All units shipped from KNMKS are individually tested, serialized, and accompanied by a test report confirming sensitivity and linearity within OEM specification.
