Bently Nevada 330101-00-63-10-02-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-00-63-10-02-00 Spare Part for Factory Uptime

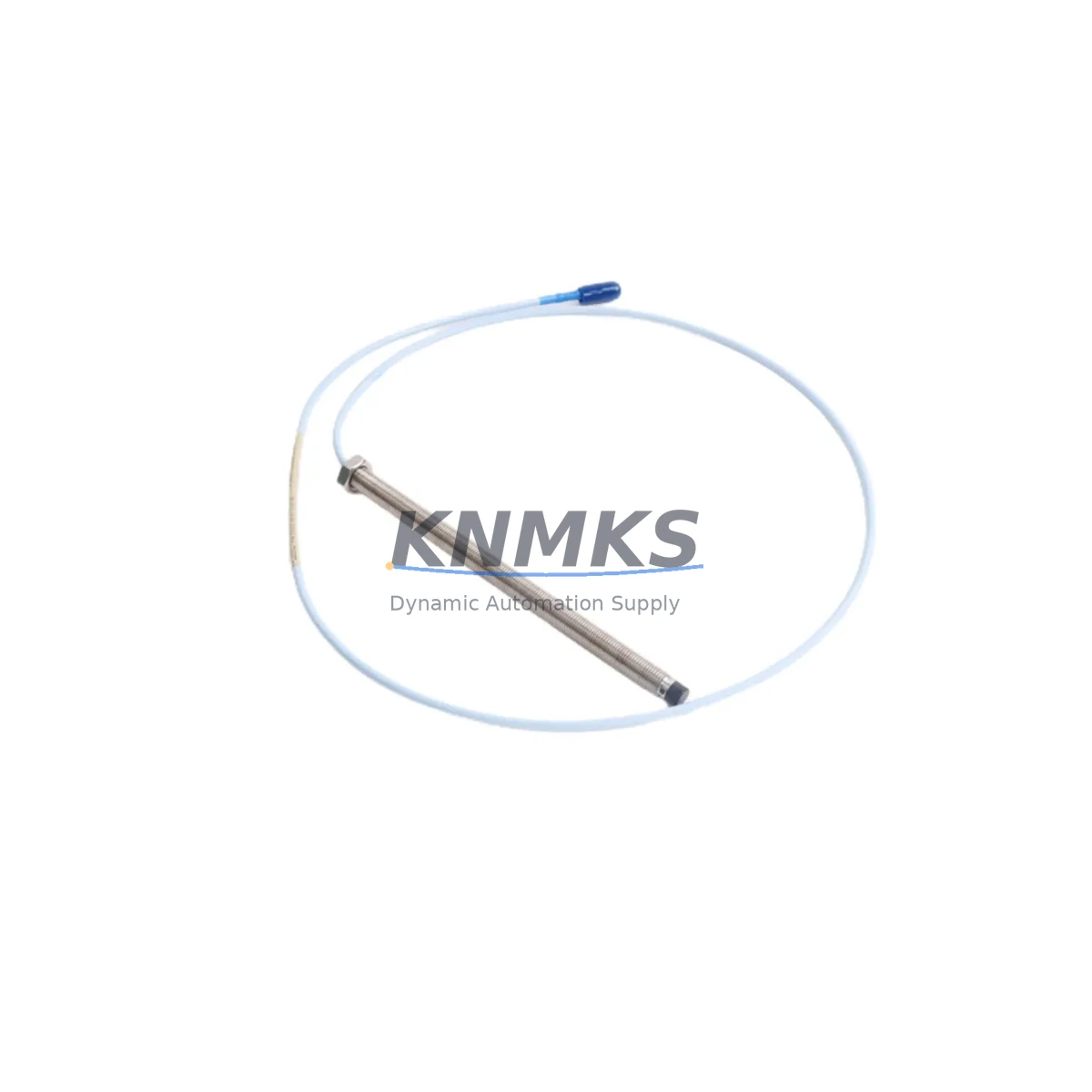

The Bently Nevada 330101-00-63-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the 3300 XL Monitoring System, this probe delivers the real-time shaft displacement data that maintenance engineers rely on to prevent catastrophic bearing failures, detect rotor instability, and maintain uninterrupted production across compressors, turbines, pumps, and motors. Sourced as an original spare part, the 330101-00-63-10-02-00 is fully compatible with Bently Nevada 3300 XL signal conditioners, extension cables, and proximitor drivers — making it the preferred replacement choice for facilities committed to system integrity and zero-compromise uptime.

For maintenance and procurement engineers managing aging rotating machinery, having a verified, shelf-ready 330101-00-63-10-02-00 in your spare parts inventory is a fundamental risk-reduction strategy. Proximity probe failures are among the most common causes of unplanned shutdowns in turbomachinery environments. A single unplanned outage can cost tens of thousands of dollars per hour. Stocking this probe — alongside matched extension cables and proximitor modules — eliminates the lead-time risk that turns a two-hour repair into a multi-day production loss.

KNMKS supplies the 330101-00-63-10-02-00 with full pre-shipment electrical testing, original packaging where available, and a support terms confirmed by quotation covering manufacturing defects. Each unit is inspected for tip condition, cable integrity, and connector seating before dispatch. Long-term supply agreements are available for facilities requiring scheduled annual replenishment or multi-unit safety stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-63-10-02-00 in the field, a disciplined maintenance engineer does not stop at the probe itself. The 3300 XL measurement chain is a system — and the reliability of the vibration reading depends on every link in that chain performing within specification. Begin by inspecting the matched extension cable (e.g., 330130-080-00-00): check for jacket abrasion, connector corrosion, and continuity. A degraded extension cable is a frequent source of signal noise that is often misdiagnosed as a probe fault.

Next, verify the 3300 XL Proximitor module (330180-series) output voltage at the gap voltage test point. If the proximitor is operating outside its nominal –18 VDC supply range, replace the 3300 XL power supply module before commissioning the new probe — a marginal power supply will shorten the service life of any replacement probe. For cabinets running multiple 3300 XL channels, inspect the 3300 XL monitor rack backplane for loose card-edge connections and verify that each monitor card is seated and latched correctly.

In turbine and compressor control cabinets, also check the I/O terminal blocks and field wiring for loose terminations, especially on the –24 VDC common and signal return conductors. Loose terminals introduce resistance that shifts the gap voltage and produces false high-vibration alarms. If the machine is equipped with a Bently Nevada 3500 series rack for overall plant protection, confirm that the 3500/42M or 3500/45 vibration monitor cards are receiving clean signals from the field after probe replacement.

For facilities running legacy DCS or safety systems that accept 4–20 mA vibration signals from the 3300 XL, verify the signal isolator or barrier modules in the marshalling cabinet after any probe swap — these components age independently and can introduce offset errors that mask real machinery changes. Finally, update your CMMS work order to record the new probe serial number, installation gap voltage (typically –10.0 to –10.5 VDC for 8mm probes on steel targets), and the next scheduled calibration interval.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the proximitor driver supply at the 3300 XL power supply module. Confirm zero voltage at the probe connector before disconnecting.

Step 2 — Remove the old probe: Using the correct spanner, unthread the 330101-00-63-10-02-00 from the mounting bracket. Note the existing gap distance (typically 1.0–1.5 mm for radial vibration applications) using a feeler gauge or the recorded gap voltage from the last calibration record.

Step 3 — Inspect the target area: Check the shaft journal surface for scoring, pitting, or runout that could affect the new probe’s linear range. Clean the target area with a lint-free cloth.

Step 4 — Install the replacement probe: Thread the new 330101-00-63-10-02-00 into the bracket. Set the gap to the recorded value. Reconnect the extension cable and verify connector seating.

Step 5 — Energize and verify: Restore power to the proximitor. Measure gap voltage at the proximitor test point. Confirm the reading falls within the –10.0 to –10.5 VDC nominal range for an 8mm probe on a steel target at 1.0 mm gap. Log the as-found and as-left gap voltages in your CMMS.

Step 6 — Functional check: Confirm the 3300 XL monitor card clears any latched alarms and that the vibration reading is stable and within baseline. Return the machine to service.

This workflow minimizes downtime, ensures system compatibility, and creates a traceable maintenance record that supports long-term reliability analysis.

Spare Parts Support FAQ

Q1: Is the 330101-00-63-10-02-00 compatible with both 3300 XL and 3500 series systems?
The 330101-00-63-10-02-00 is a 3300 XL series probe and is designed to work with 3300 XL Proximitor modules and extension cables. It is not directly interchangeable with 3500 series probes, which use a different connector and calibration standard. If your facility is migrating from 3300 XL to 3500 series monitoring, consult the Bently Nevada system compatibility guide or contact KNMKS for a cross-reference recommendation.

Q2: What is the recommended safety stock quantity for a continuous-process facility?
For facilities with four or more 3300 XL measurement points on critical machinery, a minimum of two spare 330101-00-63-10-02-00 probes is recommended, along with one matched extension cable and one spare proximitor module. Facilities with seasonal shutdown windows should align replenishment orders to arrive 6–8 weeks before the planned outage to allow pre-installation inspection and gap calibration verification.

Q3: How does KNMKS verify the 330101-00-63-10-02-00 before shipment?
Each unit undergoes electrical continuity testing, sensitivity output verification, and a visual inspection of the probe tip, cable jacket, and connector. Units that do not meet Bently Nevada specification tolerances are quarantined and not shipped. A test report is available upon request for critical applications.

Q4: Can KNMKS support long-term or scheduled supply agreements for this part?
Yes. KNMKS offers blanket purchase order arrangements and scheduled delivery programs for the 330101-00-63-10-02-00 and related 3300 XL components. This is particularly valuable for facilities managing multi-year maintenance contracts or operating in regions with extended import lead times. Contact [email protected] or call +86 18359268345 to discuss your supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330101-00-63-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330101-00-63-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
