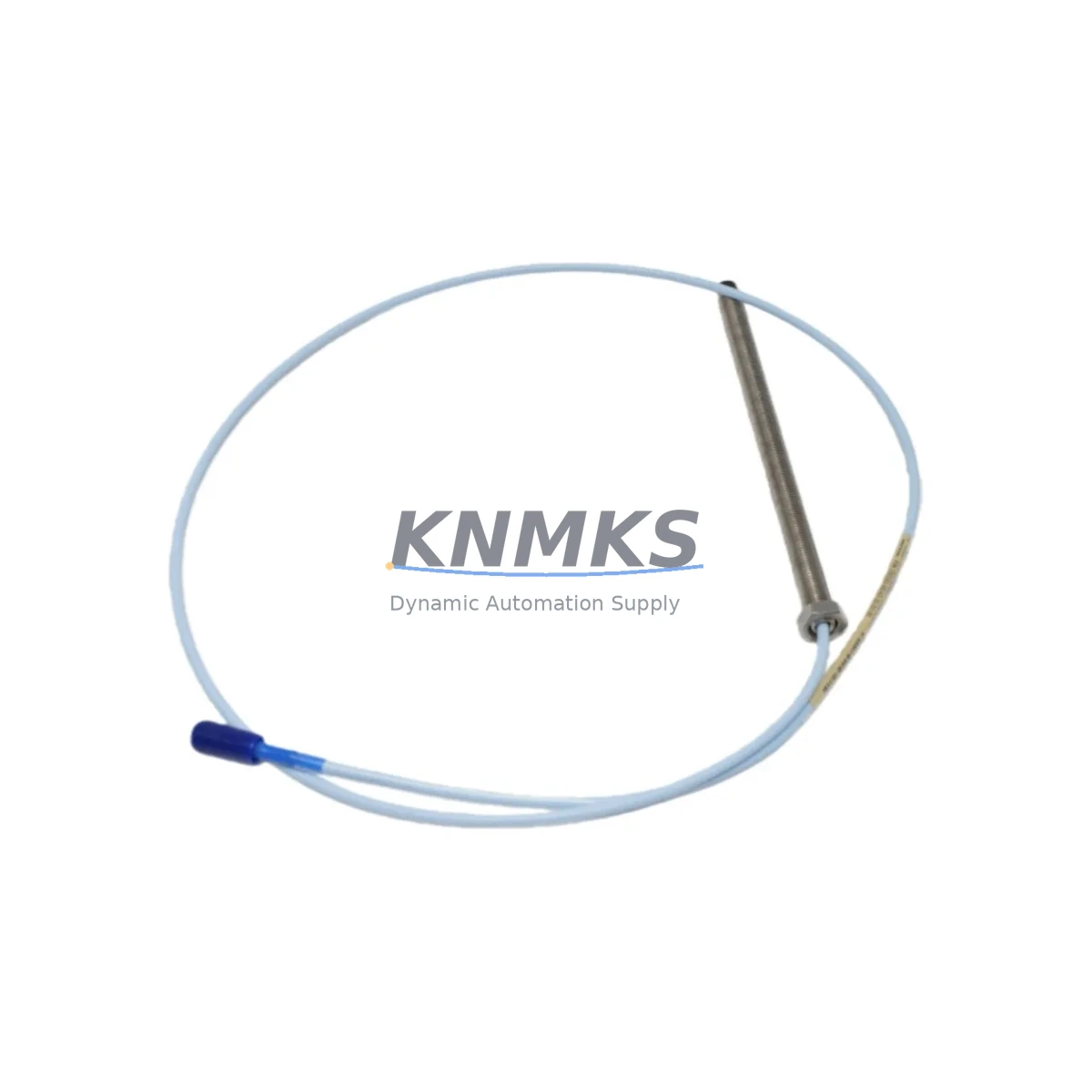

The Bently Nevada 330101-00-61-15-02-CN is an original 8mm Eddy Current Proximity Probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. This spare part is a critical component in turbine protection systems, compressor trains, pump sets, and motor-driven equipment across energy, petrochemical, and heavy manufacturing facilities. Sourced as an original Bently Nevada component, it is fully compatible with 3300 XL proximitor/seismic monitors and integrates directly into existing Bently Nevada vibration monitoring panels without reconfiguration.

For maintenance engineers managing rotating equipment reliability programs, having a verified spare of the 330101-00-61-15-02-CN on the shelf eliminates the most common cause of unplanned downtime: probe failure during continuous operation. This probe is designed for radial and axial position measurement, delivering the signal integrity required by API 670-compliant machinery protection systems. Each unit is tested prior to dispatch and ships with a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-61-15-02-CN proximity probe during a scheduled outage or emergency intervention, a disciplined maintenance engineer will not stop at the probe itself. The 3300 XL measurement chain is a system — and the reliability of the vibration signal depends on every link in that chain being in serviceable condition.

Begin with the 3300 XL Proximitor/Seismic Monitor (typically the 330180 or 330130 series), which conditions the probe signal and provides the –24 VDC excitation. A worn or drifting proximitor will produce erroneous gap voltage readings even with a new probe installed. Verify the proximitor output voltage and confirm it falls within the –10 to –18 VDC gap range for the 8mm probe at the nominal air gap.

Next, inspect the extension cable assembly — commonly the 330130-045-00-CN or equivalent 3300 XL extension cable — for jacket damage, connector corrosion, and continuity. Extension cable degradation is a leading cause of intermittent vibration alarms and is frequently overlooked during probe-only replacements. Confirm cable shielding integrity and verify that the connector at the proximitor input is fully seated and free of moisture ingress.

At the panel level, check the 3300 XL rack power supply and its associated fuse or circuit protection. A marginal power supply delivering fluctuating –24 VDC will cause the new probe to report unstable readings, leading to nuisance trips. If the facility uses a Bently Nevada 3500 series rack in parallel for cross-validation, verify that the 3500/42M Proximitor I/O module is also within calibration.

For facilities running DCS or PLC-based integration, confirm that the 4–20 mA or voltage output from the proximitor is correctly scaled at the analog input card. Signal isolators or barriers between the proximitor and the control system input should be tested for loop integrity — a failed isolator will clip or offset the vibration signal without triggering a probe fault alarm.

Finally, during the replacement workflow, verify the terminal block connections in the junction box and control cabinet. Loose or corroded terminals on the probe circuit are a common source of high-frequency noise on the vibration channel. Torque all terminals to specification and apply appropriate contact protection where the environment is humid or chemically aggressive.

A complete spare kit for a 3300 XL proximity measurement loop should include: the 330101-00-61-15-02-CN probe, the matched extension cable, a spare proximitor module, and a set of terminal block inserts — ensuring that any single-point failure in the measurement chain can be resolved within one maintenance window.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the machinery is in a safe-to-work state. Do not remove the probe from a running machine. Isolate the –24 VDC supply to the proximitor at the rack before disconnecting the probe cable.

Step 2 — Gap Measurement Before Removal: Record the existing gap voltage from the proximitor front panel or DCS display. This baseline confirms whether the old probe was operating within range or had already drifted — critical data for root cause analysis.

Step 3 — Probe Removal: Unscrew the 330101-00-61-15-02-CN from the bracket using the correct spanner. Inspect the probe tip for impact damage, shaft contact marks, or contamination. Inspect the shaft surface at the measurement zone for scoring or runout anomalies.

Step 4 — New Probe Installation: Thread the replacement 330101-00-61-15-02-CN into the bracket. Set the air gap to the manufacturer-specified nominal value (typically 1.0–1.5mm for 8mm probes) using a feeler gauge or gap voltage method. Tighten the locknut to the specified torque.

Step 5 — Cable Connection and Verification: Reconnect the extension cable. Restore –24 VDC to the proximitor. Verify gap voltage at the proximitor output — it should read within the linear range (–10 to –18 VDC). Confirm the DCS or protection system is receiving a valid signal and that no alarms are latched.

Step 6 — Functional Test and Documentation: Perform a slow-roll check if possible to confirm the vibration channel is responding correctly. Document the replacement in the equipment maintenance record, including the new probe serial number, gap voltage, and date of installation.

This workflow minimizes downtime, ensures system compatibility, and provides a traceable maintenance record — reducing the risk of repeat failures and supporting long-term asset reliability.

Spare Parts Support FAQ

Q1: Is the 330101-00-61-15-02-CN a direct replacement for older 3300 XL proximity probes?
Yes. The 330101-00-61-15-02-CN is the current Bently Nevada part number for the 8mm, 5m cable, 3300 XL series proximity probe. It is a direct functional replacement for earlier 330101 variants used in the same measurement loop, provided the extension cable and proximitor are also 3300 XL series compatible. Always verify the gap voltage after installation to confirm correct operation.

Q2: What is included in the support terms confirmed by quotation, and how is it handled?
Each 330101-00-61-15-02-CN unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Units are tested prior to shipment. In the event of a support terms claim, contact [email protected] with the order reference and a description of the fault. Replacement or credit will be arranged promptly to minimize your downtime exposure.

Q3: How should I manage inventory levels for this probe in a critical rotating equipment program?
For facilities operating multiple 3300 XL measurement loops, industry best practice recommends maintaining a minimum of two spare probes per machine train, plus one spare proximitor module per rack. The 330101-00-61-15-02-CN has a typical field service life of 3–5 years under continuous operation; proactive replacement at the 3-year mark during scheduled overhauls is recommended rather than waiting for failure. KNMKS supports long-term supply agreements to ensure consistent availability.

Q4: Can KNMKS supply this part for legacy systems that are no longer supported by the OEM?
Yes. KNMKS specializes in long-term supply of industrial automation spare parts, including components for systems that have reached end-of-life or limited OEM support status. The 330101-00-61-15-02-CN is available from stock for immediate dispatch. For legacy system support, extended procurement planning, or bulk orders, contact our team at [email protected] or +86 18359268345 to discuss supply commitments and lead times.
