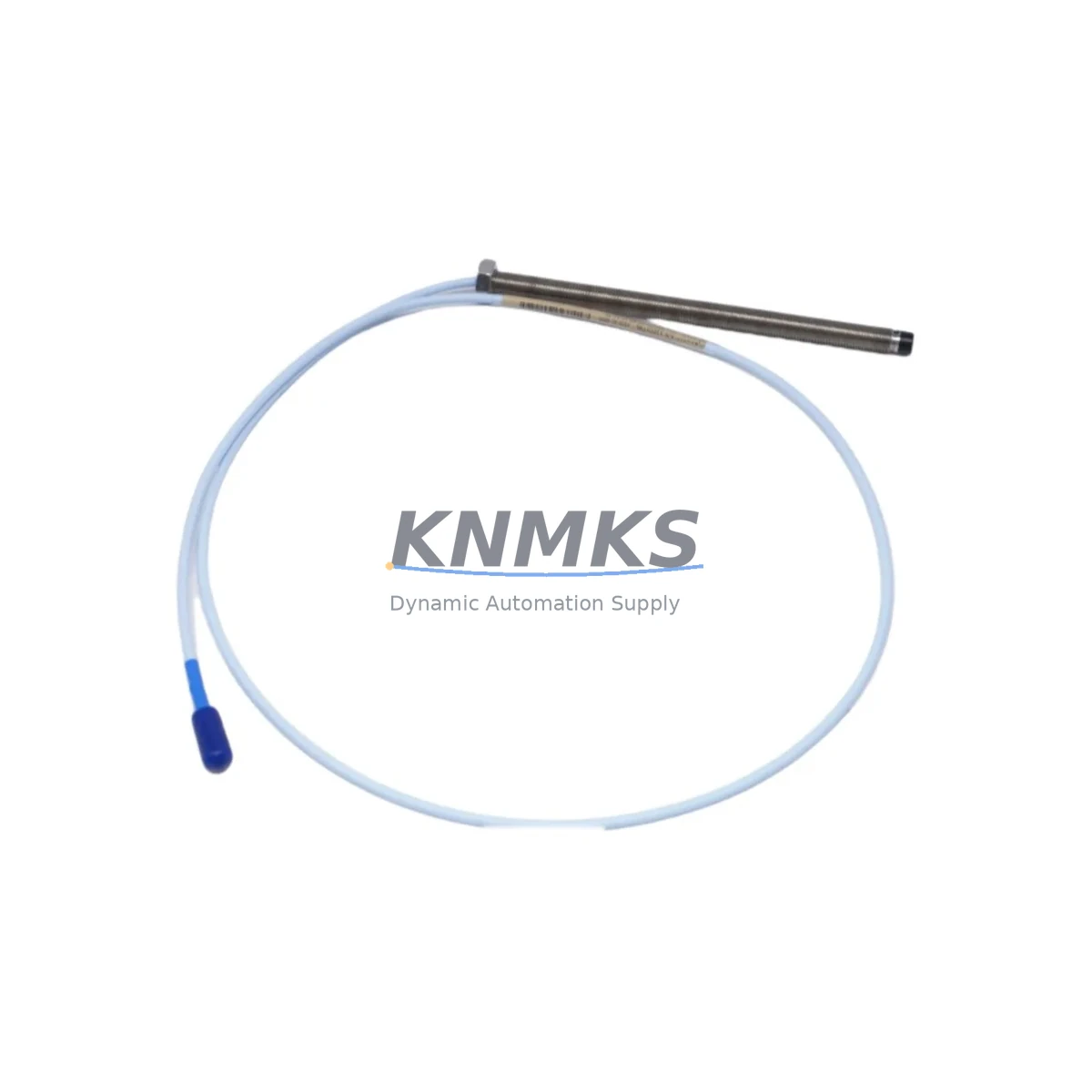

Bently Nevada 330101-00-60-10-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-60-10-02-05 Fail-Safe Proximity Transducer: Critical Industrial Field Reliability

The Bently Nevada 330101-00-60-10-02-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature cycling, mechanical vibration, and moisture ingress — conditions that routinely compromise lesser sensing components.

In critical production facilities where unplanned downtime carries six-figure hourly costs, the 330101-00-60-10-02-05 serves as the first line of defense against shaft displacement anomalies, rotor instability, and bearing failure precursors. Its hardened coaxial cable construction and precision-wound sensing coil maintain signal integrity across extended cable runs, eliminating the signal drift and false trips that can cascade into full process shutdowns or, worse, undetected mechanical degradation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-60-10-02-05 proximity transducer does not operate in isolation — its reliability is inseparable from the integrity of the complete machinery protection chain. In a properly engineered control cabinet, this transducer pairs with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the monitoring system’s analog input cards. Signal conditioning quality directly determines whether the protection system can distinguish genuine shaft excursions from electrical noise artifacts.

Upstream, the Bently Nevada 3500 Series Rack — including the 3500/22M Transient Data Interface or the 3500/42M Proximitor/Seismic Monitor module — processes the conditioned signal against configurable alarm and danger setpoints. These rack-mounted monitors provide the relay outputs that drive safety interlock circuits, ensuring that a confirmed vibration danger condition triggers an orderly machine trip before mechanical damage propagates. In high-EMI environments such as variable-frequency drive (VFD) motor control centers, the shielded cable integrity of the 330101-00-60-10-02-05 is critical to preventing nuisance trips caused by switching transients.

Power supply stability is equally non-negotiable. The Proximitor sensor requires a regulated –24 VDC supply; fluctuations beyond ±1 V can shift the transducer’s gap voltage baseline and introduce false readings. Dedicated DIN-rail DC power supplies with active power factor correction and surge suppression — such as those from the Phoenix Contact QUINT or TRIO series — are recommended to isolate the transducer circuit from the broader cabinet power bus. Similarly, terminal block surge protection modules installed at the cabinet entry point guard against lightning-induced transients on field cable runs that may span hundreds of meters across open process areas.

For facilities running Bently Nevada System 1 Evolution condition monitoring software, the 330101-00-60-10-02-05 feeds real-time waveform data into trend analysis and alarm management workflows, enabling predictive maintenance decisions before a vibration anomaly escalates to a trip event. Integration with Modbus TCP or OPC-UA communication gateways allows this machinery health data to surface in plant-level DCS or SCADA platforms, closing the loop between field sensing and control room situational awareness.

Critical Industrial Safety Applications

The 330101-00-60-10-02-05 is deployed across the full spectrum of rotating machinery-intensive industries where continuous operation and personnel safety are non-negotiable.

In petrochemical and refinery environments, this transducer monitors the radial vibration of centrifugal compressors, boiler feed pumps, and reactor agitators operating in classified hazardous areas. A missed vibration alarm on a high-pressure compressor can result in catastrophic seal failure, hydrocarbon release, and fire risk — making the fail-safe signal continuity of the 330101-00-60-10-02-05 a direct contributor to process safety management (PSM) compliance.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the transducer provides axial position and differential expansion monitoring on steam turbines and generator shafts. Thermal expansion during startup and load changes must be tracked within tight tolerances to prevent rotor-to-stator contact; the 3300 XL’s linear range and temperature stability make it the preferred choice for these high-stakes measurements.

In mining and mineral processing, where ball mills, SAG mills, and slurry pumps operate in dust-laden, high-vibration environments, the sealed construction of the 330101-00-60-10-02-05 resists contamination ingress that would degrade capacitive or optical sensing alternatives. Continuous mill availability directly drives ore throughput, and unplanned bearing failures on these machines can idle an entire processing circuit for days.

In water and wastewater treatment facilities, the transducer monitors large vertical turbine pumps and blower trains in humid, chemically aggressive atmospheres. In metallurgical plants — including steel rolling mills and aluminum smelters — it withstands the intense electromagnetic fields generated by arc furnaces and induction heating systems. Port and marine applications leverage its vibration resistance for shipboard propulsion machinery and crane drive monitoring, where saltwater corrosion and mechanical shock are constant threats.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-60-10-02-05?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance under normal operating conditions. If the unit fails to meet Bently Nevada 3300 XL calibration standards upon receipt or during the confirmed support period, we provide replacement or documented resolution support. Support requests are processed promptly with documented test reports available upon request.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-60-10-02-05 unit undergoes functional verification prior to dispatch, including gap voltage linearity checks, cable continuity and insulation resistance testing, and connector integrity inspection. Units sourced from verified supply channels are cross-checked against Bently Nevada factory calibration data where available. A test report can be provided with shipment upon request.

Q3: Is this transducer compatible with existing 3300 XL Proximitor sensors and 3500 Series monitors?
Yes. The 330101-00-60-10-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor sensor family and integrates directly with 3500 Series monitoring racks. It conforms to the standard 3300 XL system sensitivity of 7.87 V/mm, ensuring drop-in replacement without recalibration of the monitoring system setpoints in most installations. Always verify the existing system’s gap voltage and scale factor settings during commissioning.

Q4: Can long-term supply and spare parts support be arranged?
Yes. We maintain standing inventory of the 330101-00-60-10-02-05 and related 3300 XL series components to support planned maintenance schedules, turnaround outages, and emergency replacement requirements. Blanket order arrangements and consignment stock programs are available for facilities with high-volume or time-critical spare parts needs. Contact our technical sales team to discuss supply agreements tailored to your maintenance strategy.
