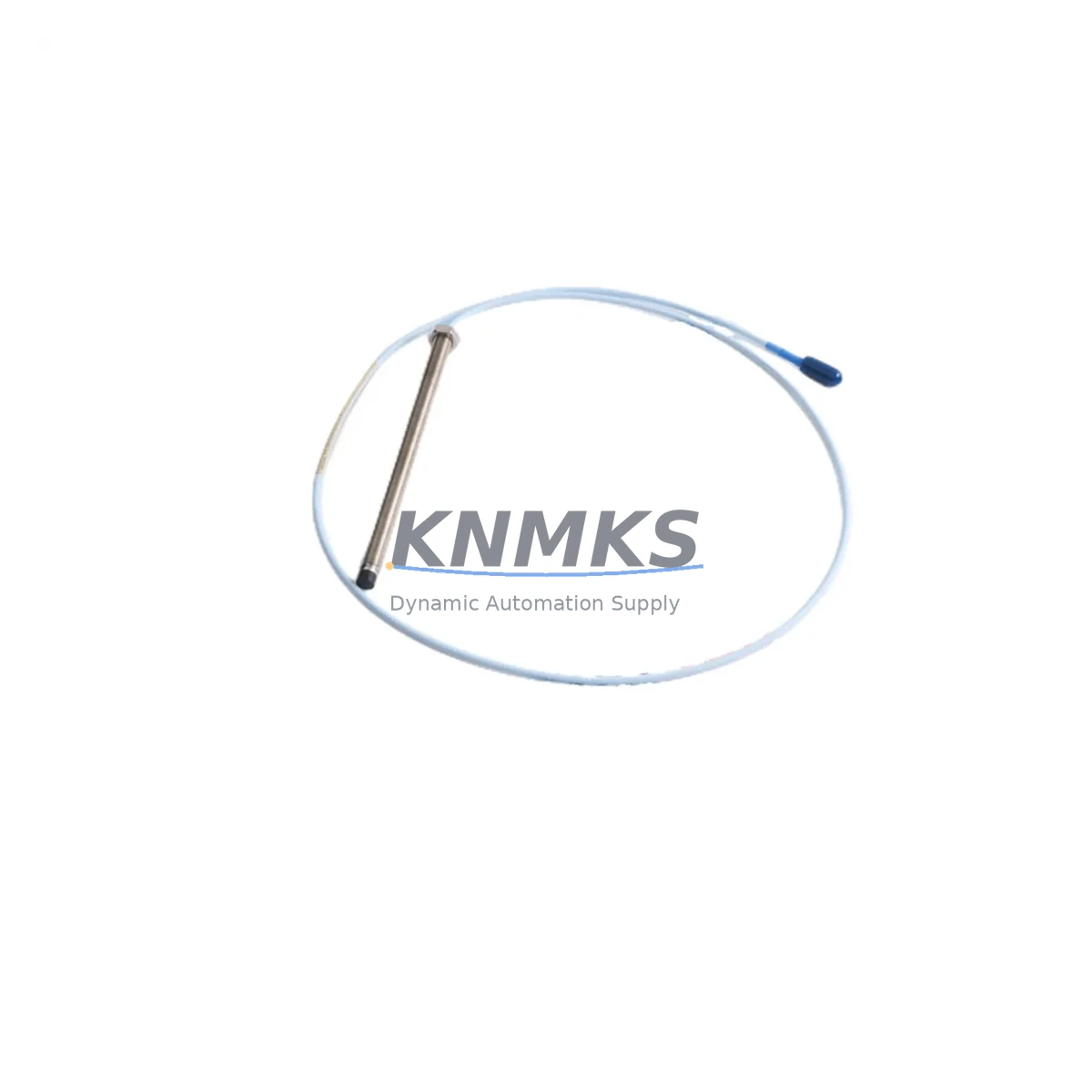

Bently Nevada 330101-00-60-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-60-10-02-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330101-00-60-10-02-00 is a 3300 XL Series 5mm proximity probe engineered for continuous, fail-safe operation in the most demanding industrial environments. Designed to deliver precise, non-contact vibration and position measurement on rotating machinery, this probe is a cornerstone component in safety-critical monitoring systems across petrochemical, power generation, mining, metallurgy, water treatment, and heavy manufacturing facilities worldwide.

In continuous production environments where unplanned downtime carries catastrophic operational and financial consequences, the 330101-00-60-10-02-00 provides the measurement integrity that plant engineers and reliability teams depend on. Its robust construction addresses the full spectrum of field hazards: high electromagnetic interference from variable frequency drives and large motor starters, mechanical vibration and shock from adjacent rotating equipment, thermal cycling in high-temperature enclosures, and moisture ingress in humid or washdown-rated areas. The probe’s shielded cable assembly and precision-wound coil maintain signal stability even when installed in close proximity to high-current power conductors, ensuring that vibration data reaching the Bently Nevada 3300 XL proximitor remains clean, drift-free, and actionable.

Control loop protection begins at the sensor level. The 330101-00-60-10-02-00 is designed to work seamlessly within the 3300 XL monitoring architecture, where it pairs with the Bently Nevada 330180-X1-05 proximitor/extension cable system to deliver a calibrated output signal to the 3500/40M proximitor monitor card. This end-to-end signal chain is engineered to detect shaft displacement anomalies — including oil whirl, rub events, and bearing wear — before they escalate into catastrophic failures. When integrated with a Bently Nevada 3500 rack system, the probe’s output feeds directly into the safety interlock logic, enabling automatic trip actions that protect turbines, compressors, pumps, and gearboxes from destructive overspeed or high-vibration events.

Surge and transient protection is a critical consideration in heavy industrial switchgear rooms and outdoor substations. The 330101-00-60-10-02-00’s cable and connector system is rated to withstand the electrical transients common in these environments, reducing the risk of probe failure during switching events or lightning-induced surges on instrument cable trays. For installations requiring additional protection, the probe is fully compatible with Bently Nevada-approved surge protection barriers installed at the marshalling cabinet, maintaining measurement continuity even during severe electrical disturbances.

In high-dust, high-humidity, and chemically aggressive atmospheres — such as those found in cement plants, offshore platforms, and chemical processing units — the probe’s stainless steel housing and sealed connector provide reliable mechanical protection. The armored extension cable resists abrasion and chemical attack, maintaining probe-to-proximitor signal integrity over extended service intervals without requiring frequent inspection or replacement. This durability directly reduces maintenance labor costs and eliminates the risk of nuisance trips caused by degraded sensor connections.

For facilities operating redundant safety instrumented systems (SIS), the 330101-00-60-10-02-00 supports dual-probe configurations where two probes monitor the same measurement plane, with the 3500/40M monitor card performing 2oo2 or 1oo2 voting logic. This architecture eliminates single-point-of-failure risk in the vibration monitoring loop, satisfying IEC 61511 functional safety requirements for SIL-rated machinery protection systems. The probe’s consistent sensitivity and gap voltage characteristics ensure that both channels in a redundant pair track identically, preventing false trips or missed alarms caused by sensor mismatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection system built around the 330101-00-60-10-02-00 extends well beyond the probe itself. In a typical critical rotating machinery installation, the probe connects via the Bently Nevada 330130-045-00-00 extension cable to the 330180-X1-05 proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage output. This signal is then routed to the Bently Nevada 3500/40M proximitor monitor card housed in the 3500 rack, where it is processed against user-configured alarm and trip setpoints.

Power supply integrity within the control cabinet is equally critical. The 3500 rack system relies on the Bently Nevada 3500/15 power supply module to deliver clean, regulated DC power to all monitor cards. Any power supply instability — whether from input voltage fluctuations, inrush currents during cabinet energization, or conducted EMI from adjacent variable speed drives — can cause spurious alarms or, worse, missed trip events. Ensuring the 3500/15 is properly sized and that the cabinet power distribution includes appropriate surge protection devices is a fundamental step in achieving a fail-safe monitoring architecture.

Communication integrity between the 3500 rack and the plant DCS or safety PLC is maintained through the Bently Nevada 3500/92 communication gateway module, which supports Modbus, Profibus, or Ethernet/IP protocols depending on the plant’s control architecture. In high-EMI environments, shielded communication cables and proper grounding of the 3500 rack chassis are essential to prevent data corruption that could mask a developing machinery fault. Complementing the monitoring system, the Bently Nevada 3500/22M transient data interface module captures high-resolution waveform data during alarm and trip events, providing the diagnostic information needed for root-cause analysis and predictive maintenance planning.

For installations in hazardous areas classified as Zone 1 or Zone 2 under IEC 60079, the 330101-00-60-10-02-00 is used in conjunction with Bently Nevada-approved intrinsic safety barriers or galvanic isolators installed in the safe-area marshalling cabinet, ensuring that the probe circuit cannot become an ignition source in the presence of flammable gases or vapors.

Critical Industrial Safety Applications

The 330101-00-60-10-02-00 is deployed across a wide range of safety-critical industrial applications where continuous, accurate vibration monitoring is non-negotiable:

Petrochemical and Refinery Plants: Installed on centrifugal compressors, steam turbines, and boiler feed pumps in API 670-compliant machinery protection systems. The probe’s ability to operate reliably in high-temperature, hydrocarbon-rich atmospheres makes it the preferred choice for monitoring critical rotating equipment in crude distillation units, catalytic crackers, and gas compression trains.

Power Generation: Used on steam and gas turbine generator sets, where shaft vibration monitoring is a mandatory safety requirement under IEC 61511 and plant-specific safety cases. The probe’s fast response time ensures that developing rotor instabilities are detected and acted upon before they cause blade or bearing damage.

Mining and Mineral Processing: Applied to large ball mills, SAG mills, and slurry pumps operating in high-dust, high-vibration environments. The probe’s sealed construction and armored cable resist the abrasive and corrosive conditions common in mineral processing facilities, reducing sensor replacement frequency and associated maintenance downtime.

Water and Wastewater Treatment: Monitors large vertical turbine pumps and blower units in water intake and treatment stations, where continuous operation is essential for public safety. The probe’s moisture-resistant design ensures reliable operation in the humid, chemically aggressive atmospheres typical of these facilities.

Metallurgy and Steel Production: Deployed on rolling mill drives, continuous casting equipment, and large induction furnace cooling pumps, where high ambient temperatures and intense electromagnetic fields from furnace power supplies challenge conventional instrumentation. The 330101-00-60-10-02-00’s EMI-hardened design maintains measurement accuracy in these extreme conditions.

Port and Marine Applications: Used on large crane drives, ship propulsion systems, and offshore platform rotating equipment, where saltwater corrosion, mechanical shock, and vibration from wave action demand the highest levels of sensor robustness and reliability.

Safety and Quality FAQ

Q1: What support terms does the 330101-00-60-10-02-00 carry, and what does it cover?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects, calibration accuracy, and functional performance. Each probe undergoes pre-shipment functional testing to verify sensitivity, linear range, and connector integrity before dispatch. Support requests are supported by our technical team with replacement or repair at no additional cost within the confirmed support period.

Q2: How is each unit tested before shipment?
Every 330101-00-60-10-02-00 unit is tested against Bently Nevada factory specifications prior to shipment. Testing includes gap voltage verification, sensitivity measurement, cable continuity and insulation resistance checks, and connector inspection. A test report is available upon request for quality-critical applications.

Q3: Is this probe compatible with existing 3300 XL proximitor and extension cable systems?
Yes. The 330101-00-60-10-02-00 is fully compatible with the Bently Nevada 3300 XL proximitor/extension cable system, including the 330130 series extension cables and 330180 series proximitors. It integrates directly with the Bently Nevada 3500/40M monitor card without requiring any system reconfiguration, making it a direct drop-in replacement for worn or failed probes in existing installations.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated stock of the 330101-00-60-10-02-00 and other critical 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. We offer blanket order arrangements and priority allocation for customers with high-volume or time-critical requirements, ensuring that probe availability never becomes a constraint on plant reliability.
