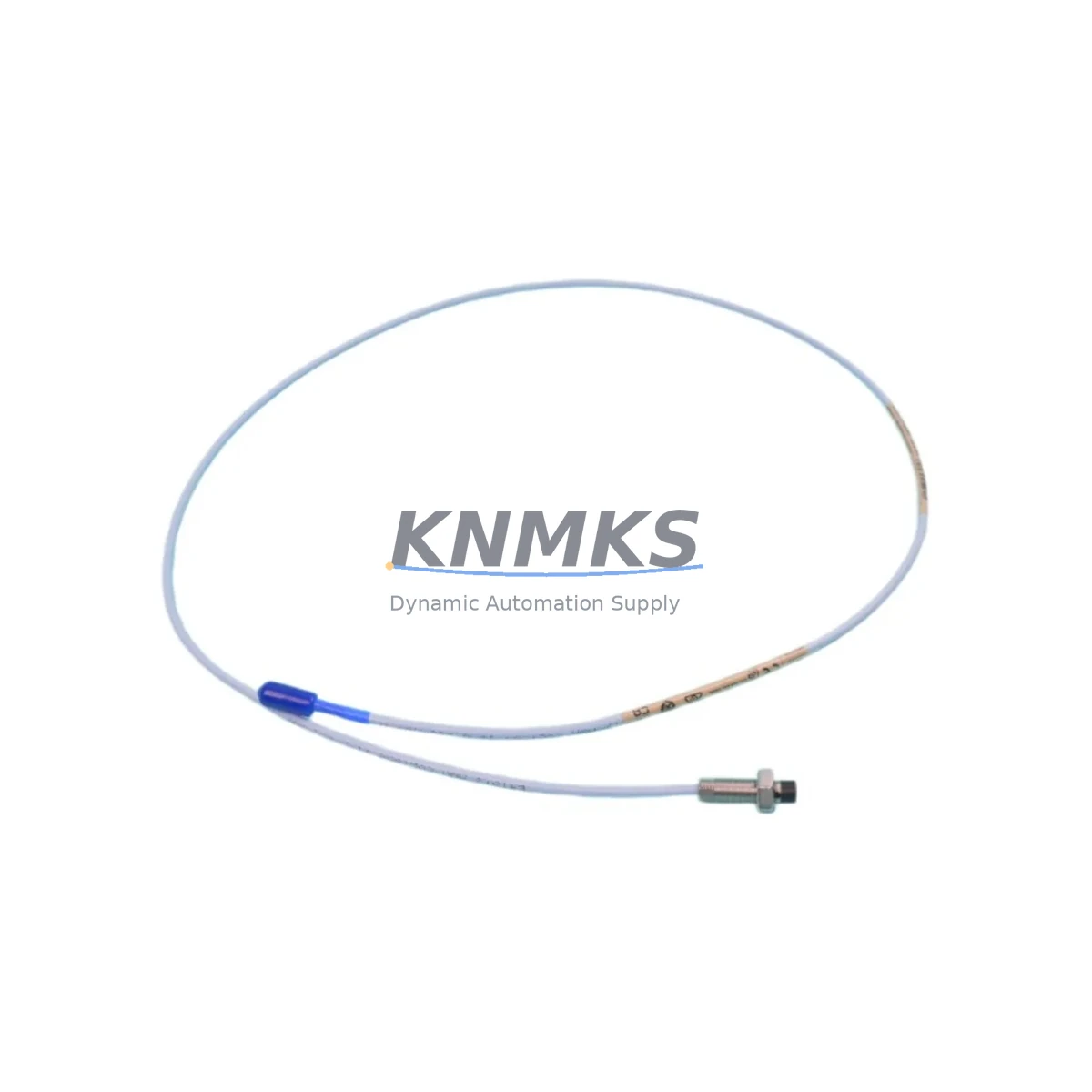

Bently Nevada 330101-00-59-15-02-05 Fail-Safe Proximity Probe: Critical Fault Protection for Industrial Rotating Machinery

The Bently Nevada 330101-00-59-15-02-05 is an 8mm eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed for integration into safety-critical control loops, this probe provides the measurement accuracy and environmental resilience required to protect rotating machinery — turbines, compressors, pumps, and motors — from catastrophic failure caused by undetected shaft vibration, radial displacement, or rotor instability.

In continuous production facilities where unplanned downtime carries severe operational and financial consequences, the 330101-00-59-15-02-05 serves as a frontline sensor in the machinery protection architecture. Its eddy-current sensing principle operates without physical contact with the rotating shaft, eliminating mechanical wear and ensuring long-term signal stability even under high-speed, high-load conditions. The probe’s output remains linear and repeatable across its full measurement range, providing the control system with reliable data to trigger protective shutdown sequences before damage propagates.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-59-15-02-05 proximity probe is designed to operate as part of a complete machinery protection system, not as a standalone sensor. In a properly configured control cabinet, it connects to the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the monitoring system. This Proximitor must be mounted within the control enclosure, powered by a stable ±24 VDC supply — typically sourced from a redundant Bently Nevada 3500/15 Power Supply — to ensure that power fluctuations or transient surges do not corrupt vibration readings or trigger false alarms.

Within the same protection loop, the Bently Nevada 3500/42M Proximitor I/O Module receives the conditioned signal and interfaces with the broader 3500 Series Machinery Protection System rack. This rack-based architecture allows simultaneous monitoring of multiple measurement points — radial vibration, axial position, and differential expansion — across a single rotating machine train. When the 330101-00-59-15-02-05 detects shaft displacement approaching the danger threshold, the 3500 rack can execute an automatic relay trip output to the machine’s emergency shutdown system, preventing bearing damage, seal failure, or rotor-stator contact.

In high electromagnetic interference environments — common in variable frequency drive (VFD) cabinets, large motor control centers, and arc furnace control rooms — the probe’s shielded coaxial cable construction and the Proximitor’s signal conditioning circuitry work together to reject common-mode noise. Pairing this probe with a Bently Nevada 330130-045-00-00 Extension Cable maintains signal integrity over longer cable runs between the machine and the control room. For installations requiring intrinsic safety barriers in hazardous classified areas, the system can be configured with approved Zener barrier or galvanic isolator modules to maintain the fail-safe integrity of the measurement loop without compromising signal fidelity.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-59-15-02-05 is deployed across a wide range of critical industrial sectors where rotating machinery failure carries unacceptable safety and production risk.

In petrochemical and refinery plants, this probe monitors the radial vibration of centrifugal compressors and process pumps handling flammable or toxic media. An undetected increase in shaft vibration — caused by rotor imbalance, bearing wear, or process surge — can lead to seal failure and hazardous material release. The 330101-00-59-15-02-05 provides the continuous, high-frequency vibration data required by the safety instrumented system (SIS) to initiate a safe process shutdown before a loss-of-containment event occurs.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — steam turbine and generator shaft monitoring is a regulatory and operational requirement. The probe’s wide frequency response and stable output under high-temperature, high-vibration conditions make it suitable for direct installation on turbine bearing housings, where it feeds real-time data to the plant’s distributed control system (DCS) and machinery protection rack.

In mining and mineral processing operations, large ball mills, SAG mills, and crusher drives operate in environments with extreme dust loading, moisture ingress, and structural vibration. The 330101-00-59-15-02-05’s robust construction and sealed cable assembly resist contamination-induced signal degradation, maintaining reliable shaft position monitoring even during extended continuous operation cycles.

In water and wastewater treatment plants, high-service pumps and blower units run continuously with minimal maintenance windows. Early detection of bearing wear or impeller imbalance through proximity probe monitoring allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures that disrupt treatment capacity.

In metallurgical and steel production facilities, rolling mill drives and continuous casting machine motors operate under heavy cyclic loads and significant electromagnetic interference from induction heating systems. The probe’s EMI-resistant design ensures that vibration alarm setpoints are not corrupted by electrical noise, preventing both false trips that interrupt production and missed alarms that allow machinery damage to progress undetected.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-59-15-02-05?
All units supplied by KNMKS carry a 12-month quality support terms from the date of shipment. If the probe fails to perform within its specified parameters under normal operating conditions during this period, KNMKS will provide a replacement unit or full technical support to resolve the issue. This support terms reflects our confidence in the pre-shipment testing process applied to every unit.

Q2: How is each unit tested before shipment?
Every 330101-00-59-15-02-05 proximity probe undergoes functional verification prior to dispatch. Testing confirms output sensitivity, cable continuity, connector integrity, and signal linearity within the 3300 XL system specification. Units that do not meet the original Bently Nevada performance standard are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series systems?
Yes. The 330101-00-59-15-02-05 is a direct-fit replacement for the Bently Nevada 3300 XL 8mm probe family and is fully compatible with the 3300 XL Proximitor Sensor and the 3500 Series Machinery Protection System rack. No recalibration of the monitoring system is required when replacing a like-for-like probe, provided the gap voltage is re-verified at installation as per standard commissioning procedure.

Q4: Can KNMKS support long-term or repeat supply requirements?
Yes. KNMKS maintains stock of the 330101-00-59-15-02-05 and related 3300 XL series components to support both immediate replacement needs and planned maintenance programs. For facilities managing multiple machine trains or operating spare parts programs, KNMKS can provide scheduled supply agreements to ensure critical sensor inventory is available when needed, reducing the risk of extended downtime due to parts unavailability.
