Bently Nevada 330101-00-56-10-02-00 Migration-Ready 8mm Proximity Probe

Overview

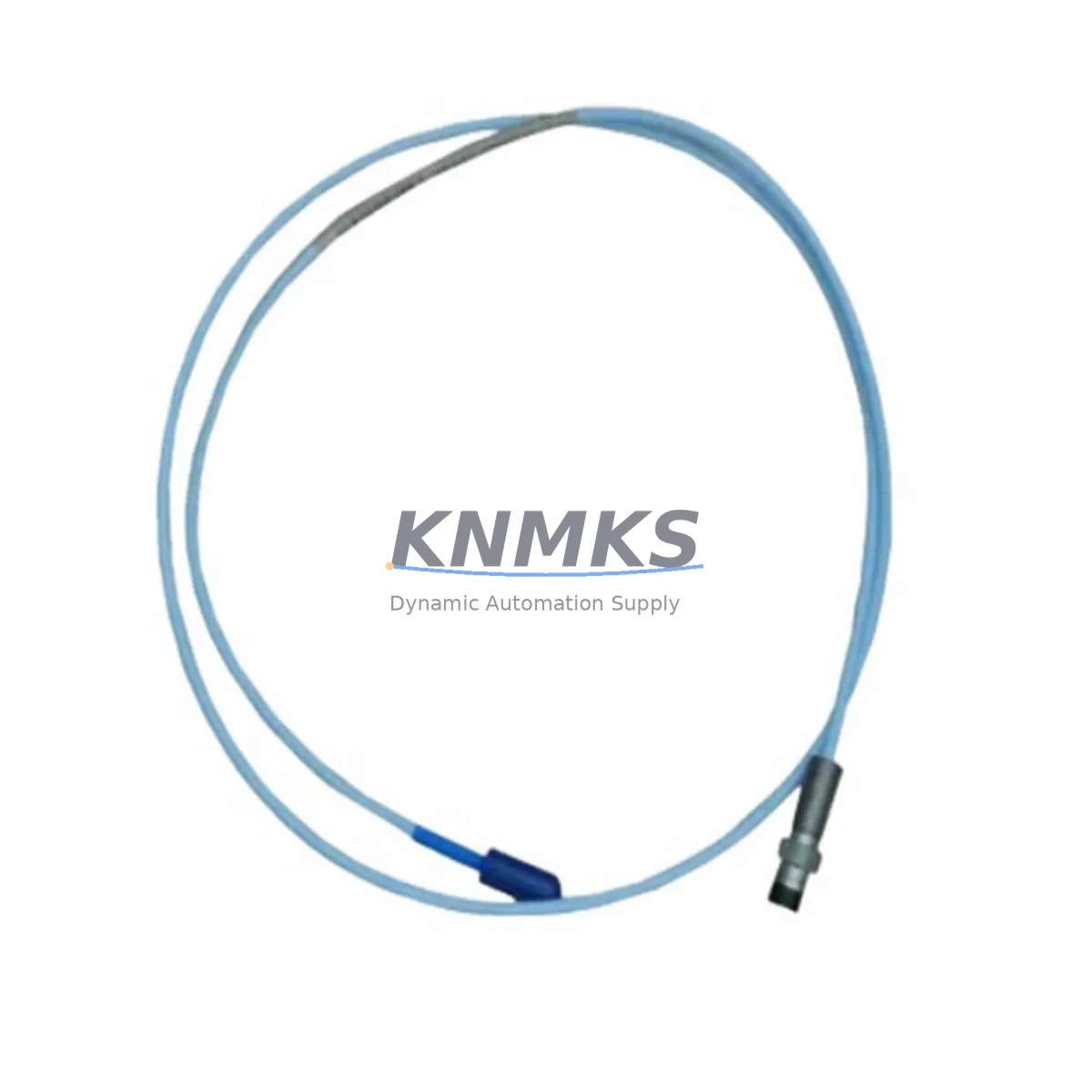

Bently Nevada 330101-00-56-10-02-00 Migration-Ready 8mm Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-56-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy rotating machinery protection systems approach end-of-support, this probe serves as a verified drop-in replacement for discontinued 330101 variants, enabling facilities to extend operational life, preserve existing wiring infrastructure, and defer full system overhauls without compromising vibration measurement accuracy or API 670 compliance.

This probe is designed for radial shaft vibration, axial position, and differential expansion measurements on turbines, compressors, pumps, and gearboxes. Its 8mm tip diameter and standardized extension cable interface make it directly interchangeable with earlier 330101 configurations, reducing retrofit engineering time and eliminating the need for custom signal conditioning adapters in most installations.

When planning a migration from an older 3300 Series rack to a current 3500 Series or System 1 platform, the 330101-00-56-10-02-00 probe remains compatible with both legacy 3300 XL proximitor/seismic transducer modules and the 3500/42M proximitor I/O module, provided the gap voltage, sensitivity (200 mV/mil), and cable length are verified against the target rack’s input specifications. Engineers should confirm that the existing 3300 XL proximitor — typically a 330180 or 330130 series unit — is retained or replaced with a compatible 3500-series equivalent before commissioning the new probe in a migrated rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-56-10-02-00 into an aging machinery protection system requires a structured pre-installation audit. Begin by documenting the existing rack configuration: identify whether the host chassis is a 3300 XL 16-channel rack or a mixed-slot 3500 Series frame, and record all occupied module positions. If the installation is migrating from a 3300 XL rack to a 3500 Series platform, the 3500/20 rack power supply module must be sized to support the additional I/O load introduced by new proximity channels.

Terminal wiring is a critical checkpoint. The 330101-00-56-10-02-00 uses a standard coaxial armored cable terminated with a BNC connector at the proximitor input. When replacing a failed or discontinued probe in an existing conduit run, verify that the replacement cable’s outer diameter is compatible with the installed conduit fittings and that the shield grounding point at the junction box has not corroded. In installations where the original 330101 probe was wired through a 3300 XL junction box, the same junction box can typically be reused without modification.

For facilities running System 1 condition monitoring software, the probe channel must be re-mapped in the System 1 configuration database after physical replacement. This includes updating the transducer type, gap voltage setpoint, and alert/danger thresholds to match the new probe’s calibration certificate. If the plant uses a 3500/92 communication gateway for Modbus or OPC-DA integration, no protocol reconfiguration is required — the channel data structure remains unchanged after a like-for-like probe swap.

Where the retrofit involves expanding I/O capacity — for example, adding radial vibration monitoring to a previously unmonitored bearing — consider whether the existing 3300 XL rack has available slots for an additional 3300/16-channel proximitor card, or whether a 3500/42M module in a new 3500 rack frame is the more scalable path. In either case, the 330101-00-56-10-02-00 probe is compatible with both approaches, and its standardized 8mm form factor ensures that bearing housing probe ports machined to OEM specifications require no rework.

Signal isolation should also be evaluated during retrofit planning. In facilities where ground loops have historically caused noise on proximity channels, inserting a signal isolator between the proximitor output and the DCS analog input card can resolve interference without requiring changes to the probe or proximitor wiring. This is particularly relevant in older control cabinets where the 3300 XL rack shares a common ground bus with variable-frequency drives or large motor starters.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or platform migration requires a disciplined pre-outage preparation protocol. Before the maintenance window opens, the replacement 330101-00-56-10-02-00 probe should be bench-tested using a portable oscillator/driver to confirm gap voltage linearity across the full measurement range. This pre-shipment verification — included with every KNMKS unit — eliminates the risk of discovering a defective replacement during a live outage.

To protect existing program logic during a 3300-to-3500 platform migration, export and archive the current 3300 XL rack configuration using Bently Nevada’s rack configuration software before decommissioning any modules. The archived configuration serves as the baseline for rebuilding alert and danger setpoints in the 3500 Series rack, and ensures that the System 1 historian does not lose historical trend data continuity for the affected channels.

During the physical swap, maintain field control continuity by keeping the process running on remaining healthy channels while the affected bearing channel is taken offline for probe replacement. In critical applications where the machinery protection system must remain fully armed throughout the outage, coordinate with the control room to implement a temporary bypass on the affected channel — following the plant’s management-of-change procedure — and restore the channel to normal monitoring status immediately after the new probe is gapped and verified.

Post-installation commissioning should include a static gap voltage check (target: −10 VDC ± 0.5 V at the nominal air gap), a dynamic runout check at operating speed, and a confirmation that the System 1 or DCS trend display is receiving a clean, noise-free signal. Document the as-found and as-left gap measurements in the maintenance management system to establish a baseline for future condition monitoring trending.

Retrofit Support FAQ

Q1: Is the 330101-00-56-10-02-00 a direct replacement for my existing 330101 probe without rewiring?
In most installations, yes. The 330101-00-56-10-02-00 shares the same M10 × 1.0 thread, 8mm tip diameter, 200 mV/mil sensitivity, and BNC cable termination as standard 330101 variants. The only field verification required is confirming that the total system cable length (probe body + extension cable) falls within the proximitor’s specified input range. No rewiring of the junction box or proximitor terminal block is typically required for a like-for-like replacement.

Q2: Can this probe be used with a 3500 Series rack after migrating from a 3300 XL system?
Yes. The 330101-00-56-10-02-00 is compatible with the 3500/42M proximitor I/O module. After physical installation, perform a gap voltage calibration check in the 3500 rack configuration software and update the System 1 channel configuration to reflect the new module address. No hardware modification to the probe or cable is required.

Q3: What pre-shipment testing is performed, and what documentation is provided?
Every 330101-00-56-10-02-00 unit supplied by KNMKS undergoes a functional oscillator/driver test to verify gap voltage linearity, sensitivity, and cable continuity before dispatch. A test report is included with each shipment. All units are covered by a support terms confirmed by quotation from the date of delivery, with direct technical support available through [email protected].

Q4: What is the typical lead time, and do you maintain stock for emergency replacement orders?
KNMKS maintains ready stock of the 330101-00-56-10-02-00 to support emergency replacement and planned maintenance outages. Standard orders are dispatched within 1–3 business days. For urgent requirements, contact +86 18359268345 to confirm real-time availability and expedited shipping options. Bulk orders for spare parts programs are accommodated with volume pricing on request.
