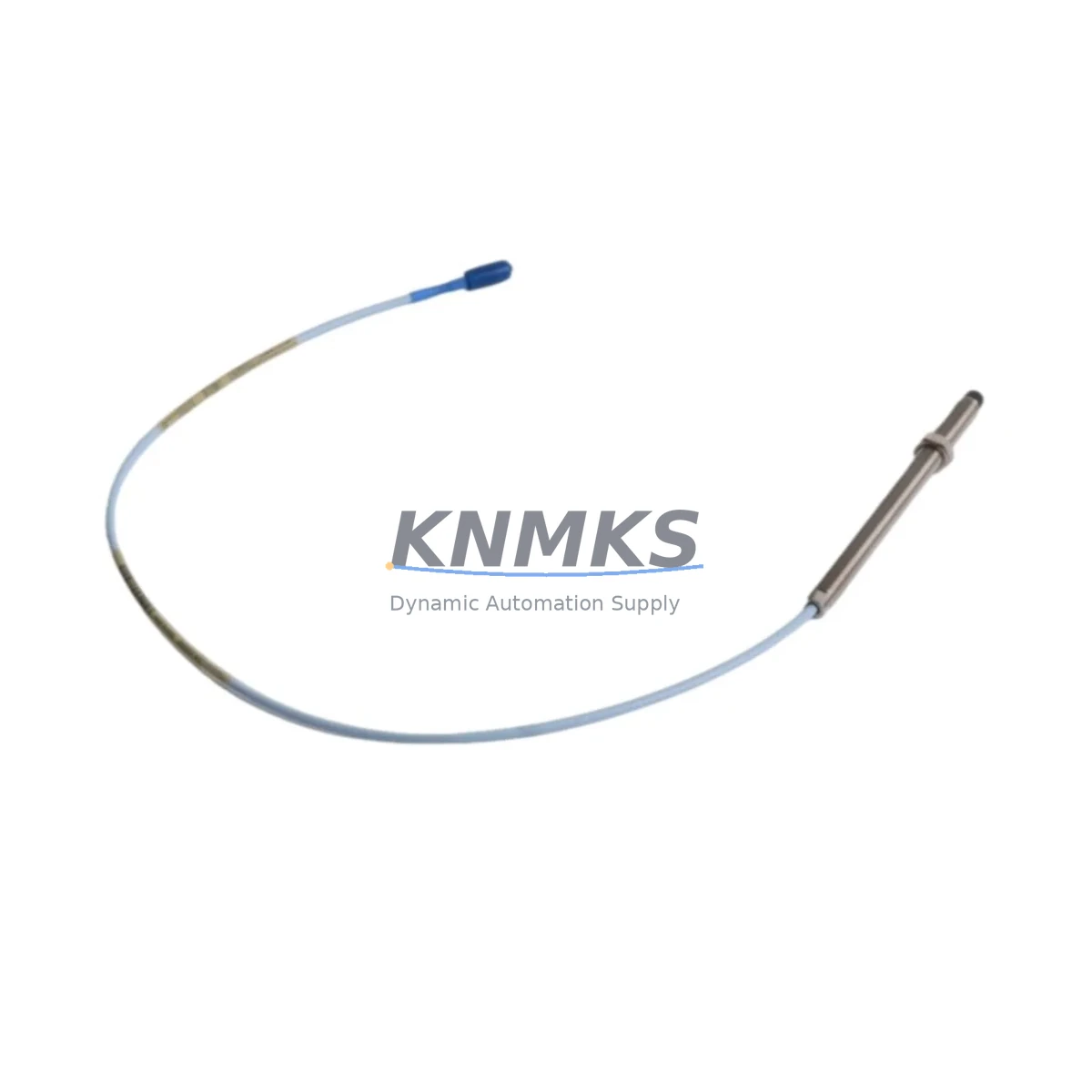

Bently Nevada 330101-00-55-05-11-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-55-05-11-00 Fail-Safe Proximity Probe: Industrial Control Reliability and Fault Protection

The Bently Nevada 330101-00-55-05-11-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery, critical interlock circuits, and high-load control cabinets, this probe is a cornerstone component for facilities where unplanned downtime is not an option.

In petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical processing lines, port machinery, and continuous manufacturing environments, the 330101-00-55-05-11-00 provides the real-time shaft displacement data that safety systems depend on. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term measurement stability even under high-speed rotation, heavy vibration, and thermal cycling conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-55-05-11-00 proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a properly configured control cabinet, the probe connects to the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 extension cable assembly), which conditions the raw eddy-current signal into a clean DC voltage output suitable for the monitoring system’s input cards.

Within the same protection loop, the Bently Nevada 3500/42M Proximitor/Seismic Monitor module processes the conditioned signal and triggers alarm or trip outputs when shaft displacement exceeds safe thresholds. This interlock chain — probe, extension cable, Proximitor, and monitor rack — must be treated as a unified safety circuit. Any weak link, whether a degraded probe tip, a corroded connector, or a mismatched extension cable, can introduce signal drift that masks real machinery faults or generates spurious trips.

To protect the power supply rail feeding the Proximitor and monitor rack, facilities commonly deploy Phoenix Contact QUINT-PS or equivalent DIN-rail power supplies with built-in surge protection and redundant output capability. In high electromagnetic interference environments — common near large variable frequency drives, arc furnaces, or high-current bus bars — additional signal isolators and shielded cable trays are essential to prevent noise coupling into the low-level probe signal lines.

For cabinet thermal management, especially in enclosed panels operating in high-ambient-temperature zones, pairing the monitoring system with cabinet cooling units or thermostat-controlled fan assemblies ensures that the Proximitor electronics remain within their rated operating range, preventing drift caused by thermal stress. The 330101-00-55-05-11-00 probe itself is rated for extreme tip temperatures, but the associated electronics require stable thermal conditions to maintain calibration accuracy.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In compressor trains, turbine expanders, and pump sets running 24/7, the 330101-00-55-05-11-00 provides the continuous shaft orbit and gap voltage data that API 670-compliant protection systems require. A single undetected rotor rub or bearing failure in a critical service compressor can result in catastrophic equipment loss and process shutdown. The non-contact, wear-free design of this probe ensures that the measurement system itself never becomes a failure point.

Power Generation: Steam turbines, gas turbines, and hydro generators rely on proximity probe arrays to monitor shaft eccentricity, axial position, and differential expansion. The 330101-00-55-05-11-00, when installed as part of a complete 3300 XL system, feeds real-time data to the turbine control system, enabling early warning of rotor instability before it escalates to a forced outage.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, moisture ingress, and structural vibration. The robust construction and high-temperature rating of the 330101-00-55-05-11-00 make it suitable for these harsh conditions, where conventional sensors would fail prematurely.

Water and Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment facilities require continuous vibration monitoring to prevent bearing failures that could interrupt water supply. The fail-safe signal output of the 3300 XL probe system ensures that a cable fault or probe failure is immediately detectable by the monitoring system, triggering a safe shutdown rather than allowing silent failure.

Metallurgy and Steel Production: Rolling mill drives, continuous casters, and induction furnace cooling pumps demand vibration monitoring systems that can withstand high electromagnetic interference from large power electronics. The shielded coaxial construction of the 330101-00-55-05-11-00 and its associated extension cables provides inherent EMI rejection, maintaining signal integrity in these electrically noisy environments.

Safety and Quality FAQ

Q1: What support terms does the 330101-00-55-05-11-00 carry?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Each probe undergoes full signal output verification and dimensional inspection prior to shipment. If a unit fails to perform within specification during the confirmed support period, we provide replacement or documented resolution support support.

Q2: How is the probe tested before shipment?
Every 330101-00-55-05-11-00 unit is bench-tested against a calibrated steel target to verify linear range, gap voltage output, and cable continuity. We confirm that the probe meets Bently Nevada’s published sensitivity specification of 7.87 V/mm ± 0.25 V/mm before it leaves our facility. Test records are available upon request for quality-critical applications.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and extension cables?
Yes. The 330101-00-55-05-11-00 is a standard 3300 XL Series 8mm probe and is fully compatible with all 3300 XL Proximitor Sensors and 3300 XL Series extension cables (including 330130 and 330180 series). It is a direct drop-in replacement for worn or damaged probes in existing installations, requiring no recalibration of the Proximitor if the cable length configuration is maintained.

Q4: Can KNMKS support long-term or repeat supply requirements?
Yes. KNMKS maintains stock of the 330101-00-55-05-11-00 and related 3300 XL Series components to support both emergency replacement and planned maintenance programs. We can accommodate blanket orders, scheduled releases, and urgent same-day dispatch requirements. Contact our team to discuss volume pricing and supply agreements for your facility’s ongoing spare parts program.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-55-05-11-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-55-05-11-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
