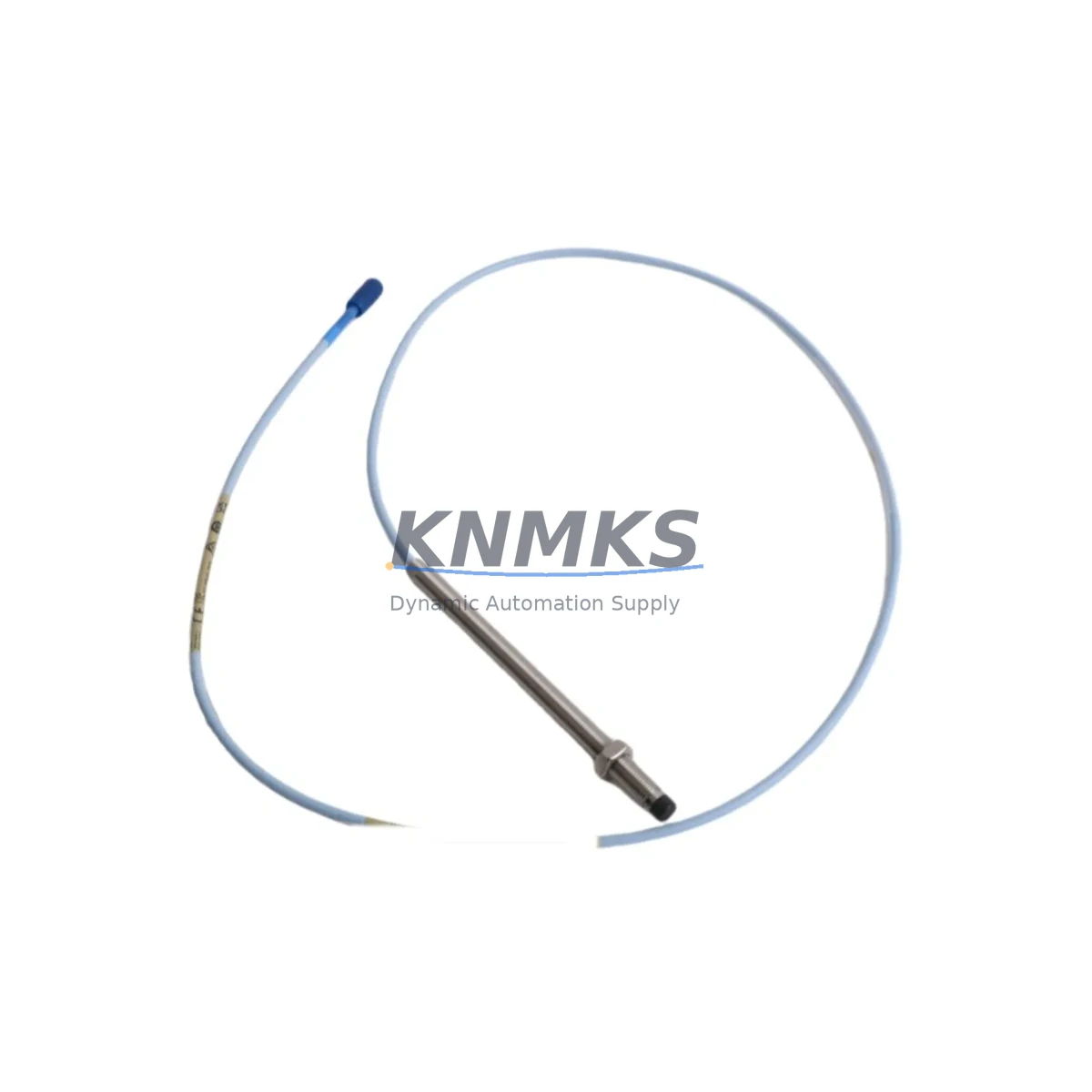

Bently Nevada 330101-00-52-10-12-05 Proximity Transducer

Overview

Bently Nevada 330101-00-52-10-12-05 Proximity Transducer: Legacy System Migration and Compatible Upgrade

The Bently Nevada 330101-00-52-10-12-05 is an 8 mm eddy-current proximity transducer engineered for the 3300 XL Monitoring System platform. As rotating machinery protection systems age and OEM support windows close, this transducer remains one of the most requested migration-ready spare parts for turbine, compressor, and pump train monitoring applications worldwide. Whether you are replacing a failed unit on a live train, upgrading a legacy 3300 Series rack to the 3300 XL architecture, or building a long-term spare inventory to extend the operational life of an existing protection system, the 330101-00-52-10-12-05 provides a verified drop-in solution with no firmware modification required on the monitor side.

The transducer operates with a 5-metre integral cable (suffix -05), a 10-32 UNF reverse-mount thread (suffix -10), and is calibrated for use with the standard Bently Nevada 3300 XL driver/extension cable system. Before installation, engineers should confirm the existing driver module — typically the Bently Nevada 330180 proximitor/driver — is compatible with the 8 mm probe body and that the total cable length (integral + extension) falls within the qualified gap voltage range of –2 VDC to –18 VDC. Mismatched cable lengths are the most common commissioning error during transducer replacement and can produce false gap alarms or trip events immediately after restart.

When migrating from an older Bently Nevada 3300 Series (non-XL) installation, the primary compatibility checkpoint is the monitor card slot assignment and the I/O terminal block wiring. The 3300 XL monitor cards — such as the 3300/16 dual-channel radial vibration monitor — use a different terminal block pitch than the earlier 3300/05 and 3300/10 cards. Technicians should photograph the existing wiring, document terminal numbers, and verify shield grounding continuity before pulling the old transducer. The replacement 330101-00-52-10-12-05 uses the same three-conductor shielded cable convention (positive, negative, shield/common), so terminal re-use is straightforward once the rack card is confirmed.

For installations where the control cabinet also houses a Bently Nevada 3500 Series rack in parallel — a common arrangement during phased migration projects — the 330101-00-52-10-12-05 can feed both the legacy 3300 XL monitor and a 3500/42M position monitor simultaneously, provided the signal is properly buffered. This eliminates the need to install a second transducer during the transition period, reducing drilling, alignment, and machine downtime. Confirm with the site instrumentation engineer that the combined load does not exceed the driver output specification before wiring in parallel.

Installation space is a frequent constraint in retrofit projects. The 330101-00-52-10-12-05 uses a standard 10-32 UNF thread with a 25 mm hex body, compatible with the majority of existing Bently Nevada proximity probe holders and armour fittings. If the existing bracket was machined for an older Bently Nevada 7200 Series probe (also 10-32 UNF), the thread engagement and tip-to-target gap range are equivalent, making a direct mechanical swap feasible in most cases without re-machining the bracket. Always verify the gap voltage at the driver output after installation using a calibrated voltmeter before returning the machine to service.

Firmware and software compatibility should also be reviewed when the 330101-00-52-10-12-05 is installed as part of a broader system upgrade. If the site runs System 1 condition monitoring software (Bently Nevada’s plant-wide vibration analysis platform), the transducer’s sensitivity constant (typically 7.87 V/mm or 200 mV/mil for 8 mm probes) must be entered correctly in the System 1 channel configuration. Incorrect sensitivity values will produce scaled vibration readings that appear plausible but are systematically offset, which can mask developing faults. Request the calibration certificate for the specific serial number shipped and cross-reference the sensitivity value before closing out the work order.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. For a 3300 XL-based machinery protection system, the bill of materials for a complete transducer replacement typically includes the 330101-00-52-10-12-05 probe, the matching Bently Nevada 330130 extension cable (selected to bring total cable length to the qualified range), and the Bently Nevada 330180 proximitor driver if the existing driver shows signs of drift or has exceeded its recommended service interval. If the rack power supply — commonly the Bently Nevada 3300/15 power supply module — has not been replaced within the last ten years, it is prudent to include it in the scope, as power supply degradation is a leading cause of nuisance trips during and after transducer replacement.

For sites where the 3300 XL rack communicates with a DCS or safety system via a Bently Nevada 3300/20 relay output module, verify that the relay setpoints and time delays are documented before any work begins. Transducer replacement can temporarily disturb the vibration signal, and an undocumented relay configuration may cause an unintended process trip. Similarly, if the rack includes a Bently Nevada 3300/46 keyphasor module, confirm that the keyphasor gap voltage is within specification after the radial transducer is reinstalled, as the two signals are often used together for phase-referenced vibration analysis in System 1.

Where the retrofit scope extends to the control cabinet layout — for example, when adding I/O channels for a new measurement point — confirm that the existing rack has available slot capacity before ordering additional monitor cards. The 3300 XL rack accepts up to six monitor card pairs in a standard 19-inch enclosure. If the rack is full, a second rack enclosure and an additional power supply will be required, which significantly changes the installation space and cable routing plan.

Downtime Control During System Migration

Minimising unplanned downtime during a transducer replacement on a live machinery protection system requires a structured pre-outage checklist. Before the machine is taken offline, download and archive the current System 1 configuration database, including all channel scaling, alarm setpoints, and trend data. This archive serves as the restoration baseline if any configuration is inadvertently overwritten during the work. If the site uses a Bently Nevada 3300 XL rack with a communication interface to a historian or DCS, notify the control room team to suppress alarms on the affected channels for the duration of the replacement to prevent nuisance alerts from propagating to the operator workstation.

During the physical replacement, keep the machine shaft stationary and confirm zero-speed interlock status before approaching the transducer. Remove the old 330101-series probe carefully, noting the gap distance (number of turns from the bracket face) so the replacement can be set to the same approximate gap before fine adjustment. Install the new 330101-00-52-10-12-05, set the gap to achieve –10 VDC ±0.5 VDC at the driver output, and torque the locknut to the bracket specification. Reconnect the extension cable and verify continuity and shield integrity before powering the driver.

After power-up, confirm the gap voltage is stable, check for noise on the vibration signal with the machine at rest, and review the System 1 live channel display before releasing the machine for restart. Once the machine is at operating speed, compare the vibration amplitude and phase readings against the pre-outage baseline trend. A deviation of more than 10% in amplitude or 15° in phase at the same speed and load point warrants investigation before the work order is closed. All findings, gap voltages, and sensitivity values should be recorded in the site maintenance management system to support future replacement planning and support requests.

Retrofit Support FAQ

Q1: Is the 330101-00-52-10-12-05 a direct replacement for other 330101 suffix variants?
The 330101 family shares the same 8 mm probe body and 10-32 UNF thread across all suffix combinations. The suffix digits encode cable length, connector type, and temperature rating. The -00-52-10-12-05 variant uses a 5 m integral cable with a standard temperature rating. If your existing installation uses a different cable length suffix (e.g. -01 for 1 m or -09 for 9 m), the probe body is mechanically identical but the total cable length will change, requiring recalculation of the qualified gap voltage range with the driver datasheet.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-00-52-10-12-05 unit is bench-tested for gap voltage linearity, sensitivity constant, and cable continuity before dispatch. A test report is available on request. Units are shipped in anti-static packaging with a calibration label showing the measured sensitivity value and test date. The support terms confirmed by quotation period begins from the date of shipment and covers manufacturing defects confirmed by return inspection.

Q3: Can this transducer be used with a Bently Nevada 3500 Series monitor?
The 330101-00-52-10-12-05 is qualified for use with the 3300 XL driver/monitor system. Compatibility with 3500 Series monitors depends on the specific 3500 monitor card and its input specification. Some 3500 Series cards accept 3300 XL-qualified probes when used with the appropriate proximitor driver; others require a 3500-series qualified probe. Consult the 3500 Series monitor card datasheet and confirm with your instrumentation engineer before cross-platform installation.

Q4: What is the lead time and stock availability?
Stock is maintained across multiple regional warehouses to support urgent replacement requirements. Standard orders ship within 1–3 business days. For bulk or blanket orders supporting long-term spare parts programmes, contact the sales team to discuss reserved stock arrangements and volume pricing. All units carry a support terms confirmed by quotation from shipment date.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
