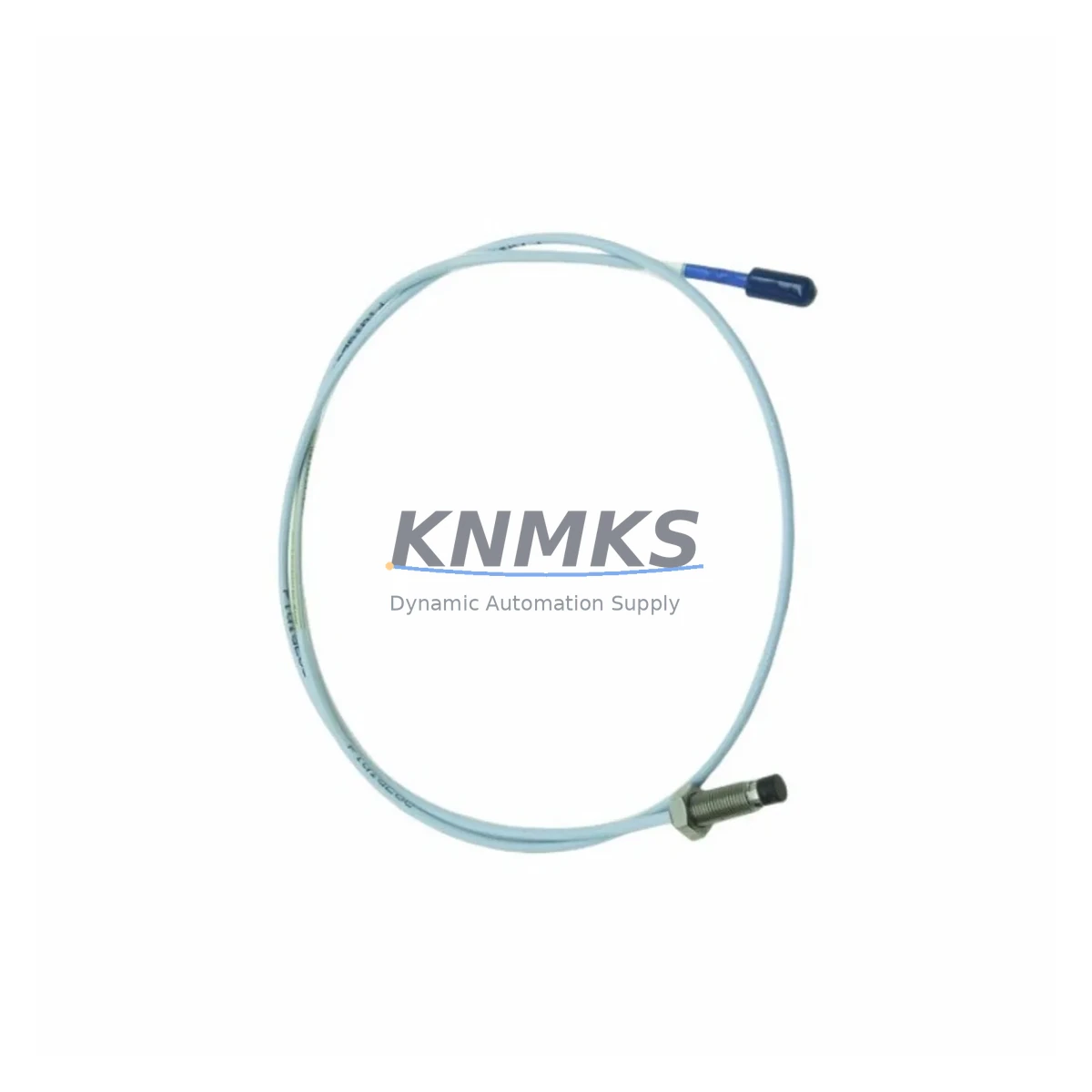

Bently Nevada 330101-00-52-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-52-10-02-CN Fail-Safe Proximity Probe: Fault-Protected Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330101-00-52-10-02-CN is a high-reliability eddy-current proximity probe from the industry-proven 3300 XL Series, engineered to deliver continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed for direct integration with Bently Nevada 3300 XL signal conditioning systems, this probe provides stable, drift-free output across a wide range of operating conditions — including high electromagnetic interference, elevated temperatures, mechanical vibration, and moisture-laden or dusty atmospheres.

In critical rotating machinery protection — turbines, compressors, pumps, fans, and gearboxes — undetected shaft displacement or vibration anomalies can escalate from a minor deviation to a catastrophic failure within seconds. The 330101-00-52-10-02-CN is purpose-built to eliminate that risk. Its eddy-current sensing principle operates without physical contact, ensuring zero mechanical wear and consistent signal integrity over extended service intervals. The probe’s robust stainless-steel housing and armored cable construction resist corrosion, vibration fatigue, and chemical exposure, making it equally suited for petrochemical reactors, power generation turbines, offshore compressor trains, and metallurgical processing lines.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-52-10-02-CN proximity probe operates as the primary sensing element within a layered protection architecture. The probe feeds raw displacement signals to the Bently Nevada 3300 XL Proximitor Seismic Monitor, which conditions and scales the output for the protection system. From there, the signal is processed by the Bently Nevada 3500/42M Proximitor Seismic Monitor module within a 3500 Series rack, where configurable alarm and trip setpoints enforce machinery protection interlock logic.

Power integrity for the monitoring rack is maintained by a dedicated Bently Nevada 3500/15 Power Supply, which provides regulated, isolated DC power to all rack modules — eliminating the risk of voltage transients or supply fluctuations corrupting vibration readings. In high-EMI environments such as variable-frequency drive (VFD) cabinets or switchgear rooms, the coaxial cable assembly of the 330101-00-52-10-02-CN provides inherent shielding, but additional protection is achieved by routing cables through grounded conduit and maintaining separation from high-voltage conductors.

For complete shaft monitoring coverage on a two-bearing rotor, a second probe — such as the Bently Nevada 330101-00-52-10-02-CN or a compatible 330100 Series probe — is typically installed at 90° to the first, enabling full X-Y radial vibration vector analysis. Axial position monitoring is complemented by a Bently Nevada 330500 Series thrust position probe, ensuring that both radial and axial displacement limits are continuously enforced. Communication between the 3500 rack and the plant DCS or safety PLC is handled via the Bently Nevada 3500/92 Communication Gateway, supporting Modbus, Profibus, or OPC-DA protocols for seamless integration into existing control architectures.

Critical Industrial Safety Applications

The 330101-00-52-10-02-CN is deployed across a broad spectrum of critical industrial sectors where unplanned machinery downtime carries severe safety and financial consequences.

In petrochemical and refining facilities, this probe monitors the shaft vibration of centrifugal compressors and process pumps handling flammable or toxic media. A vibration trip triggered by the probe can prevent seal failure and the associated risk of hydrocarbon release or fire. In power generation — both thermal and combined-cycle plants — the probe is installed on steam turbine shafts, where it provides the primary vibration signal for turbine protection systems operating under API 670 machinery protection standards.

In mining and mineral processing, the probe monitors large grinding mill pinion bearings and slurry pump shafts in environments characterized by extreme dust loading, water ingress, and structural vibration. Its sealed construction and wide temperature tolerance ensure reliable operation without frequent recalibration. Water and wastewater treatment facilities rely on the probe for continuous monitoring of high-speed centrifugal blowers and vertical turbine pumps, where bearing degradation must be detected early to avoid unplanned outages in critical public infrastructure.

In metallurgical and steel production environments, the probe withstands the intense electromagnetic interference generated by arc furnaces and induction heating systems, maintaining signal integrity where lesser sensors would introduce noise or false trips. Port and marine applications include monitoring of large diesel generator sets and propulsion shaft bearings aboard vessels, where the probe’s compact form factor and armored cable allow installation in confined machinery spaces.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-52-10-02-CN?
The support terms confirmed by quotation cover manufacturing defects, output signal non-conformance, and premature failure under normal operating conditions. Each unit is pre-tested for linearity and output accuracy before shipment. Support requests are supported with replacement dispatch from multi-region stock to minimize downtime.

Q2: How is the probe tested before shipment?
Every 330101-00-52-10-02-CN undergoes functional verification including output voltage linearity across the rated gap range, cable continuity and shielding integrity, and connector seating confirmation. Test records are available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing Bently Nevada 3500 Series racks?
Yes. The 330101-00-52-10-02-CN is fully compatible with Bently Nevada 3300 XL Proximitor Seismic Monitors and integrates directly into 3500 Series rack systems. No signal conditioning adapters are required. Confirm the proximitor model and gap voltage calibration range before installation to ensure system-level compatibility.

Q4: Can long-term supply be arranged for scheduled maintenance programs?
Yes. Multi-unit supply agreements and scheduled delivery programs are available to support planned outage cycles and spare parts inventory strategies. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options for critical rotating machinery fleets.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-52-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-52-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
