Bently Nevada 330101-00-52-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

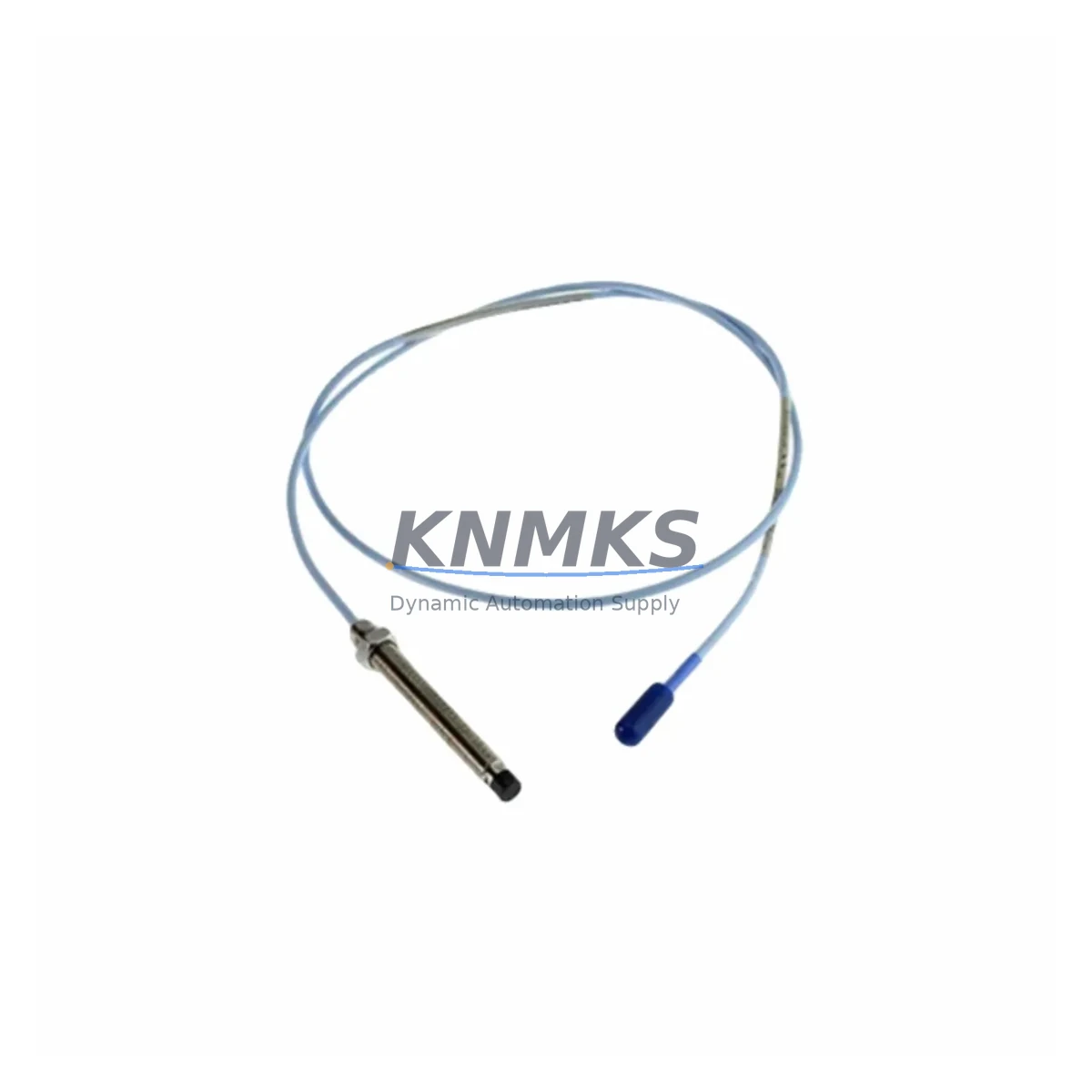

The Bently Nevada 330101-00-52-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Machinery Protection System — one of the most widely deployed vibration monitoring platforms in rotating equipment environments worldwide. Whether you are managing a planned annual shutdown, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical turbine, compressor, or pump train, this probe is a direct-fit, original-specification replacement that restores full system functionality without recalibration risk.

Maintenance engineers and reliability teams operating Bently Nevada 3300 XL systems understand that proximity probe integrity is foundational to accurate shaft vibration, radial position, and eccentricity measurement. A degraded or failed probe introduces measurement uncertainty that can mask developing faults, trigger nuisance trips, or — in worst-case scenarios — allow a genuine machinery fault to go undetected. Stocking a verified replacement such as the 330101-00-52-10-02-00 eliminates the lead-time risk that turns a minor probe swap into a multi-day production outage.

This unit ships pre-tested against Bently Nevada 3300 XL system specifications, with full electrical continuity and sensitivity verification completed prior to dispatch. A support terms confirmed by quotation cover manufacturing defects and performance conformance, giving procurement teams the confidence to approve the purchase as a long-term supply agreement rather than a one-off emergency buy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-52-10-02-00 proximity probe during a scheduled or emergency maintenance window, a disciplined site engineer will treat the probe swap as an opportunity to inspect the entire measurement chain — not just the probe tip. The 3300 XL system architecture means that probe performance is directly dependent on the condition of several interconnected components.

Begin with the Bently Nevada 330180-series 8mm Proximitor sensor (driver/extension cable assembly). The Proximitor converts the probe’s raw oscillator signal into a DC voltage proportional to gap distance; a worn or moisture-ingressed Proximitor will produce erratic output even with a new probe installed. Inspect the Proximitor housing, connector pins, and cable jacket for corrosion or mechanical damage before closing the loop.

Next, verify the 3300 XL monitor module input card — typically a 3300/16 dual-channel or 3300/20 four-channel radial vibration monitor. Check the terminal block connections for fretting corrosion, confirm that the OK relay output is functioning, and review the module’s configuration for correct gap voltage setpoints that match the new probe’s sensitivity curve.

The 3300 XL power supply module (commonly the 3300/05 or equivalent rack power unit) should be load-tested during the outage window. An under-voltage supply rail will shift the Proximitor’s linear operating range and introduce systematic measurement error that is difficult to diagnose after reassembly. Similarly, inspect the rack backplane for bent connector pins and confirm that all module edge connectors are fully seated.

For installations where the 3300 XL rack feeds a DCS historian or safety system — such as a Honeywell TDC 3000, Emerson DeltaV, or ABB System 800xA — confirm that the 4–20 mA or voltage output signal from the monitor module is within calibrated range at the marshalling cabinet. Loose terminal connections on DIN rail terminal blocks or corroded signal isolators between the monitor rack and the DCS I/O card are a common source of false alarms after a probe replacement.

Finally, if the installation uses Bently Nevada 3300/95 or 3300/97 communication gateway modules for Modbus or Ethernet connectivity to a plant historian, verify that the gateway firmware is current and that the channel mapping still reflects the correct probe position after any rack reconfiguration. Documenting these checks in your CMMS work order creates an audit trail that supports both reliability engineering reviews and insurance compliance requirements.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or confined-space permit as applicable. De-energize the Proximitor supply at the 3300 XL rack power module. Do not disconnect the probe cable under live supply voltage — this can damage the Proximitor oscillator circuit.

Step 2 — Probe removal: Loosen the probe locknut and back the probe out of the bracket. Note the installed gap (typically measured with a feeler gauge or recorded from the monitor’s DC gap voltage reading before shutdown). Record the as-found gap for comparison after installation.

Step 3 — New probe installation: Thread the 330101-00-52-10-02-00 into the bracket by hand. Set the initial gap to the system-specified value (commonly 1.0–1.5 mm for 8mm probes on most turbine applications). Tighten the locknut to the torque specification in the Bently Nevada installation manual. Reconnect the extension cable to the Proximitor.

Step 4 — Energize and verify: Restore power to the Proximitor. Measure the DC gap voltage at the monitor module input terminals. Confirm the reading falls within the linear range (typically –10 VDC ± 1 VDC at nominal gap). Check the OK relay status on the monitor module front panel.

Step 5 — Functional test: With the machine at rest, perform a slow-roll check if possible. Confirm that the vibration reading is within expected baseline levels and that no alert or danger setpoints are exceeded. Update the CMMS with the new probe serial number, installation date, and as-left gap voltage.

This workflow is compatible with both like-for-like replacement of the 330101-00-52-10-02-00 and migration from older 3300 series (non-XL) probe assemblies, provided the Proximitor and monitor module are also updated to XL-compatible variants.

Spare Parts Support FAQ

Q1: Is the 330101-00-52-10-02-00 compatible with both 3300 and 3300 XL monitor systems?
The 330101-00-52-10-02-00 is specified for the 3300 XL platform. While the physical probe connector is similar to earlier 3300 series assemblies, the XL system uses a revised Proximitor with different sensitivity and gap range characteristics. Always confirm that your installed Proximitor is an XL-series unit (330180 or equivalent) before installing this probe. Mixing non-XL Proximitors with XL probes will produce incorrect gap voltage readings and may trigger false OK relay trips.

Q2: What is included in the pre-shipment testing process?
Each unit undergoes electrical continuity verification across the full probe-to-connector cable assembly, sensitivity measurement at a calibrated reference gap, and visual inspection of the probe tip, cable jacket, and connector body. A test report is available upon request for quality-controlled procurement processes. Units that do not meet Bently Nevada specification are quarantined and not dispatched.

Q3: How should I structure my spare parts inventory for a 3300 XL system?
Industry best practice for rotating equipment protection systems recommends holding a minimum of one spare probe per monitored measurement point for critical machines (API 670 Category I), plus one spare Proximitor per probe channel. For plants with multiple identical machines, a pooled spare strategy — typically two to three probe assemblies per machine type — reduces carrying cost while maintaining acceptable mean-time-to-restore targets. The support terms confirmed by quotation on this unit supports annual spare rotation programs without financial penalty.

Q4: Can you support long-term or blanket purchase orders for the 330101-00-52-10-02-00?
Yes. Long-term supply agreements, blanket POs, and scheduled delivery programs are supported. Multi-unit orders benefit from consolidated pre-shipment testing and can be accompanied by a certificate of conformance. Contact the sales team to discuss volume pricing, lead-time commitments, and consignment stock arrangements for high-criticality sites.
