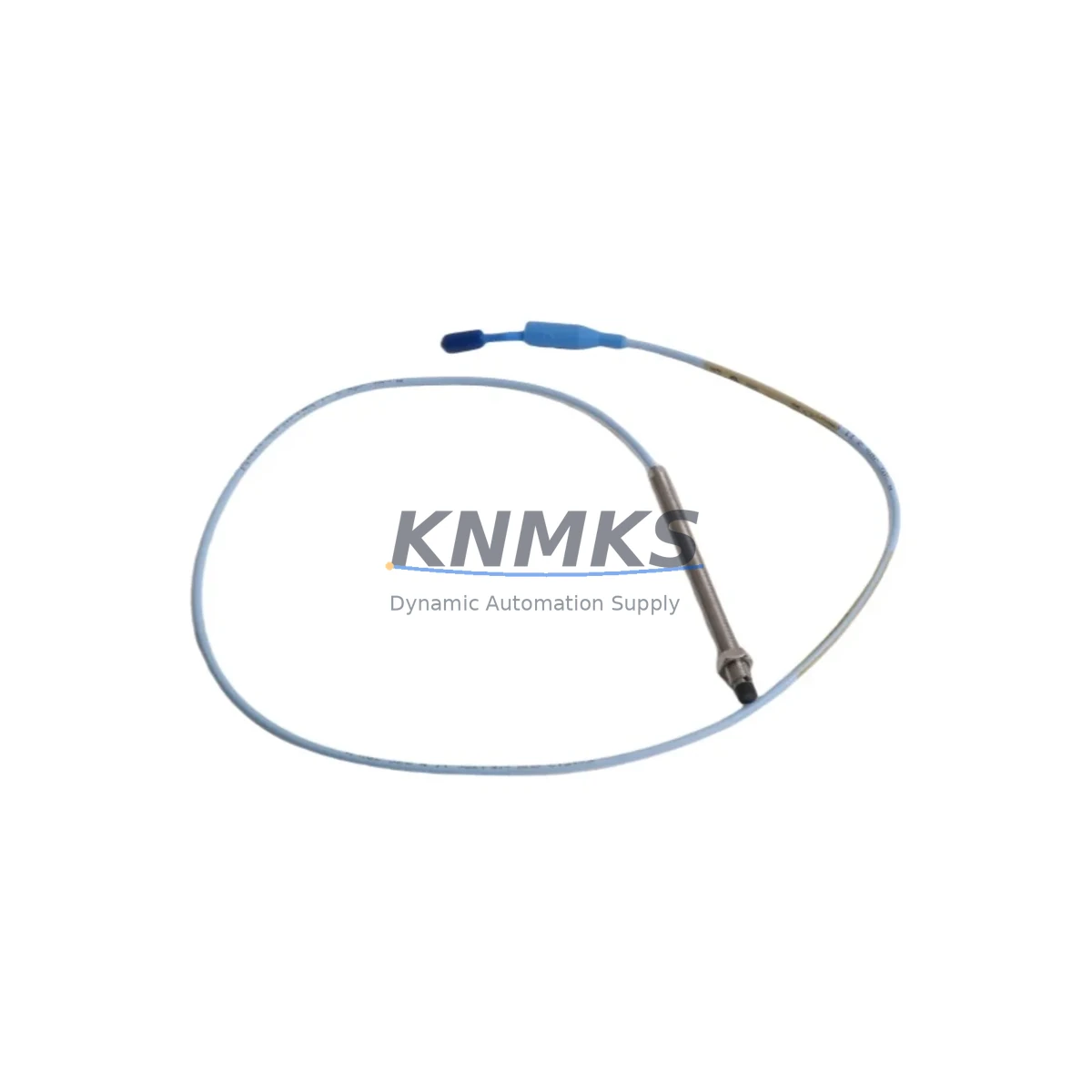

Bently Nevada 330101-00-50-15-02-05 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330101-00-50-15-02-05 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330101-00-50-15-02-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy vibration monitoring infrastructure reaches end-of-support and original spare parts become increasingly scarce, this unit serves as a verified drop-in replacement for discontinued 3300 Series transducers, enabling maintenance teams to restore full shaft-vibration and position-monitoring capability without redesigning the monitoring rack or rewriting existing System 1 software configurations.

Designed to the same sensitivity standard of 200 mV/mil (7.87 V/mm) and operating across the standard –24 VDC supply range, the 330101-00-50-15-02-05 integrates directly into existing 3300 XL monitor cards, including the 3300/16 and 3300/20 series, without requiring recalibration of gap voltage set-points. The 5-metre armoured extension cable and standard TNC connector ensure that field wiring terminations at the junction box remain unchanged, dramatically reducing the risk of wiring errors during a live-system swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-50-15-02-05 into an operating machinery protection system begins well before the maintenance window opens. Engineers should first audit the existing 3300 XL monitor rack to confirm available power budget: each transducer channel draws approximately 10 mA from the –24 VDC bus, and racks running near capacity may require a supplementary Bently Nevada 3300/05 Power Supply module to maintain stable supply voltage across all active channels during the changeover.

Terminal wiring at the field junction box uses a standard three-conductor shielded arrangement (drive, return, shield). Before disconnecting the old transducer, photograph or document the existing terminal assignments and verify continuity with a loop tester. The armoured extension cable on the 330101-00-50-15-02-05 is pre-terminated with a TNC connector at the monitor end, so no field crimping is required — a significant advantage when working in confined machine-train enclosures where tool access is restricted.

If the monitoring rack also hosts a Bently Nevada 3300/55 Keyphasor module for phase-reference triggering, confirm that the Keyphasor gap voltage and threshold settings are unaffected by the transducer swap. Similarly, if the plant uses a 3500 Series rack in parallel for API 670 compliance monitoring, verify that the channel configuration in the 3500/42M or 3500/45 position monitor still references the correct transducer sensitivity constant after the replacement unit is installed.

For plants migrating from older 7200 Series transducers to the 3300 XL platform, the 330101-00-50-15-02-05 provides a compatible sensitivity output, but the driver/extension cable system must be replaced as a matched set. In these cross-series migrations, the Bently Nevada 330130-080-00-00 proximitor/oscillator driver is the recommended companion component, ensuring the overall system scale factor remains within the ±1% tolerance required for API 670 alarm setpoint accuracy.

Where I/O expansion is part of the upgrade scope — for example, adding radial vibration channels to a previously unmonitored bearing location — the 3300 XL rack accepts additional monitor cards without disrupting existing channel wiring. This modularity allows maintenance teams to phase the retrofit across multiple planned outages rather than committing to a single extended shutdown, preserving production continuity while progressively modernising the protection architecture.

Downtime Control During System Migration

Minimising unplanned downtime during a transducer replacement requires a structured pre-outage preparation protocol. Before the maintenance window, download and archive the current System 1 database configuration, including all channel tags, alarm setpoints, OK relay logic, and trend history. This backup ensures that if the replacement unit reveals an unexpected wiring discrepancy or gap-voltage anomaly, the original configuration can be restored within minutes rather than hours.

During the swap, place the affected monitor channel in bypass mode via the 3300 XL front-panel or System 1 software to suppress spurious Not-OK alarms to the DCS or safety PLC while the transducer is disconnected. This step is critical in plants where the machinery protection system is hard-wired to an emergency shutdown relay: bypassing the channel prevents a nuisance trip that could force an unplanned full-line stoppage.

Once the 330101-00-50-15-02-05 is installed and the gap voltage is confirmed within the –10 V to –18 V window (typically –12 V for a 50-mil nominal gap on steel targets), remove the bypass and observe the vibration trend for a minimum of 15 minutes at operating speed before returning the machine to full load. Compare the new baseline amplitude and phase readings against the historical trend stored in System 1 to confirm the replacement unit is performing within expected parameters. Any deviation greater than 10% from the pre-outage baseline should trigger a secondary gap-voltage verification and a check of the extension cable shield continuity before the machine is released to production.

For facilities operating under IEC 61511 functional safety requirements, retain the pre-shipment test certificate supplied with the 330101-00-50-15-02-05 and file it with the site’s mechanical integrity records. KNMKS performs a functional output test on every unit prior to dispatch, and the support terms confirmed by quotation cover both the transducer probe and the armoured extension cable assembly as a matched system.

Retrofit Support FAQ

Q1: Is the 330101-00-50-15-02-05 a direct replacement for the discontinued 330101-00-50-10-02-05?
Yes. The only difference between these part numbers is the cable length suffix (15 = 5 m, 10 = 3 m). If your existing installation uses a 5-metre extension run, the 330101-00-50-15-02-05 is the correct drop-in replacement. No re-gapping or sensitivity recalibration is required provided the target material and nominal gap remain unchanged.

Q2: What commissioning checks are required after installation?
Verify gap voltage (target: –12 VDC ± 2 V for a 50-mil gap on steel), confirm the OK/Not-OK relay status in the 3300 XL monitor, and validate the vibration amplitude reading against a known reference or the pre-outage baseline in System 1. For Keyphasor-referenced channels, also confirm phase angle stability at operating speed.

Q3: Does KNMKS hold stock for immediate shipment?
Yes. The 330101-00-50-15-02-05 is maintained in multi-region inventory to support urgent maintenance requirements. Standard lead time is 3–5 business days for stocked units. For blanket-order arrangements covering planned annual maintenance schedules, contact [email protected] to discuss reserved-stock agreements.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects in both the probe body and the armoured extension cable assembly. It does not cover damage resulting from installation errors, incorrect gap setting, or operation outside the specified supply voltage range. Each unit is functionally tested before dispatch, and a test report is available upon request.
