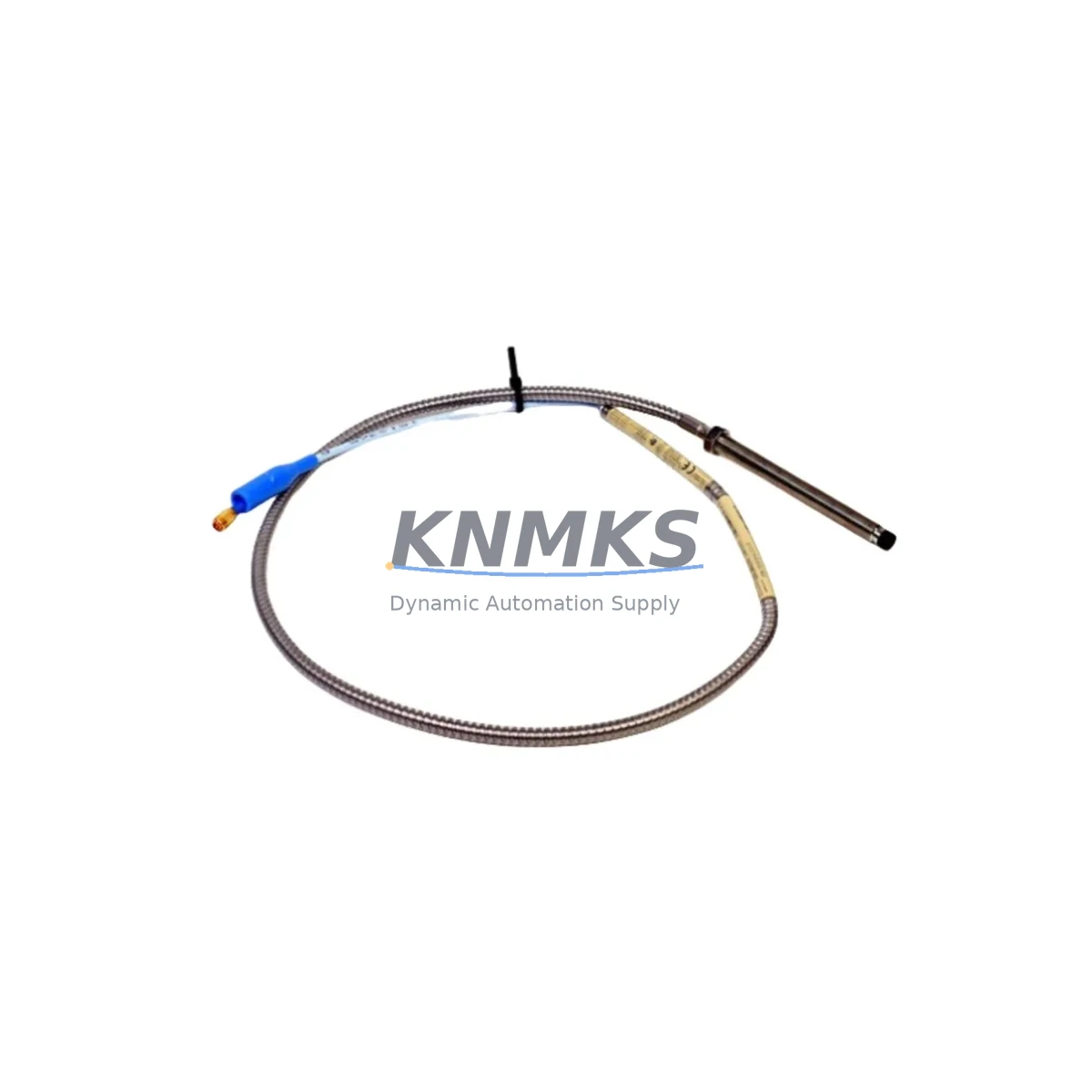

Bently Nevada 330101-00-50-10-01-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-50-10-01-00 Fail-Safe Proximity Probe: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-50-10-01-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered to deliver continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial control environments. Designed for integration with Bently Nevada 3300 XL proximitor/seismic systems, this probe provides the measurement integrity that rotating machinery protection demands — from petrochemical compressor trains to power generation turbines and heavy metallurgical drives.

In critical production facilities where unplanned downtime carries six-figure hourly costs, the 330101-00-50-10-01-00 serves as the first line of defense against shaft instability, rotor rub, oil whirl, and mechanical looseness. Its eddy-current sensing principle operates without physical contact, eliminating wear-induced signal drift and ensuring measurement continuity across the full service life of the monitored machine.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable shaft monitoring begins at the probe tip but depends on a fully coordinated protection architecture within the control cabinet. The 330101-00-50-10-01-00 is designed to operate as part of a complete Bently Nevada 3300 XL Proximitor/Seismic System, where the companion Bently Nevada 330180-X1-05 Proximitor Sensor conditions the raw eddy-current signal into a calibrated DC voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module. This monitor card provides the trip and alarm relay outputs that feed safety interlock circuits, ensuring that any shaft excursion beyond programmed limits triggers a controlled machine shutdown before mechanical damage propagates.

Within the same control cabinet, surge and transient protection is critical. Industrial sites with large motor starts, arc flash events, or nearby VFD switching generate high-energy transients that can corrupt proximity signal integrity. Pairing the probe system with a Phoenix Contact TRABTECH surge protection device on the signal cable entry point eliminates transient-induced false trips and protects the Proximitor input circuitry. For cabinet power supply integrity, a Bently Nevada 3500/15 Power Supply Module with redundant input capability ensures that a single power feed failure does not interrupt the monitoring system — a requirement in API 670 machinery protection applications.

In high electromagnetic interference environments — common in motor control centers, variable frequency drive panels, and arc furnace facilities — the shielded coaxial cable of the 330101-00-50-10-01-00 provides inherent noise rejection. However, proper grounding of the cable shield at a single point, typically at the Proximitor housing, is essential to prevent ground loop currents from introducing measurement offset. Supplementing the installation with a Bently Nevada 330130-045-00-00 Extension Cable maintains signal integrity over longer probe-to-Proximitor distances without compromising the system’s frequency response or sensitivity specification.

For facilities operating under IEC 61511 functional safety requirements, the 330101-00-50-10-01-00 proximity probe system can be incorporated into SIL 1 or SIL 2 safety instrumented functions when combined with a certified logic solver such as the Rockwell Automation GuardLogix Safety PLC, providing the voted shutdown logic that machinery protection standards demand.

Critical Industrial Safety Applications

Petrochemical and Refinery Compressor Trains: In continuous ethylene, LNG, or hydrogen compression service, shaft radial vibration monitoring is a non-negotiable API 670 requirement. The 330101-00-50-10-01-00 provides the real-time radial position data that allows the protection system to distinguish between normal startup transients and developing bearing failures, preventing catastrophic seal failures and process gas releases in hazardous area installations.

Power Generation Turbines: Steam and gas turbines operating at 3,000 or 3,600 RPM demand sub-millisecond response from their protection systems. The DC–10,000 Hz frequency response of this probe ensures that high-frequency rotor instability modes — including oil whirl at sub-synchronous frequencies — are captured and reported to the 3500 Series monitor before they escalate to destructive amplitude levels.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and temperature cycling. The robust construction and wide operating temperature range of the 330101-00-50-10-01-00 make it suitable for these high-contamination environments, where probe replacement during planned maintenance shutdowns is far preferable to unplanned failure during production.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in municipal water infrastructure require continuous availability. Proximity probe monitoring on these machines provides early warning of impeller imbalance, bearing wear, and shaft misalignment — allowing maintenance teams to schedule corrective action during low-demand periods rather than responding to emergency failures.

Metallurgical and Steel Plant Drives: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blowers operate in environments with intense electromagnetic interference from large DC drives and induction furnaces. The EMI-resistant design of the 3300 XL probe system maintains measurement accuracy in these conditions, supporting the machinery protection requirements of critical production assets.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives increasingly incorporate API 670-style machinery protection. The 330101-00-50-10-01-00 is compatible with marine-grade installation practices and provides the vibration monitoring capability required for classification society compliance on critical rotating equipment.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-50-10-01-00?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, sensitivity out-of-specification conditions, and connector integrity failures under normal installation and operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch.

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-00-50-10-01-00 unit undergoes full functional verification prior to shipment, including sensitivity check against the 7.87 V/mm specification, cable continuity and shield integrity test, and connector inspection. Test records are available upon request for quality documentation requirements.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor installations?
Yes. The 330101-00-50-10-01-00 is a direct form-fit-function replacement for standard 3300 XL 8mm probe assemblies. It is compatible with all 330180-series Proximitor Sensors and integrates without recalibration when replacing a probe of the same part number in an existing installation. For target material changes or non-standard gap settings, recalibration at the Proximitor is recommended.

Q4: Can long-term supply agreements be arranged for critical spare parts programs?
Yes. For facilities maintaining 12-month forward buffer stock programs or multi-unit spare parts agreements, volume pricing and scheduled delivery arrangements are available. Contact our sales team to discuss consignment stock, blanket order terms, and priority allocation for critical rotating machinery protection components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-50-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-50-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
