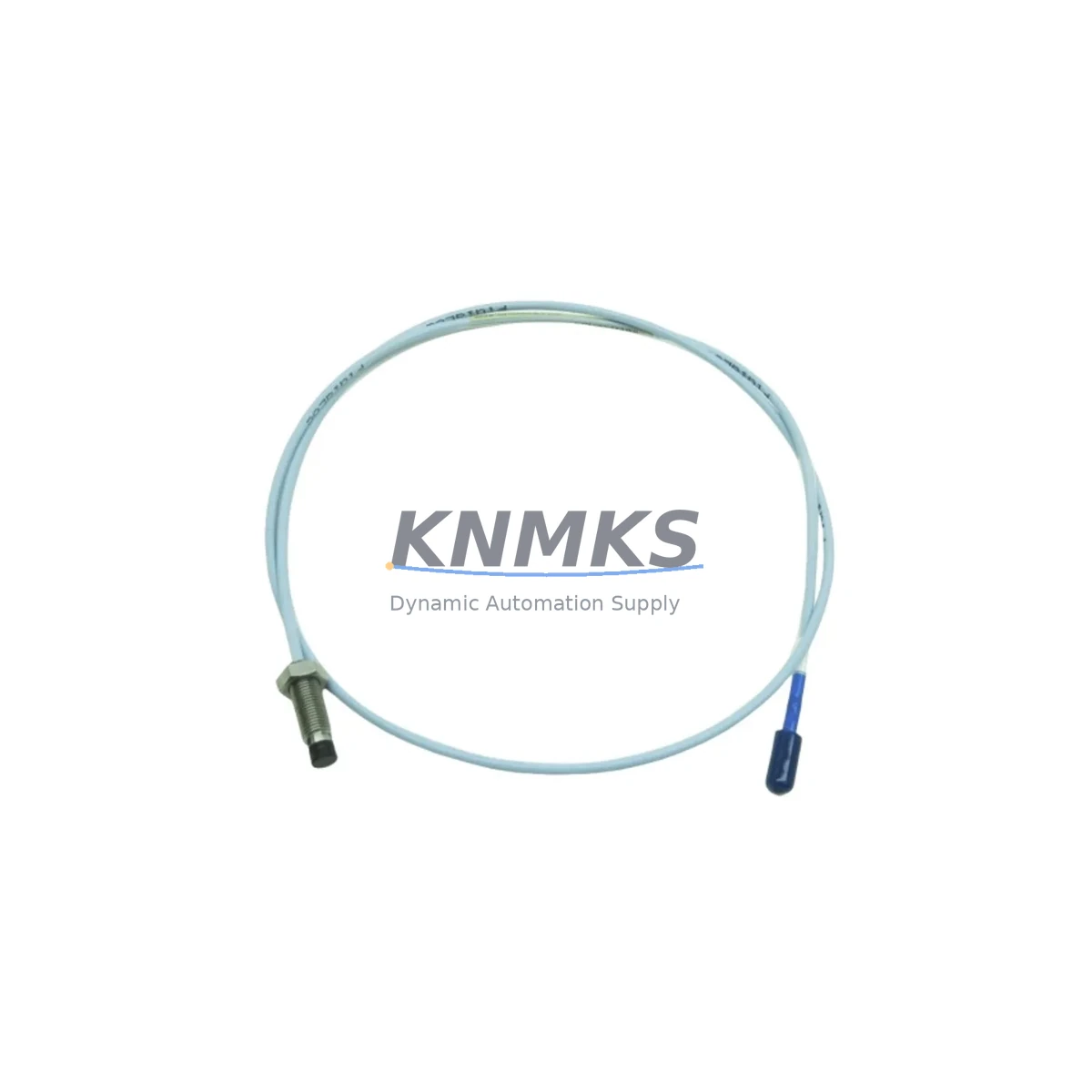

Bently Nevada 330101-00-49-90-02-05 Fail-Safe Proximity Probe: Critical Vibration Monitoring Reliability for Industrial Control Systems

In continuous production environments where unplanned downtime carries six-figure hourly costs, the integrity of every rotating machinery monitoring point is non-negotiable. The Bently Nevada 330101-00-49-90-02-05 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered to deliver fail-safe, drift-free vibration and position measurement across the most demanding industrial sites — from petrochemical compressor trains to power generation turbines, from mining hoists to metallurgical rolling mills.

Unlike generic proximity sensors, the 330101-00-49-90-02-05 is purpose-built for integration into Bently Nevada’s 3300 XL monitoring architecture. Its non-contact eddy current sensing principle eliminates mechanical wear, ensuring measurement stability over extended service intervals without recalibration drift. The probe’s shielded coaxial cable construction provides inherent immunity to high electromagnetic interference (EMI) — a critical advantage in control cabinets co-located with variable frequency drives, high-current bus bars, and power switching equipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-49-90-02-05 probe does not operate in isolation — its reliability is inseparable from the integrity of the complete 3300 XL signal chain. In a properly engineered control cabinet, the probe connects via a matched Bently Nevada 330130 extension cable to a 3300 XL proximitor/driver module (such as the 330180-91-00), which conditions the raw eddy current signal into a calibrated DC voltage output for the monitoring rack. Any impedance mismatch, cable damage, or driver misconfiguration in this chain can introduce signal offset errors that mimic real shaft displacement — triggering false alarms or, worse, masking genuine rotor instability.

Within the monitoring rack, the conditioned signal feeds into a Bently Nevada 3500 Series rack — for example, a 3500/42M proximitor I/O module — where it is processed against alarm and danger setpoints. For installations requiring SIL-rated machinery protection, the rack’s voting logic and relay outputs interface directly with the plant’s safety instrumented system (SIS). In such architectures, the physical probe is the first and most critical element: a probe with degraded sensitivity or intermittent output will corrupt the entire protection chain downstream.

Power supply stability within the cabinet is equally important. The 3300 XL driver requires a stable −24 VDC bias supply; fluctuations caused by inadequate power conditioning or shared bus loading can shift the probe’s operating point and alter its linear range. Pairing the monitoring system with a dedicated Bently Nevada 3500/15 power supply module or an equivalent isolated DC/DC converter ensures the probe operates within its specified bias window under all load conditions, including during motor start transients and grid disturbances.

For installations in high-dust, high-humidity, or chemically aggressive environments — common in water treatment, pulp and paper, and offshore platforms — the probe tip and cable entry points should be sealed with appropriate conduit fittings and cable glands rated to the site’s area classification. Combining the 330101-00-49-90-02-05 with a Bently Nevada 02-262610-01 armored extension cable provides additional mechanical protection against abrasion and rodent damage in exposed cable runs.

Critical Industrial Safety Applications

Petrochemical and Refinery Compressor Trains: In API 670-compliant machinery protection systems, the 330101-00-49-90-02-05 serves as the primary radial vibration sensor on centrifugal compressors, gas turbines, and expanders. Its fast dynamic response captures subsynchronous instability, oil whirl, and surge events before they escalate to bearing failure or seal damage. In these facilities, a single unplanned compressor trip can halt an entire process unit — making probe reliability a direct factor in plant safety and production continuity.

Power Generation — Steam and Gas Turbines: Turbine shaft monitoring demands sensors capable of operating reliably at elevated temperatures and in the presence of steam, oil vapor, and strong magnetic fields from generator excitation systems. The 330101-00-49-90-02-05’s high-temperature cable rating and EMI-immune coaxial design make it a proven choice for both bearing proximity and thrust position measurement on utility-scale turbines, where protection system response times are measured in milliseconds.

Mining Hoists and Conveyor Drives: In underground and open-pit mining, rotating equipment operates under extreme mechanical loading, high vibration, and exposure to coal dust, rock dust, and water ingress. The non-contact sensing principle of the 330101-00-49-90-02-05 eliminates the wear-related drift that plagues contact-type sensors in these environments, providing consistent shaft position feedback to hoist control systems and conveyor drive protection relays over multi-year service intervals.

Metallurgical Rolling Mills and Continuous Casting: Rolling mill main drives and continuous caster pinch rolls generate intense vibration, thermal cycling, and electromagnetic noise from high-current thyristor drives. Proximity probes in these applications must maintain calibration stability despite thermal expansion of the machine structure and electrical interference from nearby power electronics. The 3300 XL system’s temperature compensation and the probe’s robust construction address both failure modes, supporting uninterrupted production across multi-shift operations.

Water and Wastewater Treatment Pumping Stations: Large vertical turbine pumps and horizontal split-case pumps in water infrastructure require continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing wear before they cause catastrophic failures that disrupt municipal water supply. The 330101-00-49-90-02-05, installed in conjunction with a 3500 Series monitoring rack, provides the real-time shaft displacement data needed to schedule predictive maintenance during planned outages rather than emergency shutdowns.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover, and how is it validated?
The support terms confirmed by quotation cover manufacturing defects, calibration drift beyond specification, and premature failure under normal operating conditions. Every unit undergoes pre-shipment functional testing — including sensitivity verification, cable continuity, and connector integrity checks — before dispatch. Test records are available upon request. The confirmed support period begins from the date of shipment and applies to both new and refurbished units supplied by KNMKS.

Q2: Is the 330101-00-49-90-02-05 compatible with existing 3300 XL driver and extension cable assemblies?
Yes. The 330101-00-49-90-02-05 is a standard 3300 XL Series 8mm probe and is fully compatible with Bently Nevada 330130-series extension cables and 330180-series proximitor/driver modules. It integrates directly into existing 3300 XL and 3500 Series monitoring racks without requiring reconfiguration of alarm setpoints, provided the installation gap and target material are consistent with the original system design. Cross-compatibility with third-party driver modules should be verified against the driver’s input impedance specification.

Q3: Can KNMKS support long-term or multi-unit supply agreements for this part?
Yes. KNMKS maintains ready stock of the 330101-00-49-90-02-05 and can support blanket purchase orders and scheduled delivery agreements covering 12 to 36 months of planned consumption. This is particularly valuable for facilities managing spare parts inventory for critical rotating machinery, where lead time uncertainty from OEM channels creates unacceptable risk. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, and site-specific spare parts planning.

Q4: What should be verified during field installation to ensure safe and accurate operation?
Prior to commissioning, verify the probe-to-target gap using a calibrated gap voltage measurement — the 3300 XL system specifies a nominal gap of approximately −10 VDC at the midpoint of the linear range. Confirm that the target material matches the probe’s calibration standard (AISI 4140 steel is the default; non-standard target materials require a system-specific calibration curve). Inspect the cable routing for sharp bends, mechanical abrasion points, and proximity to high-current conductors. After installation, perform a slow-roll vibration check to establish a baseline before bringing the machine to operating speed. Document all gap voltages and baseline vibration levels for future reference during predictive maintenance reviews.
