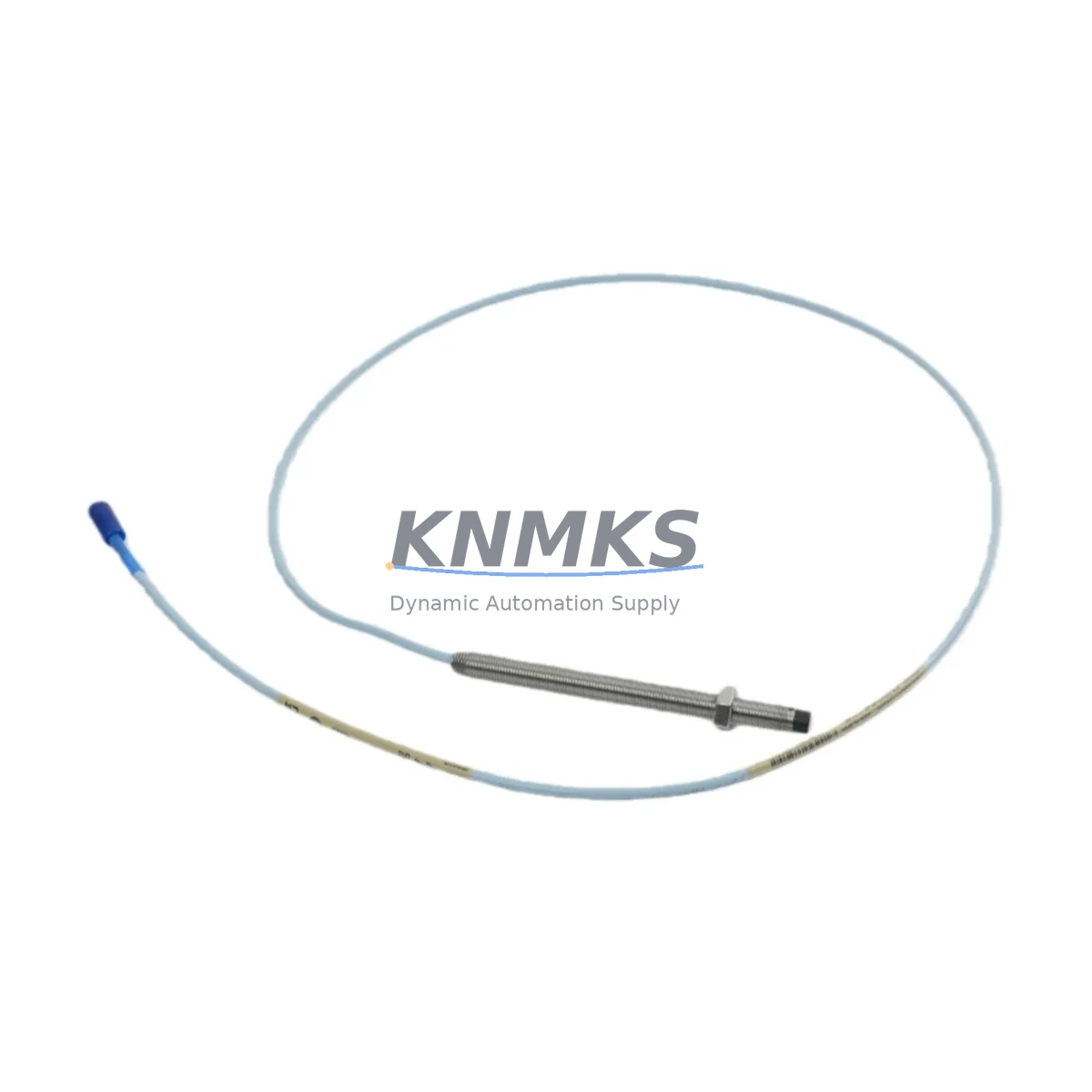

Bently Nevada 330101-00-49-10-12-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-49-10-12-05 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330101-00-49-10-12-05 is a high-performance eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver continuous, accurate shaft displacement measurements without physical contact, this probe is a critical component in rotating machinery protection systems across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In critical production environments where unplanned downtime carries severe operational and safety consequences, the 330101-00-49-10-12-05 provides the measurement integrity required to sustain safe, uninterrupted operation. Its robust construction and precision-calibrated sensing element ensure stable signal output even under conditions of high electromagnetic interference (EMI), shaft runout, thermal cycling, and mechanical vibration — conditions that routinely compromise lesser sensing technologies.

This probe integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series) and is fully compatible with System 1 machinery management software, enabling real-time vibration trending, alarm management, and predictive maintenance workflows. When paired with the 3300 XL Extension Cable (330130 series) and a calibrated 3300 XL Proximitor, the complete measurement chain delivers the signal conditioning accuracy required for API 670-compliant machinery protection.

Within a well-engineered control cabinet, the 330101-00-49-10-12-05 works alongside Bently Nevada 3500 Series Rack-Based Monitoring Systems and Rockwell Automation GuardLogix Safety PLCs to form a layered protection architecture. The probe’s output feeds directly into vibration monitoring modules, which trigger protective relay logic and interlock sequences when shaft displacement exceeds safe operating thresholds — preventing catastrophic bearing failures, seal damage, and rotor-stator contact events.

For power supply integrity within the monitoring loop, dedicated 24 VDC DIN-rail power supplies with surge protection and redundant output capability are recommended to eliminate voltage fluctuation as a source of signal drift. Surge protection devices (SPDs) installed at the field junction box further shield the probe cable from transient overvoltage events common in high-voltage switchgear environments and outdoor installations subject to lightning exposure.

In facilities operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, the 330101-00-49-10-12-05 is a trusted sensing element within Safety Instrumented Systems (SIS). Its non-contact measurement principle eliminates mechanical wear as a failure mode, and its proven mean time between failures (MTBF) supports the probability of failure on demand (PFD) calculations required for SIL-rated protection loops.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330101-00-49-10-12-05 within a critical machinery protection cabinet requires a systems-level approach to signal integrity and power quality. The probe’s coaxial output connects to a Bently Nevada 330180-X0-05 Proximitor Sensor, which provides the -24 VDC bias voltage and converts the probe’s impedance change into a calibrated voltage signal suitable for rack-based monitoring inputs.

Within the monitoring rack, a Bently Nevada 3500/40M Proximitor/Seismic Monitor processes the conditioned signal, applying configurable alert and danger setpoints for radial vibration, axial position, and differential expansion. When danger thresholds are exceeded, the monitor’s relay outputs activate protective shutdown sequences through hardwired connections to the machine’s emergency shutdown (ESD) system — typically implemented on a Rockwell Automation GuardLogix 5580 Safety PLC or equivalent IEC 61508-certified safety controller.

To protect the measurement chain from power-side disturbances, a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply with static boost and SFB (Selective Fuse Breaking) technology provides stable, regulated 24 VDC to the Proximitor, eliminating the voltage sag and ripple that can introduce measurement offset errors. At the field end, a Pepperl+Fuchs surge protection device installed at the junction box clamps transient overvoltages before they can propagate along the probe cable into the Proximitor input stage.

For facilities requiring communication of vibration data to the plant DCS or historian, the 3500 rack’s Bently Nevada 3500/92 Communication Gateway provides Modbus TCP or OPC-UA connectivity, enabling integration with Emerson DeltaV or Honeywell Experion PKS distributed control systems without disrupting the hardwired protection logic.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In API 670-mandated machinery protection systems for centrifugal compressors, steam turbines, and boiler feed pumps, the 330101-00-49-10-12-05 provides the continuous shaft displacement monitoring required to detect rotor instability, oil whirl, and bearing degradation before they escalate to catastrophic failure. In hydrogen compression and ethylene cracking service, where unplanned shutdowns carry both safety and multi-million-dollar production loss consequences, the probe’s fail-safe non-contact design eliminates sensing element wear as a maintenance variable.

Power Generation: Gas turbine and steam turbine generator sets in combined-cycle power plants rely on eddy-current proximity probes for shaft eccentricity monitoring during startup, load changes, and coast-down. The 330101-00-49-10-12-05’s wide operating temperature range and high EMI immunity make it suitable for installation in close proximity to high-voltage generator terminals and excitation systems.

Mining and Mineral Processing: In SAG mill drives, slurry pump stations, and conveyor gearboxes operating in high-dust, high-moisture environments, the probe’s IP67 rating and robust cable construction ensure measurement continuity without the signal degradation that affects optical or capacitive sensing technologies in contaminated atmospheres.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water infrastructure require continuous vibration monitoring to comply with asset management programs and prevent service interruptions. The 330101-00-49-10-12-05 provides the measurement stability needed for long-interval condition monitoring between scheduled maintenance windows.

Metallurgy and Steel Production: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blowers operate under extreme thermal and mechanical stress. The probe’s high-temperature rating and vibration-resistant construction support reliable operation in these environments, where conventional sensors frequently fail prematurely.

Port and Marine Applications: Ship propulsion systems, crane slewing drives, and offshore platform compressors require vibration monitoring solutions that maintain calibration accuracy in high-humidity, salt-laden atmospheres. The 330101-00-49-10-12-05’s sealed construction and corrosion-resistant materials support these demanding marine and port installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-49-10-12-05?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-49-10-12-05 undergoes functional verification prior to shipment, including scale factor confirmation, linear range verification, and cable continuity and insulation resistance testing. Units supplied as tested surplus or refurbished are additionally inspected for physical integrity and recalibrated against Bently Nevada factory specifications.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitoring racks?
Yes. The 330101-00-49-10-12-05 is fully compatible with the complete Bently Nevada 3300 XL measurement chain, including 330180 series Proximitor Sensors and all 3500 Series rack-based monitoring modules. No hardware modifications or recalibration of the Proximitor are required when replacing a like-for-like probe within the same measurement chain.

Q4: Can long-term supply commitments be arranged for critical spare parts programs?
Yes. For facilities operating planned maintenance programs or requiring guaranteed spare parts availability under long-term service agreements, we support blanket order arrangements with reserved inventory allocation. Contact our sales team to discuss volume commitments, lead time guarantees, and consignment stocking options tailored to your site’s maintenance schedule.
