Bently Nevada 330101-00-48-50-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-48-50-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

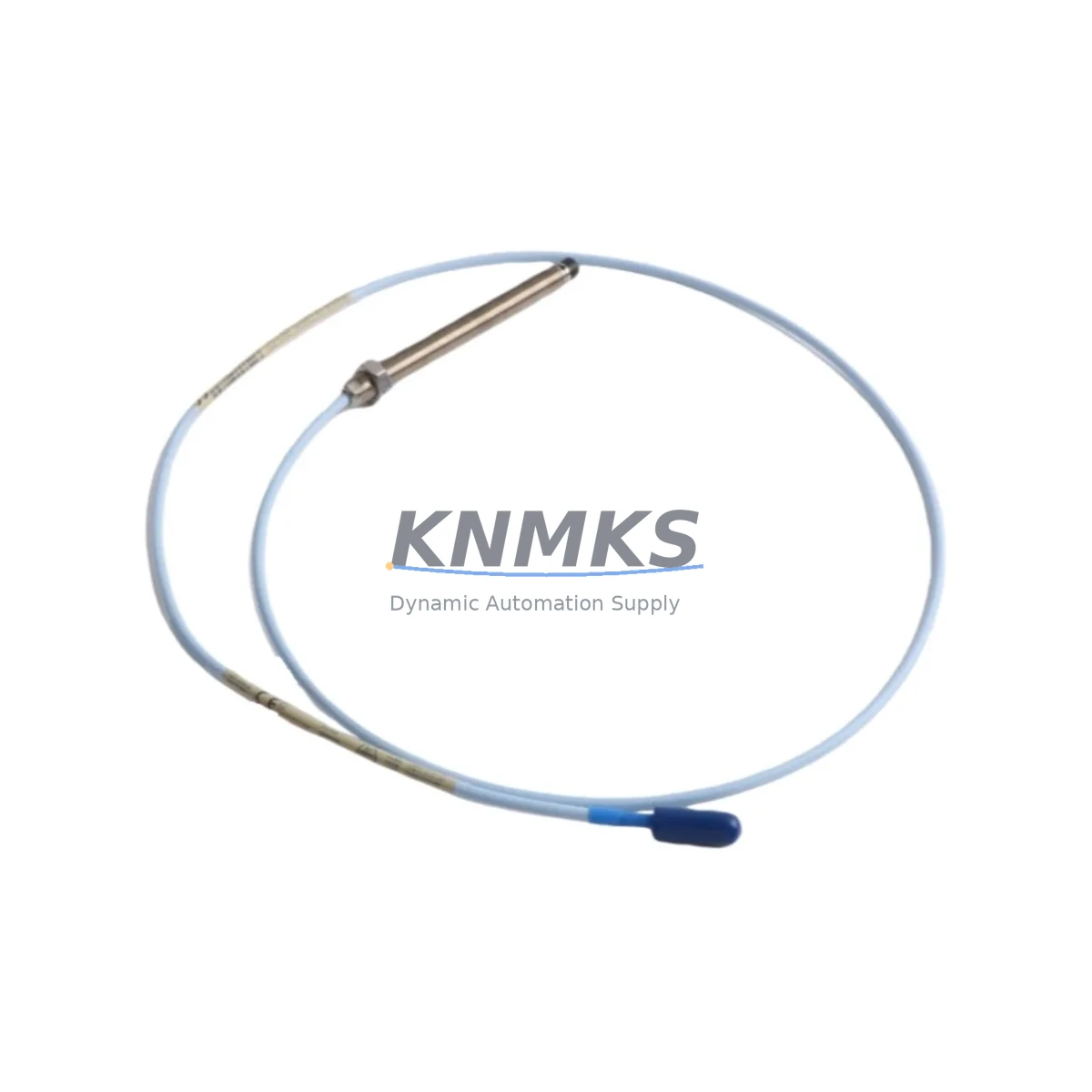

The Bently Nevada 330101-00-48-50-02-05 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, this probe serves as a validated drop-in replacement for discontinued 330100 and 330101 series variants, enabling maintenance teams to extend the operational life of existing monitor racks without requiring a full system overhaul. Whether you are managing a turbine protection panel, a compressor train monitoring cabinet, or a pump vibration loop, this probe delivers the signal integrity and dimensional compatibility required for seamless field substitution.

The 330101-00-48-50-02-05 is defined by its 48-inch (1219 mm) armored extension cable, 50-inch (1270 mm) total system length, and a 5-meter driver cable configuration. These dimensional parameters are critical during retrofit planning: before installation, engineers must confirm that the existing conduit routing, junction box entry points, and cable tray allocations can accommodate the probe’s cable geometry without introducing mechanical stress or signal interference. In many legacy installations, the original cable lengths were specified to match a particular rack-to-machine distance; any deviation requires careful re-routing or the use of a Bently Nevada 330130 extension cable to bridge the gap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-48-50-02-05 into an operating plant begins well before the maintenance window opens. The first step is a thorough audit of the existing 3300 XL monitor rack configuration. Technicians should document the channel assignments within each 3300 XL 01 or 3300 XL 02 dual-channel monitor module, noting which channels are mapped to radial vibration, axial position, or speed inputs. If the rack also houses a 3300 XL 05 temperature monitor or a 3300 XL 16 I/O module for relay output expansion, those modules must remain undisturbed during the probe swap to avoid triggering spurious alarms on the DCS or safety instrumented system.

Terminal wiring is the most common source of commissioning delays. The 330101-00-48-50-02-05 uses a standard Bently Nevada three-wire connection: shield, signal (–24 VDC), and common. Before disconnecting the old probe, photograph the existing terminal block layout and verify continuity against the as-built wiring diagram. In cabinets where a 3300 XL power supply module provides the –24 VDC bias, confirm that the power supply’s output capacity is sufficient to support all active probes on the rack simultaneously — a common oversight when adding channels during a capacity expansion.

For plants that have integrated the 3300 XL rack into a Modbus RTU or FOUNDATION Fieldbus data highway via a 3500/22M transient data interface or a third-party gateway, the communication link itself does not require reconfiguration after a like-for-like probe replacement. However, if the retrofit is part of a broader migration from a 3300 XL rack to a 3500 Series rack, engineers must account for the differences in backplane slot addressing, the new 3500/42M proximitor I/O module pinout, and any changes to the Bently Nevada System 1 software tag mapping. In such cases, a parallel run period — where both the old and new racks operate simultaneously — is strongly recommended to validate alarm setpoints before the legacy rack is decommissioned.

Where the retrofit involves replacing multiple probes across a machine train, consider sequencing the work by machine criticality. Start with non-critical auxiliary pumps to validate the installation procedure, then progress to main compressor or turbine shafts. Keep a Bently Nevada 330180 proximitor driver on the bench as a spare during commissioning; if gap voltage readings fall outside the –10 to –18 VDC acceptance window, a faulty driver rather than the probe is often the root cause.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear rollback procedure. Before the maintenance window, export the current 3300 XL monitor configuration using the Bently Nevada System 1 software and save a timestamped backup of all alarm setpoints, full-scale ranges, and OK limit thresholds. This backup ensures that if the new probe exhibits unexpected sensitivity differences, the original parameters can be restored within minutes rather than hours.

During the outage, isolate the affected monitor channel by placing it in bypass mode through the System 1 interface or via the front-panel bypass switch on the 3300 XL monitor module. This prevents a spurious trip signal from propagating to the emergency shutdown system while the probe is disconnected. Once the 330101-00-48-50-02-05 is installed and the gap voltage is confirmed within specification, release the bypass and observe the vibration trend for a minimum of 15 minutes at operating speed before returning the machine to full load.

If the plant operates a redundant monitoring architecture — for example, a dual-probe radial vibration measurement using two 330101 series probes at 90° orientation — replace one probe at a time and verify the channel agreement between the two readings before proceeding to the second probe. This approach preserves the protective function of the monitoring system throughout the maintenance activity and satisfies most functional safety management requirements for continuous protection during maintenance.

For sites where a cold standby spare strategy is in place, the 330101-00-48-50-02-05 is available from stock with typical lead times of 3–7 business days for standard orders. Pre-positioning a spare unit in the local instrument store eliminates the risk of extended downtime caused by supply chain delays, particularly for remote or offshore installations where logistics add significant time to the critical path.

Retrofit Support FAQ

Q1: Is the 330101-00-48-50-02-05 a direct replacement for the discontinued 330100-00-48-50-02-05?
Yes. The 330101 series supersedes the 330100 series with identical mechanical dimensions, the same M10 × 1.0 mounting thread, and the same eddy-current output characteristics. No bracket modification or wiring change is required for a like-for-like substitution. Confirm the cable length suffix matches your existing installation before ordering.

Q2: What gap voltage should I set after installing the new probe?
The standard gap voltage for an 8mm Bently Nevada proximity probe paired with a 3300 XL proximitor driver is –10 to –18 VDC, with –12 VDC being the typical target at the nominal air gap of 1.0 mm (40 mils). Use a calibrated digital multimeter at the driver output terminals and adjust the probe standoff distance until the reading falls within this range. Document the final gap voltage in the maintenance record.

Q3: Has this unit been tested before shipment?
Yes. Every 330101-00-48-50-02-05 unit supplied by KNMKS undergoes pre-shipment functional verification including output linearity check, cable continuity test, and connector integrity inspection. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment against manufacturing defects.

Q4: Can this probe be used with a 3500 Series rack instead of a 3300 XL rack?
The 330101-00-48-50-02-05 is designed and calibrated for use with the 3300 XL proximitor driver. While the eddy-current output is electrically compatible with 3500 Series I/O modules in some configurations, Bently Nevada specifies matched probe-driver-monitor sets for the 3500 platform. If you are migrating to a 3500/42M proximitor I/O module, consult the 3500 system compatibility matrix and consider ordering a 330730 or 330900 series probe set that is factory-matched to the 3500 driver to ensure full specification compliance.
