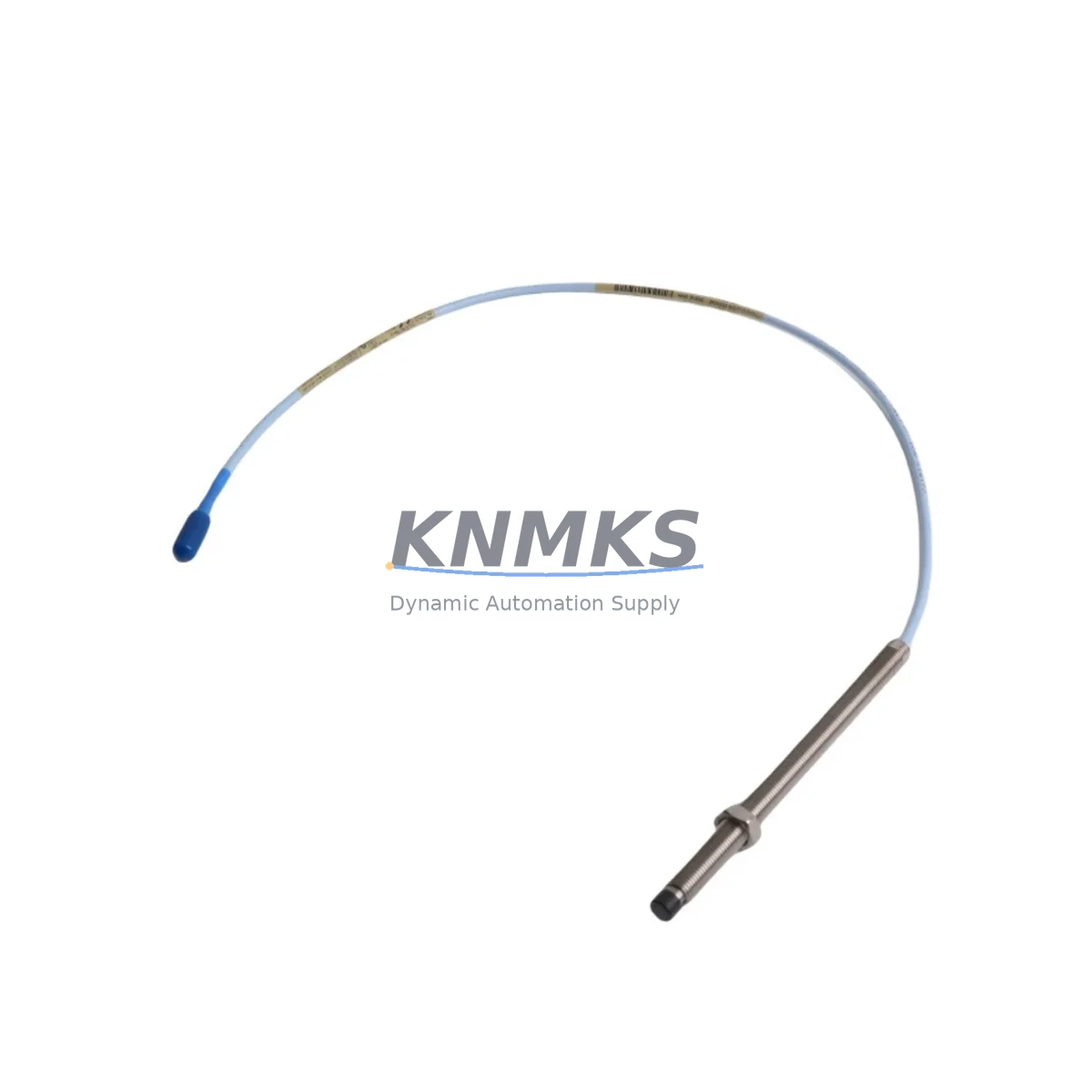

Bently Nevada 330101-00-48-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-48-10-02-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-48-10-02-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery, critical interlock loops, and high-EMI control cabinets, this probe is a cornerstone component for plants where unplanned downtime is not an option.

In continuous production facilities — petrochemical, power generation, mining, metallurgy, and water treatment — shaft displacement monitoring is a primary line of defense against catastrophic machinery failure. The 330101-00-48-10-02-05 provides stable, drift-free output even under severe electromagnetic interference, mechanical vibration, temperature cycling, and moisture ingress. Its eddy-current sensing principle is inherently non-contact, eliminating mechanical wear and ensuring long-term measurement accuracy without recalibration drift.

When integrated with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-91-00) and the 3500 Series Machinery Protection System, this probe forms a complete, SIL-capable vibration monitoring chain. Signal conditioning is handled upstream by the Proximitor, which converts the probe’s raw impedance change into a calibrated voltage output — typically –24 VDC at gap — compatible with 3500/40M and 3500/42M monitor modules. This architecture ensures that any probe cable fault, gap exceedance, or signal loss is immediately flagged as a system alert, preventing silent failures in safety-critical interlock circuits.

For control cabinet installations in high-dust, high-humidity, or high-vibration zones, the probe’s armored extension cable and robust connector system maintain signal continuity where lesser sensors fail. When paired with Bently Nevada 330130-045-00-00 extension cables and 330105-02-12-10-02-05 driver assemblies, the complete measurement chain achieves consistent performance across cable runs up to 9 meters, supporting flexible panel layouts in large rotating equipment skids.

In hazardous area applications — classified zones in refineries, offshore platforms, and chemical plants — the 330101-00-48-10-02-05 is compatible with Bently Nevada’s intrinsically safe barrier assemblies, ensuring the probe circuit remains within safe energy limits even under fault conditions. This makes it a preferred choice for safety instrumented system (SIS) architects who require IEC 61511-compliant vibration inputs without compromising measurement bandwidth or sensitivity.

Every unit dispatched by KNMKS undergoes pre-shipment functional verification: gap sensitivity check, cable continuity test, and connector integrity inspection. Stock is maintained in forward inventory for rapid global dispatch, supporting both planned maintenance windows and emergency replacement scenarios with minimal lead time.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330101-00-48-10-02-05 extends well beyond the probe itself. In a typical rotating equipment control cabinet, the probe signal is routed through a Bently Nevada 330130-045-00-00 armored extension cable to a 330180-91-00 Proximitor Sensor, which provides the conditioned –24 VDC output to the 3500/40M Proximitor I/O Module. The 3500 rack’s internal power supply — often a redundant 3500/15 Power Supply module — ensures that a single power rail fault does not interrupt the monitoring chain.

For cabinets operating in high-EMI environments near variable frequency drives (VFDs) or large motor starters, proper cable segregation and grounding of the probe shield at a single point (typically at the Proximitor) is essential to prevent ground loops that introduce noise into the vibration signal. Surge protection devices installed on the 24 VDC supply rail further protect the Proximitor and downstream monitor cards from transient overvoltage events common in industrial switchgear rooms.

In multi-machine monitoring panels, the 3500/42M Proximitor I/O module supports up to four probe channels per card, allowing compact integration of radial and axial probes from multiple bearing locations into a single rack. This consolidation reduces cabinet footprint while maintaining full per-channel alarm and danger setpoint independence — a critical requirement for API 670-compliant machinery protection systems.

Temperature management within the control cabinet is equally important. Excessive ambient temperature accelerates insulation degradation in probe cables and can shift the Proximitor’s internal reference, causing apparent gap drift. Specifying cabinet cooling units rated for the local ambient and ensuring adequate clearance around the Proximitor mounting rail are standard practices when deploying 3300 XL series components in tropical or desert field installations.

Critical Industrial Safety Applications

The 330101-00-48-10-02-05 is deployed across a wide spectrum of critical industrial applications where machinery protection directly underpins process safety and regulatory compliance.

In petrochemical and refinery environments, this probe monitors shaft radial vibration on centrifugal compressors, pumps, and turbines that operate continuously for 3–5 year run cycles. A vibration exceedance detected by the 3500 system triggers an automatic shutdown before bearing failure can escalate to a seal breach or fire event — making the probe a functional element of the safety instrumented system.

In power generation plants — gas turbines, steam turbines, and large hydro units — the probe provides the primary shaft position signal used by the turbine control system to enforce rotor runout limits during startup and coast-down. Accurate proximity measurement during these transient phases is essential to prevent rub events that can cause catastrophic blade or seal damage.

In mining and mineral processing, large SAG mills, ball mills, and crusher drives operate under extreme vibration and dust loading. The 330101-00-48-10-02-05’s IP67-rated assembly and high-frequency response make it suitable for monitoring slow-speed, high-load rotating elements where conventional accelerometers lose sensitivity.

In water and wastewater treatment facilities, the probe monitors vertical turbine pumps and blower shafts in high-humidity, chemically aggressive environments. Its non-contact sensing principle eliminates the risk of sensor contamination that affects contact-type displacement transducers.

In metallurgical and steel plant applications — rolling mills, continuous casters, and converter drives — the probe operates reliably in the presence of intense electromagnetic fields generated by large DC drives and induction furnaces, where signal integrity is maintained by the coaxial cable’s double-shielded construction.

Safety and Quality FAQ

Q1: What support terms coverage applies to the 330101-00-48-10-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch. Support terms coverage includes functional failure under normal operating conditions. Units are pre-tested prior to shipment to verify gap sensitivity, cable continuity, and connector integrity.

Q2: How is compatibility with existing 3500 Series racks confirmed before installation?
The 330101-00-48-10-02-05 is designed for use with the 3300 XL Proximitor Sensor family and is fully compatible with 3500/40M and 3500/42M I/O modules. For installations using earlier 3300 Series monitors, verify the Proximitor part number and gap voltage calibration range before substitution. KNMKS technical support can assist with compatibility confirmation prior to order.

Q3: What is the typical lead time and stock availability?
KNMKS maintains forward inventory of the 330101-00-48-10-02-05 to support both planned maintenance and emergency replacement requirements. Standard orders are dispatched within 1–3 business days. Expedited dispatch is available for critical shutdown situations. Contact [email protected] or +86 18359268345 for real-time stock confirmation.

Q4: Can this probe be used in SIL-rated safety instrumented functions?
The 330101-00-48-10-02-05, when integrated with a Bently Nevada 3500 Series system and appropriate IS barriers, can form part of a SIL-capable vibration monitoring loop. SIL suitability depends on the complete loop architecture, proof test interval, and demand rate. Consult the Bently Nevada 3500 Series Safety Manual and your SIS engineer for loop-level SIL verification.
