Bently Nevada 330101-00-48-05-02-00 Proximity Transducer

Overview

Bently Nevada 330101-00-48-05-02-00 Proximity Transducer: Migration-Ready Replacement for Legacy Vibration Monitoring Systems

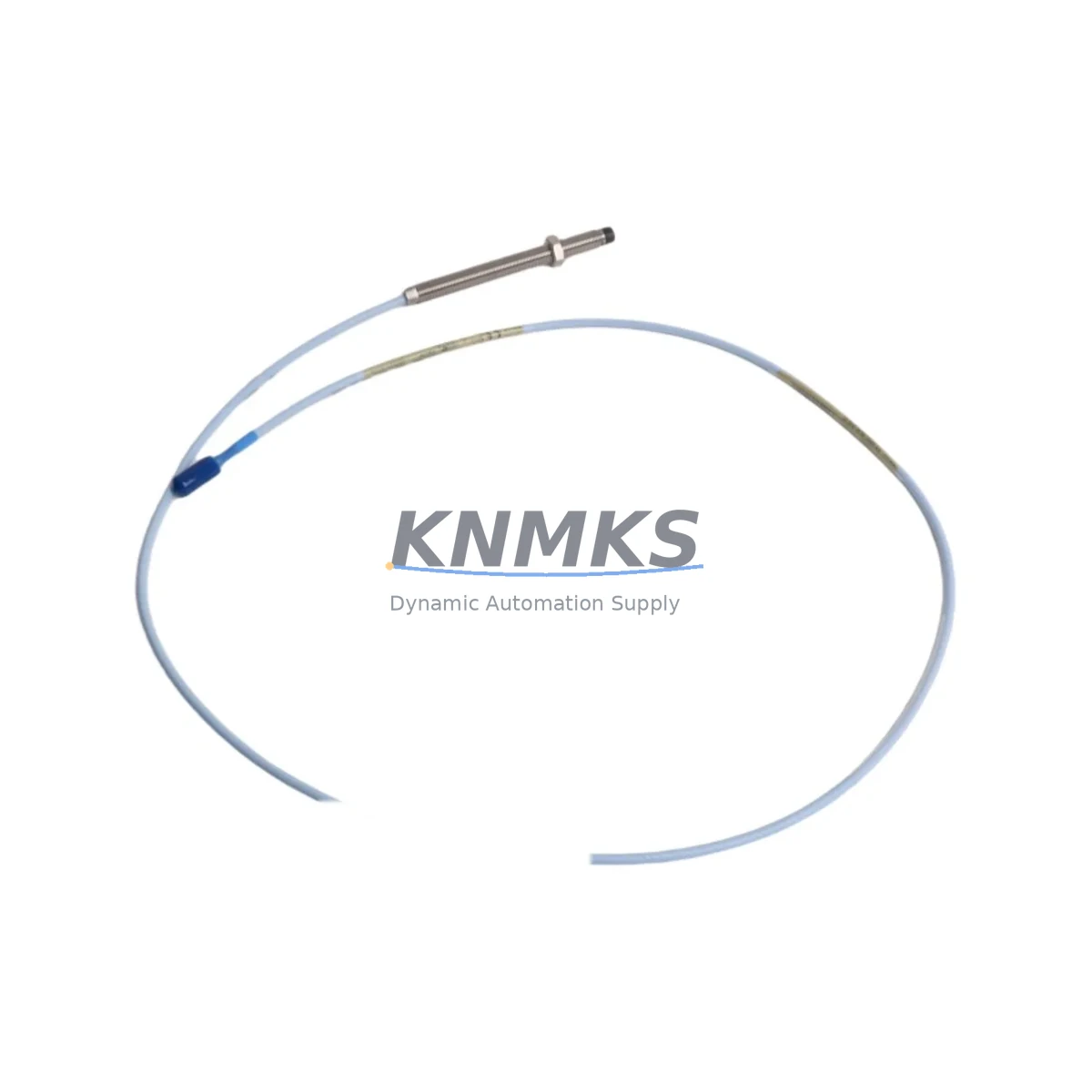

The Bently Nevada 330101-00-48-05-02-00 is a 3300 XL Series eddy-current proximity transducer engineered for continuous shaft vibration, position, and eccentricity measurement in rotating machinery. As legacy 3300 Series installations reach end-of-support milestones, this SKU has become a critical migration-ready spare for facilities managing turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy manufacturing environments. Whether you are executing a planned control system upgrade or responding to an unplanned failure, the 330101-00-48-05-02-00 provides a verified drop-in replacement path that preserves existing wiring infrastructure and minimizes engineering rework.

This transducer operates within the standard 3300 XL signal chain, interfacing directly with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to deliver a calibrated output signal to your monitoring rack. The 330101-00-48-05-02-00 is factory-calibrated for AISI 4140 steel targets and ships with full documentation to support loop verification during commissioning. For facilities running Bently Nevada System 1 or 3500 Series monitoring racks, this transducer integrates without firmware modification, provided the associated Proximitor and extension cable assembly remain within the qualified system configuration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-48-05-02-00 into a legacy monitoring architecture requires a structured pre-installation review. Begin by auditing the existing Proximitor Sensor model installed in the field — the 3300 XL Proximitor (typically mounted in a weatherproof enclosure near the machine) must be confirmed as compatible with the 8mm probe series. If the installed Proximitor is an older 3300 non-XL variant, a simultaneous Proximitor replacement should be planned to maintain system calibration integrity. The 3300 XL Proximitor Sensor is the recommended companion unit and can be installed in the same enclosure footprint in most configurations.

At the monitoring rack level, verify that the installed 3500/42M Vibration Monitor or 3500/40M Proximitor I/O Module is configured for the correct channel assignment corresponding to the probe location. Channel address mapping must be reviewed in the System 1 software configuration before the new transducer is energized. Incorrect channel mapping is a common source of false alarms during retrofit commissioning and can trigger unnecessary machinery trips if not resolved prior to loop energization.

For facilities where the control cabinet also houses a Bently Nevada 3500/20 Rack Interface Module or a 3500/22M Transient Data Interface, confirm that the rack backplane communication links remain intact after the probe swap. Backplane seating and module locking mechanisms should be inspected during the maintenance window, as vibration-induced connector wear is frequently discovered during planned probe replacements on high-cycle machinery.

Wiring adaptation is typically straightforward for like-for-like 330101 series replacements. The integral cable terminates at the junction box using the existing conduit entry, and the shield drain wire must be grounded at one end only — typically at the Proximitor enclosure — to prevent ground loop interference in the vibration signal. If the existing conduit run includes a 3300 XL Extension Cable, inspect the cable jacket and connector pins for corrosion or mechanical damage before reuse. A damaged extension cable is a frequent root cause of noisy vibration signals that are incorrectly attributed to the probe itself.

For plants executing a broader migration from legacy 3300 Series to the current 3500 Series platform, the 330101-00-48-05-02-00 is fully compatible with the upgraded rack architecture. This allows a phased migration strategy where probes and extension cables are replaced on a machine-by-machine basis while the monitoring rack upgrade is scheduled separately, reducing the scope of any single maintenance outage.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires preparation that begins well before the maintenance window opens. The 330101-00-48-05-02-00 should be bench-tested prior to installation using a calibration standard to confirm output linearity and gap voltage response. This pre-installation verification step eliminates the risk of installing a transit-damaged unit and discovering the fault only after the machine is returned to service.

During the replacement window, the original program logic in the 3500 Series rack does not require modification for a like-for-like probe swap. Alert and danger setpoints configured in the 3500/42M Vibration Monitor are stored in non-volatile memory and are preserved through a probe replacement without rack power cycling. This means the control system remains in its configured protection state throughout the physical swap, and the only required action before returning the machine to service is a gap voltage verification and a brief observation period to confirm signal stability.

For facilities where the HMI displays real-time vibration trends from System 1 software, the operator display will show a brief signal interruption during the probe disconnection and reconnection sequence. Operators should be briefed in advance to distinguish this expected transient from a genuine machinery alarm. If the plant uses a DCS integration layer — for example, a Modbus TCP link between the 3500 rack and a Honeywell Experion or ABB 800xA system — the integration link should be placed in maintenance mode during the swap to suppress nuisance alarms at the DCS level.

Post-installation, allow a minimum 30-minute observation period with the machine running at normal operating speed before returning the monitoring system to full automatic protection mode. During this period, trend the gap voltage, 1X amplitude, and overall vibration level against the pre-replacement baseline to confirm the new probe is performing within expected parameters. Document the as-found and as-left gap voltage readings in the plant maintenance management system to support future trending and support requests.

Retrofit Support FAQ

Q1: Is the 330101-00-48-05-02-00 a direct replacement for the older 330101-00-48-05-00-00?
A: The 330101-00-48-05-02-00 is the current production revision of the 330101 8mm proximity probe series and is designed as a functional replacement for earlier -00-00 and -01-00 suffix variants. The physical dimensions, connector type, and calibration range are identical. However, always verify the Proximitor model compatibility before installation, as some early-production Proximitor units may require a firmware update to recognize the revised probe identification signal.

Q2: What commissioning steps are required after installation?
A: The minimum commissioning sequence includes: (1) gap voltage measurement at the target operating clearance, (2) static output voltage verification across the full linear range, (3) confirmation of correct channel assignment in the 3500 rack configuration, and (4) a dynamic signal check with the machine running to confirm 1X and 2X vibration amplitudes are within expected baseline ranges. All readings should be documented and retained for support terms and maintenance records.

Q3: Can this transducer be used with non-Bently Nevada monitoring systems?
A: The 330101-00-48-05-02-00 produces a standard eddy-current output signal compatible with any monitoring system designed for 3300 XL series probes, including third-party vibration monitors that accept the standard -24 VDC supply and voltage output format. Calibration factors and scale factors must be entered manually in the third-party monitor configuration. KNMKS can provide the calibration data sheet upon request.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability managed?
A: The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, mechanical impact to the probe tip, or operation outside the specified environmental ratings. KNMKS maintains dedicated stock of the 330101-00-48-05-02-00 to support emergency replacement requirements, with same-day dispatch available for in-stock units. Each unit undergoes pre-shipment functional testing and is shipped with a test report. For volume requirements or blanket order arrangements, contact the KNMKS sales team directly.
