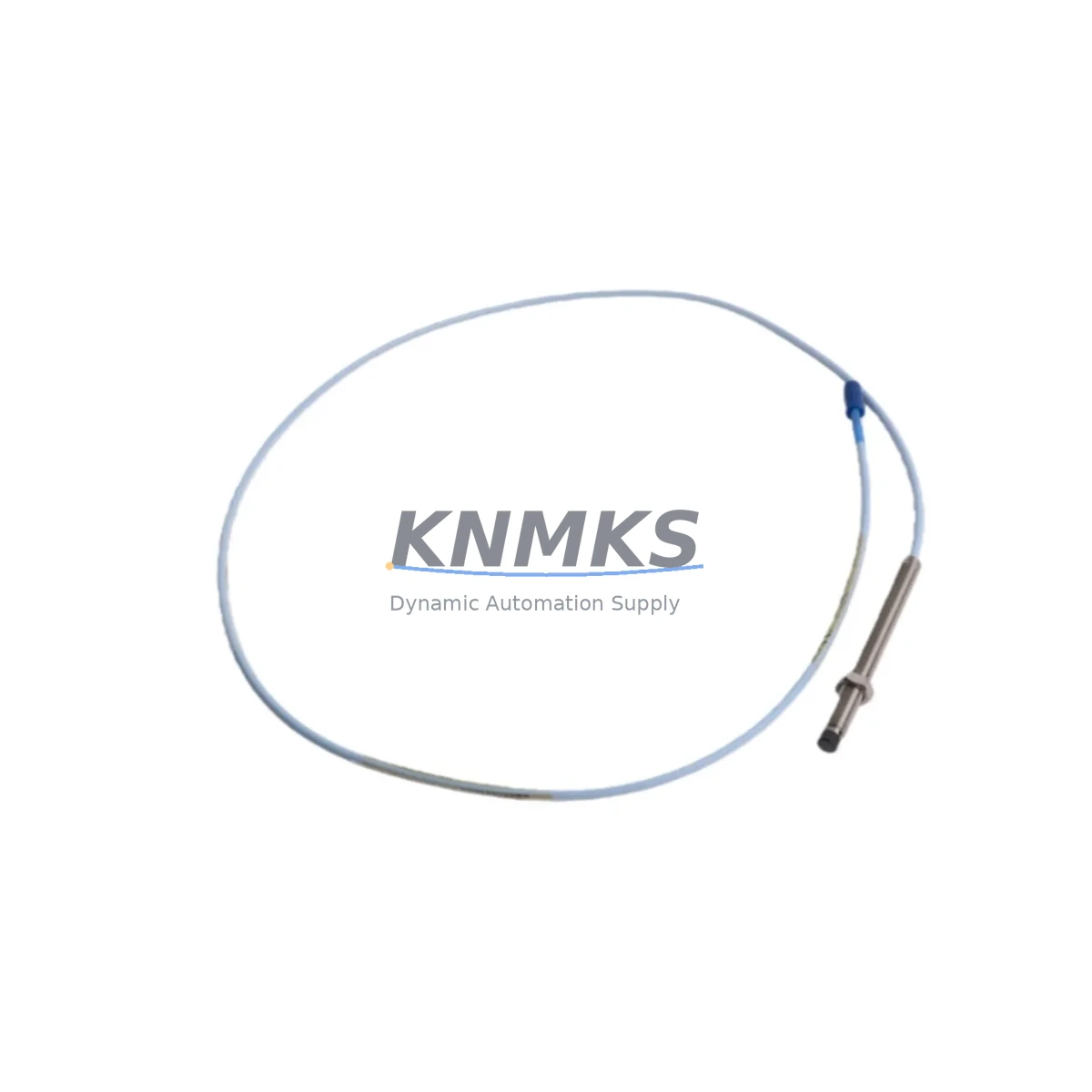

Bently Nevada 330101-00-47-10-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-47-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-47-10-02-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-life, this probe serves as a direct migration-ready replacement for discontinued 3300 Series probes, enabling engineers to restore full vibration monitoring capability without redesigning the measurement chain. Whether you are upgrading a turbine protection panel, retrofitting a compressor train, or restoring a legacy monitoring rack, the 330101-00-47-10-02-00 delivers the dimensional accuracy, signal integrity, and system compatibility required for critical machinery protection.

This probe is designed for use with the standard Bently Nevada 3300 XL extension cable and 3300 XL proximitor sensor, maintaining the 5-metre or 9-metre system configurations common in legacy installations. The 8mm tip diameter and -24 VDC supply voltage are consistent with the original 3300 Series specification, allowing direct substitution in existing conduit runs, probe holders, and terminal blocks without modification to the field wiring or junction boxes.

Before completing the replacement, engineers should verify the gap voltage at the proximitor output, confirm the probe tip-to-target gap is set within the linear range (typically 0.25 mm to 2.54 mm for 8mm probes), and validate the output signal against the original baseline trend data stored in the System 1 condition monitoring software. Where the existing proximitor is also being replaced, the 3300 XL Proximitor/Seismic Monitor module should be reconfigured to match the original channel assignment and alert/danger setpoints.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-47-10-02-00 into an existing machinery protection system requires a structured approach that accounts for the full measurement chain, not just the probe itself. In most legacy installations, the probe is paired with a 3300 XL Extension Cable (typically the 330130-080-00-00 for 8-metre runs) and a 3300 XL Proximitor Sensor. If either the extension cable or the proximitor is also at end-of-life, both should be replaced simultaneously to avoid introducing a mixed-age measurement chain that complicates future fault diagnosis.

At the rack level, the probe signal terminates at a 3500/40M Proximitor/Seismic Monitor module or the equivalent 3300 XL rack card. Engineers should confirm that the rack card’s channel configuration — including the probe type selection, gap voltage alarm limits, and transducer supply voltage — matches the replacement probe specification before energising the new assembly. Where the existing rack is a legacy 3300 Series (non-XL), a rack migration to the 3500 Series platform may be required to maintain manufacturer support and access to System 1 software diagnostics.

For installations where the control system communicates vibration data upstream via a 3500 Rack Interface Module to a DCS or SCADA platform using Modbus RTU or Ethernet/IP, the channel mapping and tag assignments in the historian or DCS I/O configuration must be verified after replacement to ensure no data gap occurs in the continuous monitoring record. In turbine and compressor applications, the vibration channel is often interlocked with the emergency shutdown system (ESD), so the replacement sequence should be coordinated with the safety instrumented system (SIS) engineer to maintain SIL integrity during the changeover window.

Where the installation includes a Keyphasor module (such as the 3500/25 Keyphasor Module), the phase reference signal should be re-validated after probe replacement to confirm that the once-per-revolution trigger is correctly detected and that vector measurements in the System 1 software remain accurate. Signal isolation between the Keyphasor channel and the radial vibration channels should also be confirmed to prevent ground loop interference in the new probe circuit.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement on a live rotating machine requires careful pre-outage preparation. Before the machine is taken offline, the existing gap voltage, DC output level, and vibration trend data should be recorded from the proximitor output and the System 1 historian. These baseline values serve as the acceptance criteria for the replacement probe during commissioning and allow the maintenance team to confirm that the new probe is performing within the expected linear range before the machine is returned to service.

The replacement sequence should follow a documented procedure that includes: isolating the transducer supply voltage at the rack card, disconnecting the extension cable at the junction box, removing the probe from the holder without disturbing the probe holder alignment, installing the 330101-00-47-10-02-00 and setting the gap to the nominal value using a feeler gauge or gap voltage meter, reconnecting the extension cable, restoring the transducer supply, and verifying the gap voltage at the proximitor output before re-enabling the vibration alarm and danger outputs.

Where the machine cannot be taken offline for an extended period, a hot-swap approach may be possible if the rack card supports channel bypass mode, allowing the vibration channel to be placed in bypass while the probe is replaced without triggering a spurious shutdown. This approach should only be used where the bypass mode is formally approved in the site’s management of change (MOC) procedure and where an alternative vibration monitoring method is in place during the bypass window.

All replacement probes supplied by KNMKS are pre-tested prior to shipment, with gap voltage and output linearity verified against the 3300 XL calibration standard. This pre-shipment testing reduces the risk of commissioning delays caused by out-of-specification components and supports the goal of completing the replacement within a single planned maintenance window.

Retrofit Support FAQ

Q1: Is the 330101-00-47-10-02-00 a direct replacement for the discontinued 330101-00-47-10-00-00?
Yes. The 330101-00-47-10-02-00 is the current production variant of the 330101 8mm probe family and is dimensionally and electrically compatible with earlier discontinued variants in the same series. The suffix change reflects a minor manufacturing revision that does not affect field interchangeability. Confirm the extension cable part number is unchanged before installation.

Q2: What commissioning checks are required after installation?
After installing the probe and setting the nominal gap, verify the DC gap voltage at the proximitor output (typically -10 VDC ± 1 VDC for a 1.0 mm gap on a steel target). Confirm the vibration output is within the expected noise floor for a stopped machine, re-enable the alarm and danger outputs, and validate the channel reading in the System 1 software or DCS historian before returning the machine to service.

Q3: Can this probe be used with a 3500 Series rack instead of the 3300 XL rack?
Yes, provided the 3500 rack card is configured for the 8mm probe type and the transducer supply voltage is set to -24 VDC. The 330101-00-47-10-02-00 is compatible with the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor when used with the appropriate 3300 XL extension cable and proximitor sensor.

Q4: What is the support terms coverage and what does KNMKS stock availability look like?
All 330101-00-47-10-02-00 units supplied by KNMKS carry a support terms confirmed by quotation against manufacturing defects from the date of shipment. Units are held availability confirmed by RFQ for immediate dispatch and are available for global shipping. Pre-shipment functional testing is performed on every unit. For urgent requirements or bulk orders, contact the KNMKS sales team directly to confirm lead time and reserve stock.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-47-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-47-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
