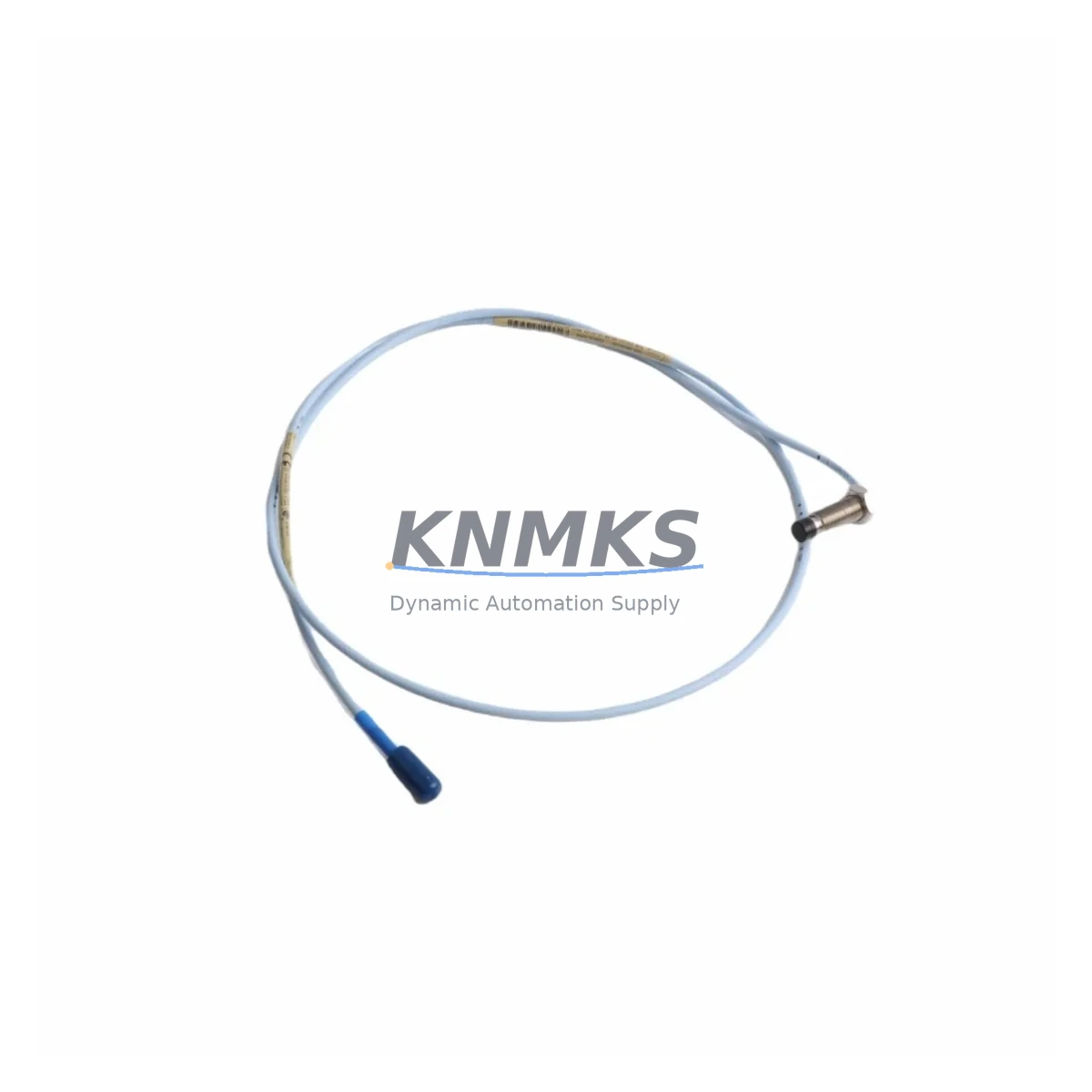

Bently Nevada 330101-00-46-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-46-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-46-10-02-05 is an 8mm proximity probe engineered for direct drop-in replacement within the 3300 XL Series machinery protection platform. As aging vibration monitoring infrastructure reaches end-of-life, this probe serves as the cornerstone component in planned and emergency retrofit programs across rotating machinery, turbine control, and compressor monitoring applications. Whether you are migrating from a discontinued 3300 Series installation or upgrading a legacy control cabinet to the 3500 Series architecture, the 330101-00-46-10-02-05 provides the dimensional compatibility, signal integrity, and field-proven reliability required to maintain continuous plant protection without interrupting production.

Before initiating any replacement, engineers must verify several critical parameters. Power supply capacity at the Proximitor input must be confirmed to support the probe’s operating range of -18 VDC to -24 VDC. Terminal wiring at the junction box should be inspected for correct polarity and shielding continuity, as reversed connections or damaged cable screens are a leading cause of elevated noise floors after retrofit. The existing conduit and cable tray routing must accommodate the probe’s 5-meter or 9-meter extension cable, and the Bently Nevada 3300 XL Extension Cable must be matched in length to maintain the calibrated gap voltage curve. Any mismatch between probe body, extension cable, and Proximitor model will shift the output sensitivity from the standard 7.87 V/mm and invalidate the existing vibration alarm setpoints.

Installation space confirmation is equally important. The 330101-00-46-10-02-05 uses an M10 x 1 thread form and requires a minimum of 65 mm of radial clearance from the shaft centerline to the probe tip mounting boss. If the existing bracket was machined for an earlier 3300 Series probe with a different thread pitch, a new stainless steel mounting bracket must be fabricated or sourced before the outage window begins. Firmware version compatibility on the 3500/40M Proximitor I/O Module should also be confirmed, as older firmware revisions may not correctly interpret the probe’s gap voltage at the target operating temperature range of -35°C to +121°C.

Program logic preservation is a primary concern during any vibration channel migration. The existing Bently Nevada System 1 configuration file should be exported and archived before any hardware is disturbed. Alarm setpoints, danger thresholds, and transient capture parameters stored in the 3500 Rack Configuration Software must be documented and re-entered after the new probe is commissioned. HMI screen tag assignments linked to the vibration channel should be verified against the new Proximitor output address to prevent false readings on the operator display. Communication link integrity between the 3500 rack and the plant DCS or historian via Modbus TCP or OPC-DA should be tested under live conditions before the outage window closes.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-46-10-02-05 into an existing machinery protection system requires a structured bill-of-materials review well before the planned outage. In most 3300 XL installations, the probe is paired with a Bently Nevada 3300 XL Extension Cable (typically 5 m or 9 m) and a 3300 XL Proximitor Sensor, which conditions the eddy-current signal into a DC voltage proportional to shaft gap. If the existing Proximitor is also at end-of-life, it is strongly recommended to replace both the probe and the Proximitor simultaneously to avoid a second outage within the same maintenance cycle.

For sites migrating to the 3500 Series platform, the 3500/40M Proximitor I/O Module accepts the 330101-00-46-10-02-05 directly, provided the rack’s 3500/15 Power Supply Module is confirmed to deliver adequate current capacity for the expanded channel count. Engineers should audit the 3500 rack’s backplane slot assignments and confirm that the new Proximitor module address does not conflict with existing I/O channel mappings in the rack configuration file. Where the control cabinet layout is constrained, the compact form factor of the 3500 Series rack compared to legacy 3300 enclosures may require a new DIN rail section or panel cutout to be prepared in advance.

In compressor and turbine applications where Keyphasor signals are used for phase reference, the Bently Nevada 3500/25 Keyphasor Module must be verified as present and correctly addressed in the rack before the new probe channel is commissioned. Signal isolators may be required at the terminal block if the probe cable runs through electrically noisy environments shared with variable frequency drives or high-voltage switchgear. A Bently Nevada 3500 Series Programming Cable and a laptop running the 3500 Rack Configuration Software are essential tools for the commissioning engineer to complete gap voltage verification, sensitivity confirmation, and alarm setpoint entry during the outage window.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components, tools, and documentation before the maintenance window begins. The 330101-00-46-10-02-05 should be bench-tested against a known-good Proximitor prior to installation to confirm output sensitivity and eliminate the risk of receiving a defective unit during a live outage. A pre-written commissioning checklist covering gap voltage measurement, alarm bypass activation, setpoint re-entry, HMI screen verification, and communication link confirmation will reduce the time the vibration channel spends in bypass mode and limit exposure to unprotected operation.

Where the plant control philosophy permits, a temporary portable vibration monitor can be connected to the shaft proximity target during the probe swap to maintain continuous vibration surveillance without relying on the permanent rack. Original program logic exported from the 3500 Rack Configuration Software should be stored on a local engineering workstation and on a removable drive to allow rapid restoration if a configuration error is introduced during commissioning. After the new probe is installed and the gap voltage is confirmed within the ±0.5 V tolerance of the calibration curve, the alarm bypass should be lifted in a controlled sequence — first restoring the alert setpoint, then the danger setpoint — to prevent nuisance trips during the warm-up period. Communication link integrity to the DCS historian should be confirmed by observing live tag updates on the operator HMI before the maintenance crew is released from standby.

Retrofit Support FAQ

Q1: Is the 330101-00-46-10-02-05 a direct replacement for discontinued 3300 Series 8mm probes?
Yes. The 330101-00-46-10-02-05 is dimensionally and electrically compatible with the 3300 XL Series and serves as the current production replacement for earlier 3300 Series 8mm proximity probes that have been discontinued. The M10 x 1 thread form, 7.87 V/mm sensitivity, and -18 VDC to -24 VDC supply voltage are consistent across the replacement path, though gap voltage recalibration is always recommended after any probe change.

Q2: What wiring checks are required before installation?
Verify cable shield continuity from the probe tip to the Proximitor input terminal, confirm correct polarity at the junction box, and inspect the extension cable connector for corrosion or mechanical damage. If the existing cable tray run exceeds the rated extension cable length, signal attenuation may affect the output voltage and require a cable replacement as part of the retrofit scope.

Q3: How is compatibility with the 3500 Series rack confirmed before ordering?
Confirm the 3500/40M or 3500/42M Proximitor I/O Module firmware version supports the 8mm probe sensitivity range, verify the rack’s power supply module current budget, and check that the backplane slot address is available. Our technical team can assist with compatibility verification based on your existing rack configuration file prior to shipment.

Q4: What does the support terms confirmed by quotation cover, and what is your stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Units are pre-tested prior to shipment to confirm output sensitivity and mechanical integrity. We maintain in-stock inventory of the 330101-00-46-10-02-05 to support both planned maintenance schedules and emergency replacement requirements. Contact our team for lead time confirmation and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-46-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-46-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
