Bently Nevada 330101-00-45-15-02-00 3300 XL Spare Part: Maintenance-Proven Proximity Probe for Factory Uptime

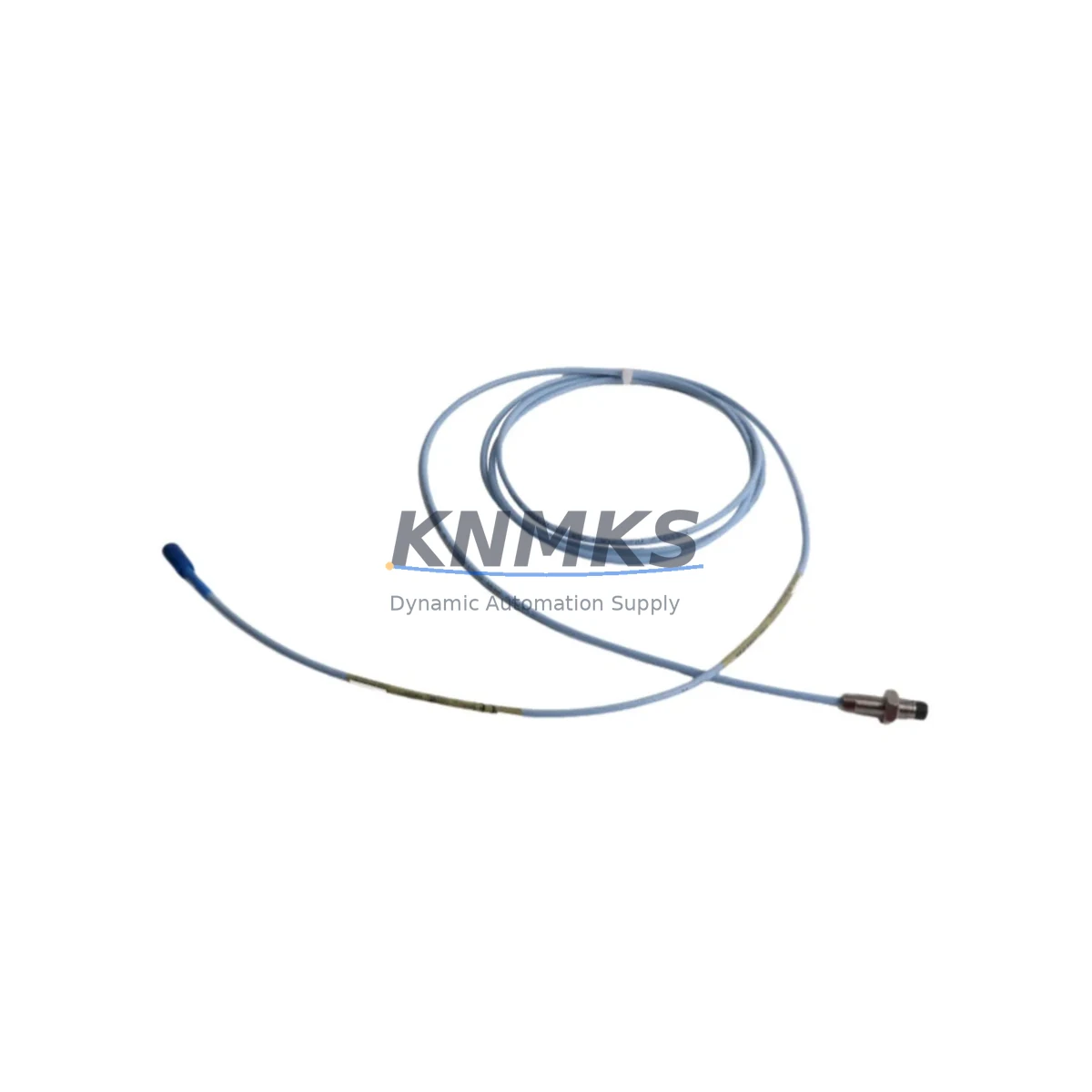

The Bently Nevada 330101-00-45-15-02-00 is a factory-original eddy current proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. This spare part is a critical component in turbine protection systems, compressor trains, pump sets, and motor-driven equipment where shaft displacement, radial vibration, and axial position must be measured with sub-micron accuracy. Maintenance engineers and reliability teams operating GE Bently Nevada machinery protection systems rely on this probe to sustain API 670-compliant monitoring loops without interruption.

Each unit supplied by KNMKS is sourced from verified channels, functionally tested prior to shipment, and backed by a support terms confirmed by quotation. Whether you are executing a planned annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a critical asset, the 330101-00-45-15-02-00 is available for immediate dispatch from regional stock.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-45-15-02-00 proximity probe is flagged for replacement — whether due to gap voltage out of specification, physical cable damage, or a vibration channel alarm — the replacement event is an opportunity to audit the entire measurement loop and adjacent protection circuits. Experienced maintenance engineers know that a probe failure rarely occurs in isolation; the surrounding components deserve equal scrutiny.

Begin with the 3300 XL Proximitor / Seismic Monitor (e.g., 330180-X1-05 or equivalent driver module). Verify the output voltage at the proximitor terminal is within the –10 VDC to –18 VDC gap voltage window for the new probe. A proximitor that has drifted in sensitivity or shows intermittent output should be replaced concurrently to avoid a repeat outage within the same maintenance window.

Inspect the extension cable assembly (typically a 330130-series or 330030-series matched cable) that connects the probe to the proximitor. Extension cables are often overlooked during probe swaps, yet connector corrosion, jacket abrasion from vibrating structures, and impedance mismatch are common root causes of recurring channel faults. Replace the cable if continuity or impedance checks fall outside the matched-system specification.

At the 3500 Series rack or 3300 XL monitor chassis, inspect the I/O terminal blocks and signal input cards. Loose terminations on the monitor input card can introduce noise that mimics a probe fault. Confirm that the 3500/42M Proximitor / Seismic Monitor module (if the system has been partially upgraded) is correctly configured for the probe sensitivity and gap range of the 330101-00-45-15-02-00.

Check the power supply module feeding the monitor rack — typically a 3500/15 Power Supply or equivalent 24 VDC regulated source. Voltage ripple or a sagging rail under load will corrupt gap voltage readings and trigger false alarms. A spare power supply module should be part of any critical asset’s on-site inventory.

For systems with Keyphasor probes (e.g., 330980-series or 330105-series), verify the Keyphasor gap voltage and signal amplitude simultaneously. The Keyphasor channel is essential for phase-referenced vibration analysis; a degraded Keyphasor probe will compromise the diagnostic value of all other vibration channels on the same machine train.

Finally, review the barrier / Zener barrier or galvanic isolator in the signal circuit if the probe is installed in a hazardous area (Zone 1 or Zone 2). Barriers degrade over time and can introduce loop resistance that shifts the apparent gap voltage. Replacing the probe without verifying barrier integrity may result in the same alarm condition recurring within weeks.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Record the existing gap voltage (target: –10 to –18 VDC for standard 8 mm probe on steel shaft). Document the current vibration baseline and any active alarms. Confirm the replacement probe part number matches the installed system’s proximitor model and cable length configuration.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Isolate the monitor channel at the rack before disconnecting the probe. Do not disconnect the probe under live –24 VDC supply without confirming the channel is in bypass or maintenance mode to avoid spurious trips.

Step 3 — Physical replacement: Remove the old probe from the bracket. Clean the probe tip and target area. Install the 330101-00-45-15-02-00 at the correct gap distance (typically 50 mil / 1.27 mm for standard steel targets — verify against the system calibration sheet). Torque the locknut to specification.

Step 4 — Gap voltage confirmation: Reconnect the extension cable and proximitor. Measure gap voltage at the proximitor output. Adjust probe gap until the reading falls within the linear range center (approximately –12 to –14 VDC). Record the final gap voltage in the maintenance log.

Step 5 — Channel reinstatement: Remove the bypass, restore the monitor channel, and confirm the vibration reading is stable and within normal operating range. Verify no alarms are active. Update the CMMS (Computerized Maintenance Management System) with the replacement date, new probe serial number, and gap voltage reading.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for regulatory and insurance compliance. KNMKS ships the 330101-00-45-15-02-00 with a functional test report, supporting fast reinstatement and reducing the risk of a second outage caused by a defective spare.

Spare Parts Support FAQ

Q1: Is the 330101-00-45-15-02-00 compatible with both the 3300 XL and 3500 Series monitor racks?
The 330101-00-45-15-02-00 is natively designed for the 3300 XL Proximitor system. It can be used with 3500 Series racks when paired with the correct 3500/42M or 3500/40M monitor module configured for 3300 XL probe sensitivity (200 mV/mil). Always verify the monitor module configuration file before installation. KNMKS technical support can assist with compatibility confirmation prior to order.

Q2: What is the recommended spare parts inventory strategy for critical rotating machinery?
For API 670-protected machinery (turbines, compressors, critical pumps), industry best practice recommends holding a minimum of one probe per monitored channel as an on-site cold spare, plus one matched extension cable per probe. For facilities with multiple identical machine trains, a pooled inventory of 3–5 probes per probe model reduces per-unit holding cost while maintaining coverage. KNMKS supports blanket stock programs with scheduled quarterly releases to align with your maintenance calendar.

Q3: How does KNMKS verify the 330101-00-45-15-02-00 before shipment?
Every unit undergoes functional testing including gap voltage output verification, cable continuity and impedance check, and tip condition inspection before dispatch. A test report is included with each shipment. Units that do not meet Bently Nevada specification are quarantined and not shipped. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of receipt.

Q4: What is the lead time, and can KNMKS support emergency orders?
Standard orders ship within 3–5 business days from regional stock. Emergency orders with same-day or next-day dispatch are supported for in-stock units — contact [email protected] or call +86 18359268345 to confirm availability and arrange expedited freight. For long-term supply continuity on discontinued or allocation-constrained Bently Nevada parts, KNMKS offers forward-purchase agreements to lock in pricing and guaranteed stock for 12–24 month horizons.
