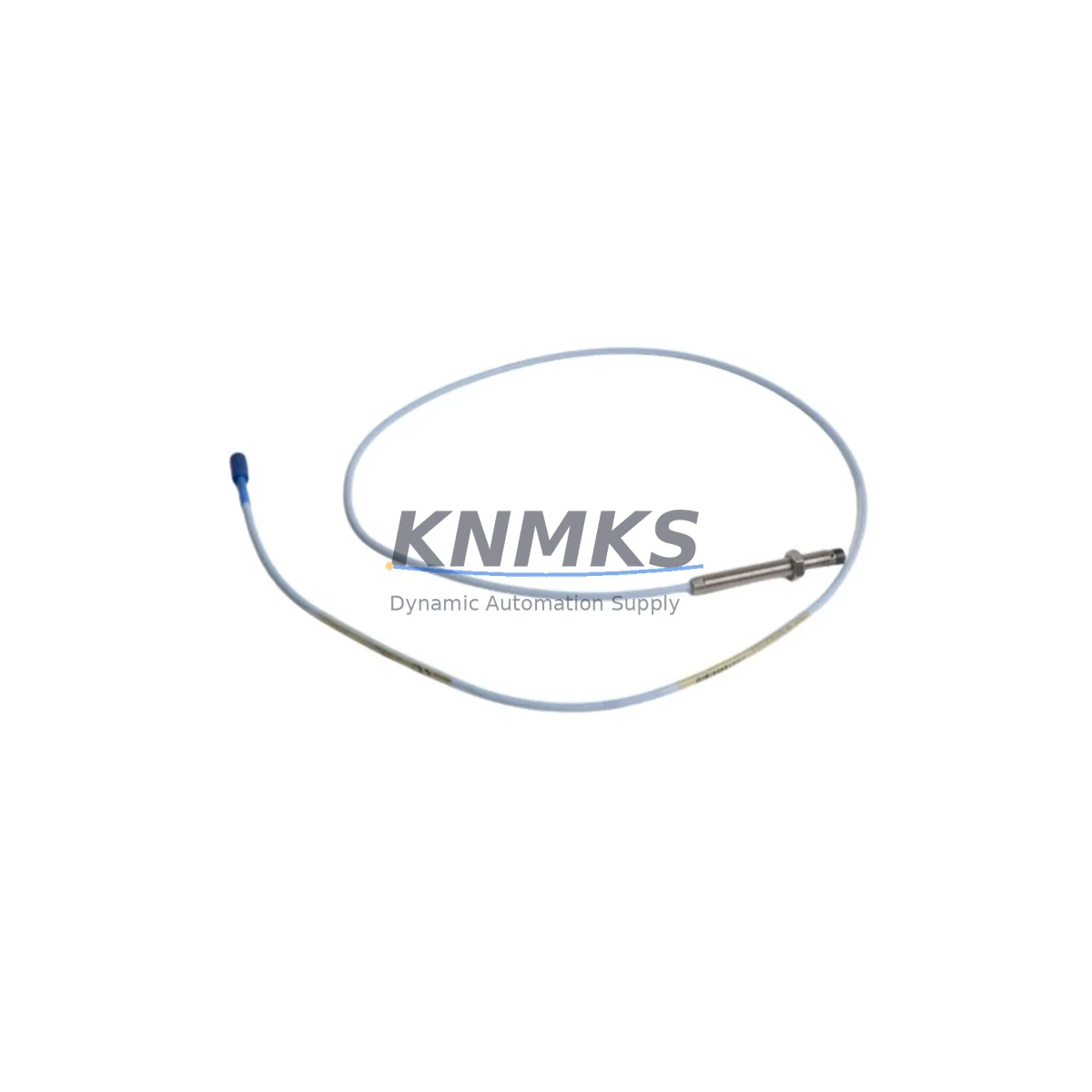

Bently Nevada 330101-00-45-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-45-05-02-00 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-45-05-02-00 is an 8mm eddy current proximity probe from the industry-trusted 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery protection systems, this probe is a cornerstone component in critical interlock loops, heavy-duty control cabinets, and high-reliability machinery protection architectures worldwide.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical complexes, port machinery, and marine propulsion systems — unplanned downtime caused by vibration monitoring failure can result in catastrophic equipment damage, safety incidents, and significant financial loss. The 330101-00-45-05-02-00 is purpose-built to eliminate these risks by providing stable, drift-free proximity sensing even under conditions of high electromagnetic interference, dust ingress, moisture exposure, elevated temperatures, and mechanical vibration.

Unlike generic sensing components, this probe is factory-calibrated and fully compatible with the Bently Nevada 3300 XL proximitor/seismic transducer system, ensuring seamless integration into existing machinery protection architectures without signal conditioning compromise. Its eddy current operating principle guarantees non-contact, wear-free measurement — a critical advantage in high-cycle, high-load rotating equipment applications where contact-based sensors would degrade rapidly.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-45-05-02-00 proximity probe operates as the primary sensing element within a tightly integrated signal chain. It pairs directly with the Bently Nevada 3300 XL Proximitor (e.g., 330180-X1-05), which conditions the raw eddy current signal into a calibrated voltage output for the monitoring rack. This signal is then processed by a Bently Nevada 3500/42M Proximitor I/O Module within the 3500 Series rack — a combination that forms the backbone of API 670-compliant vibration monitoring for critical rotating equipment.

To ensure power supply stability and protect against voltage transients and surge events that could corrupt proximity signals or damage sensitive monitoring electronics, the control cabinet should incorporate a Phoenix Contact QUINT-PS or equivalent 24VDC industrial power supply with active buffer capability. Surge protection devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST are recommended at the cabinet entry point to clamp transient overvoltages before they reach the Proximitor input circuitry.

For facilities operating in high-EMI environments — such as those adjacent to large variable frequency drives, arc furnaces, or high-voltage switchgear — proper cable routing discipline and the use of Bently Nevada armored extension cables (e.g., 330130-045-00-00) are essential to maintain signal integrity between the probe and Proximitor. Grounding the cable shield at a single point, per Bently Nevada installation guidelines, prevents ground loop interference that can manifest as false vibration readings or nuisance trips in the machinery protection system.

Where the 3500 rack communicates vibration data upstream to a DCS or safety PLC — such as a Rockwell Automation ControlLogix L7x or Siemens S7-400H redundant controller — ensuring clean, isolated 4–20mA or Modbus RTU signal paths is critical to prevent communication anomalies from triggering spurious shutdowns. The complete signal chain, from the 330101-00-45-05-02-00 probe tip to the control room historian, must be validated during commissioning and re-verified during planned maintenance windows.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units, compressor trains, and reactor feed pumps, the 330101-00-45-05-02-00 provides continuous shaft orbit monitoring to detect early-stage bearing degradation, rotor imbalance, and oil whirl instability — conditions that, if undetected, can escalate to catastrophic seal failure or fire risk. Its fail-safe signal output ensures that the machinery protection system receives a valid trip signal even under probe cable fault conditions.

Power Generation: Steam turbine and gas turbine generator sets operating at 3000 or 3600 RPM demand sub-micron vibration measurement accuracy. This probe, integrated into a 3500 Series rack, supports both radial vibration and axial thrust position monitoring — two of the most critical parameters for turbine rotor integrity and API 670 compliance.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, moisture, and structural vibration. The 330101-00-45-05-02-00’s robust construction and non-contact sensing principle make it the preferred choice for continuous monitoring of these assets, where sensor replacement under live conditions is hazardous and costly.

Water & Wastewater Treatment: High-speed centrifugal pumps and blower units in water treatment plants require reliable vibration monitoring to prevent unplanned outages that could compromise public health infrastructure. The 3300 XL probe system provides the measurement stability needed for 24/7 unattended operation in these critical utility environments.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch rolls, and converter vessel tilt drives operate under extreme thermal and mechanical stress. Proximity probes in these applications must withstand radiated heat, scale dust, and high-frequency vibration — conditions the 330101-00-45-05-02-00 is rated to handle within its specified environmental envelope.

Port & Marine: Ship propulsion shaft monitoring and port crane slew ring bearing surveillance demand sensors that can operate reliably in salt-laden, high-humidity atmospheres. The eddy current principle of the 330101-00-45-05-02-00 is inherently immune to surface contamination effects that would degrade optical or capacitive sensing alternatives.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-45-05-02-00?
All units are covered by a support terms confirmed by quotation from the date of shipment. Coverage includes full replacement or repair for any manufacturing defect or functional failure under normal operating conditions. Support requests are processed promptly to minimize your site downtime exposure.

Q2: How is each unit tested before shipment?
Every 330101-00-45-05-02-00 proximity probe undergoes pre-shipment functional verification, including output sensitivity check and cable continuity test, to confirm it meets Bently Nevada 3300 XL system specifications before leaving our facility. This ensures you receive a field-ready component, not a shelf-stored unknown.

Q3: Is this probe compatible with both 3300 XL Proximitors and 3500 Series monitoring racks?
Yes. The 330101-00-45-05-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor/Seismic Transducer system and integrates directly into 3500 Series I/O modules configured for proximity inputs. Always verify the extension cable length and Proximitor gap voltage range match your specific installation requirements before commissioning.

Q4: Can long-term supply and emergency replacement stock be arranged?
Yes. We maintain standing inventory of the 330101-00-45-05-02-00 and related 3300 XL Series components to support both planned maintenance schedules and emergency breakdown replacement scenarios. Blanket order arrangements and priority dispatch agreements are available for facilities with critical uptime requirements. Contact our team to discuss supply continuity planning for your site.
