Bently Nevada 330101-00-45-05-01-00: Migration-Ready Proximity Probe for Legacy 3300 XL Control Systems

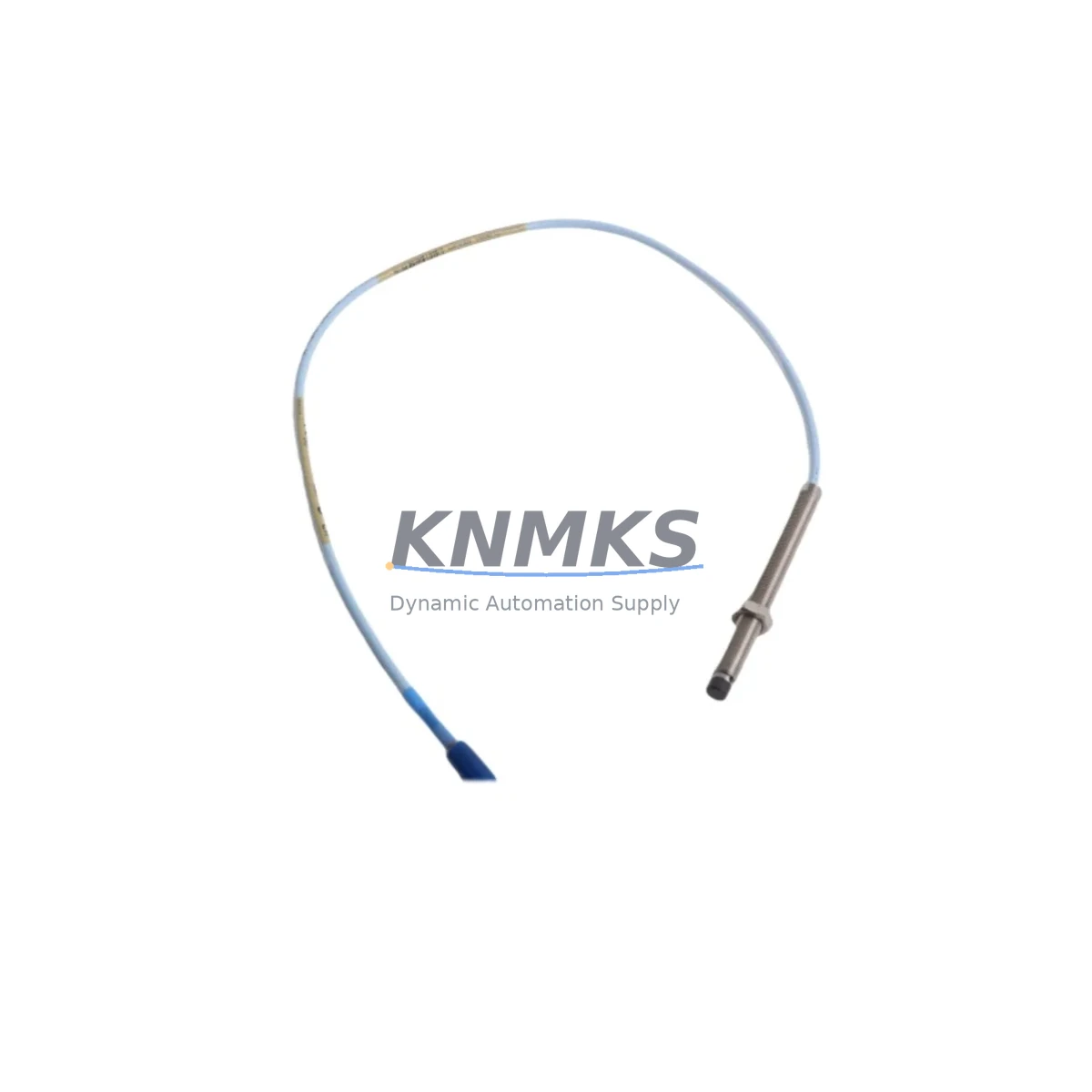

The Bently Nevada 330101-00-45-05-01-00 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-support milestones, this probe remains one of the most critical field-replaceable components for engineers managing turbine, compressor, and pump train retrofits. With verified compatibility across the full 3300 XL series architecture, the 330101-00-45-05-01-00 supports drop-in replacement without requiring changes to existing Proximitor® sensor wiring, extension cable routing, or monitor rack configuration.

For facilities operating aging 3300 XL racks, the 330101-00-45-05-01-00 is a direct mechanical and electrical substitute for earlier 7200 series probes in many shaft-rider and non-contact displacement applications. Engineers transitioning from discontinued 3300/16 or 3300/55 monitor cards to current 3500/42M or 3500/45 modules will find that this probe’s 5-metre armored cable assembly, standard TNC connector, and –24 VDC bias voltage output remain fully compatible with both legacy and current Proximitor® signal conditioning electronics. No re-ranging or sensitivity recalibration is required when the replacement probe is installed at the same radial or axial measurement position.

Retrofit planning for 3300 XL systems typically involves coordinating the probe replacement with adjacent components. The 330101-00-45-05-01-00 is commonly paired with the Bently Nevada 330130-045-00-00 extension cable (5-metre), the 330180-X1-05 Proximitor® sensor, and the 3300/16 or 3500/42M monitor card depending on the rack generation in service. When upgrading from a 3300 series rack to a 3500 series rack, engineers should also verify the 3500/20 rack power supply capacity, as the additional I/O modules and communication gateway cards (such as the 3500/92 Ethernet transient data interface) increase total current draw. Confirm that the existing 24 VDC bus can support the expanded module count before energizing the upgraded rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL retrofit begins well before the maintenance window opens. The first step is a full channel audit: document every probe position (radial X, radial Y, axial thrust, and keyphasor), record the existing gap voltage at each channel, and photograph the terminal block wiring in the monitor rack. This baseline data becomes the reference for post-installation verification and is essential if the System 1 condition monitoring database needs to be re-imported after the rack upgrade.

When the 330101-00-45-05-01-00 is installed as a direct replacement, the probe tip gap should be set to the manufacturer-specified linear range midpoint—typically 1.0 mm to 1.5 mm from the shaft surface—and the DC gap voltage confirmed at the Proximitor® output terminal before the monitor card is re-enabled. If the retrofit also involves replacing the 330180-X1-05 Proximitor® sensor, both the probe and sensor must be calibrated as a matched pair; mixing unmatched probe-sensor combinations introduces sensitivity error that will not be caught by the monitor’s self-test routine.

For facilities upgrading from a 3300 series rack to a 3500 series rack, the migration scope typically expands to include the 3500/20 rack power supply, one or more 3500/42M or 3500/45 monitor modules, a 3500/22M transient data interface, and potentially a 3500/92 Ethernet communication gateway. Each additional module increases the rack’s power budget, so the 24 VDC supply capacity must be recalculated before the new rack is commissioned. The 3500 rack’s I/O module addressing is configured in the Rack Configuration Utility (RCU) software, and all channel addresses must be re-mapped if the physical slot positions differ from the legacy 3300 rack layout. HMI screens in the DCS or SCADA system that display vibration trends will need tag re-mapping to reflect the new Modbus register addresses or OPC-UA node paths exported by the 3500/92 gateway.

Signal isolation is another consideration when the probe cable runs through a control cabinet that also houses variable-frequency drives or high-current motor starters. In these environments, a signal isolator or shielded conduit run is recommended to prevent common-mode noise from corrupting the –24 VDC proximity signal. The 330101-00-45-05-01-00’s armored cable provides a degree of mechanical protection, but electrical shielding must be maintained continuously from the probe junction box to the Proximitor® sensor enclosure.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or rack migration requires a structured pre-outage checklist. Before the maintenance window begins, verify that the replacement 330101-00-45-05-01-00 probe has been bench-tested against a calibrated Proximitor® sensor and that the gap voltage curve matches the factory specification sheet. Pre-stage all tools, torque wrenches, and gap-setting fixtures at the work site to eliminate delays during the outage window.

To protect the existing program logic and alarm setpoints, export the full rack configuration from the System 1 database or the Rack Configuration Utility before any hardware is removed. Store this configuration file in a version-controlled location so it can be restored immediately if the new hardware does not initialize correctly. If the migration involves a rack-level upgrade from 3300 to 3500 series, the configuration export must include all channel alarm levels, danger setpoints, time-delay settings, and relay output assignments.

During the physical swap, work one channel at a time: disconnect the probe cable at the Proximitor® sensor, remove the probe from the holder, install the 330101-00-45-05-01-00, set the gap, reconnect the extension cable, and verify the DC gap voltage before moving to the next channel. This sequential approach ensures that at least one measurement plane remains active on each bearing at all times, preserving partial vibration monitoring coverage throughout the maintenance window. Once all channels are replaced and verified, re-enable the monitor card, confirm that all OK relay outputs are energized, and check the System 1 trend display for clean, noise-free signals before returning the machine to service.

Retrofit Support FAQ

Q1: Is the 330101-00-45-05-01-00 a direct replacement for the 330101-00-45-05-00-00?
Yes. The -01-00 suffix designates the current production revision with an updated armored cable jacket compound for improved chemical resistance. The electrical specifications, connector type, sensitivity, and mechanical dimensions are identical to the earlier -00-00 revision. No wiring changes or recalibration are required when substituting the current revision for the legacy part number.

Q2: Can this probe be used with a 3500/42M monitor without replacing the Proximitor® sensor?
Yes, provided the existing 330180-series Proximitor® sensor is in serviceable condition and its output voltage curve has not drifted beyond the ±10% tolerance band. The 3500/42M monitor accepts the standard –24 VDC proximity signal from any 330180 or 330100 series Proximitor® sensor. If the sensor is more than five years old or has been exposed to high-temperature or high-vibration environments, replacement as a matched probe-sensor pair is recommended to ensure calibration integrity.

Q3: What pre-shipment testing is performed on each unit?
Each 330101-00-45-05-01-00 unit is functionally tested against a calibrated Proximitor® sensor prior to shipment. The gap voltage curve is verified across the full linear range, the TNC connector is inspected for pin integrity, and the armored cable is checked for continuity and insulation resistance. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and calibration conformance.

Q4: What is the typical lead time and do you maintain stock?
We maintain in-stock inventory of the 330101-00-45-05-01-00 to support emergency replacement and planned maintenance schedules. Standard orders ship within 1–3 business days. For blanket orders or multi-unit retrofit projects requiring 10 or more probes, contact our sales team to confirm allocation and arrange priority fulfillment. Global shipping is available with export documentation provided for international customers.
