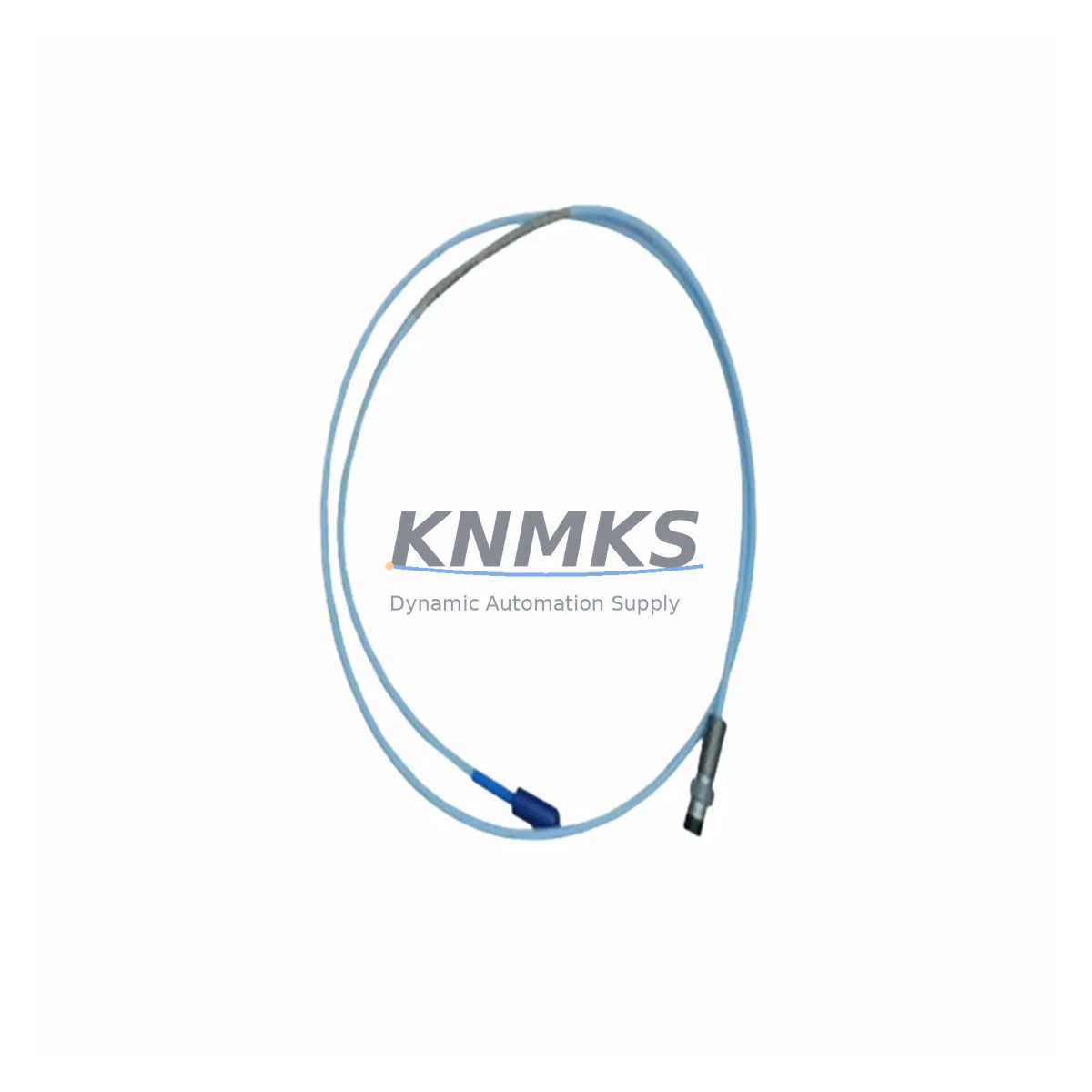

Bently Nevada 330101-00-44-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-44-10-02-05 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330101-00-44-10-02-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s tightly integrated condition monitoring architecture, this probe delivers the signal integrity and mechanical durability required to protect rotating machinery in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and marine propulsion systems.

In critical production environments where unplanned downtime carries six-figure hourly costs, the 330101-00-44-10-02-05 provides the front-line sensing reliability that safety interlock systems depend on. Its non-contact eddy-current measurement principle eliminates mechanical wear, ensuring consistent gap voltage output over extended service intervals without signal drift or calibration decay. This makes it the preferred replacement choice for maintenance engineers managing rotating equipment protection under API 670 and IEC 61511 functional safety frameworks.

Every unit shipped by KNMKS undergoes pre-shipment electrical and functional verification, confirming sensitivity coefficient, linear range, and output impedance before dispatch. Combined with a support terms confirmed by quotation and multi-region stock availability, this probe supports both emergency replacement scenarios and scheduled outage planning with equal confidence.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-44-10-02-05 probe is designed to integrate seamlessly into a complete Bently Nevada 3300 XL monitoring chain. In a properly configured control cabinet, the probe connects to a Bently Nevada 3300/16 proximitor/seismic monitor, which conditions the raw gap voltage signal into calibrated vibration and position data for the control system. The proximitor’s buffered output feeds directly into a Bently Nevada 3500/42M proximitor I/O module within the 3500 Series rack, enabling real-time alarm and danger setpoint management without interrupting the measurement loop.

For installations subject to high electromagnetic interference — common in variable frequency drive (VFD) environments, arc furnace proximity, or high-voltage switchgear cabinets — the probe’s shielded coaxial cable construction and the system’s differential signal architecture suppress common-mode noise before it reaches the monitor card. Pairing the probe with a Bently Nevada 330130 extension cable of matched impedance ensures the system’s sensitivity coefficient remains within factory specification across the full cable run, preventing the signal attenuation that causes false high-vibration alarms or missed danger events.

In safety-critical interlock loops, the probe’s output is often cross-validated against a redundant channel using a second 330101-series probe mounted at 90° on the same shaft journal. This X-Y proximity probe configuration, combined with a Bently Nevada 3300/55 dual-channel monitor, provides the orbital plot data required for API 670-compliant machinery protection. Where power supply integrity is paramount, a dedicated Bently Nevada 3500/15 power supply module with redundant input feeds isolates the monitoring rack from plant bus fluctuations, preventing nuisance trips caused by voltage sags during motor starts or capacitor bank switching events.

For facilities running Bently Nevada System 1 software, the probe’s real-time gap and vibration data streams directly into the predictive maintenance dashboard, enabling trend analysis that identifies bearing wear, rotor bow, and shaft misalignment weeks before they escalate to unplanned shutdowns.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 330101-00-44-10-02-05 is deployed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors — machinery where a single bearing failure can trigger a process safety event. The probe’s continuous, non-contact measurement provides the early warning margin that allows operators to execute a controlled shutdown rather than respond to an emergency trip.

In power generation, this probe monitors turbine shaft radial vibration and axial position on steam turbines, gas turbines, and hydro generators. Its wide operating temperature range and resistance to steam condensate ingress make it reliable in turbine hall environments where temperature cycling and humidity are constant challenges. The probe’s DC to 10,000 Hz frequency response captures both low-speed rotor dynamics and high-frequency blade-pass events in a single measurement channel.

In mining and mineral processing, the probe protects large ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump shafts operating in high-dust, high-vibration environments. Its IP67 rating and armored stainless steel cable withstand the abrasive particulate and wash-down conditions typical of concentrator buildings and crusher stations.

In water and wastewater treatment, the probe monitors high-speed centrifugal blowers and vertical turbine pumps in lift stations, where continuous operation is a regulatory requirement. Its low maintenance burden — no contact wear, no lubrication — aligns with the lean maintenance staffing models common in municipal utility operations.

In metallurgical and steel mill applications, the probe operates on rolling mill drive spindles, continuous caster pinch roll drives, and blast furnace top gas compressors, where thermal gradients and electromagnetic fields from induction heating systems create a hostile sensing environment that the 3300 XL’s shielded architecture is specifically designed to handle.

Safety and Quality FAQ

Q1: Does the 330101-00-44-10-02-05 come with a support terms, and what does it cover?
Yes. Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch from our multi-region stock.

Q2: What pre-shipment testing is performed on each unit?
Each probe undergoes electrical verification of sensitivity coefficient (target: 7.87 V/mm ±3%), linear range confirmation, and output impedance measurement before dispatch. Units that fall outside factory specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is this probe a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330101-00-44-10-02-05 is form, fit, and function compatible with all Bently Nevada 3300 XL proximitor/monitor systems. No recalibration of the monitor card is required provided the replacement probe uses the same cable length and target material as the original installation. Confirm the extension cable part number matches the original system configuration for full sensitivity compliance.

Q4: Can KNMKS support long-term or scheduled supply agreements for this SKU?
Yes. KNMKS maintains standing stock of the 330101-00-44-10-02-05 across multiple warehouse regions to support both emergency single-unit replacements and scheduled multi-unit procurement for planned outages and capital spares programs. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-44-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-44-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
