Bently Nevada 330101-00-44-05-02-CN Migration-Ready Proximity Probe

Overview

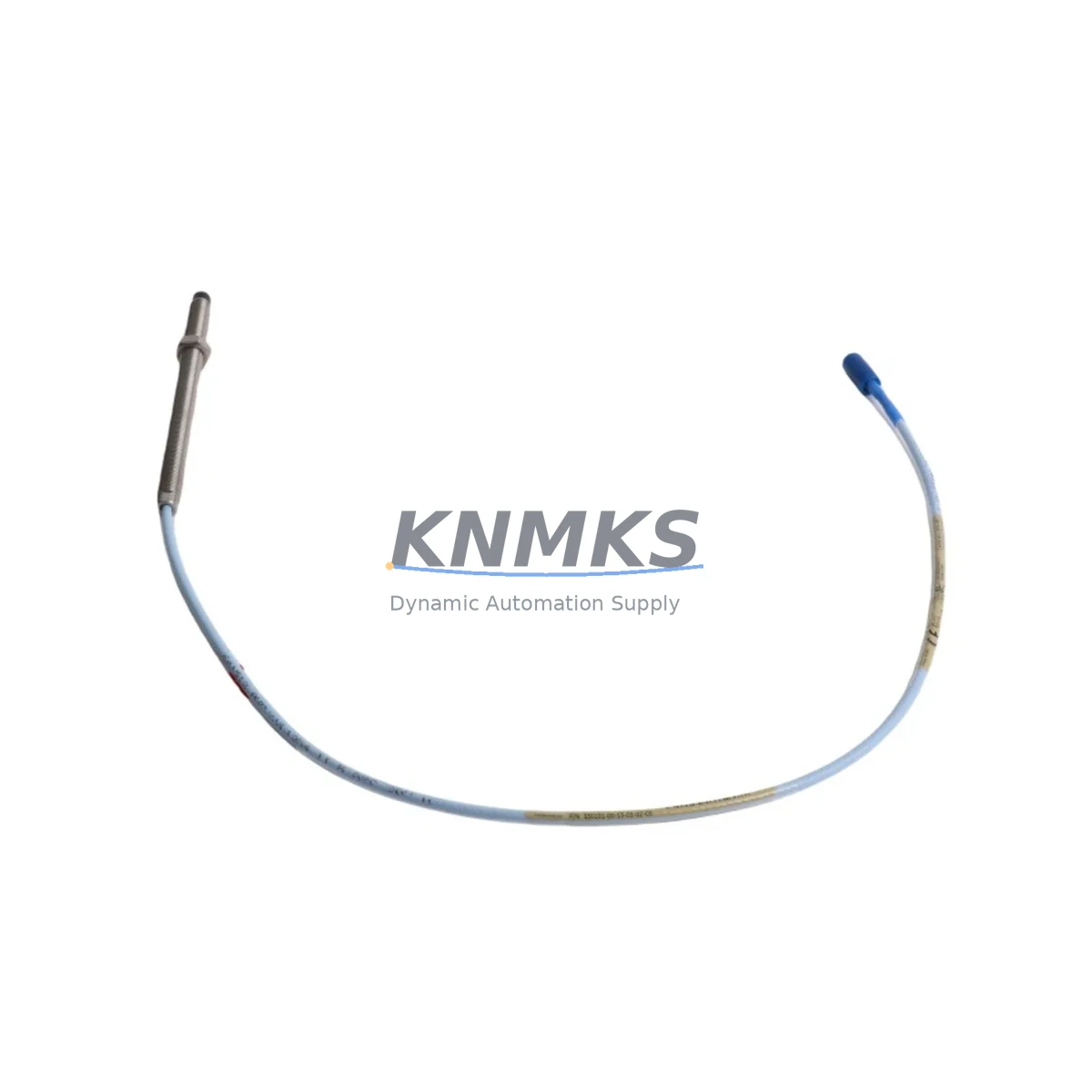

Bently Nevada 330101-00-44-05-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-44-05-02-CN is an 8mm proximity probe from the 3300 XL series, engineered for non-contact vibration and position measurement in rotating machinery applications. As legacy Bently Nevada 3300 series installations approach end-of-support milestones, maintenance engineers and reliability teams are increasingly sourcing migration-ready replacements that preserve existing wiring infrastructure, signal conditioning chains, and monitoring system configurations. The 330101-00-44-05-02-CN is a direct-fit retrofit candidate for plants running legacy 3300 series proximity systems, offering back-to-back dimensional compatibility, matched sensitivity output, and verified signal integrity for continuous machinery protection programs.

This probe is designed for use with the Bently Nevada 3300 XL proximitor/seismic transducer system. It operates as part of a three-component measurement chain — probe, extension cable, and proximitor — and is fully compatible with the standard 3300 XL 8mm proximitor (such as the 330180 series) and associated extension cables (330130 series). When replacing a legacy 330101 variant, engineers must confirm that the replacement probe’s cable length and connector type match the existing extension cable assembly to avoid signal attenuation or impedance mismatch at the proximitor input.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant requires a structured approach that accounts for the full measurement chain and the downstream monitoring system. The 330101-00-44-05-02-CN integrates into the 3300 XL transducer system alongside the 330130 series extension cable and the 330180 series proximitor. Before removing the legacy probe, engineers should document the existing gap voltage reading (typically –10 VDC ±0.2 V for a correctly gapped 8mm probe) and record the OK relay status at the 3500 series rack or equivalent monitoring system. This baseline allows rapid verification after the replacement probe is installed and gapped.

In plants where the Bently Nevada 3500 series machinery protection rack is the primary monitoring platform, the probe replacement does not require any rack reconfiguration, channel reassignment, or software modification — provided the replacement probe’s sensitivity and cable length match the original specification. However, if the retrofit is part of a broader migration from a legacy 3300 rack to a 3500/22M or 3500/42M monitor, engineers must also account for the updated I/O module wiring, revised alarm setpoint configuration in System 1 software, and any changes to the Modbus or OPC-DA communication links feeding the plant DCS or SCADA historian.

For plants running Emerson Ovation DCS or Honeywell Experion PKS as the supervisory layer, the proximity probe signal is typically conditioned at the 3500 rack level and transmitted as a 4–20 mA or digital Modbus value to the DCS I/O card. The probe replacement itself does not affect this interface, but the commissioning team should verify that the DCS tag associated with the vibration channel continues to receive a valid signal within the expected engineering unit range after the new probe is gapped and the OK relay is confirmed healthy. If the plant uses a Bently Nevada 3300 RAM (Rack Adapter Module) for legacy integration, the adapter’s channel mapping should be reviewed as part of the retrofit checklist.

In multi-machine trains — such as compressor or turbine strings where multiple 330101 probes monitor X-Y shaft vibration — it is common practice to replace probes in pairs to maintain consistent sensitivity matching across the measurement plane. The 330130 extension cable assembly and the 330180 proximitor should be inspected for connector wear, cable jacket integrity, and proximitor output voltage stability before the new probe is installed. If the proximitor is also at end-of-life, a simultaneous replacement of the full three-component chain (probe + extension cable + proximitor) is recommended to avoid a second planned outage within a short maintenance window.

Downtime Control During System Migration

Proximity probe replacement on rotating machinery typically requires a planned shutdown of the monitored machine, but the duration of the outage can be minimized with thorough pre-work. Before the maintenance window opens, the replacement 330101-00-44-05-02-CN probe should be bench-tested against a reference proximitor to confirm sensitivity output and OK relay behavior. The extension cable connector should be inspected and the probe tip cleaned. A pre-cut gap setting tool or feeler gauge sized for the target gap (typically 1.0–1.5 mm for an 8mm probe, depending on shaft material) should be prepared in advance.

During the outage, the sequence should follow: isolate the monitoring channel at the 3500 rack (bypass alarm, do not defeat the OK relay permanently), remove the legacy probe, install the replacement probe finger-tight, set the gap voltage to the target value using the proximitor output as a reference, lock the probe in position with the locknut, and restore the monitoring channel. The full procedure — from channel bypass to alarm restoration — can typically be completed in under 30 minutes per probe when the replacement unit has been pre-verified and the gap tool is prepared. This approach protects the original program logic in the 3500 rack, preserves the DCS tag mapping, and maintains field control continuity throughout the maintenance window.

For plants where the proximity probe feeds a trip circuit (e.g., high-high vibration trip in a turbine protection system), the bypass procedure must be coordinated with the control room operator and documented in the permit-to-work system. The replacement probe should be verified against the trip setpoint before the bypass is removed to confirm that the new probe’s output is within the normal operating band and will not trigger a spurious trip on channel restoration.

Retrofit Support FAQ

Q1: Is the 330101-00-44-05-02-CN a direct replacement for other 330101 suffix variants?
The 330101 base part number covers a family of 8mm proximity probes with varying cable lengths and connector configurations. The suffix encodes cable length, connector type, and housing material. Before ordering, confirm that the full suffix of the replacement matches the legacy probe’s suffix — particularly the cable length (positions 3–4 in the suffix) and the connector type (position 5). If the suffix differs, the extension cable assembly (330130 series) may also need to be replaced to maintain impedance matching at the proximitor input.

Q2: What commissioning checks are required after installation?
After gapping the probe to the target gap voltage (typically –10 VDC ±0.2 V at the proximitor output), verify the OK relay status at the 3500 rack monitor, confirm the vibration channel reading is within the expected baseline range for the machine at rest, and check that the DCS or SCADA tag associated with the channel is receiving a valid signal. If the plant uses System 1 software for machinery diagnostics, confirm that the channel trend is updating correctly and that no latched alarms remain active from the bypass period.

Q3: Can this probe be used with non-Bently Nevada monitoring systems?
The 330101-00-44-05-02-CN is designed for use with the Bently Nevada 3300 XL proximitor system. Its output characteristics (sensitivity, bias voltage, OK relay behavior) are matched to the 330180 series proximitor. Use with third-party signal conditioners is possible if the conditioner is designed to accept a 200 mV/mil sensitivity probe with a standard coaxial input, but compatibility must be verified against the conditioner’s input specification. KNMKS recommends using the probe within the validated Bently Nevada measurement chain for critical machinery protection applications.

Q4: What does the support terms confirmed by quotation cover, and how is stock availability managed?
All units supplied by KNMKS are tested for sensitivity output, OK relay function, and connector integrity before shipment. The support terms confirmed by quotation cover manufacturing defects and verified performance against the published specification. KNMKS maintains regional inventory to support urgent replacement requirements and can provide expedited shipment for planned outage windows. Contact [email protected] or +86 18359268345 to confirm current stock availability and lead time for the 330101-00-44-05-02-CN and associated 330130 extension cable or 330180 proximitor units.
