Bently Nevada 330101-00-43-15-02-CN Maintenance-Proven Spare

Overview

Bently Nevada 330101-00-43-15-02-CN Maintenance-Proven Spare Part for Factory Uptime

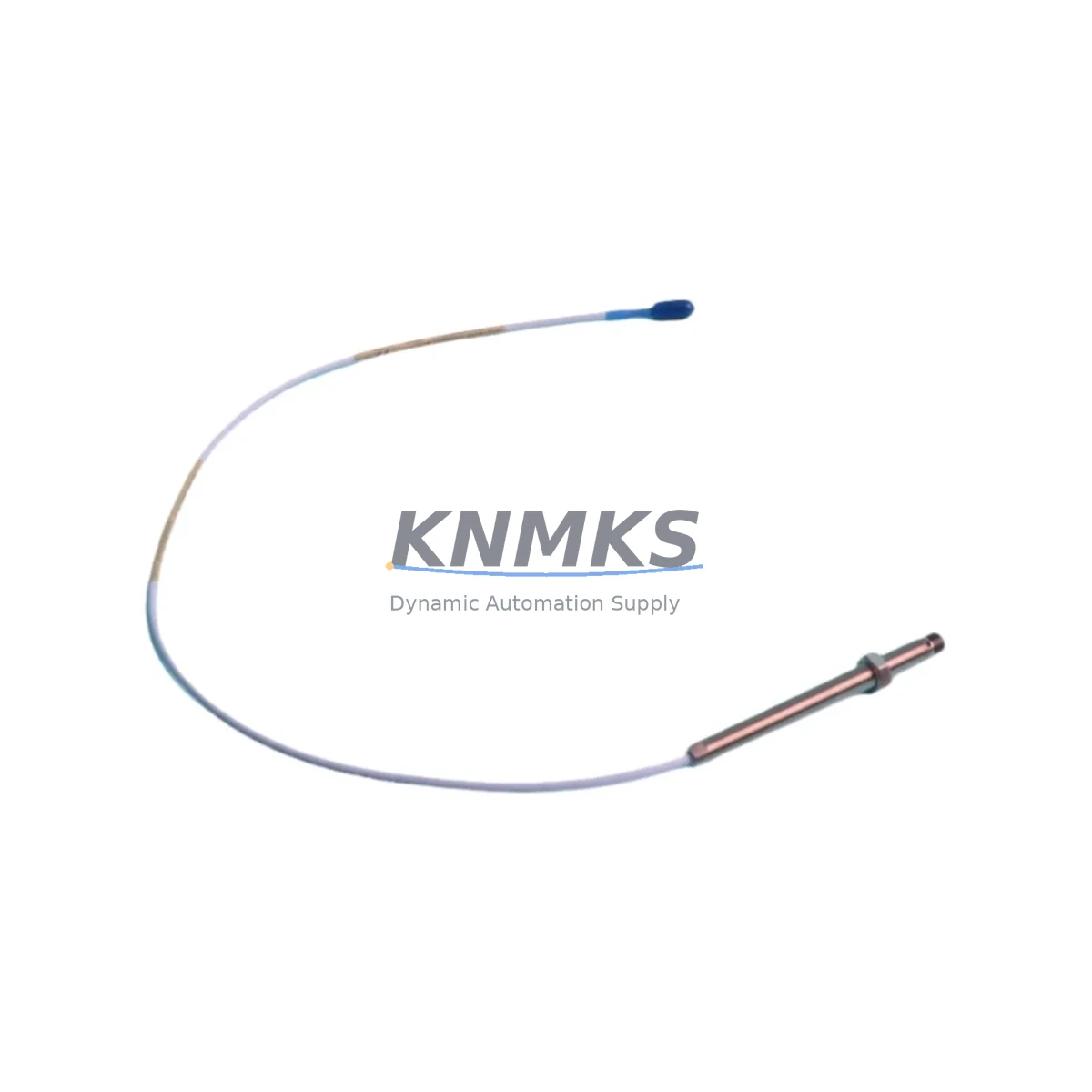

The Bently Nevada 330101-00-43-15-02-CN is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system. As a critical sensing element in rotating machinery protection, this probe is widely deployed in turbines, compressors, pumps, and gearboxes across energy, petrochemical, and heavy manufacturing facilities. Sourced as an original spare part, the 330101-00-43-15-02-CN is tested before shipment and backed by a support terms confirmed by quotation, ensuring reliable drop-in replacement with zero system reconfiguration.

For maintenance engineers managing aging DCS or vibration monitoring infrastructure, having a verified spare of the 330101-00-43-15-02-CN on the shelf is a fundamental risk-reduction strategy. Proximity probe failures are among the leading causes of unplanned machinery shutdowns. A pre-qualified replacement unit eliminates the lead-time risk that turns a two-hour swap into a multi-day outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-43-15-02-CN in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to inspect the entire vibration monitoring loop. The 3300 XL Proximitor Sensor (typically the 330180 series) should be checked for output voltage drift and connector corrosion — a degraded proximitor will produce erroneous readings even with a new probe installed. Verify the proximitor supply voltage is within the specified –24 VDC range before reconnecting the probe cable.

The 3300 XL Monitor (such as the 3300/16 or 3300/20 series) should be inspected for alarm setpoint integrity and channel configuration. A probe replacement is the right moment to confirm that OK relay outputs and danger setpoints have not drifted from the original commissioning values. If the monitor card shows any fault LED history, consider stocking a spare monitor module alongside the probe.

Inspect the integral extension cable and any field-installed 3300 XL Extension Cable (330130 series) for jacket abrasion, connector pin damage, and shield continuity. Cable degradation is a frequent root cause of intermittent vibration signal faults that are misdiagnosed as probe failures. Ensure all cable routing is clear of high-temperature surfaces and mechanical contact points.

At the cabinet level, check the 3300 XL Power Supply module for output ripple and voltage stability. An unstable supply rail will introduce noise into the proximity measurement chain and can cause nuisance trips. If the cabinet also houses 3500 Series machinery protection modules or Bently Nevada 3300/55 position monitors, verify that their power rails are isolated and that no ground loops exist between monitoring channels.

For facilities running mixed instrumentation, confirm that any signal isolators or barriers in the probe circuit — particularly in hazardous area installations — are rated for the 3300 XL signal range and have not exceeded their service life. Zener barriers and galvanic isolators should be part of the annual inspection checklist whenever a proximity probe is replaced.

Procurement engineers should note that the 330101-00-43-15-02-CN is a long-lifecycle part with a stable supply chain through verified supply channels. Establishing a minimum stock level of two units per critical machine train is a widely adopted practice in petrochemical and power generation facilities to cover both planned annual overhauls and emergency replacements.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring channel is bypassed or in maintenance mode at the 3300 XL Monitor to prevent spurious trips during probe removal.

Step 2 — Probe Removal: Disconnect the coaxial connector at the proximitor. Unthread the probe from the bracket using the correct spanner. Note the gap distance setting (typically 50 mil / 1.27 mm for standard steel targets) for reference during reinstallation.

Step 3 — New Probe Installation: Thread the 330101-00-43-15-02-CN into the bracket. Set the gap using a non-ferrous feeler gauge or a calibrated gap meter. Reconnect the coaxial connector — ensure the CN connector is fully seated and the locking sleeve is engaged.

Step 4 — System Verification: With the machine still at rest, verify the proximitor output voltage is within the linear range (typically –10 VDC ±1 VDC at nominal gap). Confirm the 3300 XL Monitor displays a valid OK status and that the channel is reading within expected static gap voltage.

Step 5 — Return to Service: Remove the maintenance bypass, restore normal monitoring mode, and document the replacement in the site maintenance management system (CMMS). Record the new probe serial number, installation date, and gap setting for future reference.

This workflow is compatible with direct replacement of legacy 330101 series probes and does not require reconfiguration of the 3300 XL Monitor or Proximitor, preserving system compatibility and minimizing downtime to under two hours for a trained technician.

Spare Parts Support FAQ

Q1: Is the 330101-00-43-15-02-CN a direct replacement for older 330101 series probes?
Yes. The 330101-00-43-15-02-CN is dimensionally and electrically compatible with earlier 330101 series proximity probes used in 3300 XL systems. No monitor reconfiguration is required for a like-for-like swap, provided the target material and gap setting are maintained.

Q2: How is the part tested before shipment?
Each unit undergoes output voltage verification, connector integrity check, and cable continuity test prior to dispatch. A test report is available upon request. Parts are shipped in anti-static, padded packaging to prevent transit damage.

Q3: What is the support terms coverage and what does it include?
All 330101-00-43-15-02-CN units carry a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects, electrical failure under normal operating conditions, and connector integrity. Support requests are supported with replacement or documented resolution support, subject to inspection.

Q4: Can long-term supply commitments be arranged for annual overhaul programs?
Yes. For facilities requiring scheduled annual quantities or multi-year supply agreements, contact our sales team to discuss blanket order arrangements, reserved stock allocation, and priority dispatch terms. Long-term supply contracts are available for critical spare parts with stable demand profiles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-43-15-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-43-15-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
